Transporto priemonė: OH 1625 L MBSA; VIN numerio dalis: 396478
Grupė: 52 CHASSIS SHEET METAL
| # | Kodas | Pavadinimas |
|---|---|---|

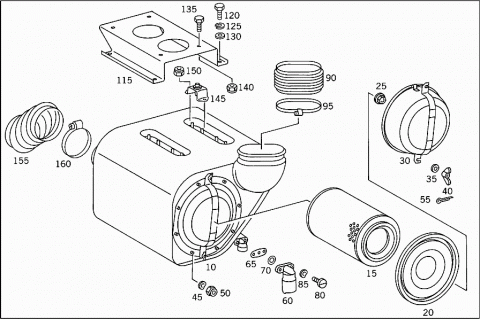

| 010 | A 0110947002 | AIR CLEANER |
| 015 | A 0010944704 | FILTER ELEMENT |
| 020 | A 0010943206 | COVER |
| 025 | A 0009901550 | NUT |
| 030 | A 0000947503 | FILTER BOWL |
| 035 | N 000125010518 | WASHER |
| 040 | N 000315008006 | NUT |
| 045 | N 000137008204 | SPRING WASHER |
| 050 | N 913004008004 | NUT |
| 055 | N 000094003219 | COTTER PIN |
| 060 | A 0000941868 | MAINTENANCE INDICATOR |
| 065 | A 0010941180 | GASKET |
| 070 | A 0000940276 | WASHER |
| FELT | ||
| 080 | N 000084006137 | SCREW |
| 085 | N 000137006204 | SPRING WASHER |
| 090 | A 3015280182 | HOSE |
| AIR INTAKE | ||
| 095 | N 916017160000 | CLAMP |
| HOSE TO AIR INTAKE PIPE | ||
| 115 | A 3965200041 | BRACKET |
| AIR CLEANER | ||
| 120 | N 000933008212 | SCREW |
| AIR CLEANER TO BRACKET | ||
| 125 | N 912004008102 | LOCK WASHER |
| AIR CLEANER TO BRACKET | ||
| 130 | N 000125008418 | WASHER |
| AIR CLEANER TO BRACKET | ||
| 135 | N 000933008212 | SCREW |
| BRACKET TO APPARATUS SUPPORT | ||
| 140 | N 913004008004 | NUT |
| BRACKET TO APPARATUS SUPPORT | ||
| 145 | A 0009885511 | BUFFER |
| AIR CLEANER | ||
| 150 | N 913004008004 | NUT |
| BUFFER TO AIR CLEANER | ||
| 155 | A 3965280082 | HOSE |
| FROM AIR CLEANER TO INTAKE PIPE | ||
| 160 | N 916017130000 | CLAMP |
| HOSE TO AIR CLEANER AND TO INTAKE PIPE | ||

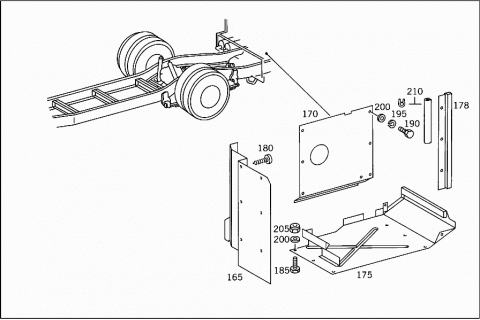

| 165 | A 3965200175 | PANELLING |
| FRONT | ||
| 170 | A 3965240030 | PANELLING |
| ENGINE | ||
| 175 | A 3965200075 | PANELLING |
| BOTTOM | ||
| 175 | A 3965200275 | PANELLING |
| BOTTOM | ||
| 178 | A 3965200375 | PANELLING |
| CIRCULATING AIR | ||
| 180 | N 007981005211 | SHEET METAL SCREW |
| FRONT PANELLING TO APPARATUS SUPPORT | ||
| 185 | N 000933006183 | SCREW |
| BOTTOM PANELLING TO APPARATUS SUPPORT | ||
| 190 | N 000933006207 | SCREW |
| PANELLING TO APPARATUS SUPPORT & FRONT PANELLING | ||
| 195 | N 912004006102 | LOCK WASHER |
| PANELLING TO APPARATUS SUPPORT & FRONT PANELLING | ||
| 200 | N 000125006421 | WASHER |
| PANELLING TO APPARATUS SUPPORT & FRONT PANELLING | ||
| 200 | N 000125006421 | WASHER |
| BOTTOM PANELLING TO APPARATUS SUPPORT | ||
| 205 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 205 | N 913004006001 | NUT |
| BOTTOM PANELLING TO APPARATUS SUPPORT | ||
| 210 | A 0009873272 | EDGE GUARD SECTION |
| Repalced by: A 0029873572 | ||
| 210 | A 0029873572 | EDGE GUARD SECTION |
