Transporto priemonė: OH 1625 L MBSA; VIN numerio dalis: 396478

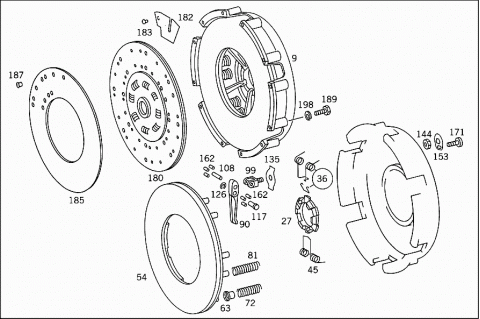

Grupė: 25 CLUTCH
| # | Kodas | Pavadinimas |
|---|---|---|
| 009 | A 0032507004 | CLUTCH PRESSURE PLATE |
| 027 | A 0002521245 | FLANGE |
| 036 | A 0002523227 | SPRING |
| SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING | ||
| 036 | A 0002524027 | SPRING |
| SUSPENDED BELOW LEAF SPRING | ||
| 045 | A 0002520727 | SPRING |
| SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING | ||
| 045 | A 0002523927 | SPRING |
| SUSPENDED BELOW LEAF SPRING | ||
| 054 | A 0002524912 | PRESSURE PLATE |
| 063 | A 0002520535 | SLEEVE |
| 072 | A 0002524320 | PRESSURE SPRING |
| 081 | A 0002524420 | PRESSURE SPRING |
| 090 | A 0002524613 | RELEASE LEVER |
| 099 | A 0002522614 | BRACKET |
| FOR RELEASE LEVERS | ||
| 108 | A 0002522216 | SPINDLE |
| FOR BRACKETS | ||
| 117 | A 0002523116 | SPINDLE |
| FOR BRACKETS | ||
| 126 | N 006799007007 | LOCK PLATE |
| 135 | A 0002520519 | LEAF SPRING |
| THIGH SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING | ||
| 135 | A 0002523719 | LEAF SPRING |
| THIGH SPRING SUSPENDED BELOW LEAF SPRING | ||
| 144 | A 0002523072 | NUT |
| 153 | A 0002521073 | LOCK |
| 162 | A 0002520118 | ROLLER |
| 171 | A 0002522971 | SCREW |
| 180 | A 0062508703 | CLUTCH DISC |
| Repalced by: A 0122502603 | ||
| 180 | A 0122502603 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 180 | A 0052502103 | CLUTCH DISC |
| 182 | A 0002523319 | LEAF SPRING |
| Repalced by: A 0002523919 | ||
| 182 | A 0002523919 | LEAF SPRING |
| 183 | A 0002522075 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| 5X6 MM | ||
| 183 | A 0002523975 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| 6X6 MM | ||
| 185 | A 0012523310 | CLUTCH LINING |
| Repalced by: A 0012528310 | ||
| 185 | A 0012528310 | CLUTCH LINING |
| ASBESTOS-FREE | ||
| 185 | A 0012522010 | CLUTCH LINING |
| 187 | A 0002523375 | RIVET |
| Repalced by: A 0002523775 | ||
| 187 | A 0002523775 | RIVET |
| Repalced by: A 0002524675 | ||
| 187 | A 0002524675 | RIVET |
| Repalced by: A 0002524875 | ||
| 187 | A 0002524875 | RIVET |
| LINING WITH CLUTCH DISC AND INTERMEDIATE SPRING | ||
| 189 | N 000931010239 | SCREW |
| CLUTCH TO FLYWHEEL | ||
| 198 | N 912004010102 | LOCK WASHER |
| CLUTCH TO FLYWHEEL | ||
| 216 | A 6202510701 | BELL HOUSING |
| Repalced by: A 6202511601 | ||
| 216 | A 6202511601 | BELL HOUSING |
| 220 | A 6202500214 | SHAFT |
| (PARTS KIT),RELEASE SHAFT | ||
| A 6202540207 | SHAFT | |
| (CLUTCH RELEASE SHAFT) | ||
| 234 | N 914112010025 | SCREW |
| CLUTCH RELEASE SHAFT TO BELL HOUSING | ||
| 234 | N 914112010025 | SCREW |
| CLUTCH RELEASE SHAFT TO BELL HOUSING | ||
| 252 | A 6202540308 | RELEASE LEVER |
| Repalced by: A 6202540508 | ||
| 252 | A 6202540508 | RELEASE LEVER |
| 261 | A 0099810410 | NEEDLE BEARING |
| RELEASE LEVER | ||
| 270 | A 0079978847 | SEAL RING |
| RELEASE LEVER | ||
| 279 | N 001481005044 | CLAMPING SLEEVE |
| RELEASE LEVER TO SHAFT | ||
| 288 | A 0009968740 | ROD END |
| CLUTCH ACTUATION | ||
| 297 | A 0019972141 | SEAL RING |
| ROD END TO RELEASE LEVER | ||
| 306 | A 6202560074 | PIN |
| ROD END TO RELEASE LEVER | ||
| 315 | N 000471012001 | LOCK RING |
| ROD END TO RELEASE LEVER | ||
| 324 | N 000960018111 | SCREW |
| BELL HOUSING TO TRANSMISSION | ||
| 333 | N 912004018101 | LOCK WASHER |
| BELL HOUSING TO TRANSMISSION | ||
| 342 | N 000931010264 | SCREW |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| 351 | N 000125010518 | WASHER |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| 369 | A 0002507615 | RELEASE BEARING |
| 378 | A 6209930125 | SPRING |
| RELEASE BEARING TO RELEASE LEVER | ||
| 387 | N 071428004102 | SCREW-IN FITTING |
| RELEASE BEARING LUBRICATION | ||
| 396 | A 3205730036 | HOSE |
| RELEASE BEARING LUBRICATION | ||
| 405 | N 003871004102 | UNION SCREW |
| RELEASE BEARING LUBRICATION | ||
| 414 | N 003862004001 | DOUBLE TAPER RING |
| RELEASE BEARING LUBRICATION | ||
| 423 | A 3072510208 | INTERMEDIATE PIECE |
| RELEASE BEARING LUBRICATION | ||
| 432 | N 912004014100 | LOCK WASHER |
| RELEASE BEARING LUBRICATION | ||
| 441 | N 000439014206 | NUT |
| RELEASE BEARING LUBRICATION | ||
| 450 | N 003411002001 | GREASE CUP |
| RELEASE BEARING LUBRICATION | ||
| 459 | A 6202520171 | SCREW |
| WEAR INDICATOR | ||
| 461 | A 0139971448 | SEAL RING |
| 468 | A 6202540074 | PIN |
| WEAR INDICATOR | ||
| 477 | N 002098001028 | SPRING |
| WEAR INDICATOR | ||
| 486 | N 000433008406 | WASHER |
| WEAR INDICATOR | ||
| 495 | N 912009008100 | SNAP RING |
| WEAR INDICATOR | ||
| 504 | N 080705020001 | NUT |
| WEAR INDICATOR | ||
| 513 | A 0019880835 | CAP |
| WEAR INDICATOR | ||
| 531 | A 0012954407 | SLAVE CYLINDER |
| CLUTCH ACTUATION | ||
| 540 | A 3075530107 | VALVE |
| BREATHER | ||
| 549 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 549 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 549 | A 0004210887 | PROTECTIVE CAP |
| 567 | A 0002954883 | BOOT |
| Repalced by: A 0002956083 | ||
| 567 | A 0002956083 | BOOT |
| 585 | A 0002901267 | REPAIR KIT |
| Repalced by: A 0002904067 | ||
| 585 | A 0002904067 | REPAIR KIT |
| CLUTCH SLAVE CYLINDER | ||
| 594 | N 000933010105 | SCREW |
| SLAVE CYLINDER TO BELL HOUSING | ||
| 599 | A 3962950045 | FLANGE |
| 599 | A 3962950145 | FLANGE |
| 605 | N 914126010054 | SCREW |
| INTERMEDIATE FLANGE TO BELL HOUSING | ||
| 611 | A 0002950018 | CLUTCH BOOSTER |
| 617 | A 0002956983 | BOOT |
| 623 | A 0002951020 | VALVE |
| Repalced by: A 6314230065 | ||
| 623 | A 6314230065 | BLEEDER VALVE |
| 629 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 629 | A 0004210887 | PROTECTIVE CAP |
| 635 | N 000933008212 | SCREW |
| CLUTCH BOOSTER TO INTERMEDIATE FLANGE | ||
| 641 | A 0109975982 | HOSE |
| Repalced by: A 0009872827 | ||
| 641 | A 0009872827 | PLASTIC PIPE |
| 9X12 MM | ||
| 641 | A 0009872827 | PLASTIC PIPE |
| CLUTCH BOOSTER | ||
| 9X12 MM | ||
| 647 | A 0029906171 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| N 915052009005 | BANJO UNION | |
| Repalced by: N 915052009009 | ||
| 659 | N 915052009009 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 9/16 MM | ||
| 665 | N 915036012203 | HOLLOW SCREW |
| CLUTCH BOOSTER;CONNECTION: | ||
| "24" | ||
| 671 | N 007603016400 | SEAL RING |
| CLUTCH BOOSTER;CONNECTION: | ||
| "24" | ||
| 677 | A 0065427117 | SENDER UNIT |
| OVERREVVING | ||
