Transporto priemonė: OH 1625 L MBSA; VIN numerio dalis: 396478

Grupė: 30 CONTROL

#	Kodas	Pavadinimas

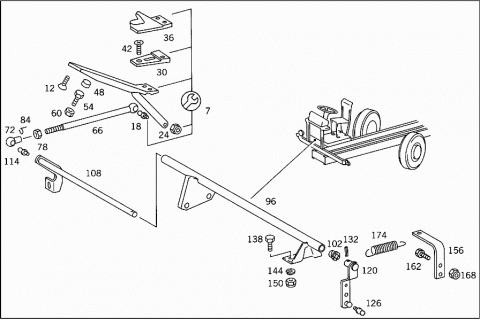

007	A 6243000304	ACCELERATOR PEDAL
		PARTS KIT
	A 6153000104	PAD
		ACCELERATOR PEDAL
012	N 007991005007	SCREW
		ACCELERATOR PEDAL
018	A 0009911015	BALL PIVOT
		ACCELERATOR PEDAL
024	N 913004006002	NUT
	Repalced by: N 913004006001
024	N 913004006001	NUT
		BALL PIVOT TO ACCELERATOR PEDAL
030	A 6153010084	SHIM
		ACCELERATOR PEDAL
036	A 6153010097	BOOT
		ACCELERATOR PEDAL
042	N 000965006014	SCREW
		ACCELERATOR PEDAL TO FLOOR PLATE
		M 6X16
042	N 000965006003	SCREW
		ACCELERATOR PEDAL TO FLOOR PLATE
		M 6X25
	A 6553010093	GUIDE RAIL
		ACCELERATOR PEDAL TO FLOOR PLATE
	N 000965006077	SCREW
		GUIDE RAIL RETROFIT
048	A 3813010041	STOP
		ACCELERATOR PEDAL
054	N 000931008254	SCREW
		ACCELERATOR PEDAL
060	N 000934008010	NUT
		ACCELERATOR PEDAL
066	A 3963002315	ROD
		FROM ACCELERATOR PEDAL TO CONTROL SHAFT BEARING
072	A 0009912422	BALL SOCKET
		FROM ACCELERATOR PEDAL TO CONTROL SHAFT BEARING
078	N 000934006007	NUT
		FROM ACCELERATOR PEDAL TO CONTROL SHAFT BEARING
084	N 071805010403	SECURING CLIP
		FROM ACCELERATOR PEDAL TO CONTROL SHAFT BEARING
096	A 3963000221	BEARING TUBE
		CONTROL SHAFT
102	A 3813020050	BUSHING
		BEARING TUBE
108	A 3963000220	SHAFT
		CONTROL
114	N 071803010206	BALL PIVOT
120	A 3963000725	LEVER
		CONTROL
126	N 071803013208	BALL PIVOT
132	N 001481004017	CLAMPING SLEEVE
		LEVER TO SHAFT
138	N 000933008154	SCREW
		BEARING TUBE TO SIDE MEMBER
138	N 000933010238	SCREW
		BEARING TUBE TO STEERING
144	N 912004010102	LOCK WASHER
		BEARING TUBE TO STEERING
150	N 913004008004	NUT
		BEARING TUBE TO SIDE MEMBER
156	A 3963010740	BRACKET
		RELEASE SPRING
162	N 000933008153	SCREW
		BRACKET TO FRAME
168	N 913004008004	NUT
		BRACKET TO FRAME
174	A 3059930810	SPRING
		ACCELERATOR PEDAL RESET

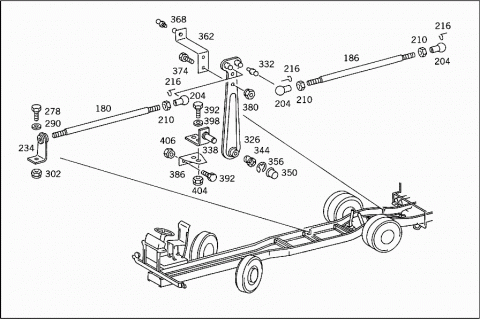

180	A 3963001015	ROD
		FROM CONTROL SHAFT BEARING TO INTERMEDIATE LEVER
		NO.1,3470 MM
180	A 3963000915	ROD
		FROM CONTROL SHAFT BEARING TO INTERMEDIATE LEVER
		NO.1,2470 MM
186	A 3963001115	ROD
		FROM INTERMEDIATE LEVER I TO INTERMEDIATE LEVER II
		NO.2,3985 MM
192	A 3963000815	ROD
		FROM INTERMEDIATE LEVER II TO INTERMEDIATE LEVER III
		NO.3,1820 MM
198	A 3963000715	ROD
		FROM INTERMEDIATE LEVER III TO ENGINE CONTROL LEVER
		NO.4,1680 MM
204	A 4069910022	BALL SOCKET
		ROD
210	N 000934008010	NUT
		BALL SOCKET TO ROD
216	N 071805013402	SECURING CLIP
		ROD TO LEVER

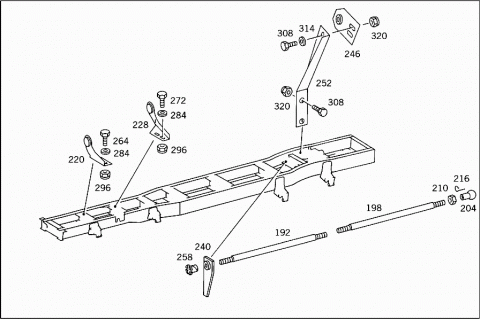

220	A 3963000040	BRACKET
		ON ROD:
		NO.1
	A 3963000240	BRACKET
		ON ROD:
		NO.1
228	A 3963001040	BRACKET
		ON ROD:
		NO.1
234	A 3963000140	BRACKET
		ON ROD:
		NO.2
240	A 3963000640	BRACKET
		ON ROD:
		NO.3
	A 3963001140	BRACKET
		ON ROD:
		NO.3
246	A 3963000540	BRACKET
		ON ROD:
		NO.4
252	A 3963010540	BRACKET
		PULL ROD BRACKET
252	A 3963000940	BRACKET
		PULL ROD BRACKET
258	A 3963010050	BUSHING
		BRACKET
264	N 000933008154	SCREW
		BRACKET TO CROSS MEMBER:
		NO.2,NO.6,NO.7
272	N 000933008154	SCREW
		BRACKET TO CROSS MEMBER:
		NO.3
278	N 000961012151	SCREW
		BRACKET TO CROSS MEMBER:
		NO.9
284	N 000125008418	WASHER
		BRACKET TO CROSS MEMBER:
		NO.2,NO.3,NO.6,NO.7
290	N 000125006421	WASHER
		BRACKET TO CROSS MEMBER:
		NO.9
296	N 913004008004	NUT
		BRACKET TO CROSS MEMBER:
		NO.2,NO.3,NO.6,NO.7
302	N 913004012008	NUT
		BRACKET TO CROSS MEMBER:
		NO.9
308	N 000933008154	SCREW
		BRACKET TO BRACKET
308	N 000933012077	SCREW
		REAR BRACKET TO SIDE MEMBER
314	N 000125008418	WASHER
		BRACKET TO BRACKET
320	N 913004008004	NUT
		BRACKET TO BRACKET
320	N 913004012004	NUT
		REAR BRACKET TO SIDE MEMBER
326	A 3963000225	LEVER
		(INTERMEDIATE LEVER)
332	N 071803013208	BALL PIVOT
338	A 3963000240	BRACKET
		INTERMEDIATE LEVER
344	A 3813020050	BUSHING
		INTERMEDIATE LEVER
350	A 6153010088	COVERING
		LEVER TO LEVER
356	N 006799010001	LOCK PLATE
		LEVER TO LEVER
362	A 3963000525	LEVER
		INTERMEDIATE LEVER
368	N 071803013208	BALL PIVOT
374	N 000933006183	SCREW
		LEVER TO LEVER
380	N 913004006002	NUT
	Repalced by: N 913004006001
380	N 913004006001	NUT
		LEVER TO LEVER
386	A 3963010244	ANGLE
		INTERMEDIATE LEVER
392	N 000933008154	SCREW
		ANGLE TO CROSS MEMBER
392	N 000933008154	SCREW
		LEVER TO CROSS MEMBER
392	N 000933010145	SCREW
		LEVER TO FRAME
398	N 000125008418	WASHER
		LEVER TO CROSS MEMBER
404	N 913004008004	NUT
		ANGLE AND LEVER TO CROSS MEMBER
406	N 913004010008	NUT
		LEVER TO FRAME

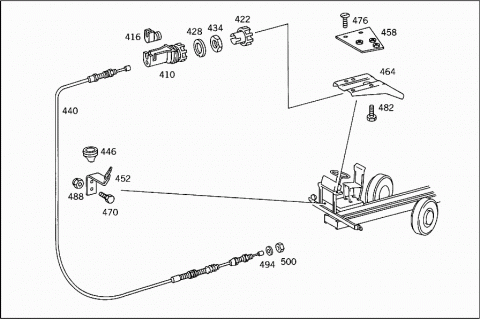

410	A 3813000326	MANUAL CONTROL
		IDLING ADJUSTMENT
416	A 3813020108	GUIDE
		IDLING ADJUSTMENT
422	A 6153020001	KNOB
		IDLING ADJUSTMENT
428	N 000988030003	FITTED WASHER
		IDLING ADJUSTMENT
434	A 3819900051	NUT
		IDLING ADJUSTMENT
440	A 3963000030	WIRE CABLE
		IDLING ADJUSTMENT
446	A 3819970881	GROMMET
		WIRE CABLE THRU FIRE WALL
452	A 3963020040	BRACKET
		MANUAL CONTROL
	A 3963020240	BRACKET
		MANUAL CONTROL
458	A 3963000440	BRACKET
		MANUAL CONTROL
464	A 3813020240	BRACKET
		MANUAL CONTROL
470	N 000933006121	SCREW
		BRACKET TO CROSS MEMBER
476	N 000963006001	SCREW
		BRACKET TO WINDOW SILL GIRDER
482	N 000933006103	SCREW
		BRACKET TO ACCELERATOR CONTROL BRACKET
488	N 913004006002	NUT
	Repalced by: N 913004006001
488	N 913004006001	NUT
		BRACKET TO CROSS MEMBER
494	N 006319008301	SPHERICAL WASHER
		WIRE CABLE TO ENGINE CONTROL LEVER
500	N 000439008201	NUT
		WIRE CABLE TO ENGINE CONTROL LEVER
