Transporto priemonė: OH 1625 L MBSA; VIN numerio dalis: 396478
Grupė: 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS

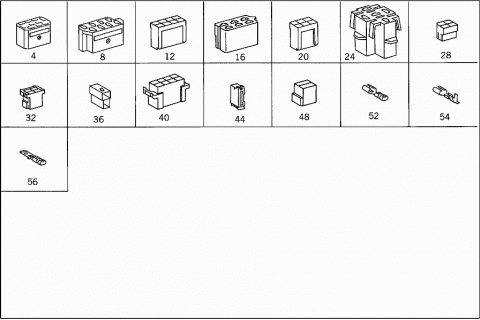

| # | Kodas | Pavadinimas |
|---|---|---|
| A 0065455528 | PIN BUSHING HOUSING | |
| 10-POLE | ||
| 004 | A 6115450128 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 008 | A 6115450028 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 012 | A 0015458328 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 016 | A 0055458428 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 020 | A 0075450528 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 024 | A 0065450728 | PIN BUSHING HOUSING |
| 5-POLE | ||
| 028 | A 0015458428 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 032 | A 0015454128 | PIN BUSHING HOUSING |
| 4-POLE | ||
| A 0105457128 | PIN BUSHING HOUSING | |
| 3-POLE | ||
| A 0055456428 | PIN BUSHING HOUSING | |
| 3-POLE | ||
| 036 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| A 0025451128 | PIN BUSHING HOUSING | |
| UNIPOLAR | ||
| 040 | A 0015458228 | PLUG HOUSING |
| 8-POLE | ||
| 044 | A 3575450028 | PLUG HOUSING |
| 8-POLE | ||
| A 0115452728 | PLUG HOUSING | |
| 5-POLE | ||
| 048 | A 0025451228 | PLUG HOUSING |
| 4-POLE | ||
| A 0115452628 | PLUG HOUSING | |
| 4-POLE | ||
| A 0055456628 | PLUG HOUSING | |
| 3-POLE | ||
| A 0015457928 | PIN BUSHING HOUSING | |
| BIPOLAR | ||
| A 0075455928 | PLUG HOUSING | |
| BIPOLAR | ||
| A 0025451328 | PIN BUSHING HOUSING | |
| UNIPOLAR | ||
| A 0015456726 | PLUG SOCKET | |
| (PLUG HOUSING) | ||
| A 0015456626 | PLUG SOCKET | |
| (PLUG INSERT) | ||
| 052 | A 0005453726 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 052 | A 0005453826 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 052 | A 0005454026 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 052 | A 0025454026 | FLAT PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 054 | A 0015454826 | ROUND PIN BUSHING |
| LESS DETENT | ||
| 0.75-2.5 MM2 | ||
| 056 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 056 | A 0025451428 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| A 0005454526 | PLUG SOCKET | |
| WITH DETENT;LESS CATCH FOR HOUSING | ||
| 2.5 MM | ||
| A 3075400181 | PLUG SOCKET | |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 30X1 | ||

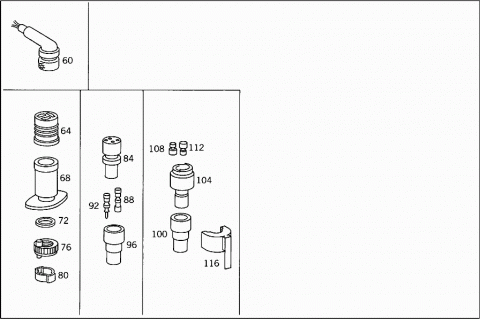

| 060 | A 3805402281 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 27X1 | ||
| A 3805403081 | PLUG SOCKET | |
| (PARTS KIT),BIPOLAR SCREW CONNECTION, FOR INSULATING HOSE | ||
| M 27X1 | ||
| 060 | A 3805402181 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 24X1 | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| PULSE-SENDER-UNIT BAYONET CAP | ||
| 064 | A 0125450928 | PIN BUSHING HOUSING |
| SENDER UNIT SCREW-CONNECTION | ||
| 068 | A 3055460135 | BOOT |
| SENDER UNIT SCREW-CONNECTION | ||
| 072 | A 3019901440 | WASHER |
| SENDER UNIT SCREW-CONNECTION | ||
| 076 | A 0005421572 | NUT |
| SENDER UNIT SCREW-CONNECTION | ||
| 080 | A 0029978590 | CLIP |
| SENDER UNIT SCREW-CONNECTION | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| METERING-GEAR-SENDER-UNIT BAYONET CAP | ||
| A 0005421872 | NUT | |
| SENDER UNIT SCREW-CONNECTION | ||
| A 0005450873 | LOCK | |
| SENDER UNIT SCREW-CONNECTION | ||
| A 0005451176 | WASHER | |
| SENDER UNIT SCREW-CONNECTION | ||
| A 0005455945 | BOOT | |
| SENDER UNIT SCREW-CONNECTION | ||
| A 0035452226 | PIN BUSHING HOUSING | |
| SENDER UNIT SCREW-CONNECTION | ||
| A 0025451926 | CONTACT SPRING | |
| Repalced by: A 0035450226 | ||
| A 0035450226 | CONTACT SPRING | |
| SENDER UNIT SCREW-CONNECTION | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| BAYONET LOCK COUNTER GEAR SENDER UNIT | ||
| A 0025402381 | PARTS KIT | |
| FOUR PIN JACK CONNECTOR | ||
| A 0005467735 | BOOT | |
| 90 DEGREE BRACKET | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FROM REAR MAIN CABLE HARN.COUPLER PLUG TO BACK-UP LAMP/DECLUTCHING START UNIT | ||
| 084 | A 0125454928 | PLUG |
| BACK-UP LAMP CABLE HARNESS COUPLER PLUG | ||
| 088 | A 0115453828 | ROUND PIN BUSHING |
| BACK-UP LAMP CABLE HARNESS COUPLER PLUG | ||
| 088 | A 0115453828 | ROUND PIN BUSHING |
| REAR END MAIN CABLE HARNESS COUPLER PLUG-SOCKET | ||
| 092 | A 0115453728 | ROUND PLUG |
| BACK-UP LAMP CABLE HARNESS COUPLER PLUG | ||
| 092 | A 0115453728 | ROUND PLUG |
| REAR END MAIN CABLE HARNESS COUPLER PLUG-SOCKET | ||
| 096 | A 0005453945 | BOOT |
| BACK-UP LAMP CABLE HARNESS COUPLER PLUG | ||
| 096 | A 0005453945 | BOOT |
| REAR END MAIN CABLE HARNESS COUPLER PLUG-SOCKET | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 096 | ||
| 104 | A 0015458626 | PLUG SOCKET |
| REAR END MAIN CABLE HARNESS COUPLER PLUG-SOCKET | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 092 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 088 | ||
| 116 | A 0005450173 | LOCK |
| REAR END MAIN CABLE HARNESS COUPLER PLUG-SOCKET | ||
| A 0055454628 | PIN BUSHING HOUSING | |
| BACK-UP LIGHT BRANCH-OFF | ||
| A 0029970781 | GROMMET | |
| BACK-UP LIGHT BRANCH-OFF | ||
| A 0019906440 | WASHER | |
| BACK-UP LIGHT BRANCH-OFF | ||
| A 0019976572 | FITTING | |
| BACK-UP LIGHT BRANCH-OFF | ||
| A 0055454528 | PIN BUSHING HOUSING | |
| BACK-UP LIGHT BRANCH-OFF | ||
| A 0009904954 | NUT | |
| BACK-UP LIGHT BRANCH-OFF | ||

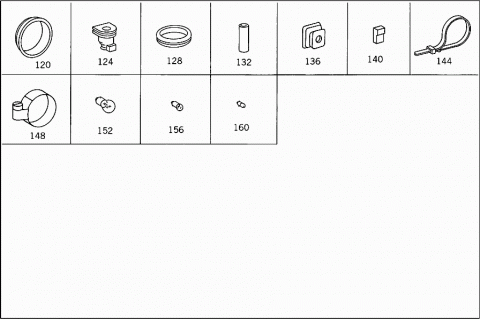

| 120 | A 0005420481 | GROMMET |
| TACHOGRAPH | ||
| 120 | A 0005420481 | GROMMET |
| INSTRUMENT CLUSTER | ||
| 124 | A 3805462037 | GROMMET |
| REAR END MAIN CABLE HARNESS | ||
| 11-12 MM | ||
| 128 | A 0059971981 | GROMMET |
| MAIN CABLE HARNESS THRU WINDOW SILL | ||
| 128 | A 0059971981 | GROMMET |
| STEERING COLUMN MOUNTED SWITCH CABLE | ||
| 132 | A 0009970981 | GROMMET |
| 132 | A 0009970781 | GROMMET |
| 10 MM | ||
| 132 | A 0009970681 | GROMMET |
| 7.5 MM | ||
| 132 | A 0009970581 | GROMMET |
| 5 MM | ||
| 132 | A 0009970381 | GROMMET |
| 3 MM | ||
| 136 | A 6085450045 | BOOT |
| STEERING COLUMN MOUNTED SWITCH | ||
| 140 | A 0005451745 | BOOT |
| 10 MM | ||
| 144 | A 0019978390 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||
| 280 MM | ||
| 144 | A 0019978490 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||
| 376 MM | ||
| 148 | N 916017060000 | CLAMP |
| Repalced by: N 000000000673 | ||
| 148 | N 000000000673 | CLAMP |
| ALTERNATOR COOLING | ||
| 152 | N 072601024801 | BULB |
| TELL-TALE LAMP | ||
| 24 V/2 W | ||
| 152 | N 072601024801 | BULB |
| TACHOMETER | ||
| 24 V/2 W | ||
| 152 | N 072601024801 | BULB |
| INSTRUMENT CLUSTER | ||
| TO 003 540 78 47 | ||
| 156 | N 072601024230 | BULB |
| HAZARD WARNING LIGHT SWITCH | ||
| 24 V/1.2 W | ||
| 160 | A 0015442694 | BULB |
| TACHOGRAPH | ||
| 24 V/1.2 W | ||
| 160 | A 0015442694 | BULB |
| INSTRUMENT CLUSTER | ||
| TO 003 540 96 47 | ||

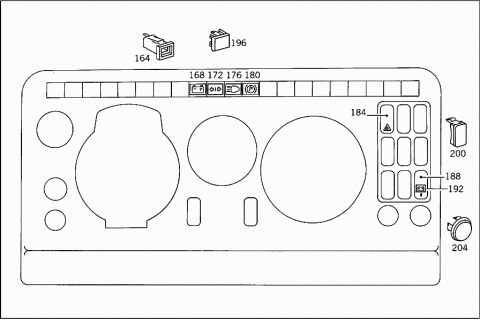

| 164 | A 0015451815 | TELL-TALE LAMP |
| LESS LENS | ||
| 168 | A 0035453290 | LENS |
| CHARGE CONTROL | ||
| 172 | A 0035455290 | LENS |
| BLINKER LIGHT CONTROL | ||
| 176 | A 0035453390 | LENS |
| Repalced by: A 0065451990 | ||
| 176 | A 0065451990 | LENS |
| HIGH BEAM | ||
| 180 | A 0035453790 | LENS |
| PARKING BRAKE CONTROL | ||
| 184 | A 0055459224 | HAZARD WARNG.LIGHT SWITCH |
| A 0025450607 | SWITCH | |
| Repalced by: A 0025454407 | ||
| 188 | A 0025454407 | SWITCH |
| BATTERY MASTER SWITCH | ||
| 192 | A 0055452290 | LENS |
| BATTERY MASTER SWITCH | ||
| 196 | A 0009974335 | PLUG |
| TO PLUG THE FREE HOLES FOR TELL-TALE LAMP | ||
| 200 | A 6736880035 | COVER |
| TO PLUG THE FREE HOLES USED FOR SWITCH | ||
| 200 | A 3575420090 | BLIND CAP |
| TO PLUG THE FREE HOLES USED FOR SWITCH | ||
| 204 | A 3055450391 | ORNAMENTAL COVER |
| TO PLUG THE BORES | ||

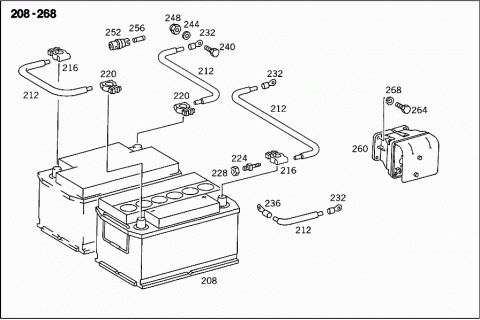

| 208 | A 0035410901 | BATTERY |
| 115 AH | ||
| 212 | N 922002070000 | ELECTRIC CABLE |
| Repalced by: A 6735460013 | ||
| 212 | A 6735460013 | ELECTRIC CABLE |
| BATTERY | ||
| 70 MM2 | ||
| 216 | N 072332013100 | SOLDERING TERMINAL |
| POS. POLE | ||
| 220 | N 072332013200 | SOLDERING TERMINAL |
| NEG.POLE | ||
| 224 | A 6739900010 | SCREW |
| TERMINAL 30 TO BATTERY POS. POLE | ||
| 228 | A 0039900051 | NUT |
| TERMINAL 30 TO BATTERY POS. POLE | ||
| N 912004010102 | LOCK WASHER | |
| TERMINAL 30 TO BATTERY POS. POLE | ||
| 232 | N 046234010007 | CABLE SHOE |
| 236 | N 046234012006 | CABLE SHOE |
| 240 | N 000933010094 | SCREW |
| GROUND CABLE TO FRAME SIDE MEMBER | ||
| 244 | N 000125010518 | WASHER |
| GROUND CABLE TO FRAME SIDE MEMBER | ||
| 248 | N 913004010008 | NUT |
| GROUND CABLE TO FRAME SIDE MEMBER | ||
| 252 | A 0005462441 | CABLE CONNECTOR |
| BATTERY NEG.CABLE FUSING FOR ALTERNATOR GUARD CIRCUIT | ||
| A 0005459901 | FUSE BOX | |
| BATTERY NEG.CABLE FUSING FOR ALTERNATOR GUARD CIRCUIT | ||
| 256 | A 0005458134 | FUSE |
| BATTERY NEG.CABLE FUSING FOR ALTERNATOR GUARD CIRCUIT | ||
| 5 A | ||
| 260 | A 0005454008 | SWITCH |
| BATTERY MASTER SWITCH | ||
| 264 | N 000933008145 | SCREW |
| BATTERY MASTER SWITCH TO BATTERY CARRIAGE | ||
| M 8X25 | ||
| 264 | N 000933008152 | SCREW |
| BATTERY MASTER SWITCH TO BATTERY CARRIAGE | ||
| M 8X30 | ||
| 268 | N 912004008102 | LOCK WASHER |
| BATTERY MASTER SWITCH TO BATTERY CARRIAGE | ||

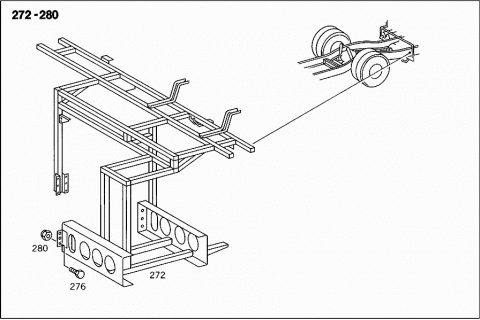

| 272 | A 3965500038 | SUPPORT |
| Repalced by: A 3965501638 | ||
| 272 | A 3965501638 | SUPPORT |
| BATTERY/APPARATUS SUPPORT | ||
| 276 | N 000961012097 | SCREW |
| APPARATUS SUPPORT TO FRAME | ||
| M 12X35 | ||
| 276 | N 000961012151 | SCREW |
| APPARATUS SUPPORT TO FRAME | ||
| M 12X30 | ||
| 276 | N 308676012012 | SCREW |
| APPARATUS SUPPORT TO FRAME | ||
| M 12X1,5X25 | ||
| 280 | N 913004012008 | NUT |
| APPARATUS SUPPORT TO FRAME | ||

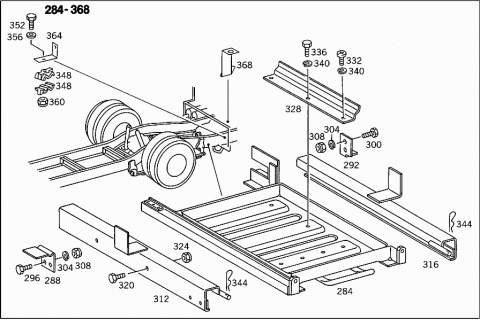

| 284 | A 3968900075 | BATTERY CASE |
| 288 | A 3018900213 | ANGLE |
| LEFT REAR | ||
| 292 | A 3968950012 | ANGLE |
| RIGHT REAR | ||
| 296 | N 000933006103 | SCREW |
| ANGLE TO BATTERY CASE | ||
| M 6X12 | ||
| 296 | N 000933006194 | SCREW |
| ANGLE TO BATTERY CASE | ||
| M 6X28 | ||
| 300 | N 000933006123 | SCREW |
| ANGLE TO BATTERY CASE | ||
| M 6X22 | ||
| 304 | N 912004006102 | LOCK WASHER |
| ANGLE TO BATTERY CASE | ||
| 308 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 308 | N 913004006001 | NUT |
| ANGLE TO BATTERY CASE | ||
| 312 | A 3968900522 | RAIL |
| FRONT | ||
| 316 | A 3968900422 | RAIL |
| REAR | ||
| 320 | N 000933008145 | SCREW |
| RAIL TO SUPPORT | ||
| 324 | N 913004008004 | NUT |
| RAIL TO SUPPORT | ||
| A 3968950670 | RAIL | |
| Repalced by: A 3018951270 | ||
| 328 | A 3018951270 | RAIL |
| Repalced by: A 3578950670 | ||
| 328 | A 3578950670 | RAIL |
| 332 | N 007985008142 | SCREW |
| BATTERY TO BATTERY CARRIAGE | ||
| 336 | N 000933008145 | SCREW |
| 340 | N 912004008102 | LOCK WASHER |
| BATTERY TO BATTERY CARRIAGE | ||
| 344 | A 3028950035 | SPRING |
| Repalced by: N 011024004000 | ||
| 344 | N 011024004000 | SPRING RETAINING PIN |
| TO SECURE BATTERY CASE | ||
| 348 | A 3835460044 | CLAMPING PIECE |
| 352 | N 000965006087 | SCREW |
| BATTERY CABLE TO BATTERY CARRIAGE | ||
| 352 | N 000933006084 | SCREW |
| BATTERY CABLE TO ENGINE CROSS MEMBER | ||
| 352 | N 000933006084 | SCREW |
| BATTERY CABLE TO BATTERY MASTER SWITCH BRACKET | ||
| 352 | N 000933006147 | SCREW |
| BATTERY CABLE TO ENGINE CROSS MEMBER | ||
| 356 | N 000125006421 | WASHER |
| BATTERY CABLE | ||
| 360 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 360 | N 913004006001 | NUT |
| BATTERY CABLE | ||
| 364 | A 3965461743 | BRACKET |
| BATTERY CABLE TO BATTERY MASTER SWITCH BRACKET | ||
| 368 | A 3965401073 | BRACKET |
| BATTERY CABLE TO ENGINE CROSS MEMBER | ||
| 368 | A 3965400973 | BRACKET |
| BATTERY CABLE TO ENGINE CROSS MEMBER | ||
| 372 | A 3965401173 | BRACKET |
| ELECTRICAL COMPARTMENT | ||
| 376 | N 000933008153 | SCREW |
| BRACKET TO FRAME | ||
| 380 | N 912004008102 | LOCK WASHER |
| BRACKET TO FRAME | ||

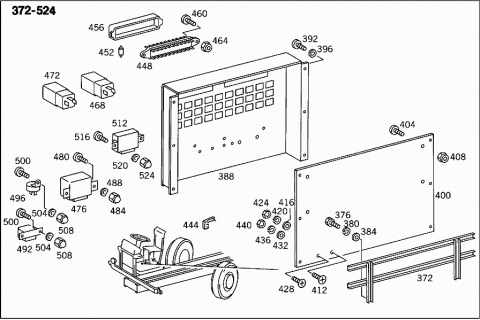

| 384 | N 000125008418 | WASHER |
| BRACKET TO FRAME | ||
| 388 | A 3968200025 | BOX |
| MAIN INSTRUMENT PANEL | ||
| 392 | N 007985006149 | SCREW |
| CASE TO APPARATUS PANEL | ||
| 396 | N 912004006102 | LOCK WASHER |
| CASE TO APPARATUS PANEL | ||
| 400 | A 3968270043 | APPARATUS PANEL |
| ELECTRICAL COMPARTMENT | ||
| 404 | N 007985006193 | SCREW |
| APPARATUS PLATE TO BRACKET | ||
| 408 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 408 | N 913004006001 | NUT |
| APPARATUS PLATE TO BRACKET | ||
| 412 | N 000965006040 | SCREW |
| GROUND CABLE TO MAIN INSTRUMENT PANEL | ||
| 416 | N 000125006421 | WASHER |
| GROUND CABLE TO MAIN INSTRUMENT PANEL | ||
| 420 | N 912004006102 | LOCK WASHER |
| GROUND CABLE TO MAIN INSTRUMENT PANEL | ||
| 424 | N 000934006007 | NUT |
| GROUND CABLE TO MAIN INSTRUMENT PANEL | ||
| 428 | N 000965008023 | SCREW |
| POS. CABLE TO MAIN INSTRUMENT PANEL | ||
| 432 | N 000125008418 | WASHER |
| POS. CABLE TO MAIN INSTRUMENT PANEL | ||
| 436 | N 912004008102 | LOCK WASHER |
| POS. CABLE TO MAIN INSTRUMENT PANEL | ||
| 440 | N 000934008010 | NUT |
| POS. CABLE TO MAIN INSTRUMENT PANEL | ||
| 444 | A 0005450940 | BRACKET |
| LEAD SEALING OF ELECTRICAL COMPARTMENT CONNECTION POINT | ||
| 448 | A 0005458501 | FUSE BOX |
| 12-POLE;TERMINALS 1-4;5-10;11-12 SHUNTED | ||
| 448 | A 0005458401 | FUSE BOX |
| 12-POLE; TERMINALS 1-2,3-4,5-11 SHUNTED | ||
| 452 | A 0005458134 | FUSE |
| 5 A | ||
| 452 | A 0005458334 | FUSE |
| 16 A | ||
| 456 | A 0005452303 | CAP |
| FUSE BOX | ||
| 460 | N 007985006154 | SCREW |
| FUSE BOX TO APPARATUS PLATE | ||
| 464 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 464 | N 913004006001 | NUT |
| FUSE BOX TO APPARATUS PLATE | ||
| 468 | A 0005455405 | RELAY |
| Repalced by: A 0035459605 | ||
| 468 | A 0035459605 | RELAY |
| 468 | A 0035459605 | RELAY |
| HIGH BEAM | ||
| 468 | A 0035459605 | RELAY |
| LOW BEAM | ||
| 468 | A 0035459605 | RELAY |
| BATTERY MASTER SWITCH | ||
| 468 | A 0035459605 | RELAY |
| HAZARD WARNING LIGHT SWITCH | ||
| 468 | A 0005458405 | RELAY |
| 472 | A 0025448332 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 472 | A 0025449432 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 476 | A 0055450624 | SENDER UNIT |
| WIPER INTERMITTENT ACTION | ||
| 476 | A 0055451424 | SENDER UNIT |
| WIPER INTERMITTENT ACTION | ||
| 476 | A 0055451624 | SENDER UNIT |
| WIPER INTERMITTENT ACTION | ||
| 480 | N 007985006126 | SCREW |
| SENDER UNIT TO APPARATUS PLATE | ||
| 484 | N 001587006002 | CAP NUT |
| SENDER UNIT TO APPARATUS PLATE | ||
| 488 | N 000137006204 | SPRING WASHER |
| SENDER UNIT TO APPARATUS PLATE | ||
| 492 | A 0005400924 | DIODE |
| AK 335.7,AK 336.7 | ||
| 496 | A 0005400624 | DIODE CASE |
| 500 | N 007985005157 | SCREW |
| DIODE TO APPARATUS PLATE | ||
| 504 | N 000137005203 | SPRING WASHER |
| DIODE TO APPARATUS PLATE | ||
| 508 | N 001587005000 | CAP NUT |
| DIODE TO APPARATUS PLATE | ||
| 512 | A 0025459332 | CONTROL UNIT |
| ENGINE SPEED SWITCH | ||
| 516 | N 007985006546 | SCREW |
| SWITCH TO APPARATUS PLATE | ||
| 520 | N 000137006204 | SPRING WASHER |
| SWITCH TO APPARATUS PLATE | ||
| 524 | N 001587006002 | CAP NUT |
| SWITCH TO APPARATUS PLATE | ||
| 528 | A 3968270343 | APPARATUS PANEL |
| Repalced by: A 3968270043 | ||
| 528 | A 3968270043 | APPARATUS PANEL |
| SECONDARY SWITCHBOARD | ||
| 528 | A 3968270443 | APPARATUS PANEL |
| SECONDARY SWITCHBOARD | ||
| 532 | N 007981005211 | SHEET METAL SCREW |
| APPARATUS PANEL TO BODY | ||
| A 0005454732 | CONTROL UNIT | |
| Repalced by: A 0025457132 | ||
| 536 | A 0025457132 | CONTROL UNIT |
| OVERLOAD PROTECTOR | ||
| 540 | N 007985006197 | SCREW |
| OVERLOAD PROTECTOR TO SECONDARY INSTRUMENT PANEL | ||
| 544 | N 912006006002 | LOCK WASHER |
| OVERLOAD PROTECTOR TO SECONDARY INSTRUMENT PANEL | ||
| 548 | A 0015424819 | RELAY |
| DECLUTCHING START UNIT | ||
| 552 | N 007985006197 | SCREW |
| DECLUTCHING START UNIT | ||
| 556 | N 912006006002 | LOCK WASHER |
| DECLUTCHING START UNIT | ||
| 560 | A 0005457701 | FUSE BOX |
| BIPOLAR | ||
| 564 | N 000084006132 | SCREW |
| CABLE TO FUSE BOX | ||
| 568 | N 000084005402 | SCREW |
| CABLE TO FUSE BOX | ||
| 572 | N 000137006204 | SPRING WASHER |
| CABLE TO FUSE BOX | ||
| 576 | N 002093010100 | DISC SPRING |
| CABLE TO FUSE BOX | ||
| 580 | N 006902005100 | WASHER |
| CABLE TO FUSE BOX | ||
| 584 | A 0005452534 | FUSE |
| 50 A | ||
| 588 | N 007985005504 | SCREW |
| FUSE BOX TO APPARATUS PLATE | ||
| 592 | N 912006005002 | LOCK WASHER |
| FUSE BOX TO APPARATUS PLATE | ||
| 596 | N 007985004136 | SCREW |
| FUSE BOX TO APPARATUS PLATE | ||
| 600 | N 000125004311 | WASHER |
| FUSE BOX TO APPARATUS PLATE | ||

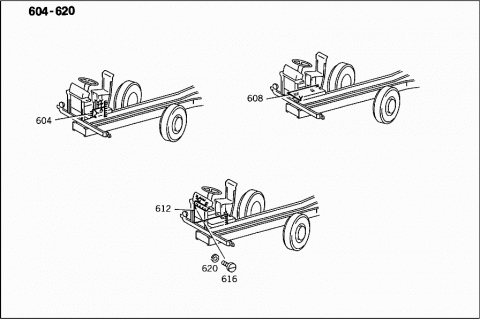

| 604 | A 3965408508 | CABLE HARNESS |
| ELECTRICAL COMPARTMENT | ||
| 608 | A 3965405208 | CABLE HARNESS |
| FROM ELECTRICAL COMPARTMENT PLUG-CONNECTION TO STOP LIGHT SWITCH & TO HORN | ||
| 612 | A 3965404105 | CABLE HARNESS |
| MAIN CABLE,FRONT END | ||
| 616 | N 000084006197 | SCREW |
| FRONT END MAIN CABLE HARNESS GROUND CONNECTION TO WINDOW SILL | ||
| 620 | N 912004006102 | LOCK WASHER |
| FRONT END MAIN CABLE HARNESS GROUND CONNECTION TO WINDOW SILL | ||

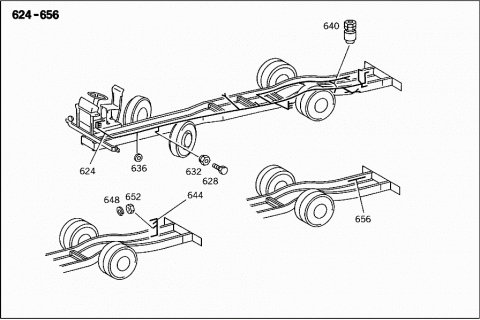

| 624 | A 3965403205 | CABLE HARNESS |
| REAR END MAIN CABLE HARNESS | ||
| 624 | A 3965405605 | CABLE HARNESS |
| REAR END MAIN CABLE HARNESS | ||
| 624 | A 3965406705 | CABLE HARNESS |
| REAR END MAIN CABLE HARNESS | ||
| 624 | A 3965408405 | CABLE HARNESS |
| REAR END MAIN CABLE HARNESS | ||
| 628 | N 000933010128 | SCREW |
| MAIN CABLE HARNESS GROUND CONNECTION AT REAR END,FRONT | ||
| 632 | N 913004010008 | NUT |
| MAIN CABLE HARNESS GROUND CONNECTION AT REAR END,FRONT | ||
| 636 | N 000125008418 | WASHER |
| CABLE HARNESS TO SIDE MEMBER | ||
| 640 | A 0055429417 | SENDER UNIT |
| ELECTRONIC TACHOGRAPH | ||
| 640 | A 0065424617 | SENDER UNIT |
| ELECTRONIC TACHOGRAPH | ||
| 644 | A 3965405108 | CABLE HARNESS |
| Repalced by: A 3965401410 | ||
| 644 | A 3965401410 | CABLE HARNESS |
| FROM REAR END MAIN CABLE HARNESS TO ENGINE | ||
| 648 | N 912004006102 | LOCK WASHER |
| CABLE TO STARTING MOTOR,TERMINAL 50 | ||
| 652 | N 000934006007 | NUT |
| CABLE TO STARTING MOTOR,TERMINAL 50 | ||
| 656 | A 3965404527 | ELECTRIC CABLE |
| FROM REAR MAIN CABLE HARN.COUPLER PLUG TO BACK-UP LAMP/DECLUTCHING START UNIT | ||

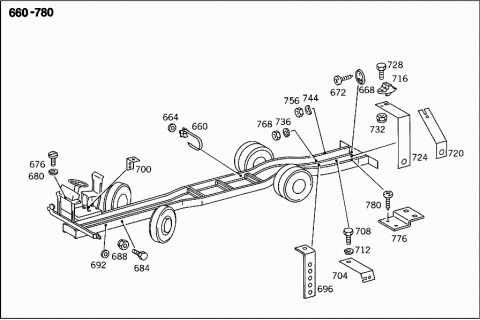

| 660 | A 0005461243 | BRACKET |
| CABLE HARNESS MOUNTING | ||
| 660 | A 0005461243 | BRACKET |
| MAIN CABLE HARNESS TO APPARATUS PANEL | ||
| 664 | A 3609902440 | WASHER |
| REAR END MOUNTED CABLE HARNESS TO FRAME SIDE MEMBER | ||
| 668 | A 3816820086 | BRACKET |
| FRONT-END/REAR-END MOUNTED CABLE HARNESS TO PEDESTAL | ||
| 668 | A 3816820086 | BRACKET |
| REAR CABLE HARNESS TO BODY FRAMEWORK & ITS SHEET METAL PANEL,RESP. | ||
| 668 | A 3816820086 | BRACKET |
| REAR END MAIN CABLE HARNESS TO SECONDARY INSTRUMENT PANEL | ||
| 672 | N 007981003337 | SHEET METAL SCREW |
| CABLE HARNESS MOUNTING | ||
| 672 | N 007981004244 | SHEET METAL SCREW |
| CABLE HARNESS MOUNTING | ||
| 676 | N 000084006197 | SCREW |
| GROUND CONNECTION TO WINDOW SILL | ||
| 680 | N 912004006102 | LOCK WASHER |
| GROUND CONNECTION TO WINDOW SILL | ||
| 684 | N 000933010128 | SCREW |
| MAIN CABLE HARNESS GROUND CONNECTION AT REAR END,FRONT | ||
| 688 | N 913004010008 | NUT |
| MAIN CABLE HARNESS GROUND CONNECTION AT REAR END,FRONT | ||
| 692 | N 000125008418 | WASHER |
| CABLE HARNESS TO SIDE MEMBER | ||
| 696 | A 3604292940 | BRACKET |
| BRANCH-OFF TO STARTER NON-REPEAT UNIT TO TRANSMISSION | ||
| 700 | A 3974290040 | BRACKET |
| Repalced by: A 3974290140 | ||
| 700 | A 3974290140 | BRACKET |
| Repalced by: A 6205243040 | ||
| 700 | A 6205243040 | BRACKET |
| ELECTRICAL APPARATUS COMPARTMENT BRANCH-OFF TO FRAME | ||
| 700 | A 6205243040 | BRACKET |
| TAIL LAMP CABLE HARNESS BRANCH-OFF | ||
| 704 | A 3965462043 | BRACKET |
| CHARGING CABLE | ||
| 708 | N 000933010111 | SCREW |
| BRACKET TO ENGINE | ||
| 712 | N 912004010102 | LOCK WASHER |
| BRACKET TO ENGINE | ||
| 716 | A 0005463343 | BRACKET |
| CHARGING CABLE | ||
| 720 | A 3965461843 | BRACKET |
| Repalced by: A 3124761535 | ||
| 720 | A 3124761535 | BRACKET |
| CHARGING CABLE | ||
| 724 | A 3965461943 | BRACKET |
| CHARGING CABLE | ||
| 728 | N 000933006183 | SCREW |
| CHARGING CABLE TO BRACKET | ||
| 732 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 732 | N 913004006001 | NUT |
| CHARGING CABLE TO BRACKET | ||
| 736 | N 912004010102 | LOCK WASHER |
| CABLE TO STARTING MOTOR,TERMINAL 31 | ||
| 736 | N 912004012100 | LOCK WASHER |
| CABLE TO STARTING MOTOR,TERMINAL 30 | ||
| 744 | N 000137005105 | SPRING WASHER |
| ALTERNATOR TERMINAL D+ | ||
| 744 | N 000137006108 | SPRING WASHER |
| ALTERNATOR TERMINAL W | ||
| 744 | N 000137008204 | SPRING WASHER |
| ALTERNATOR TERMINALS B+ AND B- | ||
| 756 | N 000934005009 | NUT |
| ALTERNATOR TERMINAL D+ | ||
| 756 | N 000934006007 | NUT |
| ALTERNATOR TERMINAL W | ||
| 756 | N 000934008011 | NUT |
| ALTERNATOR TERMINALS B+ AND B- | ||
| 768 | N 000934010014 | NUT |
| CABLE TO STARTING MOTOR,TERMINAL 31 | ||
| 768 | N 000934012021 | NUT |
| CABLE TO STARTING MOTOR,TERMINAL 30 | ||
| 776 | A 3015460843 | BRACKET |
| ENGINE CABLE HARNESS/TAIL LAMP CABLE HARESS PLUG-CONNECTION | ||
| 780 | N 007981004244 | SHEET METAL SCREW |
| ENGINE CABLE HARNESS/TAIL LAMP CABLE HARESS PLUG-CONNECTION | ||
| A 0125425310 | TACHOGRAPH | |
| Repalced by: A 0125422310 | ||

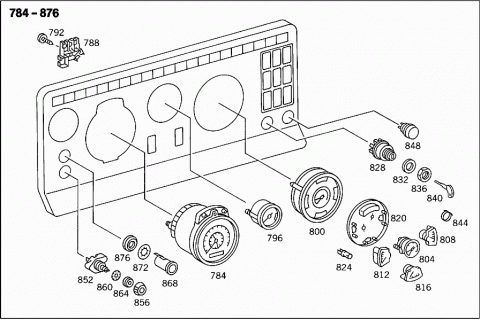

| 784 | A 0125422310 | TACHOGRAPH |
| Repalced by: A 0115423710 | ||
| 784 | A 0115423710 | TACHOGRAPH |
| MEASURING RANGE,125KM/H; ONE-DAY REGISTRATION | ||
| A 0005423394 | DIAGRAM PAPER | |
| SET = 100 PIECES | ||
| 788 | A 0005420285 | PROTECTIVE PLATE |
| TACHOGRAPH LEAD SEALING | ||
| 792 | N 007971002206 | SHEET METAL SCREW |
| TACHOGRAPH LEAD SEALING | ||
| 796 | A 0035420916 | TACHOMETER |
| A 0035407847 | INSTRUMENT CLUSTER | |
| Repalced by: A 0035409647 | ||
| 800 | A 0035409647 | INSTRUMENT CLUSTER |
| 804 | A 0015423908 | AIR PRESSURE GAUGE |
| TO 003 540 78 47 | ||
| 804 | A 0015424208 | AIR PRESSURE GAUGE |
| TO 003 540 96 47 | ||
| 808 | A 0035428805 | TEMPERATURE GAUGE |
| TO 003 540 78 47 | ||
| 808 | A 0035427405 | TEMPERATURE GAUGE |
| TO 003 540 96 47 | ||
| 812 | A 0025422702 | OIL PRESSURE GAUGE |
| Repalced by: A 0015429902 | ||
| 812 | A 0015429902 | OIL PRESSURE GAUGE |
| TO 003 540 78 47 | ||
| 812 | A 0025421702 | OIL PRESSURE GAUGE |
| TO 003 540 96 47 | ||
| 816 | A 0025429203 | FUEL GAUGE DASH UNIT |
| TO 003 540 78 47 | ||
| 816 | A 0025428503 | FUEL GAUGE DASH UNIT |
| TO 003 540 96 47 | ||
| 820 | A 0005423178 | CONNECTION PLATE |
| TO 003 540 78 47 | ||
| 820 | A 0005423578 | CONNECTION PLATE |
| TO 003 540 96 47 | ||
| 824 | A 0005451219 | SOCKET |
| TO 003 540 78 47 | ||
| A 0015442694 | BULB | |
| WITH SOCKET | ||
| TO 003 540 96 47 | ||
| 828 | A 0005453013 | SWITCH |
| SWITCH BOX | ||
| 832 | A 0005450376 | WASHER |
| SWITCH BOX TO INSTRUMENT PANEL | ||
| 836 | A 0005451072 | NUT |
| SWITCH BOX TO INSTRUMENT PANEL | ||
| 840 | A 0005451235 | KEY |
| SWITCH BOX | ||
| 844 | A 0005830296 | RING |
| SWITCH BOX | ||
| 848 | A 0015454914 | SWITCH |
| START | ||
| 852 | A 6155420225 | POTENTIOMETER |
| INSTRUMENT LIGHTING | ||
| 856 | A 0005421889 | KNOB |
| INSTRUMENT LIGHTING | ||
| 860 | N 006797012153 | TOOTHED WASHER |
| POTENTIOMETER TO INSTRUMENT PANEL | ||
| 864 | A 0029906251 | NUT |
| POTENTIOMETER TO INSTRUMENT PANEL | ||
| 868 | A 0005458026 | PLUG SOCKET |
| Repalced by: A 0045454326 | ||
| 868 | A 0045454326 | PLUG SOCKET |
| 872 | A 0009900946 | WASHER |
| PLUG SOCKET TO INSTRUMENT PANEL | ||
| 876 | A 3805450076 | WASHER |
| PLUG SOCKET TO INSTRUMENT PANEL | ||

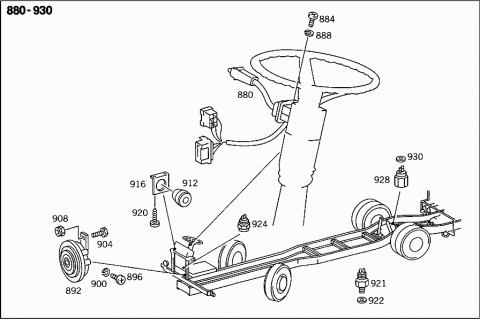

| 880 | A 0055455224 | STEERG.COLUMN MTD. SWITCH |
| 884 | N 007985005125 | SCREW |
| STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN JACKET TUBE | ||
| 888 | N 912004005103 | LOCK WASHER |
| STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN JACKET TUBE | ||
| 892 | A 0025428320 | HORN |
| Repalced by: A 0045422920 | ||
| 892 | A 0045422920 | HORN |
| BOSCH | ||
| 892 | A 0025426720 | HORN |
| Repalced by: A 0045424420 | ||
| 892 | A 0045424420 | HORN |
| HELLA | ||
| 892 | A 0035425320 | HORN |
| Repalced by: A 0025426720 | ||
| 896 | N 007985004123 | SCREW |
| ELECTRIC CABLE TO HORN | ||
| 900 | N 912004004102 | LOCK WASHER |
| ELECTRIC CABLE TO HORN | ||
| A 3852670040 | BRACKET | |
| HORN TO SUBSTRUCTURE | ||
| 904 | N 000933008147 | SCREW |
| HORN TO BRACKET | ||
| N 000125008418 | WASHER | |
| HORN TO BRACKET | ||
| 908 | N 913004008004 | NUT |
| HORN TO BRACKET | ||
| 912 | A 0005423623 | BUZZER |
| COOLING WATER TEMPERATURE WARNING | ||
| 916 | A 3055420440 | BRACKET |
| BUZZER | ||
| 920 | N 007981003203 | SHEET METAL SCREW |
| BUZZER | ||
| 921 | A 0015456814 | SWITCH |
| SUPPLY PRESSURE | ||
| 922 | N 007603012405 | SEAL RING |
| "SUPPLY" SWITCH | ||
| 924 | A 0005456009 | SWITCH |
| STOP LIGHT | ||
| 928 | A 0005455414 | SWITCH |
| PARKING BRAKE CONTROL | ||
| 930 | N 007603016401 | SEAL RING |
| SWITCH | ||

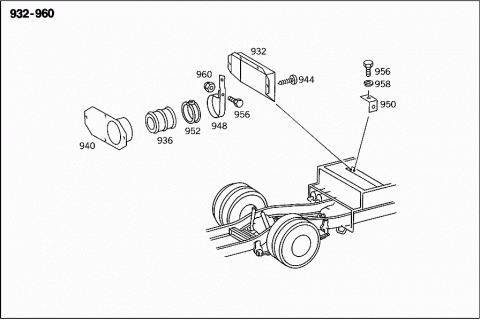

| 932 | A 3965490040 | PROTECTIVE PLATE |
| ALTERNATOR COOLING | ||
| 936 | A 3025280082 | HOSE |
| ALTERNATOR COOLING | ||
| N 916017060000 | CLAMP | |
| Repalced by: N 000000000673 | ||
| N 000000000673 | CLAMP | |
| ALTERNATOR COOLING | ||
| 940 | A 3965400074 | INTAKE PIPE SOCKET |
| ALTERNATOR COOLING | ||
| 944 | N 007981004233 | SHEET METAL SCREW |
| PROTECTIVE PLATE AND INTAKE PIPE SOCKET TO APPARATUS SUPPORT | ||
| 948 | A 3965490045 | BRACKET |
| ALTERNATOR COOLING | ||
| 950 | A 3604280243 | ANGLE |
| ALTERNATOR COOLING | ||
| 952 | A 0019870551 | RUBBER SEAL |
| ALTERNATOR COOLING | ||
| 250 MM | ||
| 956 | N 000933006183 | SCREW |
| ALTERNATOR COOLING | ||
| 958 | N 912004006102 | LOCK WASHER |
| ALTERNATOR COOLING | ||
| 960 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 960 | N 913004006001 | NUT |
| ALTERNATOR COOLING | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
