Transporto priemonė: OH 1625 L MBSA; VIN numerio dalis: 396478

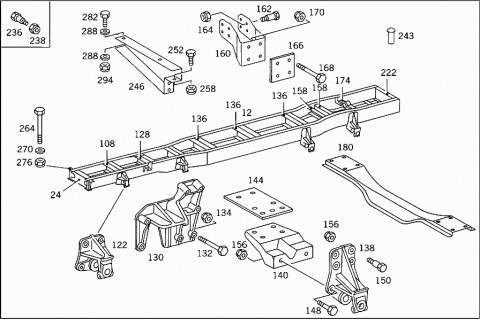

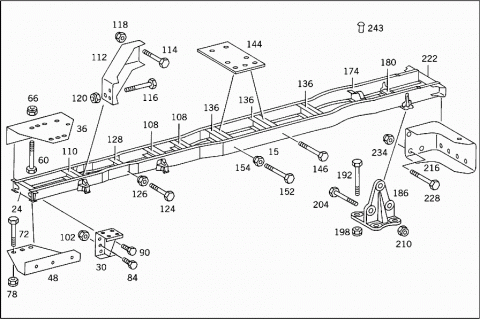

Grupė: 31 FRAME
| # | Kodas | Pavadinimas |
|---|---|---|
| 012 | A 3963100401 | FRAME |
| 012 | A 3963100501 | FRAME |
| 015 | A 3963100801 | FRAME |
| 024 | A 3963100022 | CROSS MEMBER |
| FRONT | ||
| 030 | A 3963100067 | BODY SUPPORT |
| FRONT LEFT AND RIGHT | ||
| 036 | A 3963120087 | GUSSET PLATE |
| LEFT TOP | ||
| 036 | A 3963120187 | GUSSET PLATE |
| RIGHT TOP | ||
| 048 | A 3963120287 | GUSSET PLATE |
| LEFT BOTTOM | ||
| 048 | A 3963120387 | GUSSET PLATE |
| RIGHT BOTTOM | ||
| 060 | N 308676012012 | SCREW |
| GUSSET PLATE TO CROSS MEMBER | ||
| M 12X1,5X25 | ||
| 060 | N 000961012122 | SCREW |
| GUSSET PLATE TO CROSS MEMBER | ||
| M 12X40 | ||
| N 007349013003 | WASHER | |
| GUSSET PLATE TO CROSS MEMBER | ||
| 066 | N 913004012008 | NUT |
| GUSSET PLATE TO CROSS MEMBER | ||
| 072 | N 000961014113 | SCREW |
| GUSSET PLATE TO SIDE MEMBER | ||
| M 14X28 | ||
| 072 | N 000961014046 | SCREW |
| GUSSET PLATE TO SIDE MEMBER | ||
| M 14X35 | ||
| 078 | N 913004014002 | NUT |
| GUSSET PLATE TO SIDE MEMBER | ||
| 084 | N 000961012164 | SCREW |
| CROSS MEMBER,GUSSET PLATES AND CONSOLES TO SIDE MEMBERS | ||
| M 12X28 | ||
| 090 | N 000961012097 | SCREW |
| CROSS MEMBER,GUSSET PLATES AND CONSOLES TO SIDE MEMBERS | ||
| M 12X35 | ||
| 102 | N 913004012008 | NUT |
| CROSS MEMBER,GUSSET PLATES AND CONSOLES TO SIDE MEMBERS | ||
| 108 | A 3963100224 | CROSS MEMBER |
| NO.2,NO.4,NO.5 | ||
| 108 | A 3963100224 | CROSS MEMBER |
| NO.2,NO.4 | ||
| 108 | A 3963100224 | CROSS MEMBER |
| NO.4,NO.5 | ||
| 110 | A 3963100424 | CROSS MEMBER |
| NO.2 | ||
| 112 | A 3963120865 | STRUT |
| LEFT REINFORCEMENT | ||
| 112 | A 3963120965 | STRUT |
| RIGHT REINFORCEMENT | ||
| 114 | N 000961012093 | SCREW |
| STRUT TO CROSS MEMBER | ||
| 116 | N 000961014050 | SCREW |
| STRUT TO SIDE MEMBER | ||
| 118 | N 913004012008 | NUT |
| STRUT TO CROSS MEMBER | ||
| 120 | N 913004014002 | NUT |
| STRUT TO SIDE MEMBER | ||
| 122 | A 3523250101 | REAR SPRING BRACKET |
| FRONT SPRING SUSPENSION | ||
| 124 | N 000609016015 | FITTED SCREW |
| CROSS MEMBER AND SUPPORT TO SIDE MEMBERS | ||
| M 16X60 | ||
| 124 | N 000609016016 | FITTED SCREW |
| CROSS MEMBER AND SUPPORT TO SIDE MEMBERS | ||
| M 16X70 | ||
| 124 | N 000609016017 | FITTED SCREW |
| CROSS MEMBER AND SUPPORT TO SIDE MEMBERS | ||
| M 16X85 | ||
| 124 | N 000609016018 | FITTED SCREW |
| CROSS MEMBER AND SUPPORT TO SIDE MEMBERS | ||
| M 16X95 | ||
| 126 | N 913004016005 | NUT |
| CROSS MEMBER AND SUPPORT TO SIDE MEMBERS | ||
| 128 | A 3963100327 | CROSS MEMBER |
| NO.3 | ||
| 130 | A 3963232963 | BEARING BRACKET |
| LEFT SHOCK ABSORBER | ||
| 130 | A 3963233063 | BEARING BRACKET |
| RIGHT SHOCK ABSORBER | ||
| 132 | N 000960014248 | SCREW |
| BEARING BRACKET TO SIDE AND CROSS MEMBERS | ||
| M 14X100 | ||
| 132 | N 000960014237 | SCREW |
| BEARING BRACKET TO SIDE AND CROSS MEMBERS | ||
| M 14X50 | ||
| 132 | N 000960014247 | SCREW |
| BEARING BRACKET TO SIDE AND CROSS MEMBERS | ||
| M 14X65 | ||
| 132 | N 000961014054 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 14X45 | ||
| 134 | N 913004014002 | NUT |
| BEARING BRACKET TO SIDE AND CROSS MEMBERS | ||
| 134 | N 913004014002 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 136 | A 3963100140 | CROSS MEMBER |
| NO. 6,NO. 7,NO. 8 | ||
| 136 | A 3963100140 | CROSS MEMBER |
| NO.5,NO.6,NO.7 | ||
| 138 | A 3963250001 | REAR SPRING BRACKET |
| FRONT AND REAR | ||
| 140 | A 3963120465 | STRUT |
| REAR SPRING FRONT BRACKET | ||
| 144 | A 3963120284 | SHIM |
| REAR SPRING FRONT BRACKET | ||
| 144 | A 3963120284 | SHIM |
| FOR CROSS MEMBER | ||
| NO.6,NO.7 | ||
| 146 | N 000961012192 | SCREW |
| CROSS MEMBER AND CONSOLE TO FRAME | ||
| M 12X55 | ||
| 146 | N 000961012218 | SCREW |
| CROSS MEMBER AND CONSOLE TO FRAME | ||
| M 12X80 | ||
| 148 | N 000961016118 | SCREW |
| CROSS MEMBER AND SPRING BRACKET TO SIDE MEMBER | ||
| M 16X42 | ||
| 150 | A 3469900114 | SCREW |
| CROSS MEMBER AND SPRING BRACKET TO SIDE MEMBER | ||
| M 16X50 | ||
| 152 | N 000609016022 | FITTED SCREW |
| CROSS MEMBER AND CONSOLE TO FRAME | ||
| M 16X55 | ||
| 152 | N 000609016015 | FITTED SCREW |
| CROSS MEMBER AND CONSOLE TO FRAME | ||
| M 16X60 | ||
| 152 | N 000609016023 | FITTED SCREW |
| CROSS MEMBER AND CONSOLE TO FRAME | ||
| M 16X110 | ||
| 152 | N 000609016019 | FITTED SCREW |
| CROSS MEMBER AND CONSOLE TO FRAME | ||
| M 16X135 | ||
| 154 | N 913004012009 | NUT |
| CROSS MEMBER AND CONSOLE TO FRAME | ||
| 156 | N 913004016005 | NUT |
| CROSS MEMBER AND SPRING BRACKET TO SIDE MEMBER | ||
| 156 | N 913004016005 | NUT |
| CROSS MEMBER AND CONSOLE TO FRAME | ||
| 158 | A 3963100440 | CROSS MEMBER |
| NO.9 | ||
| 158 | A 3963100440 | CROSS MEMBER |
| NO.8 | ||
| 160 | A 3963120660 | REINFORCEMENT |
| 162 | A 3969900314 | SCREW |
| 164 | N 913004012009 | NUT |
| 166 | A 3963120184 | SHIM |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 168 | N 000961012122 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 170 | N 913004012008 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 174 | A 3963100142 | CROSS MEMBER |
| NO.10 | ||
| 174 | A 3963100142 | CROSS MEMBER |
| NO.9 | ||
| A 3963100342 | CROSS MEMBER | |
| NO.9 | ||
| 180 | A 3963120007 | ENGINE CROSS MEMBER |
| NO.11 | ||
| 180 | A 3963120007 | ENGINE CROSS MEMBER |
| NO.10 | ||
| 186 | A 3963120042 | BEARING BRACKET |
| ENGINE FRONT SUSPENSION | ||
| 192 | N 000961014054 | SCREW |
| BEARING BRACKET TO CROSS MEMBER | ||
| 198 | N 913004014002 | NUT |
| BEARING BRACKET TO CROSS MEMBER | ||
| 204 | N 000960014167 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| 210 | N 913004014002 | NUT |
| BEARING BRACKET TO SIDE MEMBER | ||
| 216 | A 3963120365 | STRUT |
| REAR LEFT AND RIGHT | ||
| 222 | A 3963100046 | CROSS MEMBER |
| REAR | ||
| 228 | N 000961014050 | SCREW |
| CROSS MEMBER TO STRUT | ||
| 234 | N 913004014002 | NUT |
| CROSS MEMBER TO STRUT | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| MOUNTING USED FOR FRAME CONNECTION PARTS | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| DIMENSIONS ARE INDICATED IN THE FOLLOWING ORDER: | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| THREAD X SHANK DIA. X SHANK LENGTH X TOTAL LENGTH | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 236 | N 000609010004 | FITTED SCREW |
| M 10X11X14X28 | ||
| 236 | N 000610010003 | FITTED SCREW |
| M 10X11X25X38 | ||
| 236 | N 000609010014 | FITTED SCREW |
| M 10X11X24X40 | ||
| 236 | A 3859900514 | SCREW |
| M 10X11X26,5X46 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 236 | A 3859900714 | SCREW |
| M 12X12X10X25 | ||
| 236 | A 3859901414 | SCREW |
| M 12X12X11X26 | ||
| 236 | A 0039900901 | SCREW |
| M 12X12X12X28 | ||
| 236 | A 3859901514 | SCREW |
| M 12X12X13X28 | ||
| 236 | A 0029908201 | SCREW |
| M 12X12X14X30 | ||
| 236 | A 3859902114 | SCREW |
| M 12X12X15X30 | ||
| 236 | A 0029908301 | SCREW |
| M 12X12X16X32 | ||
| 236 | A 3859902214 | SCREW |
| M 12X12X17X32 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 236 | A 6209900114 | SCREW |
| M 12X13X12X29 | ||
| 236 | A 3969900314 | SCREW |
| M 12X13X13X30 | ||
| 236 | A 3589901914 | SCREW |
| M 12X13X15X32 | ||
| 236 | A 3559900014 | SCREW |
| M 12X13X18X35 | ||
| 236 | A 3589900614 | SCREW |
| M 12X13X21X38 | ||
| 236 | A 6179900114 | SCREW |
| M 12X13X23X40 | ||
| 236 | A 6249900014 | SCREW |
| M 12X13X25X42 | ||
| 236 | A 3859900214 | SCREW |
| M 12X13X35X52 | ||
| 236 | A 6689900114 | SCREW |
| M 12X13X58X80 | ||
| 236 | A 6689900014 | SCREW |
| M 12X13X63X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 236 | A 3229903101 | SCREW |
| M 14X14X18X32 | ||
| 236 | A 3859900814 | SCREW |
| M 14X14X16X32 | ||
| 236 | A 3859902014 | SCREW |
| M 14X14X18X34 | ||
| 236 | A 3559900114 | SCREW |
| M 12X14X13X35 | ||
| 236 | A 3219901601 | SCREW |
| M 14X14X17X35 | ||
| 236 | A 3219901901 | SCREW |
| M 14X14X22X40 | ||
| 236 | A 3559900501 | SCREW |
| M 14X14X24X42 | ||
| 236 | A 3409900201 | SCREW |
| M 14X14X27X45 | ||
| 236 | A 3609902001 | SCREW |
| M 14X14X32X50 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 236 | A 3589900114 | SCREW |
| M 14X15X15X32 | ||
| 236 | A 3589900814 | SCREW |
| M 14X15X17X34 | ||
| 236 | A 6459900014 | SCREW |
| M 14X15X18X35 | ||
| 236 | A 3589901014 | SCREW |
| M 14X15X19X36 | ||
| 236 | A 3589900214 | SCREW |
| M 14X15X21X38 | ||
| 236 | A 3589900414 | SCREW |
| M 14X15X25X42 | ||
| 236 | A 3589900714 | SCREW |
| M 14X15X27X44 | ||
| 236 | A 3589900914 | SCREW |
| M 14X15X/29X46 | ||
| 236 | A 3859900414 | SCREW |
| M 14X15X31X48 | ||
| 236 | A 3859900314 | SCREW |
| M 14X15X35X52 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 236 | A 3859900914 | SCREW |
| M 16X16X18X36 | ||
| 236 | A 3859901714 | SCREW |
| M 16X16X20X38 | ||
| 236 | A 3859901014 | SCREW |
| M 16X16X22X40 | ||
| 236 | A 3859901114 | SCREW |
| M 16X16X24X42 | ||
| 236 | A 0029909901 | SCREW |
| M 16X16X25X45 | ||
| 236 | A 3859901814 | SCREW |
| M 16X16X30X48 | ||
| 236 | A 3859901914 | SCREW |
| M 16X16X32X50 | ||
| 236 | A 6259900301 | SCREW |
| M 16X16X38X90 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 236 | A 3589900514 | SCREW |
| M 16X17X22X42 | ||
| 236 | A 6459900714 | SCREW |
| M 16X17X24X44 | ||
| 236 | A 3609900114 | SCREW |
| M 16X17X28X48 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 236 | A 3469900014 | SCREW |
| M 16X18X18X40 | ||
| 236 | A 3859902314 | SCREW |
| M 18X18X23X45 | ||
| 236 | A 6209900014 | SCREW |
| M 16X18X26X48 | ||
| 236 | A 3469900114 | SCREW |
| M 16X18X31X50 | ||
| 236 | A 3859902414 | SCREW |
| M 18X18X33X55 | ||
| 236 | A 6229900014 | SCREW |
| M 16X18X38X60 | ||
| 236 | A 3919900014 | SCREW |
| M 16X18X63X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 236 | N 000610018004 | FITTED SCREW |
| M 18X19X25X45 | ||
| 236 | N 000610018009 | FITTED SCREW |
| M 18X19X33X55 | ||
| 236 | N 000610018006 | FITTED SCREW |
| M 18X19X38X60 | ||
| 236 | N 000609018000 | FITTED SCREW |
| M 18X19X57X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 238 | N 913004010011 | NUT |
| 238 | N 913004012009 | NUT |
| 238 | N 913004014005 | NUT |
| 238 | N 913004016005 | NUT |
| 238 | N 913004018004 | NUT |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 243 | N 910005012073 | RIVET |
| 12X28 MM | ||
| 243 | N 910005012080 | RIVET |
| 12X42 MM | ||
| 243 | N 910005014056 | RIVET |
| 14X45 MM | ||
| 243 | N 910005014059 | RIVET |
| 14X55 MM | ||
| 243 | N 910005014038 | RIVET |
| 14X60 MM | ||
| 246 | A 3965200033 | SUPPORT |
| DRIVER'S SEAT PEDESTAL | ||
| 252 | N 000961012164 | SCREW |
| SUPPORT TO FRAME | ||
| M 12X28 | ||
| 252 | N 000961012097 | SCREW |
| SUPPORT TO FRAME | ||
| M 12X35 | ||
| 258 | N 913004012008 | NUT |
| SUPPORT TO FRAME | ||
| 264 | N 000961012097 | SCREW |
| DRIVER'S SEAT PEDESTAL TO SUPPORT, FRONT | ||
| 270 | N 007349013003 | WASHER |
| DRIVER'S SEAT PEDESTAL TO SUPPORT, FRONT | ||
| 276 | N 913004012008 | NUT |
| DRIVER'S SEAT PEDESTAL TO SUPPORT, FRONT | ||
| 282 | N 000961012151 | SCREW |
| DRIVER'S SEAT PEDESTAL TO SUPPORT,REAR | ||
| 288 | N 000125013008 | WASHER |
| DRIVER'S SEAT PEDESTAL TO SUPPORT,REAR | ||
| 294 | N 913004012008 | NUT |
| DRIVER'S SEAT PEDESTAL TO SUPPORT,REAR |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
