Transporto priemonė: OH 1625 L MBSA; VIN numerio dalis: 396478

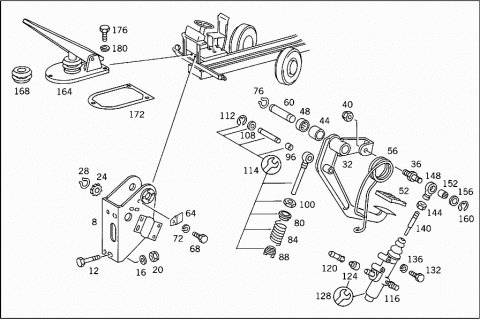

Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 008 | A 3812901219 | BEARING BRACKET |
| CLUTCH | ||
| 012 | N 000933008147 | SCREW |
| BEARING BRACKET TO CAB | ||
| M 8X20 | ||
| 012 | N 000933008152 | SCREW |
| BEARING BRACKET TO CAB | ||
| M 8X30 | ||
| 016 | N 000125008418 | WASHER |
| BEARING BRACKET TO CAB | ||
| 020 | N 913004008004 | NUT |
| BEARING BRACKET TO CAB | ||
| 024 | A 3812910186 | STOP |
| CLUTCH PEDAL | ||
| 028 | N 000471016001 | LOCK RING |
| STOP TO BEARING BRACKET | ||
| 032 | A 6202900216 | PEDAL |
| CLUTCH | ||
| 036 | A 3812910274 | PIN |
| CLUTCH SLAVE CYLINDER | ||
| 040 | N 913004008004 | NUT |
| CLUTCH SLAVE CYLINDER | ||
| 044 | A 3812910053 | SPACER TUBE |
| PEDAL TO BEARING BRACKET | ||
| 048 | A 0119813410 | NEEDLE BEARING |
| PEDAL TO BEARING BRACKET | ||
| 052 | A 1072910182 | PAD |
| CLUTCH PEDAL | ||
| 056 | A 3819930710 | SPRING |
| CLUTCH PEDAL RESET | ||
| 060 | A 3812940707 | PIVOT PIN |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 064 | A 3812910073 | LOCK |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 068 | N 000933006183 | SCREW |
| LOCK TO BEARING BRACKET | ||
| 072 | N 912004006102 | LOCK WASHER |
| LOCK TO BEARING BRACKET | ||
| 076 | N 000471020001 | LOCK RING |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 080 | A 1112910491 | SPRING RETAINER |
| DEAD CENTER SPRING,TOP | ||
| 084 | A 1109930501 | SPRING |
| (DEAD CENTER SPRING) | ||
| 088 | A 3092910091 | SPRING RETAINER |
| BOTTOM | ||
| 096 | A 0059813810 | NEEDLE BEARING |
| ROD TO CLUTCH PEDAL | ||
| 096 | A 0059814410 | NEEDLE BEARING |
| ROD TO CLUTCH PEDAL | ||
| 096 | A 0089811210 | NEEDLE BEARING |
| ROD TO CLUTCH PEDAL | ||
| 096 | A 0139818210 | NEEDLE BEARING |
| ROD TO CLUTCH PEDAL | ||
| 100 | N 000439010216 | NUT |
| SPRING TO PUSH ROD | ||
| 108 | N 000433008406 | WASHER |
| PUSH ROD TO PEDAL | ||
| 112 | N 006799006003 | LOCK PLATE |
| PUSH ROD TO PEDAL | ||
| 114 | A 3802900293 | REPAIR KIT |
| DEAD CENTER SPRING | ||
| 116 | A 0012952906 | MASTER CYLINDER |
| Repalced by: A 0012956006 | ||
| 116 | A 0012956006 | MASTER CYLINDER |
| CLUTCH;LESS DE-AERATION | ||
| 120 | A 0002950836 | INTERMEDIATE PIECE |
| 124 | A 0009971186 | PLUG |
| 128 | A 0005863529 | REPAIR KIT |
| Repalced by: A 0002903412 | ||
| 128 | A 0002903412 | REPAIR KIT |
| TO MASTER CYLINDER HAVING ALUMINUM PISTON; I.D., | ||
| 23.8 MM,TO 001 295 29 06 | ||
| 128 | A 0002904667 | REPAIR KIT |
| TO MASTER CYLINDER HAVING SYNTHETIC PISTON; I.D., | ||
| 23.8 MM,TO 001 295 60 06 | ||
| 132 | N 000931006191 | SCREW |
| MASTER CYLINDER TO BEARING BRACKET | ||
| 136 | N 912004006102 | LOCK WASHER |
| MASTER CYLINDER TO BEARING BRACKET | ||
| 140 | A 3812950033 | ROD |
| MASTER CYLINDER | ||
| 144 | N 000439008211 | NUT |
| ROD TO YOKE | ||
| 148 | A 0009961045 | ARTICULATION PIECE |
| CLUTCH MASTER CYLINDER TO CLUTCH PEDAL | ||
| 148 | A 0009961145 | ARTICULATION PIECE |
| CLUTCH MASTER CYLINDER TO CLUTCH PEDAL | ||
| 152 | A 0059813810 | NEEDLE BEARING |
| CLUTCH MASTER CYLINDER TO CLUTCH PEDAL | ||
| 152 | A 0059814410 | NEEDLE BEARING |
| CLUTCH MASTER CYLINDER TO CLUTCH PEDAL | ||
| 152 | A 0089811210 | NEEDLE BEARING |
| CLUTCH MASTER CYLINDER TO CLUTCH PEDAL | ||
| 152 | A 0139818210 | NEEDLE BEARING |
| CLUTCH MASTER CYLINDER TO CLUTCH PEDAL | ||
| 156 | N 000433008406 | WASHER |
| PISTON ROD TO LEVER | ||
| 160 | N 006799006003 | LOCK PLATE |
| PISTON ROD TO LEVER | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| BREMSVENTIL SIEHE GRUPPE 42 | ||
| 164 | A 0004300018 | BRAKE PEDAL |
| TWO-CIRCUIT BRAKE VALVE | ||
| 168 | A 0004314887 | PROTECTIVE CAP |
| BRAKE PEDAL | ||
| 172 | A 3964310042 | PLATE |
| BRAKE PEDAL TO CAB | ||
| 176 | N 000933008153 | SCREW |
| BRAKE PEDAL TO CAB | ||
| 180 | N 912004008102 | LOCK WASHER |
| BRAKE PEDAL TO CAB | ||
| 184 | A 0002951715 | RESERVOIR |
| EXPANSION TANK | ||
| 188 | A 0002950116 | LOCKING CAP |
| 192 | A 0009972940 | SEAL RING |
| 196 | A 0004314334 | STRAINER |
| 200 | A 0009885435 | CAP |
| RESERVOIR DE-AERATION | ||
| 204 | N 000000001147 | SCREW |
| EXPANSION TANK TO BRACKET | ||
| M 6X20 | ||
| 208 | N 009021006205 | WASHER |
| EXPANSION TANK TO BRACKET | ||
| 212 | N 912004006102 | LOCK WASHER |
| EXPANSION TANK TO BRACKET | ||
| 216 | A 3872900433 | BRACKET |
| RESERVOIR | ||
| 220 | N 007985006546 | SCREW |
| BRACKET TO CAB | ||
| 224 | N 912004006102 | LOCK WASHER |
| BRACKET TO CAB | ||
| 228 | A 0009978952 | HOSE |
| LINES FROM MASTER CYLINDER TO RESERVOIR | ||
| 232 | A 3819970781 | GROMMET |
| CLUTCH LINE THRU CAB WINDOW SILL | ||
| 236 | A 3812901514 | LINE |
| FROM MASTER CYLINDER TO CONNECTOR I | ||
| 400 MM | ||
| 240 | A 3149970581 | GROMMET |
| HYDRAULIC LINE | ||
| 244 | A 0002950736 | INTERMEDIATE PIECE |
| HYDRAULIC LINE | ||
| 248 | A 3812902414 | LINE |
| 3000 MM | ||
| 248 | A 3812902414 | LINE |
| FROM CONNECTOR TO CONNECTOR | ||
| I-II | ||
| 248 | A 3812902414 | LINE |
| FROM CONNECTOR TO CONNECTOR | ||
| IV-V | ||
| 248 | A 3812902414 | LINE |
| FROM CONNECTOR TO CLUTCH HYDRAULIC HODE BRACKET | ||
| 3000 MM | ||
| 251 | A 3812902014 | LINE |
| 1100 MM | ||
| 251 | A 3812902014 | LINE |
| FROM CONNECTOR TO CONNECTOR | ||
| II-III | ||
| 254 | A 3812902314 | LINE |
| 2500 MM | ||
| 254 | A 3812902314 | LINE |
| FROM CONNECTOR TO CONNECTOR | ||
| III-IV | ||
| 257 | A 6162951040 | BRACKET |
| CLUTCH HOSE | ||
| 260 | N 000933008153 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 263 | N 913004008004 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 266 | A 0002952735 | HOSE |
| FROM BRACKET AT SIDE MEMBER TO CLUTCH SLAVE CYLINDER | ||
| 350 MM | ||
| 266 | A 0002952835 | HOSE |
| FROM BRACKET AT SIDE MEMBER TO CLUTCH SLAVE CYLINDER | ||
| 268 | A 0004280473 | BRACKET |
| Repalced by: A 6525040038 | ||
| 268 | A 6525040038 | MOUNTING PLATE |
| CLUTCH HOSE TO BRACKET | ||
| 270 | A 0049971172 | FITTING |
| HOSE TO SLAVE CYLINDER | ||
| 272 | N 007603014106 | SEAL RING |
| HOSE TO SLAVE CYLINDER | ||
| 274 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 274 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 274 | N 916016008200 | CLAMP |
| RETURN LINE TO CLUTCH HYDRAULIC LINE | ||
| 274 | A 3609950701 | CLAMP |
| RETURN LINE TO CLUTCH HYDRAULIC LINE | ||
| 278 | N 000933006183 | SCREW |
| RETURN LINE TO CLUTCH HYDRAULIC LINE | ||
| 281 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 281 | N 913004006001 | NUT |
| RETURN LINE TO CLUTCH HYDRAULIC LINE | ||
| 284 | A 3604280243 | ANGLE |
| HYDRAULIC LINE TO FRONT CROSS MEMBER | ||
| 287 | N 000933008145 | SCREW |
| HYDRAULIC LINE TO FRONT CROSS MEMBER | ||
| 290 | N 913004008004 | NUT |
| HYDRAULIC LINE TO FRONT CROSS MEMBER | ||
| A 3609950201 | CLAMP | |
| Repalced by: A 3604300143 | ||
| A 3604300143 | CLAMP | |
| Repalced by: N 916016008200 | ||
| 293 | N 916016008200 | CLAMP |
| HYDRAULIC LINE TO BRACKET | ||
| 296 | N 000933006121 | SCREW |
| HYDRAULIC LINE TO BRACKET | ||
| 299 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 299 | N 913004006001 | NUT |
| HYDRAULIC LINE TO BRACKET | ||
