Transporto priemonė: OH 1625 L MBSA; VIN numerio dalis: 396478
Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|

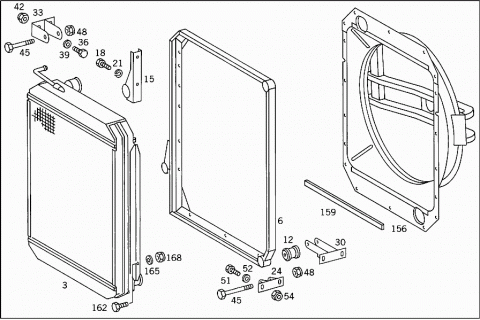

| 003 | A 0005015301 | RADIATOR |
| 003 | A 0015011901 | RADIATOR |
| 006 | A 3015001127 | SUPPORT |
| RADIATOR MOUNTING | ||
| 006 | A 3015000127 | SUPPORT |
| RADIATOR MOUNTING | ||
| 012 | A 0009884211 | BUFFER |
| RADIATOR MOUNTING | ||
| 015 | A 3015000331 | BRACKET |
| RADIATOR BASE FRAME | ||
| 018 | N 000933008147 | SCREW |
| BRACKET TO BASE FRAME | ||
| 021 | N 912004008102 | LOCK WASHER |
| BRACKET TO BASE FRAME | ||
| 024 | A 3965000632 | STAY |
| RADIATOR BASE FRAME,LEFT BOTTOM | ||
| 030 | A 3965000132 | STAY |
| RADIATOR BASE FRAME,LEFT,TOP AND BOTTOM | ||
| 033 | A 3965000332 | STAY |
| RADIATOR BASE FRAME,RIGHT BOTTOM | ||
| 036 | N 000933010105 | SCREW |
| STAY TO APPARATUS SUPPORT | ||
| M 10X25 | ||
| 036 | N 000933010200 | SCREW |
| STAY TO APPARATUS SUPPORT | ||
| M 10X30 | ||
| 039 | N 000125010518 | WASHER |
| STAY TO APPARATUS SUPPORT | ||
| 042 | N 913004010008 | NUT |
| STAY TO APPARATUS SUPPORT | ||
| 045 | N 000960012230 | SCREW |
| STAY TO RADIATOR BASE FRAME | ||
| 048 | N 913004012007 | NUT |
| STAY TO RADIATOR BASE FRAME | ||
| 051 | N 000961012151 | SCREW |
| STAY TO SIDE MEMBER | ||
| M 12X1,5X30 | ||
| 051 | N 000961012097 | SCREW |
| STAY TO SIDE MEMBER | ||
| M 12X1,5X35 | ||
| 052 | N 000125013008 | WASHER |
| STAY TO SIDE MEMBER | ||
| 054 | N 913004012007 | NUT |
| STAY TO SIDE MEMBER | ||

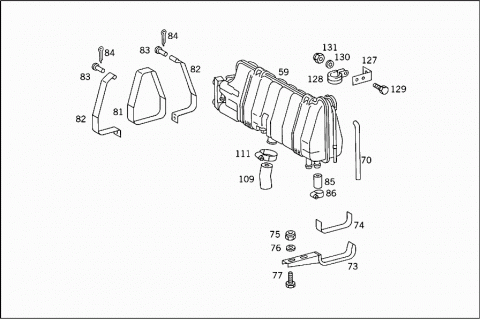

| 057 | A 3005000149 | TANK |
| COOLING WATER EXPANSION | ||
| A 3005000549 | TANK | |
| Repalced by: A 3005000949 | ||
| 059 | A 3005000949 | TANK |
| COOLING WATER EXPANSION | ||
| 060 | A 0005013415 | RADIATOR CAP |
| LATERAL | ||
| TO 300 500 01 49 | ||
| 060 | A 0005014615 | RADIATOR CAP |
| LATERAL | ||
| TO 300 500 05 49,300 500 09 49 | ||
| 060 | A 0005017215 | RADIATOR CAP |
| LATERAL | ||
| TO 300 500 05 49,300 500 09 49 | ||
| 063 | A 0005013515 | RADIATOR CAP |
| TOP | ||
| 066 | A 0005010480 | GASKET |
| O.D., | ||
| 52 MM; TO 000 501 34 15 | ||
| 069 | A 0005010880 | GASKET |
| O.D., | ||
| 37 MM; TO 000 501 35 15 | ||
| 070 | A 0079972682 | HOSE |
| TO 300 500 05 49 | ||
| 072 | A 0005010010 | DRAIN PIPE |
| 072A | A 3965000231 | BRACKET |
| COOLING WATER EXPANSION TANK | ||
| A 3005010095 | SHIM | |
| Repalced by: A 3815010495 | ||
| 072C | A 3815010495 | SHIM |
| COOLING WATER EXPANSION TANK | ||
| 072D | N 913004008004 | NUT |
| AT BRACKET | ||
| 072E | N 000125008423 | WASHER |
| AT BRACKET | ||
| 073 | N 000933008145 | SCREW |
| EXPANSION TANK TO BRACKET ON APPARATUS SUPPORT | ||
| M 8X18 | ||
| 073 | N 000933008153 | SCREW |
| EXPANSION TANK TO BRACKET ON APPARATUS SUPPORT | ||
| M 8X25 | ||
| 074 | N 000125008418 | WASHER |
| EXPANSION TANK TO BRACKET ON APPARATUS SUPPORT | ||
| 075 | N 912004008102 | LOCK WASHER |
| EXPANSION TANK TO BRACKET ON APPARATUS SUPPORT | ||
| 076 | N 913004008004 | NUT |
| EXPANSION TANK TO BRACKET ON APPARATUS SUPPORT | ||
| 076 | N 913004008004 | NUT |
| EXPANSION TANK TO BRACKET ON APPARATUS SUPPORT | ||
| 077 | A 3575010095 | SHIM |
| BRACKET TO ENGINE PARTITION PANEL | ||
| 078 | A 3575010320 | BRACKET |
| BRACKET TO ENGINE PARTITION PANEL | ||
| 079 | N 001444006227 | PIN |
| STRAP TO SUPPORT | ||
| 080 | N 000094001617 | COTTER PIN |
| STRAP TO SUPPORT | ||
| 081 | A 3149870045 | LOCKING CAP |
| EXPANSION TANK | ||
| 082 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 082 | N 000000000666 | CLAMP |
| EXPANSION TANK | ||
| 16-27X13 MM | ||
| 087 | A 3965010382 | HOSE |
| HEATING CONNECTION LOCK | ||
| 090 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 090 | N 000000000671 | CLAMP |
| HEATING CONNECTION LOCK | ||

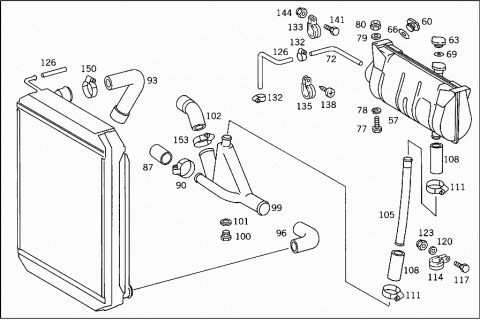

| 093 | A 3015010582 | HOSE |
| FROM THERMOSTAT TO RADIATOR | ||
| 096 | A 3015010182 | HOSE |
| FROM RADIATOR TO BUBBLE SEPARATOR | ||
| 099 | A 3965000169 | SEPARATOR |
| Repalced by: A 3965000369 | ||
| 099 | A 3965000369 | SEPARATOR |
| (BUBBLE SEPARATOR) | ||
| 099 | A 3965000469 | SEPARATOR |
| Repalced by: A 3965000569 | ||
| 099 | A 3965000569 | SEPARATOR |
| (BUBBLE SEPARATOR) | ||
| 100 | N 007604014101 | SCREW PLUG |
| 101 | N 007603014405 | SEAL RING |
| TO 396 500 03 69 | ||
| 102 | A 3015010282 | HOSE |
| FROM BUBBLE SEPARATOR TO WATER PUMP | ||
| 105 | A 3005010024 | COOLING WATER PIPE |
| FROM BUBBLE SEPARATOR TO EXPANSION TANK | ||
| 108 | N 900271038015 | HOSE |
| COOLING WATER LINE TO EXPANSION TANK & TO BUBBLE SEPARATOR | ||
| 109 | A 3965010882 | HOSE |
| COOLING WATER LINE TO EXPANSION TANK & TO BUBBLE SEPARATOR | ||
| TO 396 500 03 69 | ||
| 111 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 111 | N 000000000671 | CLAMP |
| COOLING WATER LINE TO EXPANSION TANK & TO BUBBLE SEPARATOR | ||
| 114 | N 916016038205 | CLAMP |
| COOLING WATER LINE TO BRACKET | ||
| 117 | N 000933006121 | SCREW |
| COOLING WATER LINE TO BRACKET | ||
| 120 | N 000125006421 | WASHER |
| COOLING WATER LINE TO BRACKET | ||
| 123 | N 913004006003 | NUT |
| COOLING WATER LINE TO BRACKET | ||
| 126 | N 900271012018 | HOSE |
| FROM ENGINE TO EXPANSION TANK | ||
| 127 | A 6224290240 | BRACKET |
| Repalced by: A 6205240340 | ||
| 127 | A 6205240340 | BRACKET |
| DE-AERATION LINE TO BRACKET | ||
| 127A | N 916016022202 | CLAMP |
| DE-AERATION LINE TO BRACKET | ||
| 128 | N 000933008145 | SCREW |
| DE-AERATION LINE TO BRACKET | ||
| 128A | N 000125008418 | WASHER |
| DE-AERATION LINE TO BRACKET | ||
| 128C | N 913004008004 | NUT |
| DE-AERATION LINE TO BRACKET | ||
| 129 | N 916016022202 | CLAMP |
| DE-AERATION LINE TO ENGINE PARTITION PANEL | ||
| 132 | N 916016022206 | CLAMP |
| DE-AERATION LINE TO ENGINE PARTITION PANEL | ||
| 135 | N 916016015202 | CLAMP |
| DE-AERATION HOSE TO COMPRESSED AIR LINE | ||
| 138 | N 007981004233 | SHEET METAL SCREW |
| DE-AERATION LINE TO ENGINE PARTITION PANEL | ||
| 141 | N 000933006127 | SCREW |
| DE-AERATION LINE TO ENGINE PARTITION PANEL | ||
| 144 | N 913004006003 | NUT |
| DE-AERATION LINE TO ENGINE PARTITION PANEL | ||
| 150 | N 916017060000 | CLAMP |
| Repalced by: N 000000000673 | ||
| 150 | N 000000000673 | CLAMP |
| HOSE TO RADIATOR AN TO BUBBLE SEPARATOR | ||
| 150 | N 000000000673 | CLAMP |
| HOSE TO BUBBLE SEPARATOR | ||
| 153 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 153 | N 000000000674 | CLAMP |
| HOSE TO THERMOSTAT AND TO RADIATOR | ||
| 153 | N 000000000674 | CLAMP |
| HOSE TO INTAKE PIPE SOCKET | ||
| 156 | A 3965000227 | SUPPORT |
| FAN | ||
| 156 | A 3965000427 | SUPPORT |
| FAN | ||
| 159 | A 3012050080 | GASKET |
| 162 | N 000933008147 | SCREW |
| RADIATOR AND FAN SUPPORT TO BASE FRAME | ||
| 165 | N 000125008418 | WASHER |
| RADIATOR AND FAN SUPPORT TO BASE FRAME | ||
| 168 | N 913004008004 | NUT |
| RADIATOR AND FAN SUPPORT TO BASE FRAME | ||

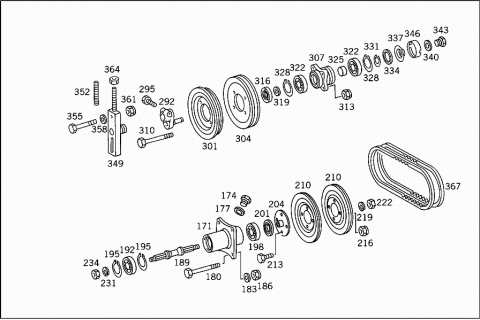

| 171 | A 3012050005 | BEARING BODY |
| FAN DRIVE | ||
| 174 | N 007604010102 | SCREW PLUG |
| OIL FILLING | ||
| 177 | N 007603010404 | SEAL RING |
| OIL FILLING | ||
| 180 | N 000931008248 | SCREW |
| BEARING BODY TO SUPPORT | ||
| 183 | N 000125008418 | WASHER |
| BEARING BODY TO SUPPORT | ||
| 186 | N 913004008004 | NUT |
| BEARING BODY TO SUPPORT | ||
| 189 | A 3012050002 | FAN SHAFT |
| 192 | N 000625900200 | GROOVED BALL BEARING |
| FRONT | ||
| 195 | N 000472052000 | LOCK RING |
| FRONT | ||
| 198 | N 005412600304 | CYLINDR. ROLLER BEARING |
| REAR | ||
| 198 | A 0059819701 | CYLINDR. ROLLER BEARING |
| REAR | ||
| 201 | N 003760030300 | RADIAL SEAL RING |
| FRONT AND REAR | ||
| 204 | A 3012050004 | HUB |
| REAR | ||
| 210 | A 3012060310 | PULLEY |
| FAN DRIVE | ||
| 213 | N 000933008153 | SCREW |
| PULLEY TO HUB | ||
| 216 | N 913004008004 | NUT |
| PULLEY TO HUB | ||
| 219 | N 912004016101 | LOCK WASHER |
| PULLEY TO FAN SHAFT | ||
| 222 | N 000439016203 | NUT |
| PULLEY TO FAN SHAFT | ||
| 228 | A 3222050204 | HUB |
| FRONT | ||
| 231 | N 912004016101 | LOCK WASHER |
| HUB TO FAN SHAFT | ||
| 234 | N 000439016203 | NUT |
| HUB TO FAN SHAFT | ||

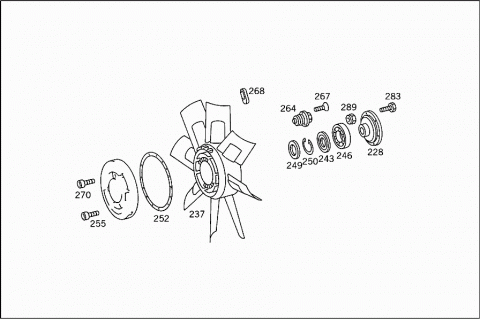

| 237 | A 0002055806 | FAN |
| Repalced by: A 0022051906 | ||
| 237 | A 0022051906 | FAN |
| WITH POWER SAVER FAN | ||
| 240 | A 0012050606 | FAN |
| TO 000 205 58 06 | ||
| 240 | A 0022052806 | FAN |
| TO 002 205 19 06 | ||
| 243 | A 0002060060 | SEAL RING |
| TO 000 205 58 06 | ||
| 246 | A 0039812725 | BALL BEARING |
| Repalced by: A 0049810525 | ||
| 246 | A 0049810525 | BALL BEARING |
| TO 000 205 58 06 | ||
| A 0059810125 | BALL BEARING | |
| Repalced by: A 0059814825 | ||
| 246 | A 0059814825 | BALL BEARING |
| TO 002 205 63 06;19 06 | ||
| 249 | A 0002060051 | SPACER RING |
| TO 000 205 58 06 | ||
| 250 | A 0002050073 | LOCK |
| 100X2 MM | ||
| 250 | A 0002050173 | LOCK |
| 100X2.1 MM | ||
| 250 | A 0002050273 | LOCK |
| 100X2.2 MM | ||
| 250 | A 0002050373 | LOCK |
| 100X2.3 MM | ||
| 252 | A 0002060080 | GASKET |
| Repalced by: A 0002060580 | ||
| 252 | A 0002060580 | GASKET |
| TO 000 205 58 06 | ||
| 252 | A 0002060280 | GASKET |
| Repalced by: A 0002060780 | ||
| 252 | A 0002060780 | GASKET |
| TO 002 205 19 06;002 205 63 06 | ||
| 255 | N 000912006040 | SCREW |
| 258 | A 0002060428 | PRIMARY CUP |
| Repalced by: A 0002060628 | ||
| 258 | A 0002060628 | PRIMARY CUP |
| TO 000 205 58 06 | ||
| 258 | A 0002060928 | PRIMARY CUP |
| TO 002 205 19 06 | ||
| 261 | A 0002060403 | COVER |
| TO 000 205 58 06 | ||
| 261 | A 0002062903 | COVER |
| TO 002 205 19 06 | ||
| 264 | A 0002000072 | CLAMPING PIECE |
| TO 000 205 58 06 | ||
| 267 | N 000965004021 | SCREW |
| TO 000 205 58 06 | ||
| 268 | A 0002060118 | GUIDE |
| TO 002 205 19 06;002 205 63 06 | ||
| A 0002060071 | SCREW | |
| TO 002 205 19 06;002 205 63 06 | ||
| 270 | A 0009907420 | SCREW |
| TO 002 205 19 06 | ||
| 273 | A 0002060345 | FLANGE |
| TO 000 205 58 06 | ||
| 273 | A 0002061545 | FLANGE |
| TO 002 205 19 06 | ||
| A 0005831935 | RECEPTACLE | |
| TO 000 205 58 06 | ||
| A 0005832135 | RECEPTACLE | |
| 73 CCM;TO 002 205 19 06 | ||
| 283 | N 000933008177 | SCREW |
| FAN TO HUB | ||
| 289 | N 913004008005 | NUT |
| FAN TO HUB | ||
| 292 | A 3072000173 | LEVER |
| TIGHTENER PULLEY | ||
| 295 | N 000960012189 | SCREW |
| CLAMPING LEVER TO SUPPORT | ||
| 301 | A 3012060110 | PULLEY |
| BENT | ||
| 304 | A 3012060210 | PULLEY |
| STRAIGHT | ||
| 307 | A 3012060113 | HUB |
| 310 | N 000931008244 | SCREW |
| PULLEY TO HUB | ||
| 313 | N 913004008004 | NUT |
| PULLEY TO HUB | ||
| 316 | A 0019978547 | SEAL RING |
| BELT TIGHTENER PULLEY TO BELT TIGHTENER SPINDLE | ||
| 319 | A 3022050552 | SPACER WASHER |
| AS REQUIRED | ||
| 0.2 MM | ||
| 319 | A 3022050652 | SPACER WASHER |
| AS REQUIRED | ||
| 0.5 MM | ||
| 319 | A 3022050752 | SPACER WASHER |
| AS REQUIRED | ||
| 1.0 MM | ||
| 322 | N 000625900200 | GROOVED BALL BEARING |
| CLAMPING LEVER | ||
| 325 | A 3012060053 | SPACER TUBE |
| HUB,INSIDE | ||
| 328 | N 000472052000 | LOCK RING |
| HUB,INSIDE | ||
| 52X2 MM | ||
| 331 | N 000471020001 | LOCK RING |
| HUB,INSIDE | ||
| 20X1.2 MM | ||
| 334 | N 915035000012 | SEAL RING |
| HUB,INSIDE | ||
| 52X60 MM | ||
| 337 | A 3012060157 | EXPANSION PLUG |
| HUB,INSIDE | ||
| 340 | N 007603010404 | SEAL RING |
| HUB,INSIDE | ||
| 343 | N 007604010102 | SCREW PLUG |
| HUB,INSIDE | ||
| 346 | A 3012060072 | NUT |
| HUB,INSIDE | ||
| 349 | A 3012000039 | SUPPORT |
| (CLAMPING LEVER) | ||
| 352 | A 3019900005 | STUD |
| 355 | N 000931010264 | SCREW |
| SUPPORT TO FAN SUPPORT | ||
| 358 | N 000125010518 | WASHER |
| SUPPORT TO FAN SUPPORT | ||
| 361 | N 913004010008 | NUT |
| SUPPORT TO FAN SUPPORT | ||
| 364 | N 000934012022 | NUT |
| SUPPORT TO FAN SUPPORT | ||
| 367 | A 0079979592 | V-BELT |
| FROM VIBRATION DAMPER TO TIGHTENER PULLEY | ||
| 12.5X1925 MM | ||
| 367 | A 0039970592 | V-BELT |
| FROM TIGHTENER PULLEY TO FAN PULLEY | ||
| 12.5X1150 MM | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
