Transporto priemonė: OH 1625 L MBSA; VIN numerio dalis: 396478

Grupė: 26 TRANSMISSION

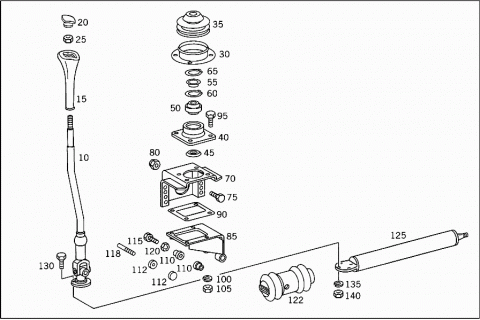

#	Kodas	Pavadinimas
010	A 3962600039	SHIFT LEVER
015	A 6202680042	KNOB
		(GEARSHIFT LEVER KNOB)
020	A 6202680357	COVER
		WITH GEAR INDICATOR
025	N 000439010216	NUT
		GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER
030	A 3016850025	ESCUTCHEON
		SHIFT LEVER
035	A 3012670096	BOOT
		SHIFT LEVER
040	A 3002680040	BRACKET
		SHIFT LEVER
045	A 3002680080	GASKET
		SHIFT LEVER
050	A 0019811931	JOINT BEARING
		SHIFT LEVER
055	A 3002680051	SPACER RING
		SHIFT LEVER
060	N 000472047000	LOCK RING
		BEARING TO BRACKET
065	N 000471025002	LOCK RING
		BEARING TO SHIFT LEVER
070	A 3962680440	BRACKET
		SHIFT LEVER BEARING
070	A 3962600462	BRACKET
		SHIFT LEVER BEARING
075	N 000933010105	SCREW
		BRACKET TO SIDE MEMBER
080	N 913004010008	NUT
		BRACKET TO SIDE MEMBER
085	A 3962600262	BRACKET
	Repalced by: A 3962600662
085	A 3962600662	BRACKET
		SHIFT LEVER BEARING
090	A 3962680052	SPACER WASHER
		BRACKET TO FRAME
095	N 000933008152	SCREW
		BRACKET TO FRAME
100	N 912004008102	LOCK WASHER
		BRACKET TO FRAME
105	N 000934008010	NUT
		BRACKET TO FRAME
110	A 3002680049	SLIDE
		FRONT SHIFTING ROD ADJUSTMENT
112	A 3962680049	SLIDE
		FRONT SHIFTING ROD ADJUSTMENT
115	N 000933010128	SCREW
		SLIDE ADJUSTMENT
118	N 000417010015	HEADLESS SETSCREW
		SLIDE ADJUSTMENT
120	N 913021010001	NUT
		SLIDE ADJUSTMENT
122	A 3962680096	BOOT
		SLIDE ADJUSTMENT
125	A 3962600833	SHIFTING ROD
		FRONT
		2104 MM
125	A 3962600933	SHIFTING ROD
		FRONT
		1104 MM
130	A 3219900601	SCREW
		SHIFT LEVER TO FRONT SHIFTING TUBE
135	N 912004008102	LOCK WASHER
		SHIFT LEVER TO FRONT SHIFTING TUBE
140	N 000934008010	NUT
		SHIFT LEVER TO FRONT SHIFTING TUBE
145	A 3962601133	SHIFTING ROD
		NO.2,2436 MM
150	A 3962600233	SHIFTING ROD
		NO.3,2752 MM
155	A 3962600333	SHIFTING ROD
		NO.4,1145 MM
160	A 3962600433	SHIFTING ROD
		NO.5,773 MM
165	A 3212680228	CONNECTOR
		FLANGE TO SHIFTING TUBE
170	N 006888005006	WOODRUFF KEY
		CONNECTOR TO SHIFTING ROD
		NO.1,NO.3,NO.4
175	N 912004012100	LOCK WASHER
		CONNECTOR TO SHIFTING ROD
		NO.1,NO.3,NO.4
180	N 000934012022	NUT
		CONNECTOR TO SHIFTING ROD
		NO.1,NO.3,NO.4
185	A 0002681889	JOINT
	Repalced by: A 3572680089
185	A 3572680089	JOINT
		SHIFTING ROD TO SHIFTING ROD
185	A 0002681989	JOINT
	Repalced by: A 3572680289
185	A 3572680289	JOINT
		SHIFTING ROD TO SHIFTING ROD
190	A 3179900301	SCREW
		JOINT TO SHIFTING TUBE
195	N 000931008266	SCREW
		SHIFTING ROD TO TRANSMISSION
200	N 912004008102	LOCK WASHER
		JOINT TO SHIFTING ROD & TRANSMISSION
205	N 000934008010	NUT
		JOINT TO SHIFTING ROD & TRANSMISSION
210	A 3212680552	SPACER WASHER
		AS REQUIRED
		2.00 MM
210	A 3212680452	SPACER WASHER
		AS REQUIRED
		3.00 MM
210	A 3212680352	SPACER WASHER
		AS REQUIRED
		5.00 MM
215	A 3962681440	BRACKET
		SHIFTING ROD BEARING:
		NO.1
215	A 3962681340	BRACKET
		SHIFTING ROD BEARING:
		NO.1
215	A 3962681140	BRACKET
		SHIFTING ROD BEARING:
		NO. 2
220	A 3962680240	BRACKET
		SHIFTING ROD BEARING:
		NO.3,NO.4
225	N 000961012151	SCREW
		BRACKET TO SIDE MEMBER
		M 12X30
225	N 000961012097	SCREW
		BRACKET TO SIDE MEMBER
		M 12X35
225	N 000961016075	SCREW
		BRACKET TO SIDE MEMBER
		M 16X35
230	N 913004012008	NUT
		BRACKET TO SIDE MEMBER
230	N 913004016003	NUT
		BRACKET TO SIDE MEMBER
235	A 3012930240	BRACKET
		SHIFTING ROD BEARING:
		NO.1,NO.3,NO.4
240	A 3052680150	BUSHING
	Repalced by: A 3572680050
240	A 3572680050	BUSHING
		BRACKET
245	A 0002680396	BOOT
		SHIFTING ROD
250	N 000933008152	SCREW
		BRACKET TO SUBSTRUCTURE
255	N 000125008418	WASHER
		BRACKET TO SUBSTRUCTURE
260	N 913004008004	NUT
		BRACKET TO SUBSTRUCTURE
