Transporto priemonė: OH 1635 L; VIN numerio dalis: 382083

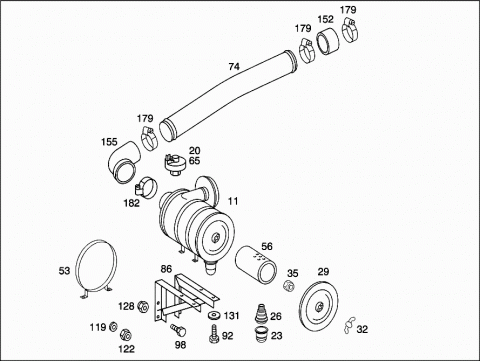

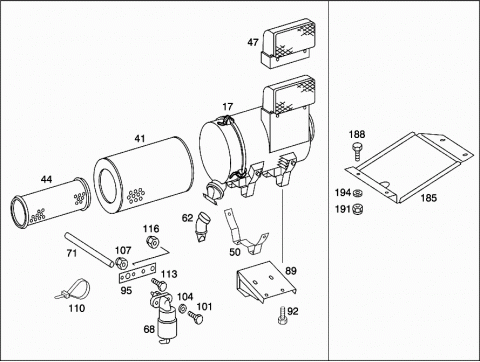

Grupė: 52 CHASSIS SHEET METAL - 120 AIR INTAKE
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3760903001 | AIR CLEANER |
| 005 | A 3760903001 | AIR CLEANER |
| 005 | A 3860909401 | AIR CLEANER |
| 005 | A 3860909401 | AIR CLEANER |
| 005 | A 3860909401 | AIR CLEANER |
| 011 | A 4750907401 | AIR CLEANER |
| 011 | A 4750907401 | AIR CLEANER |
| 011 | A 4750908201 | AIR CLEANER |
| 017 | A 3760905601 | AIR CLEANER |
| 020 | A 0000940368 | VACUUM BOX |
| TO 475 090 82 01 | ||
| 023 | A 0000944817 | DUST COLLECTOR BOWL |
| TO 475 090 82 01 | ||
| 026 | A 0000946311 | SCOOP |
| TO 475 090 82 01 | ||
| 029 | A 0010947106 | COVER |
| TO 475 090 82 01 | ||
| 032 | A 0000900072 | NUT |
| TO 475 090 82 01 | ||
| 035 | A 3500947072 | NUT |
| TO 475 090 82 01 | ||
| 035 | N 913023008003 | NUT |
| TO 475 090 82 01 | ||
| 038 | A 3500947004 | FILTER ELEMENT |
| 041 | A 3760948204 | FILTER ELEMENT |
| TO 376 090 56 01 | ||
| 044 | A 3760948304 | FILTER ELEMENT |
| SAFETY CARTRIDGE | ||
| TO 376 090 56 01 | ||
| 047 | A 3820947011 | SCOOP |
| TO 376 090 56 01 | ||
| 050 | A 3760940141 | BRACKET |
| TO 376 090 56 01 | ||
| 053 | A 0000941827 | BRACKET |
| 056 | A 3880947004 | FILTER ELEMENT |
| 059 | A 0010947406 | COVER |
| TO 386 090 94 01 | ||
| 059 | A 0010947406 | COVER |
| TO 386 090 94 01 | ||
| 059 | A 0010947406 | COVER |
| TO 386 090 94 01 | ||
| 059 | A 0010947006 | COVER |
| TO A 376 090 30 01 | ||
| 062 | A 3760947165 | VALVE |
| TO 386 090 94 01 / 376 090 56 01 | ||
| 062 | A 3760947165 | VALVE |
| TO 386 090 94 01 / 376 090 56 01 | ||
| 062 | A 3760947165 | VALVE |
| TO 386 090 94 01 / 376 090 56 01 | ||
| 065 | A 3645407045 | SWITCH |
| Repalced by: A 6885407645 | ||
| 065 | A 6885407645 | SWITCH |
| (MAINTENANCE SWITCH) | ||
| 068 | A 3760907466 | VACUUM BOX |
| 071 | A 3849977782 | HOSE |
| TO 376 090 74 66 | ||
| 074 | A 3825287509 | PIPE |
| Repalced by: A 3825207501 | ||
| 074 | A 3825207501 | AIR INTAKE PIPE |
| 074 | A 3825207501 | AIR INTAKE PIPE |
| 074 | A 3825207701 | AIR INTAKE PIPE |
| 074 | A 3825207801 | AIR INTAKE PIPE |
| 077 | A 3825207233 | SUPPORT |
| AIR CLEANER | ||
| 077 | A 3825207233 | SUPPORT |
| AIR CLEANER | ||
| 080 | A 3825247040 | BRACKET |
| AIR CLEANER | ||
| 080 | A 3825247040 | BRACKET |
| AIR CLEANER | ||
| 083 | A 3825207241 | BRACKET |
| AIR CLEANER | ||
| 083 | A 3825207241 | BRACKET |
| AIR CLEANER | ||
| 083 | A 3825207241 | BRACKET |
| AIR CLEANER | ||
| 086 | A 3825207041 | BRACKET |
| AIR CLEANER | ||
| 086 | A 3825207041 | BRACKET |
| AIR CLEANER | ||
| 086 | A 3825207641 | BRACKET |
| AIR CLEANER | ||
| 089 | A 3825207741 | BRACKET |
| AIR CLEANER | ||
| 092 | N 000933008291 | SCREW |
| AIR CLEANER TO SUPPORT | ||
| M 8X20 | ||
| 092 | N 000933008291 | SCREW |
| AIR CLEANER TO SUPPORT | ||
| M 8X20 | ||
| 092 | N 000933010294 | SCREW |
| AIR CLEANER TO SUPPORT | ||
| M 10X20 | ||
| 095 | A 3845289840 | BRACKET |
| VACUUM INDICATOR,AIR CLEANER | ||
| 098 | N 000961014105 | SCREW |
| BRACKET TO FRAME | ||
| M14X1.5X30 | ||
| 098 | N 000961014105 | SCREW |
| BRACKET TO FRAME | ||
| M14X1.5X30 | ||
| 098 | N 000961014105 | SCREW |
| BRACKET TO FRAME | ||
| M14X1.5X30 | ||
| 098 | N 910105014005 | SCREW |
| BRACKET TO FRAME | ||
| M14X1,5X40 | ||
| 098 | N 000961014101 | SCREW |
| BRACKET TO FRAME | ||
| M14X1.5X45 | ||
| 098 | N 000961014106 | SCREW |
| BRACKET TO FRAME | ||
| M14X1.5X35 | ||
| 098 | N 000961014106 | SCREW |
| BRACKET TO FRAME | ||
| M14X1.5X35 | ||
| 098 | N 000961014106 | SCREW |
| BRACKET TO FRAME | ||
| M14X1.5X35 | ||
| 098 | N 000931010402 | SCREW |
| AIR CLEANER TO SUPPORT | ||
| M 10X55 | ||
| 098 | N 000931010395 | SCREW |
| AIR CLEANER TO SUPPORT | ||
| 101 | N 000933006221 | SCREW |
| VACUUM INDICATOR,AIR CLEANER | ||
| M6X20 | ||
| 104 | N 000125006421 | WASHER |
| VACUUM INDICATOR,AIR CLEANER | ||
| 107 | N 913004006001 | NUT |
| VACUUM INDICATOR,AIR CLEANER | ||
| 110 | A 3459977390 | LOOM TIE |
| VACUUM INDICATOR,AIR CLEANER | ||
| 113 | N 000933010294 | SCREW |
| VACUUM INDICATOR,AIR CLEANER | ||
| M10X20 | ||
| 116 | N 913004010011 | NUT |
| VACUUM INDICATOR,AIR CLEANER | ||
| 119 | N 000125008417 | WASHER |
| BRACKET TO FRAME | ||
| 119 | N 000125008417 | WASHER |
| AIR CLEANER TO SUPPORT | ||
| 119 | N 000125008417 | WASHER |
| BRACKET TO FRAME | ||
| 122 | N 913004008001 | NUT |
| AIR CLEANER TO SUPPORT | ||
| 122 | N 913004008001 | NUT |
| AIR CLEANER TO SUPPORT | ||
| 122 | N 913004008001 | NUT |
| AIR CLEANER TO SUPPORT | ||
| 125 | N 913004010011 | NUT |
| AIR CLEANER TO SUPPORT | ||
| 128 | N 913004014005 | NUT |
| AIR CLEANER TO BRACKET | ||
| 128 | N 913004014005 | NUT |
| AIR CLEANER TO BRACKET | ||
| 128 | N 913004014005 | NUT |
| AIR CLEANER TO BRACKET | ||
| 128 | N 913004014005 | NUT |
| BRACKET TO FRAME | ||
| 128 | N 913023014003 | NUT |
| AIR CLEANER TO SUPPORT | ||
| 131 | N 009021008102 | WASHER |
| AIR CLEANER TO BRACKET | ||
| 134 | A 3760908429 | AIR INTAKE PIPE |
| FROM AIR CLEANER TO ENGINE | ||
| 134 | A 3760908429 | AIR INTAKE PIPE |
| FROM AIR CLEANER TO ENGINE | ||
| 134 | A 3760908429 | AIR INTAKE PIPE |
| FROM AIR CLEANER TO ENGINE | ||
| 137 | N 000933008271 | SCREW |
| AIR INTAKE PIPE TO BODY | ||
| M 8X20 | ||
| 137 | N 000933008271 | SCREW |
| AIR INTAKE PIPE TO BODY | ||
| M 8X20 | ||
| 140 | N 000125008417 | WASHER |
| AIR INTAKE PIPE TO BODY | ||
| 140 | N 009021008102 | WASHER |
| AIR INTAKE PIPE TO BODY | ||
| 143 | N 913004008001 | NUT |
| AIR INTAKE PIPE TO BODY | ||
| 146 | A 3760987183 | HOSE |
| AIR INTAKE PIPE TO AIR CLEANER | ||
| 146 | A 3760987183 | HOSE |
| AIR INTAKE PIPE TO AIR CLEANER | ||
| 149 | A 3505288282 | HOSE |
| AIR INTAKE PIPE TO AIR CLEANER | ||
| 149 | A 3505288282 | HOSE |
| AIR INTAKE PIPE TO AIR CLEANER | ||
| 149 | A 3640947382 | HOSE |
| AIR INTAKE PIPE TO AIR CLEANER | ||
| 149 | A 3640947382 | HOSE |
| AIR INTAKE PIPE TO AIR CLEANER | ||
| 149 | A 3825287382 | HOSE |
| FROM AIR CLEANER TO ENGINE | ||
| 149 | A 3825287382 | HOSE |
| FROM AIR CLEANER TO ENGINE | ||
| 149 | A 3825287382 | HOSE |
| FROM AIR CLEANER TO ENGINE | ||
| 149 | A 3825288582 | HOSE |
| FROM AIR CLEANER TO ENGINE | ||
| 149 | A 3825287682 | HOSE |
| FROM AIR CLEANER TO ENGINE | ||
| 152 | A 6825287982 | HOSE |
| FROM AIR CLEANER TO ENGINE | ||
| 155 | A 6845280182 | HOSE |
| FROM AIR CLEANER TO ENGINE | ||
| 158 | N 900271025021 | HOSE |
| FROM AIR CLEANER TO AIR COMPRESSOR | ||
| 158 | N 900271025021 | HOSE |
| FROM AIR CLEANER TO AIR COMPRESSOR | ||
| 161 | A 4961340022 | PIPE BEND |
| FROM AIR CLEANER TO AIR COMPRESSOR | ||
| 164 | N 080705026000 | NUT |
| ELBOW TO AIR COMPRESSOR | ||
| 167 | N 916017025000 | CLAMP |
| HOSE ATTACHMENT | ||
| 167 | N 916017025000 | CLAMP |
| HOSE ATTACHMENT | ||
| 170 | N 916017140000 | CLAMP |
| HOSE ATTACHMENT | ||
| 170 | N 916017140000 | CLAMP |
| HOSE ATTACHMENT | ||
| 170 | N 916017130000 | CLAMP |
| HOSE ATTACHMENT | ||
| 170 | N 916017130000 | CLAMP |
| HOSE ATTACHMENT | ||
| 170 | N 916017130000 | CLAMP |
| HOSE ATTACHMENT | ||
| 173 | N 916017110000 | CLAMP |
| HOSE ATTACHMENT | ||
| 173 | N 916017110000 | CLAMP |
| HOSE ATTACHMENT | ||
| 173 | N 916017100000 | CLAMP |
| HOSE ATTACHMENT | ||
| 100-120 | ||
| 173 | N 916017100000 | CLAMP |
| HOSE ATTACHMENT | ||
| 100-120 | ||
| 173 | N 916017100000 | CLAMP |
| HOSE ATTACHMENT | ||
| 100-120 | ||
| 173 | N 916017060000 | CLAMP |
| HOSE ATTACHMENT | ||
| 60-80 | ||
| 176 | A 3849977590 | CLAMP |
| HOSE ATTACHMENT | ||
| 176 | A 3849977590 | CLAMP |
| HOSE ATTACHMENT | ||
| 179 | A 6849977290 | CLAMP |
| FROM AIR CLEANER TO ENGINE | ||
| 179 | A 3649970090 | CLAMP |
| FROM AIR CLEANER TO ENGINE | ||
| 182 | A 6849977190 | CLAMP |
| FROM AIR CLEANER TO ENGINE | ||
| 185 | A 3825247101 | PROTECTIVE PLATE |
| 188 | N 000961014105 | SCREW |
| OIL PAN COVERING,FRONT | ||
| M14X1,5X30 | ||
| 191 | N 913004014005 | NUT |
| OIL PAN COVERING,FRONT | ||
| 194 | N 000125015012 | WASHER |
| OIL PAN COVERING,FRONT | ||
| A 3829950101 | CLAMP | |
| HOSE ATTACHMENT | ||
