Transporto priemonė: OH 1635 L; VIN numerio dalis: 382083

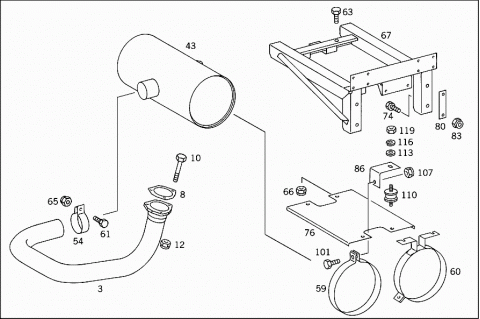

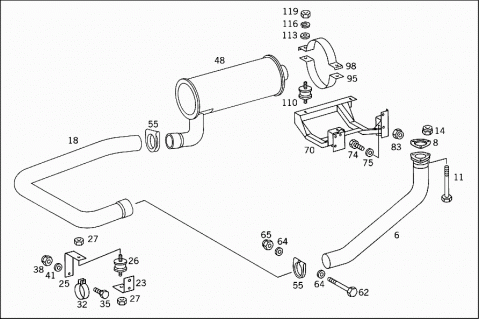

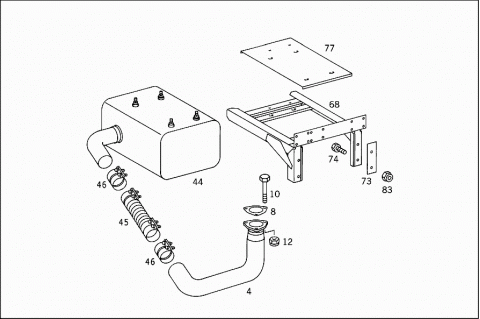

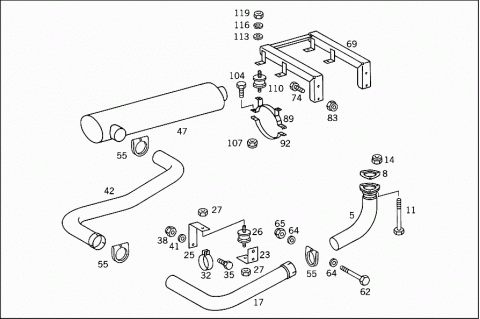

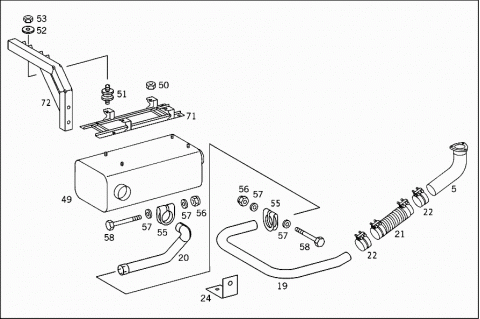

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 003 | A 3824909119 | EXHAUST PIPE |
| 003 | A 3824909119 | EXHAUST PIPE |
| 003 | A 3824909119 | EXHAUST PIPE |
| 003 | A 3824909219 | EXHAUST PIPE |
| 003 | A 3824909219 | EXHAUST PIPE |
| 003 | A 3824909219 | EXHAUST PIPE |
| 004 | A 3824909519 | EXHAUST PIPE |
| 004 | A 3824909519 | EXHAUST PIPE |
| 004 | A 3824909519 | EXHAUST PIPE |
| 004 | A 3824903019 | EXHAUST PIPE |
| 004 | A 3824903019 | EXHAUST PIPE |
| 004 | A 3824903019 | EXHAUST PIPE |
| 004 | A 3824903119 | EXHAUST PIPE |
| 005 | A 3824908719 | EXHAUST PIPE |
| FRONT,FRONT PART | ||
| 005 | A 3824908719 | EXHAUST PIPE |
| 005 | A 3824909719 | EXHAUST PIPE |
| FRONT,FRONT PART | ||
| 005 | A 3824908419 | EXHAUST PIPE |
| FRONT,FRONT PART | ||
| 005 | A 3824908419 | EXHAUST PIPE |
| 006 | A 3824909419 | EXHAUST PIPE |
| FRONT,FRONT PART | ||
| 006 | A 3824909319 | EXHAUST PIPE |
| FRONT,FRONT PART | ||
| 006 | A 3824909919 | EXHAUST PIPE |
| FRONT,FRONT PART | ||
| 008 | A 6004920080 | FLANGE GASKET |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 010 | N 000960012385 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X1.5X70 | ||
| 011 | N 000931012283 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X50 | ||
| 012 | N 913004012018 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 014 | N 999901012000 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 017 | A 3824929701 | FRONT EXHAUST PIPE |
| 017 | A 3824929701 | FRONT EXHAUST PIPE |
| 017 | A 3824929201 | FRONT EXHAUST PIPE |
| 017 | A 3824929201 | FRONT EXHAUST PIPE |
| 018 | A 3824927102 | FRONT EXHAUST PIPE |
| 018 | A 3824927102 | FRONT EXHAUST PIPE |
| 019 | A 3824927402 | FRONT EXHAUST PIPE |
| 019 | A 3824927402 | FRONT EXHAUST PIPE |
| 020 | A 3824909819 | EXHAUST PIPE |
| 020 | A 3824909819 | EXHAUST PIPE |
| 021 | A 6644907065 | FLEXIBLE METAL TUBE |
| Repalced by: A 6644900165 | ||
| 021 | A 6644900165 | FLEXIBLE METAL TUBE |
| 021 | A 6644900165 | FLEXIBLE METAL TUBE |
| 022 | A 6964927140 | CLAMP |
| Repalced by: A 6344920640 | ||
| 022 | A 6344920640 | CLAMP |
| 022 | A 6344920640 | CLAMP |
| 023 | A 3824927241 | BRACKET |
| EXHAUST PIPE TO TRANSMISSION | ||
| 023 | A 3824927241 | BRACKET |
| EXHAUST PIPE TO TRANSMISSION | ||
| 024 | A 3824929541 | BRACKET |
| EXHAUST PIPE TO TRANSMISSION | ||
| 024 | A 3824929541 | BRACKET |
| EXHAUST PIPE TO TRANSMISSION | ||
| 025 | A 3454928841 | BRACKET |
| EXHAUST PIPE | ||
| 025 | A 3454928841 | BRACKET |
| EXHAUST PIPE | ||
| 025 | A 3824929441 | BRACKET |
| EXHAUST PIPE | ||
| 026 | A 3475040012 | RUBBER MOUNTING |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| 026 | A 3475040012 | RUBBER MOUNTING |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| - | ||
| 026 | A 3475040012 | RUBBER MOUNTING |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| 027 | N 000934010005 | NUT |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| 027 | N 000934010005 | NUT |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| 027 | N 000934010005 | NUT |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| N 910105014007 | SCREW | |
| BRACKET TO RIGHT SIDE MEMBER | ||
| M14X1,5X25 | ||
| N 910105014007 | SCREW | |
| BRACKET TO RIGHT SIDE MEMBER | ||
| M14X1,5X25 | ||
| N 913023014003 | NUT | |
| BRACKET TO RIGHT SIDE MEMBER | ||
| M14X1,5 | ||
| N 913023014003 | NUT | |
| BRACKET TO RIGHT SIDE MEMBER | ||
| M14X1,5 | ||
| 032 | N 071555100502 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 100.5 MM | ||
| 032 | N 071555100502 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 100.5 MM | ||
| 032 | N 071555114501 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 032 | N 071555114501 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 032 | N 071555114501 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 032 | N 071555114501 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 035 | N 000933010200 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| M 10X30 | ||
| 035 | N 000933010200 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| M 10X30 | ||
| 035 | N 000933010258 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| M 10X30 | ||
| 035 | N 000933010258 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| M 10X30 | ||
| 035 | N 000933010258 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| M 10X30 | ||
| 035 | N 000933010258 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| M 10X30 | ||
| 038 | N 913004010011 | NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
| 041 | N 000125010517 | WASHER |
| CLAMP TO BRACKET AND TO PIPE | ||
| 042 | A 3824929301 | FRONT EXHAUST PIPE |
| AT MUFFLER | ||
| 042 | A 3824929301 | FRONT EXHAUST PIPE |
| AT MUFFLER | ||
| 043 | A 3824907215 | EXHAUST MUFFLER WITH PIPE |
| 043 | A 3824907215 | EXHAUST MUFFLER WITH PIPE |
| 043 | A 3824907215 | EXHAUST MUFFLER WITH PIPE |
| 043 | A 3824907315 | EXHAUST MUFFLER WITH PIPE |
| 043 | A 3824907315 | EXHAUST MUFFLER WITH PIPE |
| 043 | A 3824907315 | EXHAUST MUFFLER WITH PIPE |
| 044 | A 3824907401 | EXHAUST MUFFLER |
| 044 | A 3824907401 | EXHAUST MUFFLER |
| 044 | A 3824907501 | EXHAUST MUFFLER |
| 044 | A 3824907501 | EXHAUST MUFFLER |
| 045 | A 3824907065 | FLEXIBLE METAL TUBE |
| 045 | A 3824907065 | FLEXIBLE METAL TUBE |
| Repalced by: A 3824900165 | ||
| 045 | A 3824900165 | FLEXIBLE METAL TUBE |
| 045 | A 3824900165 | FLEXIBLE METAL TUBE |
| 046 | A 3844927340 | CLAMP |
| 046 | A 3844927340 | CLAMP |
| Repalced by: A 3824920140 | ||
| 046 | A 3824920140 | CLAMP |
| TO A 382 490 70 65 | ||
| 047 | A 3824907015 | EXHAUST MUFFLER WITH PIPE |
| 047 | A 3824907015 | EXHAUST MUFFLER WITH PIPE |
| 047 | A 3824907115 | EXHAUST MUFFLER WITH PIPE |
| 047 | A 3824907115 | EXHAUST MUFFLER WITH PIPE |
| 048 | A 3824907301 | EXHAUST MUFFLER |
| 048 | A 3824907301 | EXHAUST MUFFLER |
| 049 | A 6644907601 | EXHAUST MUFFLER |
| 049 | A 6644907601 | EXHAUST MUFFLER |
| 050 | N 913004012003 | NUT |
| AT MUFFLER | ||
| 051 | A 3475040012 | RUBBER MOUNTING |
| EXHAUST MUFFLER TO SUPPORT | ||
| 051 | A 3475040012 | RUBBER MOUNTING |
| EXHAUST MUFFLER TO SUPPORT | ||
| 052 | N 009021010102 | WASHER |
| 052 | N 009021010102 | WASHER |
| 053 | N 000934010000 | NUT |
| 053 | N 000934010000 | NUT |
| 054 | N 071555104500 | CLAMP |
| EXHAUST PIPE TO EXHAUST PIPE | ||
| 054 | N 071555104500 | CLAMP |
| EXHAUST PIPE TO EXHAUST PIPE | ||
| 055 | A 3864927040 | CLAMP |
| EXHAUST PIPE TO EXHAUST PIPE | ||
| 055 | A 3864927040 | CLAMP |
| EXHAUST PIPE TO EXHAUST PIPE | ||
| 055 | A 6644927040 | CLAMP |
| EXHAUST PIPE TO EXHAUST PIPE | ||
| 055 | A 6644927040 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 055 | A 6644927040 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 056 | N 913004010011 | NUT |
| EXHAUST PIPE TO MUFFLER | ||
| 056 | N 913004010011 | NUT |
| EXHAUST PIPE TO MUFFLER | ||
| 057 | N 000125010517 | WASHER |
| EXHAUST PIPE TO MUFFLER | ||
| 057 | N 000125010517 | WASHER |
| EXHAUST PIPE TO MUFFLER | ||
| 058 | N 000931010431 | SCREW |
| EXHAUST PIPE TO MUFFLER | ||
| 058 | N 000931010431 | SCREW |
| EXHAUST PIPE TO MUFFLER | ||
| 059 | A 3844917040 | CLAMP |
| EXHAUST MUFFLER TO SUPPORT | ||
| 059 | A 3844917040 | CLAMP |
| EXHAUST MUFFLER TO SUPPORT | ||
| 059 | A 3844917040 | CLAMP |
| EXHAUST MUFFLER TO SUPPORT | ||
| 060 | A 3824907540 | BRACKET |
| EXHAUST MUFFLER TO SUPPORT | ||
| 060 | A 3824907540 | BRACKET |
| EXHAUST MUFFLER TO SUPPORT | ||
| 060 | A 3824907540 | BRACKET |
| EXHAUST MUFFLER TO SUPPORT | ||
| 060 | A 3824907540 | BRACKET |
| EXHAUST MUFFLER TO SUPPORT | ||
| 061 | N 000933010200 | SCREW |
| CLAMP TO EXHAUST MUFFLER | ||
| 061 | N 000933010200 | SCREW |
| CLAMP TO EXHAUST MUFFLER | ||
| 061 | N 000933010200 | SCREW |
| CLAMP TO EXHAUST MUFFLER | ||
| 061 | N 000933010200 | SCREW |
| CLAMP TO EXHAUST MUFFLER | ||
| 061 | N 000933010269 | SCREW |
| CLAMP TO EXHAUST PIPE | ||
| M 10X35 | ||
| 061 | N 000933010269 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 10X35 | ||
| 061 | N 000933010269 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 10X35 | ||
| 062 | N 000931010234 | SCREW |
| CLAMP TO EXHAUST PIPE | ||
| M 10X148 | ||
| 062 | N 000931010234 | SCREW |
| CLAMP TO EXHAUST PIPE | ||
| M 10X148 | ||
| 062 | N 000931010431 | SCREW |
| CLAMP TO EXHAUST PIPE | ||
| M10X160 | ||
| 062 | N 000931010431 | SCREW |
| CLAMP TO EXHAUST PIPE | ||
| M10X160 | ||
| 063 | N 000933010269 | SCREW |
| EXHAUST MUFFLER TO SUPPORT | ||
| M 10X1X20 | ||
| 063 | N 910105014005 | SCREW |
| EXHAUST MUFFLER TO SUPPORT | ||
| M 14X1,5X40 | ||
| 063 | N 910105014005 | SCREW |
| EXHAUST MUFFLER TO SUPPORT | ||
| M 14X1,5X40 | ||
| 064 | N 000125010517 | WASHER |
| CLAMP TO EXHAUST PIPE | ||
| 064 | N 000125010517 | WASHER |
| EXHAUST MUFFLER TO SUPPORT | ||
| 065 | N 913004010011 | NUT |
| CLAMP TO EXHAUST PIPE | ||
| 065 | N 913004010011 | NUT |
| CLAMP TO EXHAUST PIPE | ||
| 065 | N 913004010011 | NUT |
| CLAMP TO EXHAUST PIPE | ||
| 065 | N 913004010011 | NUT |
| CLAMP TO EXHAUST PIPE | ||
| 065 | N 913004010011 | NUT |
| CLAMP TO EXHAUST MUFFLER | ||
| 065 | N 913004010011 | NUT |
| CLAMP TO EXHAUST MUFFLER | ||
| 066 | N 913004010011 | NUT |
| EXHAUST MUFFLER TO SUPPORT | ||
| 067 | A 3824907234 | SUPPORT |
| EXHAUST MUFFLER | ||
| 067 | A 3824907234 | SUPPORT |
| EXHAUST MUFFLER | ||
| 067 | A 3824907234 | SUPPORT |
| EXHAUST MUFFLER | ||
| 068 | A 3824907334 | SUPPORT |
| 068 | A 3824907334 | SUPPORT |
| Repalced by: A 3824907434 | ||
| A 3824907434 | SUPPORT | |
| EXHAUST MUFFLER | ||
| A 3824907434 | SUPPORT | |
| EXHAUST MUFFLER | ||
| 069 | A 3824907134 | SUPPORT |
| EXHAUST MUFFLER | ||
| 069 | A 3824907134 | SUPPORT |
| EXHAUST MUFFLER | ||
| 070 | A 3824907340 | BRACKET |
| EXHAUST MUFFLER | ||
| 070 | A 3824907340 | BRACKET |
| EXHAUST MUFFLER | ||
| 071 | A 3824907940 | BRACKET |
| EXHAUST MUFFLER | ||
| 071 | A 3824907940 | BRACKET |
| EXHAUST MUFFLER | ||
| 072 | A 3824907740 | BRACKET |
| SUPPORT TO SIDE MEMBER | ||
| 072 | A 3824907740 | BRACKET |
| SUPPORT TO SIDE MEMBER | ||
| 072 | A 3824907840 | BRACKET |
| SUPPORT TO SIDE MEMBER | ||
| 072 | A 3824907840 | BRACKET |
| SUPPORT TO SIDE MEMBER | ||
| 073 | A 3824918041 | BRACKET |
| SUPPORT TO SIDE MEMBER | ||
| 074 | N 000961014105 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X1.5X30 | ||
| 074 | N 000961014105 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X1.5X30 | ||
| 074 | N 000961014105 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X1.5X30 | ||
| 074 | N 000961014010 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X1.5X35 | ||
| 074 | N 000961014010 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X1.5X35 | ||
| 074 | N 000961014010 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X1.5X35 | ||
| 074 | N 000961014107 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X1.5X40 | ||
| 074 | N 000961014107 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X1.5X40 | ||
| 074 | N 000961014107 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X1.5X40 | ||
| 074 | N 000961014107 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X1.5X40 | ||
| 074 | N 000961014101 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X1.5X45 | ||
| 074 | N 000961014101 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X1.5X45 | ||
| 074 | N 000933010269 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M10X35 | ||
| 074 | N 000933010269 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M10X35 | ||
| 074 | N 910105014005 | SCREW |
| M14X1,5X40 | ||
| 074 | N 910105014005 | SCREW |
| M14X1,5X40 | ||
| 074 | N 910105014011 | SCREW |
| M14X1,5X50 | ||
| 074 | N 910105014011 | SCREW |
| M14X1,5X50 | ||
| 075 | N 000125015012 | WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 075 | N 000125015012 | WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 076 | A 3824917069 | SHIM |
| SUPPORT TO SIDE MEMBER | ||
| 076 | A 3824917069 | SHIM |
| SUPPORT TO SIDE MEMBER | ||
| 076 | A 3824917069 | SHIM |
| SUPPORT TO SIDE MEMBER | ||
| 077 | A 3824917169 | SHIM |
| SUPPORT TO SIDE MEMBER | ||
| 077 | A 3824917169 | SHIM |
| 077 | A 3824917169 | SHIM |
| 080 | A 3825048338 | MOUNTING PLATE |
| SUPPORT TO SIDE MEMBER | ||
| 083 | N 913023014003 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| M14X1,5 | ||
| 083 | N 913004010011 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 083 | N 913004010011 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 086 | A 3824928741 | BRACKET |
| EXHAUST MUFFLER | ||
| 089 | A 3824907140 | BRACKET |
| EXHAUST MUFFLER | ||
| 089 | A 3824907140 | BRACKET |
| EXHAUST MUFFLER | ||
| 092 | A 3824917020 | MOUNTING STRAP |
| EXHAUST MUFFLER TO BRACKET | ||
| 092 | A 3824917020 | MOUNTING STRAP |
| EXHAUST MUFFLER TO BRACKET | ||
| - | ||
| 095 | A 3824917140 | CLAMP |
| 095 | A 3824917140 | CLAMP |
| 098 | A 3824917040 | CLAMP |
| 098 | A 3824917040 | CLAMP |
| 101 | N 000933010294 | SCREW |
| BRACKET TO CLAMP | ||
| 104 | N 000933008288 | SCREW |
| BRACKET TO STRAP | ||
| M 8X25 | ||
| 104 | N 000933008288 | SCREW |
| BRACKET TO STRAP | ||
| M 8X25 | ||
| 107 | N 913004010011 | NUT |
| BRACKET TO STRAP | ||
| 107 | N 913004010011 | NUT |
| BRACKET TO STRAP | ||
| 107 | N 913004010011 | NUT |
| BRACKET TO STRAP | ||
| 110 | A 3475040012 | RUBBER MOUNTING |
| BRACKET TO SUPPORT | ||
| 110 | A 3475040012 | RUBBER MOUNTING |
| BRACKET TO SUPPORT | ||
| 110 | A 3475040012 | RUBBER MOUNTING |
| BRACKET TO SUPPORT | ||
| 110 | A 3475040012 | RUBBER MOUNTING |
| BRACKET TO SUPPORT | ||
| 110 | A 3475040012 | RUBBER MOUNTING |
| BRACKET TO SUPPORT | ||
| 110 | A 3475040012 | RUBBER MOUNTING |
| BRACKET TO SUPPORT | ||
| 113 | N 000125010518 | WASHER |
| BRACKET TO SUPPORT | ||
| 113 | N 000125010518 | WASHER |
| BRACKET TO SUPPORT | ||
| 113 | N 000125010518 | WASHER |
| BRACKET TO SUPPORT | ||
| 113 | N 009021010102 | WASHER |
| BRACKET TO SUPPORT | ||
| 113 | N 009021010102 | WASHER |
| BRACKET TO SUPPORT | ||
| 113 | N 009021010102 | WASHER |
| BRACKET TO SUPPORT | ||
| 113 | N 009021010102 | WASHER |
| BRACKET TO SUPPORT | ||
| 116 | N 000127010202 | LOCK WASHER |
| BRACKET TO SUPPORT | ||
| 116 | N 000127010202 | LOCK WASHER |
| BRACKET TO SUPPORT | ||
| 116 | N 000127010202 | LOCK WASHER |
| BRACKET TO SUPPORT | ||
| 116 | N 000127010202 | LOCK WASHER |
| BRACKET TO SUPPORT | ||
| 116 | N 000127010202 | LOCK WASHER |
| BRACKET TO SUPPORT | ||
| 119 | N 000934010005 | NUT |
| BRACKET TO RUBBER MOUNTING | ||
| 119 | N 000934010005 | NUT |
| BRACKET TO RUBBER MOUNTING | ||
| 119 | N 000934010005 | NUT |
| BRACKET TO RUBBER MOUNTING | ||
| 119 | N 000934010005 | NUT |
| BRACKET TO RUBBER MOUNTING | ||
| 119 | N 000934010005 | NUT |
| BRACKET TO RUBBER MOUNTING | ||
| 119 | N 000934010005 | NUT |
| BRACKET TO RUBBER MOUNTING | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
