Transporto priemonė: OH 1835L/30; VIN numerio dalis: 397058

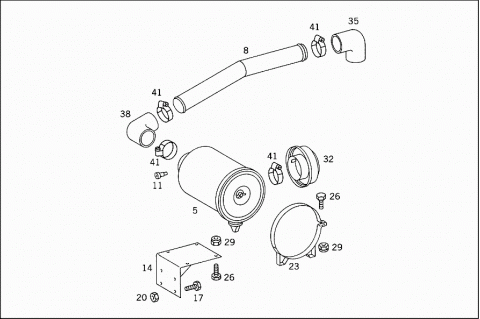

Grupė: 52 CHASSIS SHEET METAL - 120 AIR INTAKE
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3970907101 | AIR CLEANER |
| 008 | A 3975207001 | AIR INTAKE PIPE |
| 011 | A 3645407045 | SWITCH |
| (MAINTENANCE SWITCH) | ||
| 014 | A 3975208041 | BRACKET |
| 017 | N 000933014049 | SCREW |
| BRACKET TO FRAME | ||
| 017 | N 000933014050 | SCREW |
| BRACKET TO FRAME | ||
| 020 | N 913004014007 | NUT |
| BRACKET TO FRAME | ||
| 023 | A 3970907081 | STRAP |
| AIR CLEANER TO BRACKET | ||
| 026 | N 000933010128 | SCREW |
| AIR CLEANER TO BRACKET | ||
| 029 | N 913004010008 | NUT |
| AIR CLEANER TO BRACKET | ||
| 032 | A 3975207189 | COVER |
| AIR CLEANER TO BRACKET | ||
| 035 | A 3975287282 | HOSE |
| FROM AIR CLEANER TO ENGINE | ||
| 038 | A 3975287182 | HOSE |
| FROM AIR CLEANER TO ENGINE | ||
| 041 | A 6849977290 | LOOM TIE |
| FROM AIR CLEANER TO ENGINE | ||
| 041 | A 6649977090 | LOOM TIE |
| FROM AIR CLEANER TO ENGINE |
