Transporto priemonė: OH 1835L/30; VIN numerio dalis: 397058

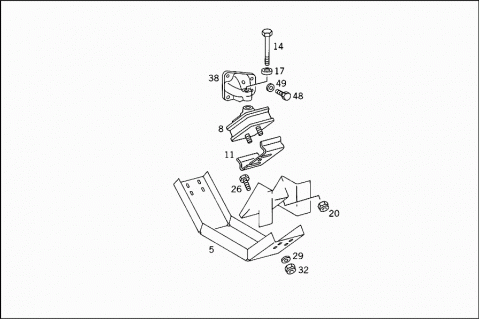

Grupė: 24 ENGINE SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3822417001 | ENGINE SUPPORT |
| 008 | A 3842407117 | RUBBER MOUNTING |
| ENGINE FRONT SUSPENSION | ||
| 011 | A 3522420509 | ENGINE STAY |
| RUBBER MOUNTING TO FRONT CROSS MEMBER | ||
| 014 | N 000960016241 | SCREW |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 017 | A 3529902440 | WASHER |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 020 | N 913004012009 | NUT |
| RUBBER MOUNTING TO ENGINE SUPPORT | ||
| 026 | N 000961012154 | SCREW |
| ENGINE CROSS MEMBER TO CONSOLES | ||
| 029 | N 000125013008 | WASHER |
| ENGINE CROSS MEMBER TO CONSOLES | ||
| 032 | N 913004012009 | NUT |
| ENGINE CROSS MEMBER TO CONSOLES | ||
| 035 | A 3822427005 | SUPPORTING ARM |
| ENGINE LEFT REAR MOUNTING | ||
| 035 | A 3822427105 | SUPPORTING ARM |
| ENGINE RIGHT REAR MOUNTING | ||
| 038 | A 3762420205 | SUPPORTING ARM |
| ENGINE FRONT LEFT MOUNTING | ||
| 038 | A 3762420305 | SUPPORTING ARM |
| ENGINE FRONT RIGHT MOUNTING | ||
| 041 | N 000961016096 | SCREW |
| ENGINE MOUNTING TO SUPPORTING ARM | ||
| 16X50 | ||
| 041 | N 000960016237 | SCREW |
| ENGINE MOUNTING AND BRACKET TO SUPPORTING ARM | ||
| M 16X1.5X60 | ||
| 044 | A 3529902440 | WASHER |
| ENGINE MOUNTING TO SUPPORTING ARM | ||
| 047 | N 000961022031 | SCREW |
| SUPPORTING ARM TO BELL HOUSING | ||
| 048 | N 000933014050 | SCREW |
| SUPPORTING ARM TO CYLINDER CRANKCASE | ||
| 049 | N 000433015000 | WASHER |
| SUPPORTING ARM TO CYLINDER CRANKCASE | ||
| 050 | A 6162400618 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| 050 | A 6162400718 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| 050 | A 6162400818 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| 050 | A 3862407018 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| 053 | N 000961012154 | SCREW |
| ENGINE MOUNTING TO CONSOLE | ||
| 056 | A 3859901040 | WASHER |
| ENGINE MOUNTING TO CONSOLE | ||
| 059 | A 3832420034 | SCREENING PLATE |
| ENGINE REAR SUSPENSION | ||
| 062 | A 3642420040 | BRACKET |
| ENGINE ALONGSIDE FIXING | ||
| 065 | A 6642427340 | BRACKET |
| ENGINE ALONGSIDE FIXING | ||
| 068 | N 000961014088 | SCREW |
| BRACKET TO ENGINE SUPPORT | ||
| 071 | N 913004014005 | NUT |
| BRACKET TO ENGINE SUPPORT | ||
| 074 | A 6642407125 | ROD |
| (PULL ROD) | ||
| 077 | A 3452407121 | ROD END |
| RIGHT | ||
| 077 | A 3452407021 | ROD END |
| LEFT | ||
| 080 | A 3443387245 | CLAMP |
| 083 | A 3642420070 | STUD |
| PULL ROD TO BRACKET | ||
| 086 | N 913004022002 | NUT |
| PULL ROD TO BRACKET | ||
| 089 | A 3823127007 | ENGINE CROSS MEMBER |
| ENGINE REAR SUSPENSION | ||
| 092 | N 000961014105 | SCREW |
| ENGINE CROSS MEMBER TO SIDE MEMBERS | ||
| 095 | N 913004014005 | NUT |
| ENGINE CROSS MEMBER TO SIDE MEMBERS |
