Transporto priemonė: OH 1835L/30; VIN numerio dalis: 397058

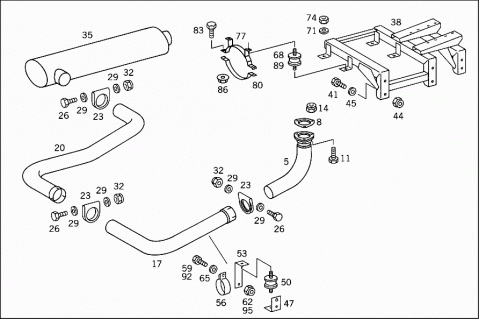

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3974907819 | EXHAUST PIPE |
| FRONT,FRONT PART | ||
| 008 | A 6004920080 | FLANGE GASKET |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 011 | N 000931012283 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X50 | ||
| 011 | N 000933012094 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X80 | ||
| 014 | N 999901012000 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 017 | A 3824929201 | FRONT EXHAUST PIPE |
| 020 | A 3824929301 | FRONT EXHAUST PIPE |
| 023 | A 3864927040 | CLAMP |
| EXHAUST PIPE TO EXHAUST PIPE | ||
| 026 | N 000931010234 | SCREW |
| EXHAUST PIPE TO EXHAUST PIPE | ||
| 029 | N 000125010517 | WASHER |
| EXHAUST PIPE TO EXHAUST PIPE | ||
| 032 | N 913004010011 | NUT |
| EXHAUST PIPE TO EXHAUST PIPE | ||
| 035 | A 3824907015 | EXHAUST MUFFLER WITH PIPE |
| 035 | A 3824907115 | EXHAUST MUFFLER WITH PIPE |
| A 3824907134 | SUPPORT | |
| 038 | A 3825507038 | SUPPORT |
| 041 | N 000961014105 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 041 | N 000961014107 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 044 | N 913004014005 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 045 | N 000125015012 | WASHER |
| SUPPORT TO SIDE MEMBER | ||
| A 3824917341 | BRACKET | |
| AT SIDE MEMBER | ||
| 047 | A 3824927241 | BRACKET |
| AT SIDE MEMBER | ||
| 050 | A 3475040012 | RUBBER MOUNTING |
| EXHAUST PIPE TO BRACKET | ||
| 053 | A 3454928841 | BRACKET |
| EXHAUST PIPE TO BRACKET | ||
| 056 | N 071555100502 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 059 | N 000933010200 | SCREW |
| EXHAUST PIPE TO BRACKET | ||
| 062 | N 913004010011 | NUT |
| EXHAUST PIPE TO BRACKET | ||
| 065 | N 000125010517 | WASHER |
| EXHAUST PIPE TO BRACKET | ||
| N 000961012115 | SCREW | |
| BRACKET TO TRANSMISSION | ||
| 068 | A 0019875340 | RUBBER BUFFER |
| BRACKET TO SUPPORT | ||
| 071 | N 000125010517 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 074 | N 000934010005 | NUT |
| BRACKET TO SUPPORT | ||
| 077 | A 3824907140 | BRACKET |
| REAR EXHAUST PIPE | ||
| 080 | A 3824917020 | MOUNTING STRAP |
| REAR EXHAUST PIPE | ||
| 083 | N 000933008288 | SCREW |
| BRACKET TO STRAP | ||
| 086 | N 913004008001 | NUT |
| Repalced by: A 0009906350 | ||
| 086 | A 0009906350 | NUT |
| BRACKET TO STRAP | ||
| 089 | A 3475040012 | RUBBER MOUNTING |
| BRACKET TO SUPPORT | ||
| N 071555104500 | CLAMP | |
| EXHAUST PIPE TO BRACKET | ||
| 092 | N 000933010200 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| 095 | N 913004010011 | NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
