Transporto priemonė: OH 1835L/30; VIN numerio dalis: 397058

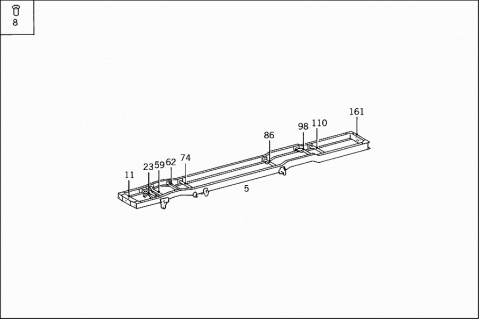

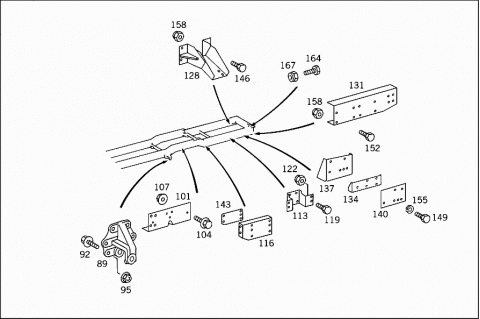

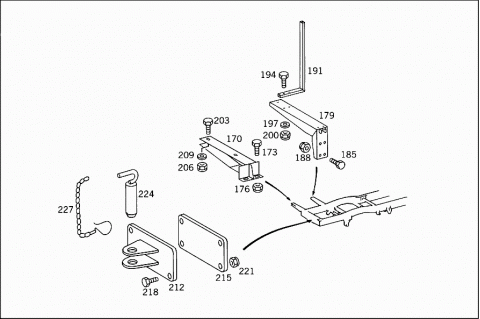

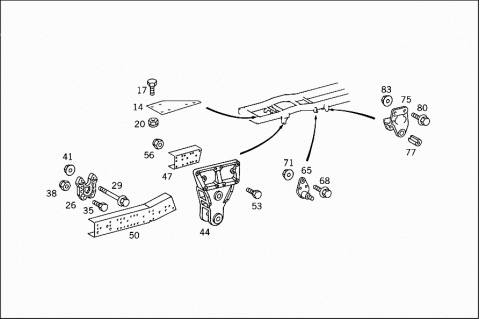

Grupė: 31 FRAME - 060 FRAME,TOW BAR COUPLING
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3823107803 | FRAME |
| 008 | N 910005010003 | RIVET |
| 10X28 MM | ||
| 008 | N 910005010033 | RIVET |
| 10X32 MM | ||
| 008 | N 910005014050 | RIVET |
| 14X32 MM | ||
| 008 | N 910005014003 | RIVET |
| 14X38 MM | ||
| 011 | A 3823127001 | CROSS MEMBER |
| NO.1 | ||
| 014 | A 3843129087 | GUSSET PLATE |
| FRONT | ||
| 017 | N 000933010200 | SCREW |
| CROSS MEMBER TO GUSSET PLATE AND TO SIDE MEMBER | ||
| 020 | N 913004010011 | NUT |
| CROSS MEMBER TO GUSSET PLATE AND TO SIDE MEMBER | ||
| 023 | A 3823107924 | CROSS MEMBER |
| NO.2 | ||
| 026 | A 3824617640 | STEERING SUPPORT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 029 | N 910105014005 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M14X1.5X40 | ||
| 029 | N 910105014008 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M14X1.5X55 | ||
| 035 | N 000961020049 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M20X1.5X40 | ||
| 038 | N 913004020001 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M20X1.5 | ||
| 041 | N 913023014003 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M14X1.5 | ||
| 044 | A 3823227001 | FRONT SPRING BRACKET |
| FRONT SPRING,FRONT LEFT AND RIGHT | ||
| 047 | A 3823117260 | REINFORCEMENT |
| LEFT;FRONT SPRING FRONT BRACKET | ||
| 047 | A 3823117360 | REINFORCEMENT |
| RIGHT;FRONT SPRING FRONT BRACKET | ||
| 050 | A 3823117660 | REINFORCEMENT |
| LEFT;FRONT SPRING FRONT BRACKET | ||
| 050 | A 3823117760 | REINFORCEMENT |
| RIGHT;FRONT SPRING FRONT BRACKET | ||
| 053 | N 000961014103 | SCREW |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| M 14X1,5X55 | ||
| 053 | N 000961014153 | SCREW |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| M 14X1.5X65 | ||
| 053 | N 000960014199 | SCREW |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| M 14X1.5X85 | ||
| 056 | N 913004014005 | NUT |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| 059 | A 3823108042 | CROSS MEMBER |
| NO.3 | ||
| 062 | A 3823107537 | CROSS MEMBER |
| AIR RESERVOIR | ||
| 065 | A 3823278041 | SUPPORT |
| LEFT | ||
| 065 | A 3823278541 | SUPPORT |
| RIGHT | ||
| 068 | N 000961014103 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 068 | N 910105014005 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M14X1.5X40 | ||
| 068 | N 910105014019 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M14X1.5X60 | ||
| 068 | N 000961014126 | SCREW |
| CONSOLE TO CROSS MEMBER | ||
| 068 | N 000933010200 | SCREW |
| CONSOLE TO CROSS MEMBER | ||
| M10X30 | ||
| 071 | N 913004010011 | NUT |
| CONSOLE TO CROSS MEMBER | ||
| 071 | N 913004014005 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 071 | N 913004014005 | NUT |
| CONSOLE TO CROSS MEMBER | ||
| 071 | N 913023014003 | NUT |
| BEARING BRACKET TO SIDE MEMBER | ||
| 074 | A 3823107127 | CROSS MEMBER |
| NO.4 | ||
| 074 | A 3823107227 | CROSS MEMBER |
| NO.4 | ||
| 075 | A 3823207070 | REAR SUBFRAME |
| FRONT SPRING,REAR LEFT AND RIGHT | ||
| 077 | A 0003220385 | RUBBER MOUNTING |
| FRONT SPRING REAR BRACKET | ||
| 077 | A 0003220585 | RUBBER MOUNTING |
| FRONT SPRING REAR BRACKET | ||
| 080 | N 910105014006 | SCREW |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| M 14X1.5X65 | ||
| 080 | N 910105014016 | SCREW |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| M 14X1.5X90 | ||
| 083 | N 913023014003 | NUT |
| FRONT SPRING REAR BRACKET TO SIDE MEMBER | ||
| 086 | A 3823107338 | CROSS MEMBER |
| NO.7 | ||
| 089 | A 3823257001 | REAR SPRING BRACKET |
| FRONT | ||
| 092 | N 910105014008 | SCREW |
| REAR SPRING FRONT BRACKET TO SIDE MEMBER | ||
| M14X1.5X55 | ||
| 092 | N 910105014005 | SCREW |
| REAR SPRING FRONT BRACKET TO SIDE MEMBER | ||
| M14X1.5X40 | ||
| 095 | N 913023014003 | NUT |
| REAR SPRING FRONT BRACKET TO SIDE MEMBER | ||
| 095 | N 913023014003 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 098 | A 3823107737 | CROSS MEMBER |
| REAR SHOCK ABSORBERS | ||
| NO.8 | ||
| 101 | A 3823227108 | STAY |
| REINFORCEMENT TO SIDE MEMBER | ||
| 890 MM | ||
| 101 | A 3823227208 | STAY |
| REINFORCEMENT TO SIDE MEMBER | ||
| 890 MM | ||
| 104 | N 910105014006 | SCREW |
| REINFORCEMENT ANGLE TO SIDE MEMBER | ||
| M14X1.5X40 | ||
| 107 | N 913023014003 | NUT |
| REINFORCEMENT ANGLE TO SIDE MEMBER | ||
| 110 | A 3823107837 | CROSS MEMBER |
| REAR-SPRING REAR BRACKET | ||
| NO.9 | ||
| 113 | A 3823107209 | BRACKET |
| LEFT BRACKET TO FRAME | ||
| 116 | A 3823107309 | BRACKET |
| LEFT BRACKET TO FRAME | ||
| 116 | A 3823107409 | BRACKET |
| RIGHT BRACKET TO FRAME | ||
| 119 | N 000961014088 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 14X1.5X35 | ||
| 119 | N 000961014105 | SCREW |
| BRACKET TO LEFT SIDE MEMBER | ||
| M 14X1.5X30 | ||
| 122 | N 913004014005 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 128 | A 3823107063 | CONSOLE |
| FRONT LEFT | ||
| 128 | A 3823107163 | CONSOLE |
| FRONT RIGHT | ||
| 131 | A 3823117051 | TRUSS |
| LEFT | ||
| 131 | A 3823117151 | TRUSS |
| RIGHT | ||
| 134 | A 3823117860 | REINFORCEMENT |
| 137 | A 3823117063 | CONSOLE |
| ENGINE LEFT REAR MOUNTING | ||
| 137 | A 3823107263 | CONSOLE |
| REAR RIGHT | ||
| 140 | A 3823177084 | SHIM |
| ENGINE LEFT REAR MOUNTING | ||
| 143 | A 3823177384 | SHIM |
| CROSS MEMBER TO BRACKET | ||
| 143 | A 3823177484 | SHIM |
| CROSS MEMBER TO BRACKET | ||
| 146 | N 000961014088 | SCREW |
| CROSS MEMBER TO BRACKET | ||
| 149 | N 000961014105 | SCREW |
| RIGHT CONSOLE TO FRAME | ||
| 152 | N 000961014107 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 155 | N 912004014100 | LOCK WASHER |
| RIGHT CONSOLE TO FRAME | ||
| 158 | N 913004014005 | NUT |
| CROSS MEMBER TO BRACKET | ||
| 158 | N 913004014005 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 161 | A 3823107146 | CROSS MEMBER |
| (REAR CROSS MEMBER) | ||
| 164 | N 000961012154 | SCREW |
| CONSOLE TO REAR CROSS MEMBER | ||
| M 12X1.5X30 | ||
| 167 | N 913004012006 | NUT |
| CONSOLE TO REAR CROSS MEMBER | ||
| 170 | A 3823107122 | CROSS MEMBER |
| FRONT RIGHT | ||
| 173 | N 000961014105 | SCREW |
| FRONT BRACKET TO SIDE MEMBER | ||
| 173 | N 000933010269 | SCREW |
| FRONT BRACKET TO SIDE MEMBER | ||
| N 000125010517 | WASHER | |
| FRONT BRACKET TO SIDE MEMBER | ||
| 176 | N 913004014004 | NUT |
| FRONT BRACKET TO SIDE MEMBER | ||
| 176 | N 913004010011 | NUT |
| FRONT BRACKET TO SIDE MEMBER | ||
| 179 | A 3823177109 | SUPPORT |
| CAB SUSPENSION,REAR | ||
| A 3823237353 | SPACER TUBE | |
| AT SUPPORT ON CAB REAR SUSPENSION CROSS MEMBER | ||
| 185 | N 000961014114 | SCREW |
| AT SUPPORT ON CAB REAR SUSPENSION CROSS MEMBER | ||
| M14X1.5X85 | ||
| 185 | N 000961014105 | SCREW |
| AT SUPPORT ON CAB REAR SUSPENSION CROSS MEMBER | ||
| M14X1.5X30 | ||
| 188 | N 913004014005 | NUT |
| AT SUPPORT ON CAB REAR SUSPENSION CROSS MEMBER | ||
| 188 | N 913004014005 | NUT |
| AT SUPPORT ON CAB REAR SUSPENSION CROSS MEMBER | ||
| 191 | A 3823107709 | BRACKET |
| REAR CROSS MEMBER | ||
| 194 | N 000931006200 | SCREW |
| REAR CROSS MEMBER | ||
| M6X65 | ||
| 194 | N 000933006083 | SCREW |
| BRACKET TO REAR CROSS MEMBER | ||
| M6X35 | ||
| 197 | N 000125006423 | WASHER |
| BRACKET TO REAR CROSS MEMBER | ||
| 200 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 200 | N 913004006001 | NUT |
| BRACKET TO REAR CROSS MEMBER | ||
| 203 | N 000931010417 | SCREW |
| DRIVER'S SEAT PEDESTAL TO CROSS MEMBER,FRONT AND REAR | ||
| 206 | N 913004010011 | NUT |
| DRIVER'S SEAT PEDESTAL TO CROSS MEMBER,FRONT AND REAR | ||
| 209 | N 000125010517 | WASHER |
| DRIVER'S SEAT PEDESTAL TO SUPPORT, FRONT | ||
| 212 | A 3823107006 | COUPLING MOUTH |
| FRONT AND REAR | ||
| 215 | A 3823127060 | REINFORCEMENT |
| FRONT COUPLING MOUTH | ||
| 218 | N 000961016102 | SCREW |
| FOR COUPLING MOUTH | ||
| NO.1 | ||
| 221 | N 913004016004 | NUT |
| FOR COUPLING MOUTH | ||
| NO.1 | ||
| 224 | A 3823107007 | COUPLING PIN |
| REAR | ||
| 227 | A 3023150073 | LOCK |
| COUPLING PIN | ||
