Transporto priemonė: OH 1835L/30; VIN numerio dalis: 397058

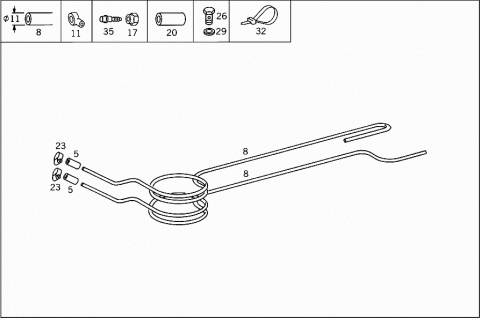

Grupė: 47 FUEL SYSTEM - 060 FUEL LINES AND BREATHING
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3444767026 | HOSE |
| AT SENDER UNIT | ||
| 008 | A 0089975482 | HOSE |
| FEED & RETURN | ||
| 8X11 MM | ||
| 011 | N 915052008000 | BANJO UNION |
| I.D., / HOSE WIDTH, | ||
| 14/8 | ||
| A 0019974972 | FITTING | |
| FROM TANK TO PUMP & FILTER | ||
| 017 | N 915017010200 | UNION NUT |
| FROM TANK TO PUMP & FILTER | ||
| 020 | N 040621012244 | INSULATING HOSE |
| COLOR CODE BLUE | ||
| 020 | N 040621012208 | INSULATING HOSE |
| COLOR CODE YELLOW | ||
| 023 | N 916017011000 | CLAMP |
| Repalced by: N 000000000665 | ||
| 023 | N 000000000665 | CLAMP |
| FEED LINE AND RETURN LINE | ||
| 12-22X13 MM | ||
| 026 | N 915036010100 | HOLLOW SCREW |
| FUEL LINE TO FEED PUMP | ||
| 029 | N 007603014104 | SEAL RING |
| FUEL LINE TO FEED PUMP | ||
| 032 | A 3449977290 | LOOM TIE |
| LINE MOUNTING | ||
| A 0019978490 | LOOM TIE | |
| LINE MOUNTING | ||
| A 3459977690 | LOOM TIE | |
| LINE MOUNTING | ||
| A 3609902440 | WASHER | |
| 032 | A 3459977390 | LOOM TIE |
| 035 | A 3504707079 | INTERMEDIATE PIECE |
