Transporto priemonė: OH 1835L/30; VIN numerio dalis: 397058

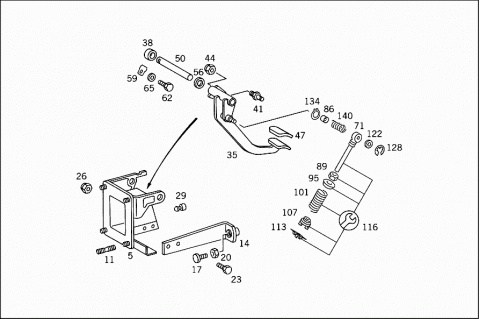

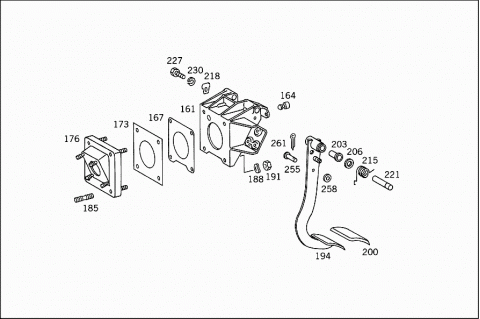

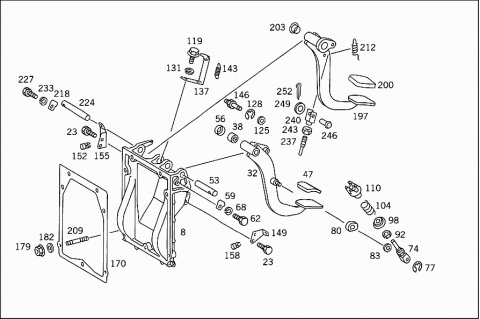

Grupė: 29 PEDALS - 090 CLUTCH AND BRAKE PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6882940201 | BEARING BRACKET |
| Repalced by: A 6882947001 | ||
| 005 | A 6882947001 | BEARING BRACKET |
| CLUTCH PEDAL ASSEMBLY | ||
| 008 | A 6732903119 | BEARING BRACKET |
| Repalced by: A 6342900419 | ||
| 008 | A 6342900419 | BEARING BRACKET |
| CLUTCH PEDAL ASSEMBLY | ||
| 011 | A 6882920070 | STUD |
| 014 | A 3842907032 | STOP |
| CLUTCH PEDAL | ||
| 017 | A 3012910241 | STOP |
| STOP TO BEARING BRACKET | ||
| 020 | N 000934008000 | NUT |
| CLUTCH PEDAL | ||
| 023 | N 000933006221 | SCREW |
| STOP TO BEARING BRACKET | ||
| 026 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 026 | N 913004006001 | NUT |
| STOP TO BEARING BRACKET | ||
| 029 | A 6882917286 | STOP |
| PEDAL STOP | ||
| 032 | A 6732900816 | PEDAL |
| CLUTCH PEDAL | ||
| 035 | A 6882907216 | PEDAL |
| CLUTCH PEDAL | ||
| 038 | A 0139814610 | NEEDLE BEARING |
| 038 | A 0019816310 | NEEDLE BEARING |
| 038 | A 0109818010 | NEEDLE BEARING |
| 041 | A 3882917074 | PIN |
| 044 | N 913002010001 | NUT |
| 047 | A 1102910182 | PAD |
| CLUTCH PEDAL | ||
| 050 | A 6452940074 | PIN |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 053 | A 6732940074 | PIN |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 056 | A 6732910076 | WASHER |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 059 | A 6732920073 | LOCK |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 062 | N 000933006220 | SCREW |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 065 | N 000125006420 | WASHER |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 068 | N 912004006100 | LOCK WASHER |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 071 | A 3812901439 | ROD |
| Repalced by: A 3822908419 | ||
| 071 | A 3822908419 | BEARING BRACKET |
| CLUTCH PEDAL | ||
| 074 | A 6732900339 | ROD |
| CLUTCH PEDAL | ||
| 077 | N 006799007001 | LOCK PLATE |
| CLUTCH PEDAL | ||
| 080 | A 6732910186 | STOP |
| CLUTCH PEDAL | ||
| 083 | N 000125010517 | WASHER |
| CLUTCH PEDAL | ||
| 086 | A 0059814410 | NEEDLE BEARING |
| 086 | A 0059813810 | NEEDLE BEARING |
| 086 | A 0139818210 | NEEDLE BEARING |
| 089 | N 000439010216 | NUT |
| SPRING TO PUSH ROD | ||
| 092 | N 000439010203 | NUT |
| SPRING TO PUSH ROD | ||
| 095 | A 1112910491 | SPRING RETAINER |
| SPRING TO PUSH ROD | ||
| 098 | A 6732910291 | SPRING RETAINER |
| SPRING TO PUSH ROD | ||
| 101 | A 3849937001 | SPRING |
| SPRING TO PUSH ROD | ||
| 104 | A 3829937001 | SPRING |
| SPRING TO PUSH ROD | ||
| 107 | A 3882917091 | SPRING RETAINER |
| Repalced by: A 3092910091 | ||
| 107 | A 3092910091 | SPRING RETAINER |
| SPRING TO PUSH ROD | ||
| 110 | A 6732910191 | SPRING RETAINER |
| SPRING TO PUSH ROD | ||
| 113 | A 6459880178 | CLIP |
| SPRING TO PUSH ROD | ||
| 116 | A 3822900093 | SPRING |
| REPAIR KIT | ||
| 119 | N 000933008268 | SCREW |
| Repalced by: A 0019903704 | ||
| 119 | A 0019903704 | SCREW |
| SPRING TO PUSH ROD | ||
| 122 | N 001440008002 | WASHER |
| PUSH ROD TO PEDAL | ||
| 125 | N 000125008417 | WASHER |
| PUSH ROD TO PEDAL | ||
| 128 | N 006799006002 | LOCK PLATE |
| PUSH ROD TO PEDAL | ||
| 131 | N 912004008100 | LOCK WASHER |
| PUSH ROD TO PEDAL | ||
| 134 | N 000471008001 | LOCK RING |
| PUSH ROD TO PEDAL | ||
| 137 | A 3822917040 | BRACKET |
| PUSH ROD TO PEDAL | ||
| 140 | A 3889937010 | SPRING |
| PUSH ROD TO PEDAL | ||
| 143 | A 3829937010 | SPRING |
| Repalced by: A 3829937110 | ||
| 143 | A 3829937110 | SPRING |
| PUSH ROD TO PEDAL | ||
| 146 | A 3822917174 | PIN |
| PUSH ROD TO PEDAL | ||
| 149 | A 6732910130 | STOP |
| CLUTCH PEDAL | ||
| 152 | A 3842917086 | STOP |
| CLUTCH PEDAL | ||
| 155 | A 6732920030 | STOP |
| CLUTCH PEDAL | ||
| 158 | A 1232910286 | STOP |
| CLUTCH PEDAL | ||
| 161 | A 3842947001 | BEARING BRACKET |
| Repalced by: A 3842947201 | ||
| 161 | A 3842947201 | BEARING BRACKET |
| BRAKE PEDAL ASSEMBLY | ||
| 164 | A 6882917386 | STOP |
| BRAKE PEDAL | ||
| 167 | A 3842947080 | GASKET |
| BEARING BRACKET TO FIRE WALL | ||
| 170 | A 6732940180 | GASKET |
| BEARING BRACKET TO FIRE WALL | ||
| 173 | A 6884310080 | GASKET |
| PEDAL BEARING BRACKET TO FRONT PANEL | ||
| 176 | A 3844307010 | BRACKET |
| SERVICE BRAKE VALVE | ||
| 176 | A 3844307210 | BRACKET |
| SERVICE BRAKE VALVE | ||
| 179 | N 913004008001 | NUT |
| Repalced by: A 0009906350 | ||
| 179 | A 0009906350 | NUT |
| 182 | N 007349008002 | WASHER |
| 185 | N 000835008086 | STUD |
| M 8X25 | ||
| 185 | N 000835008096 | STUD |
| M 8X30 | ||
| 188 | N 000137008101 | SPRING WASHER |
| PEDAL BEARING BRACKET TO FRONT PANEL | ||
| 191 | N 000934008007 | NUT |
| PEDAL BEARING BRACKET TO FRONT PANEL | ||
| 194 | A 3842907018 | PEDAL |
| BRAKE PEDAL | ||
| 197 | A 6732900018 | PEDAL |
| BRAKE PEDAL | ||
| 200 | A 1102910182 | PAD |
| BRAKE PEDAL | ||
| 203 | A 1102910550 | BUSHING |
| BRAKE PEDAL | ||
| 206 | A 1154630152 | SPACER WASHER |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 209 | A 6732940270 | STUD |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 212 | A 6739930110 | SPRING |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 215 | A 3849937020 | SPRING |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 218 | A 6732920073 | LOCK |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 221 | A 3842927174 | PIN |
| Repalced by: A 6452940074 | ||
| 221 | A 6452940074 | PIN |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 224 | A 6732940174 | PIN |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 227 | N 000933006223 | SCREW |
| LOCK TO BEARING BRACKET | ||
| 230 | N 000127006203 | LOCK WASHER |
| LOCK TO BEARING BRACKET | ||
| 233 | N 912004006100 | LOCK WASHER |
| LOCK TO BEARING BRACKET | ||
| 237 | A 6732920032 | ROD |
| BRAKE PEDAL | ||
| 240 | N 071752008002 | YOKE |
| PUSH ROD | ||
| 243 | N 000439008104 | NUT |
| PUSH ROD | ||
| 246 | A 3852920174 | PIN |
| PISTON ROD TO BRAKE PEDAL | ||
| 249 | N 000433008403 | WASHER |
| PISTON ROD TO BRAKE PEDAL | ||
| 252 | N 000094002059 | COTTER PIN |
| PISTON ROD TO BRAKE PEDAL | ||
| 255 | A 3529910007 | PIN |
| PISTON ROD TO BRAKE PEDAL | ||
| 258 | N 000433010504 | WASHER |
| PISTON ROD TO BRAKE PEDAL | ||
| 261 | N 000094003207 | COTTER PIN |
| PISTON ROD TO BRAKE PEDAL | ||
