Transporto priemonė: OH 1835L/30; VIN numerio dalis: 397058

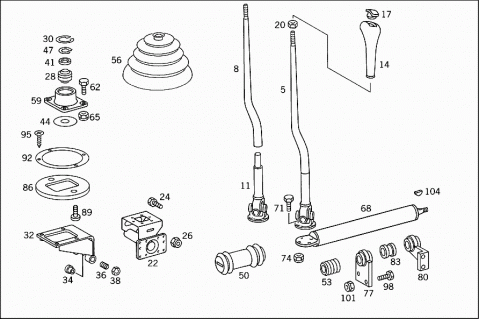

Grupė: 26 TRANSMISSION - 090 SHIFT LEVER AND SHIFTING PARTS
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3822607239 | SHIFT LEVER |
| 008 | A 3642680124 | SHIFT LEVER |
| 011 | A 3642680089 | JOINT |
| 014 | A 3642687142 | KNOB |
| (SHIFT LEVER HANDLE) | ||
| 017 | A 6202680457 | COVER |
| SHIFT LEVER KNOB | ||
| 020 | N 000936010022 | NUT |
| SHIFT LEVER UPPER PART | ||
| 022 | A 3823107463 | CONSOLE |
| (SHIFTING DOME) | ||
| 024 | N 000961014106 | SCREW |
| CONSOLE TO FRAME | ||
| M14X1.5X35 | ||
| 026 | N 913004014004 | NUT |
| CONSOLE TO FRAME | ||
| 028 | A 0019811931 | JOINT BEARING |
| SHIFT LEVER | ||
| 030 | N 000472047001 | LOCK RING |
| JOINT TO BRACKET | ||
| 032 | A 3822607062 | BRACKET |
| TRANSMISSION GEARSHIFT | ||
| 034 | A 6642687049 | SLIDE |
| BRACKET TO FRAME | ||
| 036 | A 6649907022 | SCREW |
| SLIDE ADJUSTMENT | ||
| 038 | N 000439010202 | NUT |
| SLIDE ADJUSTMENT | ||
| 041 | A 3002680051 | SPACER RING |
| SHIFT LEVER | ||
| 044 | A 3002680080 | GASKET |
| SHIFT LEVER | ||
| 047 | N 000471025001 | LOCK RING |
| BEARING TO SHIFT LEVER | ||
| 050 | A 3962680096 | BOOT |
| SLIDE ADJUSTMENT | ||
| 053 | A 0002680396 | BOOT |
| SHIFTING TUBE | ||
| 056 | A 3642687097 | BOOT |
| 059 | A 3002680040 | BRACKET |
| COVER TO BEARING BRACKET | ||
| 062 | N 000933008288 | SCREW |
| BRACKET TO BEARING BRACKET | ||
| 065 | N 913004008005 | NUT |
| BRACKET TO BEARING BRACKET | ||
| 068 | A 3822609582 | SHIFTING TUBE |
| FRONT | ||
| 068 | A 3822603682 | SHIFTING TUBE |
| FRONT | ||
| 068 | A 3822604082 | SHIFTING TUBE |
| FRONT | ||
| 071 | A 3219900601 | SCREW |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 074 | N 913004008001 | NUT |
| Repalced by: A 0009906350 | ||
| 074 | A 0009906350 | NUT |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 077 | A 6842607084 | GUIDE |
| SHIFTING TUBE | ||
| 077 | A 3822607884 | GUIDE |
| SHIFTING TUBE | ||
| 077 | A 3822607284 | GUIDE |
| SHIFTING TUBE | ||
| 077 | A 3822607784 | GUIDE |
| SHIFTING TUBE | ||
| 080 | A 3822607384 | GUIDE |
| SHIFTING TUBE | ||
| 083 | A 3052680150 | BUSHING |
| SHIFTING TUBE | ||
| 086 | A 3822687084 | SHIM |
| SHIFTING TUBE | ||
| 089 | N 007985006513 | SCREW |
| SHIFTING TUBE | ||
| 092 | A 3642677187 | CLAMPING PIECE |
| SHIFTING TUBE | ||
| 095 | N 007983003250 | SHEET METAL SCREW |
| CLAMPING PIECE TO SHIFTING ROD | ||
| 098 | N 000933010174 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| M10X25 | ||
| 098 | N 000933010200 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| M10X30 | ||
| 098 | N 000961014066 | SCREW |
| M14X1,5X65 | ||
| 098 | N 000960014199 | SCREW |
| M14X1,5X80 | ||
| 101 | N 913004014005 | NUT |
| M14X1,5 | ||
| 101 | N 913004010011 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 104 | N 006888005006 | WOODRUFF KEY |
| FLANGE TO SHIFTING TUBE | ||

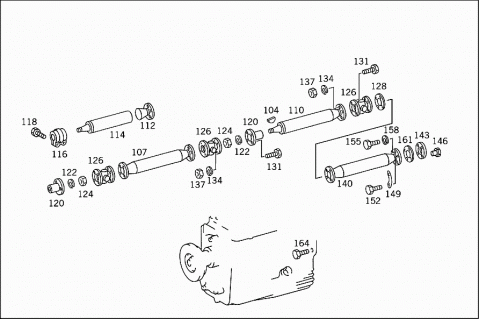

| 107 | A 3822608682 | SHIFTING TUBE |
| CENTRAL | ||
| 107 | A 3822608682 | SHIFTING TUBE |
| CENTRAL | ||
| 110 | A 3822607682 | SHIFTING TUBE |
| CENTRAL | ||
| 112 | A 3822609082 | SHIFTING TUBE |
| CONNECTOR TO SHIFTING ROD | ||
| 114 | A 3822608882 | SHIFTING TUBE |
| CENTRAL | ||
| 114 | A 3822608982 | SHIFTING TUBE |
| CENTRAL | ||
| 116 | A 3142680388 | CLAMPING PIECE |
| CENTRAL | ||
| 118 | N 000933010269 | SCREW |
| CENTRAL | ||
| M10X35 | ||
| 120 | A 3212680228 | CONNECTOR |
| 120 | A 3212680228 | CONNECTOR |
| 122 | N 000127012201 | LOCK WASHER |
| FLANGE TO SHIFTING TUBE | ||
| 124 | N 000934012009 | NUT |
| FLANGE TO SHIFTING TUBE | ||
| 126 | A 3442687089 | JOINT |
| REAR SHIFTING ROD | ||
| 126 | A 3442687289 | JOINT |
| REAR SHIFTING ROD | ||
| 128 | A 3212680552 | SPACER WASHER |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 2 MM | ||
| 128 | A 3212680452 | SPACER WASHER |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 3 MM | ||
| 128 | A 3212680352 | SPACER WASHER |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 5 MM | ||
| 131 | A 3179900301 | SCREW |
| JOINT TO SHIFTING TUBE | ||
| 134 | N 912004008100 | LOCK WASHER |
| JOINT TO SHIFTING TUBE | ||
| 137 | N 000934008008 | NUT |
| JOINT TO SHIFTING TUBE | ||
| 140 | A 3822609182 | SHIFTING TUBE |
| REAR | ||
| 140 | A 3822604182 | SHIFTING TUBE |
| REAR | ||
| 143 | A 3442600075 | CONNECTOR |
| SHIFTING ROD TO JOINT | ||
| 146 | A 3222680150 | BUSHING |
| 149 | A 3222680073 | LOCK |
| SHIFTING ROD TO JOINT | ||
| 152 | N 000933008150 | SCREW |
| SHIFTING TUBE TO TRANSMISSION | ||
| 155 | A 3219900601 | SCREW |
| SHIFTING TUBE TO TRANSMISSION | ||
| 155 | A 3179900301 | SCREW |
| SHIFTING TUBE TO TRANSMISSION | ||
| 158 | N 912004008100 | LOCK WASHER |
| SHIFTING TUBE TO TRANSMISSION | ||
| 158 | N 912004008102 | LOCK WASHER |
| SHIFTING TUBE TO TRANSMISSION | ||
| 161 | A 3212680352 | SPACER WASHER |
| SHIFTING TUBE TO TRANSMISSION | ||
| 164 | N 000960018142 | SCREW |
| TRANSMISSION TO BELL HOUSING | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

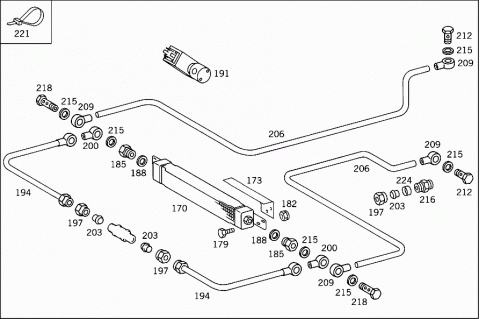

| TRANSMISSION COOLING | ||
| 170 | A 3885007003 | OIL COOLER |
| (OIL COOLER) | ||
| 170 | A 3885007203 | OIL COOLER |
| (OIL COOLER) | ||
| 173 | A 3825017720 | BRACKET |
| OIL COOLER | ||
| 173 | A 3825017820 | BRACKET |
| OIL COOLER | ||
| 179 | N 000933008040 | SCREW |
| OIL COOLER TO BRACKET | ||
| M8X20 | ||
| 179 | N 000933008040 | SCREW |
| OIL COOLER TO BRACKET | ||
| M8X20 | ||
| 182 | N 913004008001 | NUT |
| Repalced by: A 0009906350 | ||
| 182 | A 0009906350 | NUT |
| OIL COOLER TO BRACKET | ||
| 182 | A 0009906350 | NUT |
| OIL COOLER TO BRACKET | ||
| 185 | A 0009905168 | FITTING |
| OIL COOLER | ||
| 188 | N 007603022403 | SEAL RING |
| OIL COOLER | ||
| 22X27 | ||
| 191 | A 6649977036 | VALVE |
| REMOTE GEARSHIFT MECHANISM | ||
| 194 | A 6642607085 | PIPE |
| REMOTE GEARSHIFT MECHANISM | ||
| 197 | N 915017012100 | UNION NUT |
| 197 | N 915017012100 | NUT |
| 200 | N 915010010200 | BANJO UNION |
| 203 | N 003861012007 | GLAND |
| 203 | N 003861012007 | CUTTING RING |
| 206 | A 0109975982 | HOSE |
| Repalced by: A 0009872827 | ||
| 206 | A 0009872827 | PLASTIC PIPE |
| REMOTE GEARSHIFT MECHANISM | ||
| 209 | N 915052009000 | BANJO UNION |
| 212 | N 915036012200 | HOLLOW SCREW |
| LINE CONNECTION TO TRANSMISSION | ||
| 215 | N 007603016401 | SEAL RING |
| LINE CONNECTION TO TRANSMISSION | ||
| 216 | N 003902012003 | CONNECTION FITTING |
| LINE CONNECTION TO TRANSMISSION | ||
| 218 | N 915047012100 | HOLLOW SCREW |
| LINE TO OIL RADIATOR | ||
| 218 | N 915047012200 | HOLLOW SCREW |
| LINE TO OIL RADIATOR | ||
| 221 | A 3459977390 | LOOM TIE |
| LINE TO BRACKET | ||
| 195 MM | ||
| 221 | A 3459977490 | LOOM TIE |
| LINE TO BRACKET | ||
| 381 MM | ||
| 221 | A 3459977790 | LOOM TIE |
| LINE TO BRACKET | ||
| 508 MM | ||
| 224 | N 915062009000 | SLEEVE |
