Transporto priemonė: OMC 1425 ALN; VIN numerio dalis: 685458

Grupė: 27 AUTOMATIC TRANSMISSION - 750 TRANSMISSION ATTACHMENT PARTS

#	Kodas	Pavadinimas
	H XM6852701270	REGULATOR VALVE
	H XM6852701170	REGULATOR VALVE
	H XM6852700570	REGULATOR VALVE
	H XM6852701470	REGULATOR VALVE
	H XM6859904301	SCREW
	H XM6852700465	LINKAGE
	H XM6852700006	VALVE GEAR
020	H XM6852690018	OIL TANK
023	Q 23-09440-125	PART NAME MISSING
		SCREW
	Y YYYYYYYYYYYY	PART NAME MISSING
		OIL TANK TO FRAME
026	Q 23-09318-013	PART NAME MISSING
		LOCK WASHER
	Y YYYYYYYYYYYY	PART NAME MISSING
		OIL TANK TO FRAME
	H XM6859972572	FITTING
	H XM6859972672	FITTING
032	N 000931010105	SCREW
		MOTOR TO GEARING
		M 10X60
035	N 000125010517	WASHER
		MOTOR TO GEARING

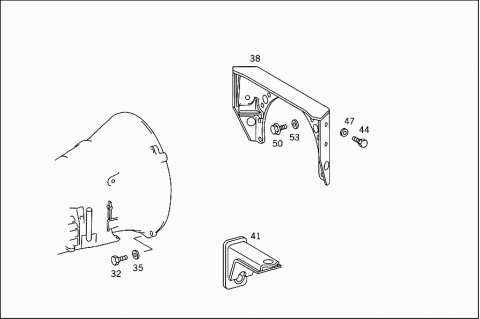

038	H XM6852700041	BRACKET
		AUTOMATIC TRANSMISSION
	Y YYYYYYYYYYYY	PART NAME MISSING
		REAR
041	H XM6852700241	BRACKET
		TRANSMISSION TO FRAME
044	Q 23-09444-175	PART NAME MISSING
		SCREW
		5/8-11
	Y YYYYYYYYYYYY	PART NAME MISSING
		TRANSMISSION TO FRAME
047	Q 23-11670-062	PART NAME MISSING
		WASHER
		5/8
	Y YYYYYYYYYYYY	PART NAME MISSING
		TRANSMISSION TO FRAME
050	N 910105018003	SCREW
		TRANSMISSION TO FRAME
		M 18X1.5X55
050	N 910105016003	SCREW
		TRANSMISSION TO FRAME
		M 16X1.5X35
053	N 000125019004	WASHER
		TRANSMISSION TO FRAME
053	N 000125017008	WASHER
		TRANSMISSION TO FRAME

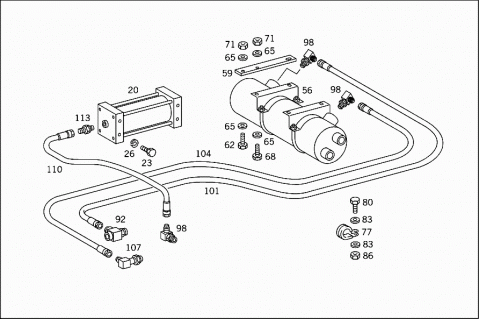

056	H XM6852700595	OIL COOLER
059	H XM6852770434	PLATE
062	Q 23-09436-125	PART NAME MISSING
		SCREW
		3/8-16 F.G8
	Y YYYYYYYYYYYY	PART NAME MISSING
		OIL COOLER TO BRACKET
065	Q 23-09114-002	PART NAME MISSING
		WASHER
		3/8
	Y YYYYYYYYYYYY	PART NAME MISSING
		OIL COOLER TO BRACKET
068	Q 23-09436-150	PART NAME MISSING
		SCREW
		3/8-16
	Y YYYYYYYYYYYY	PART NAME MISSING
		OIL COOLER TO SUBSTRUCTURE
071	Q 23-09901-106	PART NAME MISSING
		NUT
	Y YYYYYYYYYYYY	PART NAME MISSING
		OIL COOLER TO SUBSTRUCTURE
	H XM6852770334	PLATE
077	Q 23-11357-124	PART NAME MISSING
		CLAMP
080	Q 23-09432-100	SCREW
		SCREW
		1/4-20
083	Q 23-00600-025	WASHER
		WASHER
		1/4
086	Q 23-09901-104	NUT
		NUT
092	H XM6859903671	ELBOW FITTING
092	H XM6859904071	ELBOW FITTING
098	H XM6859902971	ELBOW FITTING
098	H XM6859904171	ELBOW FITTING
101	H XM6859972882	HOSE
		FROM TRANSMISSION TO OIL COOLER
104	H XM6859972982	HOSE
		FROM OIL COOLER TO TRANSMISSION
107	H XM6859903771	ELBOW FITTING
110	H XM6859972182	HOSE
113	H XM6859903871	ELBOW FITTING

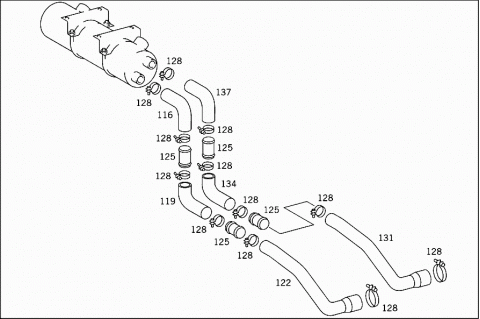

116	H XM6855010084	HOSE
		FROM TRANSMISSION OIL COOLER TO THERMOSTAT
119	H XM6855010184	HOSE
		FROM TRANSMISSION OIL COOLER TO THERMOSTAT
122	H XM6855019282	HOSE
		FROM TRANSMISSION OIL COOLER TO THERMOSTAT
125	H XM6855011211	PIPE
128	N 916017040000	CLAMP
	Repalced by: N 000000000671
128	N 000000000671	CLAMP
		HOSE FASTENING
131	H XM6855019282	HOSE
		THERMOSTAT TO OIL COOLER
134	H XM6855010284	HOSE
		THERMOSTAT TO OIL COOLER
137	H XM6855019982	HOSE
		THERMOSTAT TO OIL COOLER
