Transporto priemonė: OMC 1425 ALN; VIN numerio dalis: 685458

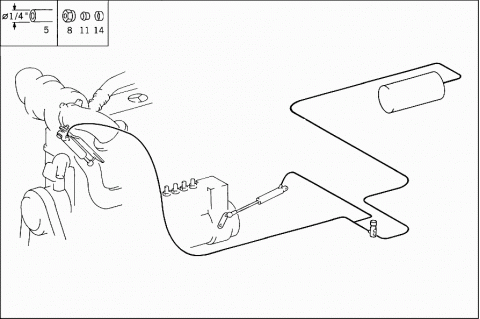

Grupė: 43 EXHAUST BRAKE
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | Q 48-00100-010 | PART NAME MISSING |
| PLASTIC TUBE | ||
| 1/4" | ||
| 008 | H XM6854340072 | NUT |
| 1/4" | ||
| 011 | H XM6859900567 | SEAL CONE |
| GLAND | ||
| 1/4" | ||
| 014 | H XM6859910140 | SPACER TUBE |
| SLEEVE | ||
| 1/4" | ||
| 017 | A 3889978236 | VALVE |
| (THREE-WAY SOLENOID VALVE) | ||
| "PARKER" | ||
| 017 | A 6889977336 | VALVE |
| (THREE-WAY SOLENOID VALVE) | ||
| "WABCO" | ||
| 020 | A 0005460388 | SOLENOID |
| TO A 688 997 73 36 | ||
| 023 | A 0059972336 | REPAIR KIT |
| TO A 388 997 82 36 | ||
| 023 | A 0004206855 | REPAIR KIT |
| TO A 688 997 73 36 | ||
| 026 | H XM6854290340 | BRACKET |
| SOLENOID VALVE | ||
| 029 | N 000933005097 | SCREW |
| SOLENOID VALVE TO BRACKET | ||
| M 5X16 | ||
| 032 | Q 23-09318-008 | PART NAME MISSING |
| LOCK WASHER | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SOLENOID VALVE TO BRACKET | ||
| 035 | Q 23-09436-125 | PART NAME MISSING |
| SCREW | ||
| 3/8-16 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| BRACKET TO SIDE MEMBER | ||
| 038 | Q 23-09114-002 | PART NAME MISSING |
| WASHER | ||
| 3/8 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| BRACKET TO SIDE MEMBER | ||
| 041 | Q 23-09901-106 | PART NAME MISSING |
| NUT | ||
| 3/8-16 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| BRACKET TO SIDE MEMBER | ||
| 044 | Q N210500 000027 | PART NAME MISSING |
| ELBOW FITTING | ||
| 90 GR. 1/8 NPTFM X 1/4 T | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| THREE-WAY VALVE,CONNECTIONS: | ||
| "12,22" | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| VALVE TO BRACKET |
