Transporto priemonė: OMC 1621; VIN numerio dalis: 685449

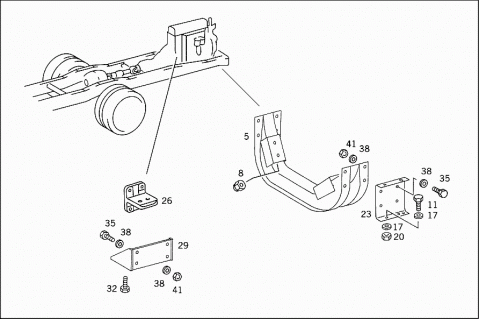

Grupė: 24 ENGINE SUSPENSION

#	Kodas	Pavadinimas
005	H XM6852400001	ENGINE SUPPORT
008	N 913004012003	NUT
		RUBBER MOUNTING TO ENGINE REAR SUPPORT
011	Q 23-09440-150	PART NAME MISSING
		SCREW
		1/2-13 X 1 1/2 FG8
	Y YYYYYYYYYYYY	PART NAME MISSING
		SUPPORT TO SIDE MEMBER
011	Q 23-09440-175	PART NAME MISSING
		SCREW
		1/2-13 X 1 3/4 FG8
	Y YYYYYYYYYYYY	PART NAME MISSING
		SUPPORT TO SIDE MEMBER
017	Q 23-09114-003	PART NAME MISSING
		WASHER
		1/2-1.6-14Z
	Y YYYYYYYYYYYY	PART NAME MISSING
		SUPPORT TO SIDE MEMBER
020	Q 23-09901-108	PART NAME MISSING
		NUT
		1/2-13 CAD G8
	Y YYYYYYYYYYYY	PART NAME MISSING
		SUPPORT TO SIDE MEMBER
023	H XM6852411540	BRACKET
		AT LEFT SIDE MEMBER
023	H XM6852411640	BRACKET
		AT RIGHT SIDE MEMBER
026	H XM6852420005	SUPPORTING ARM
		ENGINE FRONT SUPPORT
029	H XM6852400306	CONSOLE
		LEFT AND RIGHT
032	N 000961012151	SCREW
		ENGINE MOUNTING TO CONSOLE
035	Q 23-09440-150	PART NAME MISSING
		CONSOLE TO SIDE MEMBER
		1/2-13 X 1 1/2 FG8
035	Q 23-09440-150	PART NAME MISSING
		BRACKET TO SIDE MEMBER
		1/2-13 X 1 1/2 FG8
038	Q 23-09114-003	PART NAME MISSING
		CONSOLE TO SIDE MEMBER
		1/2-1.06-14Z
038	Q 23-09114-003	PART NAME MISSING
		BRACKET TO SIDE MEMBER
		1/2-1.06-14Z
041	Q 23-09901-108	PART NAME MISSING
		CONSOLE TO SIDE MEMBER
		1/2-13 CAD G8
041	Q 23-09901-108	PART NAME MISSING
		BRACKET TO SIDE MEMBER
		1/2-13 CAD G8
