Transporto priemonė: OMC 1625 ALN; VIN numerio dalis: 685465

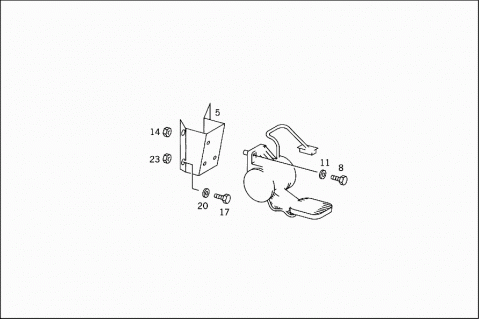

Grupė: 30 CONTROL - 060 ACCELERATOR PEDAL CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | H XM6853012840 | BRACKET |
| ACCELERATOR PEDAL | ||
| 008 | Q 23-10744-150 | PART NAME MISSING |
| SCREW | ||
| 5/16-18 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| ACCELERATOR PEDAL TO BRACKET | ||
| 011 | Q 23-00600-031 | WASHER |
| WASHER | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| ACCELERATOR PEDAL TO BRACKET | ||
| 014 | Q 23-09900-105 | PART NAME MISSING |
| NUT | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| ACCELERATOR PEDAL TO BRACKET | ||
| 017 | Q 23-09432-150 | PART NAME MISSING |
| SCREW | ||
| 1/4-20 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| ACCELERATOR PEDAL TO FIRE WALL | ||
| 017 | Q 23-09432-100 | SCREW |
| SCREW | ||
| 1/4-20 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| ACCELERATOR PEDAL TO FIRE WALL | ||
| 020 | Q 23-00600-025 | WASHER |
| WASHER | ||
| 1/4 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| ACCELERATOR PEDAL TO FIRE WALL | ||
| 023 | Q 23-09901-104 | NUT |
| NUT | ||
| 1/4 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| ACCELERATOR PEDAL TO FIRE WALL |
