Transporto priemonė: OMC 1625 ALN; VIN numerio dalis: 685465

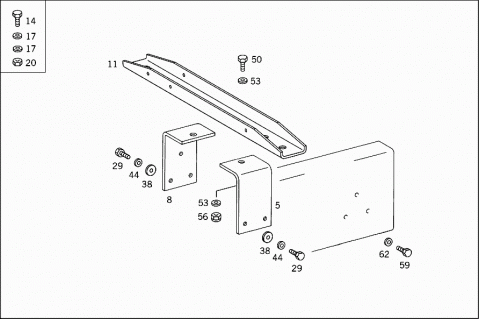

Grupė: 24 ENGINE SUSPENSION

#	Kodas	Pavadinimas
005	H XM6852420523	PLATE
		LEFT
008	H XM6852420623	PLATE
		RIGHT
011	H XM6852430003	CROSS MEMBER
014	Q 23-09440-150	PART NAME MISSING
		SCREW
		1/2-13 X 1 1/2 FG8
	Y YYYYYYYYYYYY	PART NAME MISSING
		SUPPORT TO SIDE MEMBER
017	Q 23-09114-003	PART NAME MISSING
		WASHER
		1/2-1.6-14Z
	Y YYYYYYYYYYYY	PART NAME MISSING
		SUPPORT TO SIDE MEMBER
020	Q 23-09901-108	PART NAME MISSING
		NUT
		1/2-13 CAD G8
	Y YYYYYYYYYYYY	PART NAME MISSING
		SUPPORT TO SIDE MEMBER
029	H XM6859904401	SCREW
		SUPPORT TO TRANSMISSION
		M 12X1.75
038	Q 23-09114-003	PART NAME MISSING
		WASHER
		1/2-1.06-14Z
	Y YYYYYYYYYYYY	PART NAME MISSING
		SUPPORT TO TRANSMISSION
044	Q 23-09319-013	PART NAME MISSING
		WASHER
		1/2-13 CAD G8
	Y YYYYYYYYYYYY	PART NAME MISSING
		SUPPORT TO TRANSMISSION
050	Q 23-09446-200	PART NAME MISSING
		SCREW
		3/4-10
	Y YYYYYYYYYYYY	PART NAME MISSING
		ENGINE SUPPORT TO CROSS MEMBER
053	Q 23-09114-004	PART NAME MISSING
		WASHER
	Y YYYYYYYYYYYY	PART NAME MISSING
		ENGINE SUPPORT TO CROSS MEMBER
056	Q 23-09901-112	PART NAME MISSING
		NUT
	Y YYYYYYYYYYYY	PART NAME MISSING
		ENGINE SUPPORT TO CROSS MEMBER
059	N 000961016120	SCREW
		BRACKET TO SIDE MEMBER
		M 16X1.5X38
062	Q 23-09114-000	PART NAME MISSING
		WASHER
		5/8
	Y YYYYYYYYYYYY	PART NAME MISSING
		BRACKET TO SIDE MEMBER
