Transporto priemonė: O 100 CITY; VIN numerio dalis: 631399

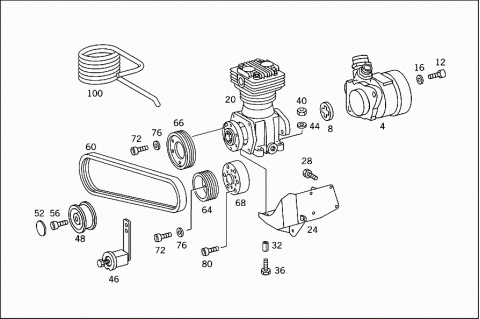

Grupė: 13 AIR COMPRESSOR

#	Kodas	Pavadinimas
004	Q 7672-955-166	PART NAME MISSING
		HYDRAULIC PUMP
		(ZF NEDERLAND)
004	Q 2106404	PART NAME MISSING
		HYDRAULIC PUMP
		(LUK)
008	Q 7646-040-131	PART NAME MISSING
	Repalced by: A 0001320710
008	A 0001320710	FOLLOWER
012	N 000912010065	SCREW
		M 10X25
016	N 000125010517	WASHER
020	Q 411-140-0010	PART NAME MISSING
	Repalced by: A 6021300515
020	A 6021300515	COMPRESSOR
		AIR COMPRESSOR
		(WABCO)
024	Q DUV130029	PART NAME MISSING
		BRACKET
028	N 000933008108	SCREW
		M 8X20
032	A 6019920425	SLEEVE
036	N 000931008276	SCREW
		M 8X40
040	N 000934008008	NUT
044	N 000125008417	WASHER
046	Q DUV130031	PART NAME MISSING
	Repalced by: A 0002000870
046	A 0002000870	BELT TIGHTENER
048	A 6012000970	BELT TIGHTENER
052	A 6012020522	COVER
056	N 000912008063	SCREW
		M 8X40
060	Q 6-PK-869	PART NAME MISSING
		V-BELT
		(CONTI GUMMIWERKE)
064	Q DUV130020	PART NAME MISSING
		V-BELT PULLEY
066	Q DUV130021	PART NAME MISSING
		V-BELT PULLEY
068	Q DUV130022	PART NAME MISSING
		SPACER WASHER
072	N 000912008009	SCREW
		M 8X20
076	N 000125008417	WASHER
080	N 000912008063	SCREW
		M 8X40
	Q DUV130032	PART NAME MISSING
		RETURN LINE
	Q DUV130034	PART NAME MISSING
		LINE
	Q DUV130035	PART NAME MISSING
		LINE
	Q DUV130033	PART NAME MISSING
		LUBRICATING LINE
	Q DUV130036	PART NAME MISSING
		LUBRICATING LINE
100	Q DUV130028	PART NAME MISSING
		COMPRESSED AIR LINE
	Y YYYYYYYYYYYY	PART NAME MISSING
		FROM AIR COMPRESSOR TO AIR DEHYDRATOR
