Transporto priemonė: O 100 CITY; VIN numerio dalis: 631399
Grupė: 27 AUTOMATIC TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | Q 4652003017 | PART NAME MISSING |
| Repalced by: Q 4652003023 | ||
| 010 | Q 4652003023 | PART NAME MISSING |
| Repalced by: Q 4652003027 | ||
| 010 | Q 4652003027 | PART NAME MISSING |
| Repalced by: A 0012700101 | ||

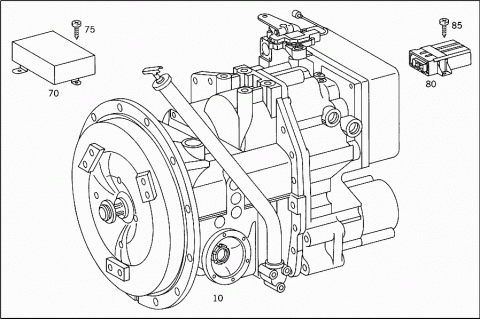

| 010 | A 0012700101 | AUTOMATIC TRANSMISSION |
| OBSERVE TRANSMISSION TYPE PLATE; ZF-NO.: | ||
| 4652 003 027 | ||
| 010 | A 0012700701 | AUTOMATIC TRANSMISSION |
| OBSERVE TRANSMISSION TYPE PLATE; ZF-NO.: | ||
| 4652 003 030 | ||
| 015 | Q 0750131029 | PART NAME MISSING |
| Repalced by: A 0002772595 | ||

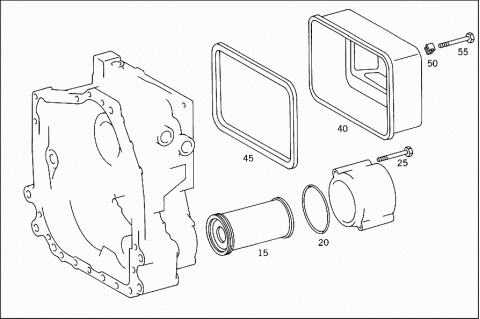

| 015 | A 0002772595 | OIL FILTER |
| FILTERPATRONE (ZF-PASSAU) | ||
| 020 | Q 0634303765 | PART NAME MISSING |
| Repalced by: A 0239974648 | ||
| 020 | A 0239974648 | SEAL RING |
| COVER TO TRANSMISSION CASE | ||
| O-RING (ZF-PASSAU) | ||
| 025 | N 000931008326 | SCREW |
| COVER TO TRANSMISSION CASE | ||
| M8X100 | ||
| 030 | A 0099972048 | SEAL RING |
| OIL PIPE TO TRANSMISSION CASE | ||
| TO Q4652003017/Q4652003023 | ||
| 032 | A 0002714180 | GASKET |
| OIL PIPE TO TRANSMISSION CASE | ||
| TO Q4652003027/001 270 01 01 | ||
| 035 | N 000931008248 | SCREW |
| OIL PIPE TO TRANSMISSION CASE | ||
| M8X60;TO Q4652003017/Q4652003023 | ||
| 037 | N 000835008063 | STUD |
| OIL PIPE TO TRANSMISSION CASE | ||
| M8X50;TO Q4652003027/A 001 270 01 01 | ||
| 039 | N 000934008010 | NUT |
| OIL PIPE TO TRANSMISSION CASE | ||
| TO Q4652003027/A 001 270 01 01 | ||
| 040 | Q 4652306043 | PART NAME MISSING |
| Repalced by: A 0002711412 | ||
| 040 | A 0002711412 | OIL PAN |
| (ZF-PASSAU) | ||
| 045 | Q 4652306044 | PART NAME MISSING |
| Repalced by: A 0002714080 | ||
| 045 | A 0002714080 | GASKET |
| OIL PAN TO TRANSMISSION | ||
| DICHTUNG (ZF-PASSAU) | ||
| 050 | Q 0301301010 | PART NAME MISSING |
| Repalced by: A 0002711840 | ||
| 050 | A 0002711840 | BRACKET |
| OIL PAN TO TRANSMISSION | ||
| HALTEWINKEL (ZF-PASSAU) | ||
| 055 | N 000912006025 | SCREW |
| OIL PAN TO TRANSMISSION | ||
| M6X25 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| RESTLICHE TNR DIREKT BEI ZF BESTELLEN | ||
| Q 2159-50 | PART NAME MISSING | |
| Repalced by: Q 215950004101 | ||
| Q 215950004101 | PART NAME MISSING | |
| SPEEDOMETER | ||
| GEBER (KIENZLE) | ||
| Q 215980010500 | PART NAME MISSING | |
| SPEEDOMETER | ||
| KABEL (KIENZLE) | ||
| 070 | Q 6009-042-001 | PART NAME MISSING |
| Repalced by: A 0002775635 | ||
| 070 | A 0002775635 | VALVE |
| AUTOMATIC TRANSMISSION | ||
| STEUEREINHEIT (ZF-PASSAU) | ||
| 075 | N 007981004252 | SHEET METAL SCREW |
| CONTROL UNIT | ||
| 080 | Q 6041-222-158 | PART NAME MISSING |
| Repalced by: A 0002775735 | ||
| 080 | A 0002775735 | VALVE |
| 085 | N 007981004252 | SHEET METAL SCREW |
| Q 6029-204-712 | PART NAME MISSING | |
| Repalced by: A 0015462314 | ||
| A 0015462314 | ELECTRIC CABLE | |
| AUTOMATIC TRANSMISSION | ||
| KABELSATZ (ZF-PASSAU) | ||

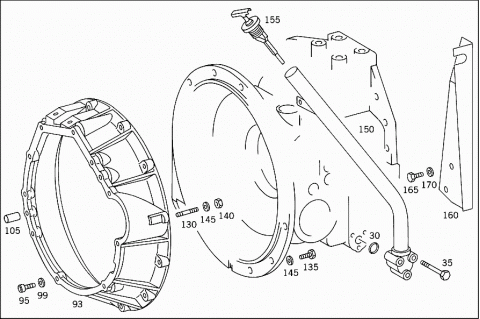

| 093 | Q DUV270000 | PART NAME MISSING |
| TRANSMISSION TO ENGINE | ||
| ANSCHLUSSGEHAEUSE | ||
| 095 | N 000912010064 | SCREW |
| MOTOR TO HOUSING | ||
| M 10X40 | ||
| 099 | N 000125010517 | WASHER |
| MOTOR TO HOUSING | ||
| 105 | A 6019970410 | PIN |
| MOTOR TO HOUSING | ||

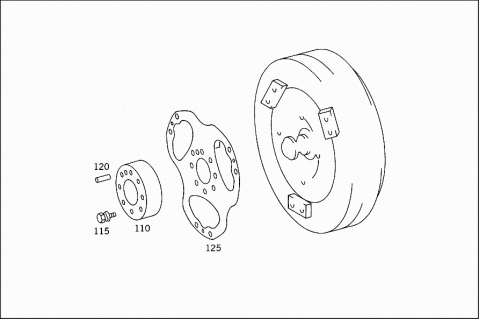

| 110 | Q DUV270008 | PART NAME MISSING |
| FLANGE | ||
| 115 | A 1030320071 | SCREW |
| Repalced by: A 1110320071 | ||
| 115 | A 1110320071 | SCREW |
| FLANGE TO SHAFT | ||
| 120 | A 6019970410 | PIN |
| FLANGE TO SHAFT | ||
| 125 | A 1020320306 | FOLLOWER |
| FLANGE TO SHAFT | ||
| 130 | N 000939010056 | STUD BOLT |
| TRANSMISSION CASE TO INTERMEDIATE FLANGE | ||
| M 10X35 | ||
| 135 | N 000933010094 | SCREW |
| TRANSMISSION CASE TO INTERMEDIATE FLANGE | ||
| M 10X40 | ||
| 140 | N 000934010005 | NUT |
| TRANSMISSION CASE TO INTERMEDIATE FLANGE | ||
| 145 | N 000125010517 | WASHER |
| TRANSMISSION CASE TO INTERMEDIATE FLANGE | ||
| 150 | Q DUV270007/1 | PART NAME MISSING |
| Repalced by: A 0002712296 | ||
| 150 | A 0002712296 | PIPE |
| OIL DIPSTICK | ||
| TO Q4652003017/Q4652003023 | ||

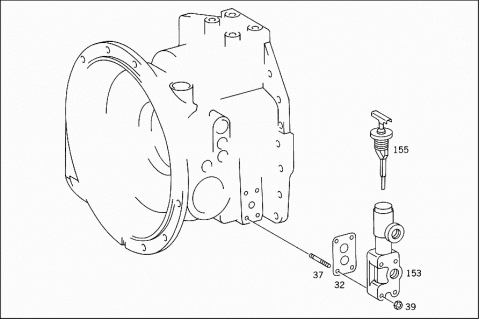

| 153 | A 0002712396 | PIPE |
| OIL DIPSTICK | ||
| TO Q4652003027/001 270 01 01 | ||
| 155 | Q DUV270010/3 | PART NAME MISSING |
| Repalced by: A 0002710883 | ||
| 155 | A 0002710883 | OIL DIPSTICK |
| TO Q4652003017/Q4652003023 | ||
| 155 | A 0002710783 | OIL DIPSTICK |
| TO Q4652003027/001 270 01 01 | ||
| 160 | Q DUV270003 | PART NAME MISSING |
| BRACKET | ||
| 165 | N 000933012058 | SCREW |
| BRACKET MOUNTING | ||
| M 12X20 | ||
| 170 | N 000125013008 | WASHER |
| BRACKET MOUNTING | ||
| 180 | Q 301421X04 | PART NAME MISSING |
| Repalced by: Q DUV270012 | ||
| 180 | Q DUV270012 | PART NAME MISSING |
| Repalced by: A 0002650130 | ||

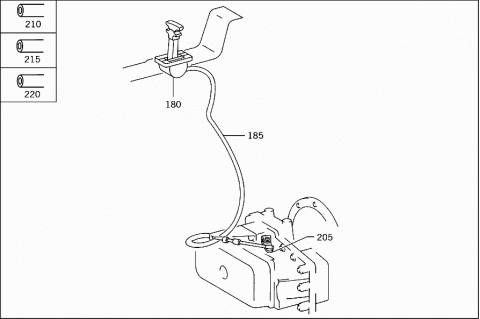

| 180 | A 0002650130 | SELECTOR LEVER |
| 180 | Q DUV271021 | PART NAME MISSING |
| Repalced by: A 0002650230 | ||
| 180 | Q DUV270020 | PART NAME MISSING |
| Repalced by: A 0002650230 | ||
| 180 | A 0002650230 | SELECTOR LEVER |
| 185 | Q DUV270013 | PART NAME MISSING |
| Repalced by: A 0003001330 | ||
| 185 | A 0003001330 | WIRE CABLE |
| 185 | Q DUV270021 | PART NAME MISSING |
| Repalced by: A 0003001430 | ||
| 185 | A 0003001430 | WIRE CABLE |
| 185 | A 0003001530 | WIRE CABLE |
| 205 | Q DUV270014 | PART NAME MISSING |
| Repalced by: A 0019910422 | ||
| 205 | A 0019910422 | BALL SOCKET |
| 205 | Q DUV270022 | PART NAME MISSING |
| Repalced by: A 0019910522 | ||
| 205 | A 0019910522 | BALL SOCKET |
| 210 | Q 142-04-03 | PART NAME MISSING |
| Repalced by: A 1232761930 | ||
| 210 | A 1232761930 | LINE |
| 215 | Q 5/16"SAE100 | PART NAME MISSING |
| Repalced by: A 0109974682 | ||
| 215 | A 0109974682 | HOSE |
| 220 | A 1170780281 | HOSE |
