Transporto priemonė: O 100 CITY; VIN numerio dalis: 631399

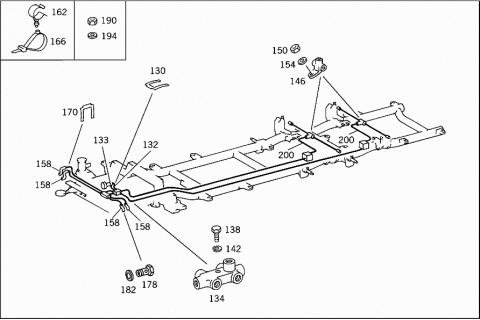

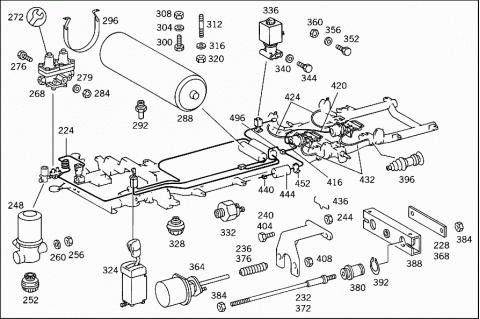

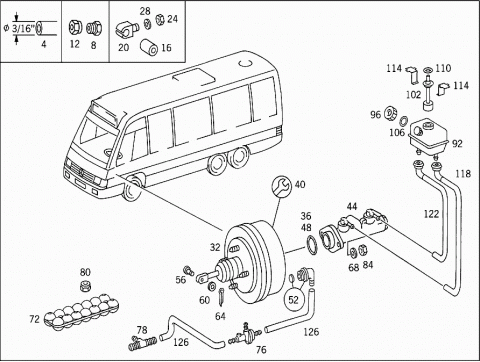

Grupė: 42 BRAKES
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | Q DUV420083 | PART NAME MISSING |
| BRAKE LINE | ||
| 3/16" | ||
| 008 | N 074233010100 | UNION SCREW |
| 012 | A 0004280072 | UNION SCREW |
| 016 | A 6314280081 | RUBBER PAD |
| BRAKE LINE MOUNTING | ||
| 020 | A 1269885178 | CLIP |
| BRAKE LINE MOUNTING | ||
| 024 | N 000934005008 | NUT |
| BRAKE LINE MOUNTING | ||
| 028 | N 000125005317 | WASHER |
| BRAKE LINE MOUNTING | ||
| 032 | A 6314300208 | BRAKE BOOSTER |
| 036 | A 6319970048 | SEAL RING |
| MASTER CYLINDER TO BRAKE BOOSTER | ||
| 040 | A 6314300660 | REPAIR KIT |
| BRAKE BOOSTER | ||
| 044 | A 6314301401 | BRAKE MASTER CYLINDER |
| 048 | A 6319970048 | SEAL RING |
| MASTER CYLINDER TO BRAKE BOOSTER | ||
| 052 | A 6314300009 | VALVE |
| PARTS KIT | ||
| 056 | A 6312920374 | PIN |
| BRAKE BOOSTER ASSEMBLY TO PEDAL | ||
| 060 | N 000125008423 | WASHER |
| BRAKE BOOSTER ASSEMBLY TO PEDAL | ||
| 064 | N 000094002059 | COTTER PIN |
| BRAKE BOOSTER ASSEMBLY TO PEDAL | ||
| 068 | N 000125008418 | WASHER |
| MASTER CYLINDER TO BRAKE BOOSTER | ||
| 072 | A 1238000619 | TANK |
| VACUUM | ||
| 076 | A 0004314307 | VALVE |
| (CHECK VALVE) | ||
| 078 | A 1158050722 | DISTRIBUTOR |
| VACUUM LINE | ||
| 080 | A 3774357072 | NUT |
| 084 | N 000934008010 | NUT |
| MASTER CYLINDER TO BRAKE BOOSTER | ||
| 092 | A 6314310002 | RESERVOIR |
| Repalced by: A 6314300002 | ||
| 092 | A 6314300002 | RESERVOIR |
| RESERVOIR | ||
| 096 | A 6314310356 | SCREW PLUG |
| FILLER NECK | ||
| TO 631 430 00 02 | ||
| 096 | A 0004315433 | FILLER CAP |
| FILLER NECK | ||
| TO 631 430 00 02 | ||
| 102 | A 6315420117 | SENDER UNIT |
| TO 631 430 00 02 | ||
| 106 | A 6314310280 | GASKET |
| FILLER NECK | ||
| TO 631 430 00 02 | ||
| 110 | A 6314310080 | GASKET |
| SENDER UNIT | ||
| TO 631 430 00 02 | ||
| 114 | A 6315461640 | CABLE SHOE |
| TO 631 430 00 02 | ||
| 118 | A 6319973781 | GROMMET |
| FROM RESERVOIR TO MASTER CYLINDER | ||
| 122 | A 6319973681 | GROMMET |
| FROM RESERVOIR TO MASTER CYLINDER | ||
| 126 | A 0004358382 | HOSE |
| VACUUM | ||
| 10,5X13 MM | ||
| 130 | A 6314280073 | LOCK |
| BRAKE HOSE TO FRAME | ||
| 132 | Q DUV420066 | PART NAME MISSING |
| BRAKE HOSE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FROM REAR MASTER CYLINDER TO DISTRIBUTOR | ||
| 285 MM | ||
| 133 | Q DUV420068 | PART NAME MISSING |
| BRAKE HOSE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FROM REAR MASTER CYLINDER TO DISTRIBUTOR | ||
| 200 MM | ||
| 134 | A 6314280024 | DISTRIBUTOR |
| AT SIDE MEMBER | ||
| 138 | N 000933008116 | SCREW |
| Repalced by: N 000933008337 | ||
| 138 | N 000933008337 | SCREW |
| DISTRIBUTOR TO FRAME SIDE MEMBER | ||
| M 8X28 | ||
| 142 | N 912004008102 | LOCK WASHER |
| DISTRIBUTOR TO FRAME SIDE MEMBER | ||
| 146 | A 0004284224 | DISTRIBUTOR |
| AT SIDE MEMBER | ||
| 146 | A 0004284224 | DISTRIBUTOR |
| REAR AXLE I | ||
| 146 | A 0004284224 | DISTRIBUTOR |
| REAR AXLE II | ||
| 150 | N 000934005008 | NUT |
| DISTRIBUTOR TO FRAME SIDE MEMBER | ||
| 150 | N 000934006007 | NUT |
| DISTRIBUTOR TO REAR AXLE | ||
| 154 | N 000125006421 | WASHER |
| DISTRIBUTOR TO FRAME SIDE MEMBER | ||
| 154 | N 000125006421 | WASHER |
| DISTRIBUTOR TO REAR AXLE | ||
| 158 | A 6314280035 | BRAKE HOSE |
| FRONT AXLE CALIPER | ||
| 162 | A 1159950565 | CLAMP |
| FRONT AXLE BRAKE HOSE | ||
| 166 | A 0039976090 | LOOM TIE |
| FRONT AXLE BRAKE HOSE | ||
| 170 | A 6314280073 | LOCK |
| BRAKE HOSE TO BRACKET | ||
| 170 | N 074225012600 | BRACKET |
| BRAKE HOSE TO BRACKET | ||
| 178 | A 6314280026 | HOLLOW SCREW |
| HOSE TO BRAKE CALIPER | ||
| 182 | N 007603012110 | SEAL RING |
| HOSE TO BRAKE CALIPER | ||
| 182 | N 007603010107 | SEAL RING |
| HOSE TO BRAKE LINE | ||
| Q 468-406-0000 | PART NAME MISSING | |
| Repalced by: Q DUV420084 | ||
| Q DUV420084 | PART NAME MISSING | |
| BRAKE POWER REGULATOR | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| REAR AXLES I AND II | ||
| 190 | N 000934008010 | NUT |
| BRAKE POWER REGULATOR TO BRACKET | ||
| 194 | N 000125008418 | WASHER |
| BRAKE POWER REGULATOR TO BRACKET | ||
| 200 | Q DUV420067 | PART NAME MISSING |
| BRAKE HOSE | ||
| 224 | Q DUV130028 | PART NAME MISSING |
| COMPRESSED AIR LINE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FROM AIR COMPRESSOR TO AIR DEHYDRATOR | ||
| 228 | Q DUV420017 | PART NAME MISSING |
| Repalced by: Q DUV430027 | ||
| 228 | Q DUV430027 | PART NAME MISSING |
| PLATE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| (SPRING LOAD ACCUMULATOR CYLINDER) | ||
| 232 | Q DUV430024 | PART NAME MISSING |
| ROD | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| (SPRING LOAD ACCUMULATOR CYLINDER) | ||
| 236 | Q DUV430029 | PART NAME MISSING |
| BELLOWS | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| (SPRING LOAD ACCUMULATOR CYLINDER) | ||
| 240 | N 000933008131 | SCREW |
| Repalced by: N 304017008016 | ||
| 240 | N 304017008016 | SCREW |
| M 8X15 | ||
| 244 | N 000934008010 | NUT |
| 248 | Q 432-415-0030 | PART NAME MISSING |
| AIR DEHYDRATOR | ||
| (WABCO) | ||
| 252 | A 0004300970 | MUFFLER |
| Repalced by: A 0004302470 | ||
| 252 | A 0004302470 | MUFFLER |
| (WABCO) | ||
| 256 | N 000934012021 | NUT |
| 260 | N 000125013008 | WASHER |
| Q DUV420082 | PART NAME MISSING | |
| PRESSURE REGULATOR VALVE | ||
| 268 | A 0014312606 | VALVE |
| THREE-CIRCUIT PROTECTIVE VALVE | ||
| (WABCO) | ||
| 272 | A 0015860643 | REPAIR KIT |
| TO 001 431 26 06 | ||
| 276 | N 000931008248 | SCREW |
| PROTECTIVE VALVE | ||
| M 8X60 | ||
| 279 | N 000125008418 | WASHER |
| PROTECTIVE VALVE | ||
| 284 | N 000934008010 | NUT |
| PROTECTIVE VALVE | ||
| 288 | Q 950-420-0030 | PART NAME MISSING |
| AIR RESERVOIR | ||
| (WABCO) | ||
| 292 | A 0004322407 | VALVE |
| DRAIN | ||
| 296 | Q DUV420062 | PART NAME MISSING |
| STRAP | ||
| 300 | N 000933010095 | SCREW |
| M 10X50 | ||
| 304 | N 000125010518 | WASHER |
| 308 | N 000934010014 | NUT |
| 312 | N 000939010127 | STUD BOLT |
| M 10X20 | ||
| 316 | N 000125010518 | WASHER |
| 320 | N 000934010014 | NUT |
| A 0034301881 | VALVE | |
| 324 | Q 961-721-0200 | PART NAME MISSING |
| HAND BRAKE VALVE | ||
| (WABCO) | ||
| 328 | A 0004300370 | MUFFLER |
| Repalced by: A 0004302370 | ||
| 328 | A 0004302370 | MUFFLER |
| (WABCO) | ||
| 332 | A 0025452524 | SWITCH,AUTOMATIC |
| 336 | A 0039971136 | VALVE |
| (WABCO) | ||
| 340 | N 000125008418 | WASHER |
| SOLENOID VALVE | ||
| 344 | N 000931008246 | SCREW |
| SOLENOID VALVE | ||
| M 8X50 | ||
| Q 475-015-3000 | PART NAME MISSING | |
| PRESSURE LIMIT VALVE | ||
| (WABCO) | ||
| 352 | N 000933006102 | SCREW |
| (PRESSURE LIMIT VALVE) | ||
| M 6X15 | ||
| 356 | N 000125006421 | WASHER |
| (PRESSURE LIMIT VALVE) | ||
| 360 | N 000934006007 | NUT |
| (PRESSURE LIMIT VALVE) | ||
| 364 | Q 890-110-3260 | PART NAME MISSING |
| SPRING LOAD ACCUMULATOR CYLINDER | ||
| (WABCO) | ||
| 368 | Q DUV430001 | PART NAME MISSING |
| Repalced by: Q DUV430027 | ||
| 368 | Q DUV430027 | PART NAME MISSING |
| PLATE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| (SPRING LOAD ACCUMULATOR CYLINDER) | ||
| 372 | Q DUV430024 | PART NAME MISSING |
| ROD | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| (SPRING LOAD ACCUMULATOR CYLINDER) | ||
| 376 | Q DUV430029 | PART NAME MISSING |
| BELLOWS | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| (SPRING LOAD ACCUMULATOR CYLINDER) | ||
| 380 | Q DUV430002 | PART NAME MISSING |
| BUSHING | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| (SPRING LOAD ACCUMULATOR CYLINDER) | ||
| 384 | N 000934012022 | NUT |
| (SPRING LOAD ACCUMULATOR CYLINDER) | ||
| 388 | Q DUV430003 | PART NAME MISSING |
| PIPE LINE | ||
| 392 | N 000471029000 | LOCK RING |
| 396 | A 6319973381 | GROMMET |
| Q DUV430000 | PART NAME MISSING | |
| BRACKET | ||
| 404 | N 000933008153 | SCREW |
| M 8X25 | ||
| 408 | N 000934014019 | NUT |
| 416 | Q DUV430019 | PART NAME MISSING |
| BRAKE HOSE | ||
| 416 | Q DUV431019 | PART NAME MISSING |
| BRAKE HOSE | ||
| 800 MM | ||
| 420 | Q DUV430020 | PART NAME MISSING |
| HOSE | ||
| 424 | Q DUV430021 | PART NAME MISSING |
| LEFT BRAKE CABLE | ||
| 1470 MM | ||
| 424 | Q DUV431021 | PART NAME MISSING |
| LEFT BRAKE CABLE | ||
| 1675,5 MM | ||
| 432 | Q DUV430022 | PART NAME MISSING |
| RIGHT BRAKE CABLE | ||
| 1270 MM | ||
| 436 | Q DUV430006 | PART NAME MISSING |
| CABLE HOLDER | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| EMERGENCY RELEASE | ||
| 440 | Q 4340140000 | PART NAME MISSING |
| CHECK VALVE | ||
| KP:DUO 430/02 | ||
| 444 | Q 45100539900 | PART NAME MISSING |
| Repalced by: Q 9502050010 | ||
| 444 | Q 9502050010 | PART NAME MISSING |
| AIR RESERVOIR | ||
| 5L | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| KP:DU0 430/02 | ||

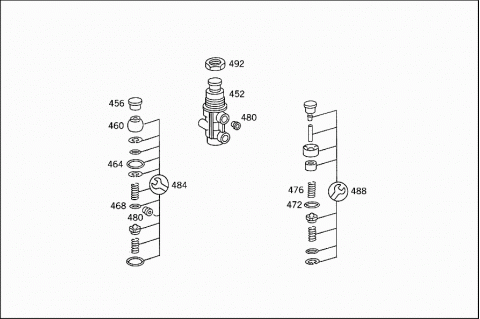

| 452 | Q 4630131120 | PART NAME MISSING |
| Repalced by: A 0004342301 | ||
| 452 | A 0004342301 | VALVE |
| THREE-WAY VALVE | ||
| WABCO | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| KP:DUO 430/02 | ||
| 452 | A 0004342101 | VALVE |
| THREE-WAY VALVE | ||
| BOSCH | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| KP:DUO 430/02 | ||
| 456 | A 0009971977 | HANDLE |
| TO 000 434 23 01 | ||
| 460 | A 0004340586 | CUP |
| TO 000 434 23 01 | ||
| 464 | A 0079972448 | SEAL RING |
| TO 000 434 23 01 | ||
| 468 | A 0079972548 | SEAL RING |
| TO 000 434 23 01 | ||
| 472 | A 0059979248 | SEAL RING |
| TO 000 434 21 01 | ||
| 476 | A 0014315193 | SPRING |
| TO 000 434 21 01 | ||
| 480 | A 0004314034 | STRAINER |
| TO 000 434 21 01 | ||
| 484 | A 0025869843 | REPAIR KIT |
| TO 000 434 23 01 | ||
| 488 | A 0025865343 | REPAIR KIT |
| TO 000 434 21 01 | ||
| 492 | N 074305026202 | NUT |
| KP:DUO 430/02 | ||
| 496 | Q 4342080200 | PART NAME MISSING |
| TWO-WAY VALVE | ||
| KP:DUO 430/02 | ||
| Q DUV430018 | PART NAME MISSING | |
| CABLE HARNESS | ||
| KP:DUO 430/02 | ||
