Transporto priemonė: O 100 CITY; VIN numerio dalis: 631399

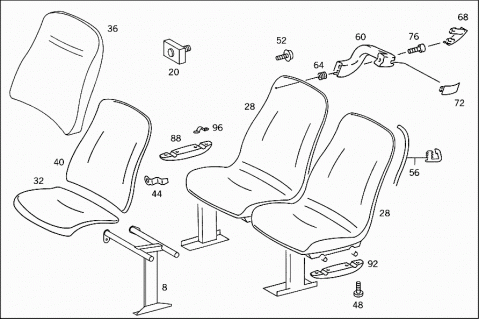

Grupė: 95 DOUBLE OCCUPANCY SEAT - 001 SEATS
| # | Kodas | Pavadinimas |
|---|---|---|
| Q DUV940006 | PART NAME MISSING | |
| SITZGESTELL LINKS, ZWEISITZER LANG | ||
| Q DUV940007 | PART NAME MISSING | |
| SITZGESTELL LINKS, ZWEISITZER KURZ | ||
| 008 | Q DUV940002 | PART NAME MISSING |
| SITZGESTELL RECHTS, EINSITZER KURZ | ||
| 020 | Q DUV970011 | PART NAME MISSING |
| Repalced by: Q DUV970010 | ||
| 020 | Q DUV970010 | PART NAME MISSING |
| SCHRAUBE | ||
| Q DUV970001 | PART NAME MISSING | |
| BEFESTIGUNGSPROFIL 4300 MM | ||
| 028 | A 3579400257 | SEAT SHELL |
| 032 | A 3579400621 | SEAT CUSHION |
| 036 | A 3579400531 | BACKREST |
| 040 | A 3579400407 | UPHOLSTERY PANEL |
| 044 | A 3579420414 | BRACKET |
| 048 | N 007985004136 | SCREW |
| 052 | A 3579900112 | SCREW |
| 056 | A 3579420075 | LEDGE |
| 060 | A 3578100454 | HANDLE |
| LINKS | ||
| 060 | A 3578100354 | HANDLE |
| RECHTS | ||
| 064 | A 0009976715 | THREADED CHUCK |
| 068 | A 3578150143 | CAP |
| 072 | A 3578150043 | CAP |
| 076 | N 007984006030 | SCREW |

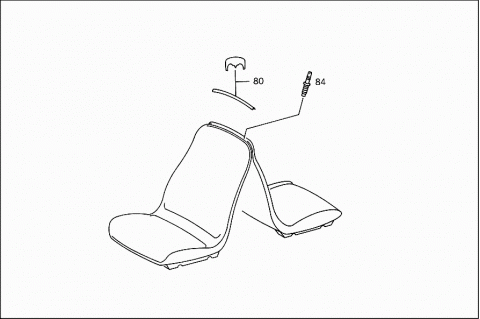

| 080 | A 3579700079 | PAD |
| 084 | A 3579750215 | PIN |
| 088 | A 3579500095 | RAIL |
| RECHTS | ||
| 092 | A 3579500195 | RAIL |
| LINKS | ||
| 096 | A 3579590219 | CLAMP |
| RECHTS | ||
| 096 | A 3579590319 | CLAMP |
| LINKS | ||
