Transporto priemonė: O 100 CITY; VIN numerio dalis: 631399
Grupė: 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
| # | Kodas | Pavadinimas |
|---|---|---|
| Q DUV540066 | PART NAME MISSING | |
| BATTERY | ||

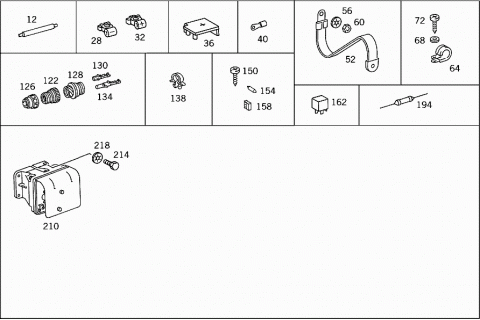

| 012 | A 6735460011 | ELECTRIC CABLE |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FROM BATTERY NEG.POLE TO STARTING MOTOR | ||
| 750 MM | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FROM BATTERY POS.POLE TO STARTING MOTOR | ||
| 5800 MM | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FROM BATTERY I TO BATTERY II | ||
| 170 MM | ||
| 012 | N 922004025201 | ELECTRIC CABLE |
| STARTING MOTOR AND ALTERNATOR | ||
| 800 MM | ||
| 028 | N 072332011200 | SOLDERING TERMINAL |
| FROM BATTERY NEG.POLE TO STARTING MOTOR | ||
| 028 | N 072332011200 | SOLDERING TERMINAL |
| FROM BATTERY I TO BATTERY II | ||
| 032 | N 072332011100 | SOLDERING TERMINAL |
| FROM BATTERY POS.POLE TO STARTING MOTOR | ||
| 032 | N 072332011100 | SOLDERING TERMINAL |
| FROM BATTERY I TO BATTERY II | ||
| 036 | A 0005464635 | BOOT |
| FROM BATTERY NEG.POLE TO STARTING MOTOR | ||
| 036 | A 0005464635 | BOOT |
| FROM BATTERY POS.POLE TO STARTING MOTOR | ||
| 036 | A 0005464635 | BOOT |
| FROM BATTERY I TO BATTERY II | ||
| 040 | N 046234010008 | CABLE SHOE |
| FROM BATTERY NEG.POLE TO STARTING MOTOR | ||
| 040 | N 046234008001 | CABLE SHOE |
| FROM BATTERY POS.POLE TO STARTING MOTOR | ||
| 040 | N 046234008005 | CABLE SHOE |
| STARTING MOTOR AND ALTERNATOR | ||
| 052 | A 6505400341 | GROUND STRAP |
| 350 MM | ||
| 052 | A 3525400041 | GROUND STRAP |
| 500 MM | ||
| 056 | N 006798008102 | SERRATED WASHER |
| 060 | N 000934008010 | NUT |
| 064 | Q 05421512 | PART NAME MISSING |
| Repalced by: N 916016015201 | ||
| 064 | N 916016015201 | CLAMP |
| (WUERTH) | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| BATTERY CABLE MOUNTING | ||
| 068 | N 000125003212 | WASHER |
| BATTERY CABLE MOUNTING | ||
| 072 | N 007981003230 | SHEET METAL SCREW |
| BATTERY CABLE MOUNTING | ||
| Q DUV540010 | PART NAME MISSING | |
| KABEL AUFBAU | ||
| Q DUV540011 | PART NAME MISSING | |
| KABELSATZ INNENBELEUCHTUNG | ||
| Q DUV540013 | PART NAME MISSING | |
| KABELSATZ VORDERWAND | ||
| Q DUV540012 | PART NAME MISSING | |
| KABELSATZ INSTRUMENTEN-TAFEL | ||
| Q DUV540026 | PART NAME MISSING | |
| KABELSATZ MOTOR/GETRIEBE | ||
| Q DUV540027 | PART NAME MISSING | |
| KABELSATZ TACHOMETER | ||
| Q DUV540031 | PART NAME MISSING | |
| KABELSATZ KONSOLE MITTEN | ||
| Q DUV540032 | PART NAME MISSING | |
| KABELSATZ TUER I | ||
| Q DUV540033 | PART NAME MISSING | |
| KABELSATZ TUER II | ||
| Q DUV540038 | PART NAME MISSING | |
| KABELSATZ TUEREN | ||
| Q DUV540059 | PART NAME MISSING | |
| KABELSATZ UNTERDRUCKPUMPE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| KP:DU0 323/01/02 | ||
| Q DUV540058 | PART NAME MISSING | |
| KABELSATZ | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| KP:DU0 430/04 | ||
| 122 | Q 206305-1 | PART NAME MISSING |
| STECKER MIT KUPPLUNGSRING | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 37-POLE | ||
| 126 | A 0015451483 | CAP |
| 128 | Q 206306-2 | PART NAME MISSING |
| AUFNAHMEGEHAEUSE OHNE FLANSCH | ||
| 130 | A 0035455826 | CONTACT SPRING |
| 134 | A 0215451028 | PLUG |
| 138 | A 0009955444 | CLAMP |
| Repalced by: A 0009956044 | ||
| 138 | A 0009956044 | CLAMP |
| Q 8JB004777001 | PART NAME MISSING | |
| PLUG SOCKET | ||
| KP:DUO 545/01 | ||
| Q BRE10555 | PART NAME MISSING | |
| Repalced by: A 0015458301 | ||
| A 0015458301 | FUSE BOX | |
| (FA.SLOYTER) | ||
| 150 | N 007981003240 | SHEET METAL SCREW |
| FUSE BOX MOUNTING | ||
| 154 | N 072581000300 | FUSE |
| 3 A | ||
| 158 | A 0025450734 | FUSE |
| Repalced by: N 072581000302 | ||
| 158 | N 072581000302 | FUSE |
| 5 A | ||
| 158 | A 0025450934 | FUSE |
| 10 A | ||
| 158 | A 0025451034 | FUSE |
| Repalced by: N 072581000305 | ||
| 158 | N 072581000305 | FUSE |
| 15 A | ||
| 162 | A 0035452705 | RELAY |
| 12 V | ||
| 162 | A 0005455405 | RELAY |
| 24 V | ||
| Q 4RA003437051 | PART NAME MISSING | |
| RELAY | ||
| (HELLA) | ||
| Q DUV540062 | PART NAME MISSING | |
| RELAIS TUERBETAETIGUNG | ||
| Q DUV540065 | PART NAME MISSING | |
| TIME RELAY | ||
| Q 8JA003526001 | PART NAME MISSING | |
| RELAY SOCKET | ||
| (HELLA) | ||
| Q DUV540064 | PART NAME MISSING | |
| RELAISFUSS TUERBETAETIGUNG | ||
| Q DUV540063 | PART NAME MISSING | |
| CLIP | ||
| N 007981003240 | SHEET METAL SCREW | |
| RELAY | ||
| 3.5X16 | ||
| N 007981003255 | SHEET METAL SCREW | |
| RELAY | ||
| 3.5X22 | ||
| 194 | A 0005487018 | DIODE |
| Q DUV540063 | PART NAME MISSING | |
| SPRING | ||
| Q 3SB003985027 | PART NAME MISSING | |
| BUZZER | ||
| (HELLA) | ||
| N 000000000453 | TAPPING SCREW | |
| FUEL GAUGE SENDER UNIT | ||
| 4.2X13 | ||
| N 007981004208 | SHEET METAL SCREW | |
| FUEL GAUGE SENDER UNIT | ||
| 4.2X22 | ||
| 210 | A 0005427219 | RELAY |
| MASTER SWITCH | ||
| (BOSCH) | ||
| 214 | N 000933006121 | SCREW |
| MASTER SWITCH | ||
| M 6X20 | ||
| 218 | N 006798006102 | SERRATED WASHER |
| MASTER SWITCH | ||

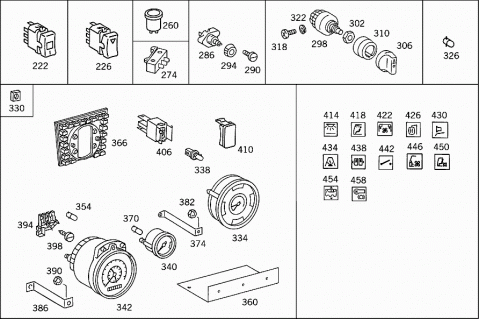

| 222 | A 0025456907 | SWITCH |
| EXHAUST BRAKE,"OFF" | ||
| KP:DUO 430/04 | ||
| 222 | A 0025456907 | SWITCH |
| VACUUM PUMP | ||
| KP:DUO 323/01/02 | ||
| 222 | A 0025456907 | SWITCH |
| BATTERY MASTER SWITCH | ||
| KP:DUO 546/01 | ||
| 222 | A 0025454407 | SWITCH |
| PANE WASHER | ||
| 222 | A 0025457007 | SWITCH |
| FRONT END HEATING,STEPS 1 AND 2 | ||
| 222 | A 0035450107 | SWITCH |
| HEATING/VENTILATION | ||
| 226 | A 0055459224 | HAZARD WARNG.LIGHT SWITCH |
| 260 | Q C22AL10 | PART NAME MISSING |
| Repalced by: Q DUV540071 | ||
| 260 | Q DUV540071 | PART NAME MISSING |
| Repalced by: A 0038209910 | ||
| 260 | Q 233EB10D | PART NAME MISSING |
| Repalced by: Q DUV540074 | ||
| 260 | Q DUV540074 | PART NAME MISSING |
| Repalced by: A 0038209910 | ||
| Q 083200230 | PART NAME MISSING | |
| SCHALTER AUSSENSPIEGEL-VERSTELLUNG | ||
| 260 | Q C22KS01 | PART NAME MISSING |
| Repalced by: Q DUV540072 | ||
| 260 | Q DUV540072 | PART NAME MISSING |
| Repalced by: A 0038209910 | ||
| 260 | Q 231E10D | PART NAME MISSING |
| Repalced by: Q DUV540073 | ||
| 260 | Q DUV540073 | PART NAME MISSING |
| Repalced by: A 0038209910 | ||
| 260 | A 0038209910 | PUSH BUTTON |
| TUERFREIGABE/NOTSCHALTER | ||
| Q WDL048 | PART NAME MISSING | |
| BULB | ||
| 48V (HIRSCHMANN) | ||
| Q WAO209 | PART NAME MISSING | |
| NOTSCHALTER SCHEIBE (HIRSCHMANN) | ||
| 274 | A 0038205710 | SWITCH |
| DOOR POSITION CONTROL | ||
| IM KASTEN TUERBETAETIGUNG VORN U. HI. | ||
| Q 571-0226 | PART NAME MISSING | |
| DRUCKKNOPF-STOP (GEBR.HAPPICH) | ||
| N 007981003240 | SHEET METAL SCREW | |
| 3.5X16 | ||
| 286 | A 6155420225 | POTENTIOMETER |
| INSTRUMENT LIGHTING | ||
| 290 | N 000084003160 | SCREW |
| INSTRUMENT LIGHTING SWITCH | ||
| M 3X20 | ||
| 294 | A 0005422189 | KNOB |
| INSTRUMENT LIGHTING | ||
| 298 | A 0005453704 | LIGHT SWITCH |
| 24V | ||
| 302 | A 1075450072 | NUT |
| 306 | A 2015400183 | HANDLE |
| LIGHT SWITCH | ||
| 310 | A 0005452245 | BOOT |
| LIGHT SWITCH | ||
| 310 | A 0005452345 | BOOT |
| LIGHT SWITCH | ||
| 318 | N 007985004123 | SCREW |
| M 4X6 | ||
| 322 | N 912004004102 | LOCK WASHER |
| 326 | A 0015447994 | BULB |
| 24V 1,2W | ||
| 330 | A 3016890311 | PLATE |
| LIGHT SWITCH | ||
| 334 | A 0035409647 | INSTRUMENT CLUSTER |
| 338 | A 0015442694 | BULB |
| WITH SOCKET | ||
| 340 | Q 333430031016 | PART NAME MISSING |
| Repalced by: A 0035424716 | ||
| 340 | A 0035424716 | TACHOMETER |
| KP:DU0 542/01 (MIT FARBFELD-KENNUNG) | ||
| 340 | Q DUV540075 | PART NAME MISSING |
| TACHOMETER | ||
| KP:DU0 542/01 (OHNE FARBFELD-KENNUNG) | ||
| 342 | A 0115423410 | TACHOGRAPH |
| 342 | Q DUV540060 | PART NAME MISSING |
| TACHOGRAPH | ||
| KP:DUO 542/02 | ||

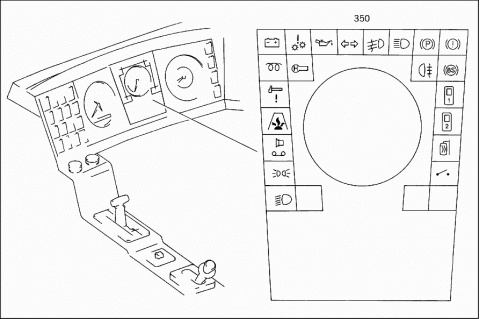

| 350 | Q DUV680003 | PART NAME MISSING |
| KONTROLLPANEL | ||
| 354 | A 3015443194 | BULB |
| AT INSTRUMENT PANEL | ||
| Q 215823002402 | PART NAME MISSING | |
| LIMIT SENDER UNIT | ||
| KP:DUO 542/03 | ||
| 360 | Q DUV820016 | PART NAME MISSING |
| BRACKET | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| LIMIT SENDER UNIT | ||
| KP:DUO 542/03 | ||
| 366 | A 3018210511 | PLATE |
| PLUG HOUSING | ||
| 370 | A 0015443694 | BULB |
| 12V | ||
| 374 | A 3005420540 | BRACKET |
| INSTRUMENT CLUSTER TO INSTRUMENT PANEL | ||
| 382 | N 000934004006 | NUT |
| 386 | A 3005420240 | BRACKET |
| TACHOGRAFH TO INSTRUMENT PANEL | ||
| 390 | N 000934005008 | NUT |
| 394 | A 0005420285 | PROTECTIVE PLATE |
| TACHOGRAPH | ||
| 398 | N 007971002206 | SHEET METAL SCREW |
| 2.9X9.5 | ||
| 398 | N 007971004243 | SHEET METAL SCREW |
| 406 | A 0008250382 | SOCKET |
| BULB | ||
| 410 | A 3016891939 | COVER |
| BLIND ELEMENT | ||
| 414 | A 0045450990 | LENS |
| INTERIOR LIGHTING | ||
| 418 | A 0035458990 | LENS |
| DRIVER'S LAMP | ||
| 422 | A 0045452390 | LENS |
| ROOF-MOUNTED TURBO-BLOWER | ||
| 426 | A 0045452190 | LENS |
| HEATED OUTSIDE REARVIEW MIRROR | ||
| 430 | A 0045459390 | LENS |
| OUTSIDE LOUDSPEAKER | ||
| 434 | A 0045455390 | LENS |
| WEBASTO HEATER | ||
| 438 | A 0045453890 | LENS |
| DOOR RELEASE | ||
| 442 | A 0055452490 | LENS |
| BATTERY MASTER SWITCH | ||
| 442 | A 0055452490 | LENS |
| MASTER SWITCH | ||
| KP:DUO 546/01 | ||
| 446 | A 0045452690 | LENS |
| FRONT END HEATING | ||
| 450 | A 0045450590 | LENS |
| DRIVER'S VENTILATOR | ||
| 454 | A 0075452990 | LENS |
| VACUUM PUMP | ||
| KP:DUO 323/01/02 | ||
| 458 | A 0055450290 | LENS |
| KP:DUO 430/04 | ||

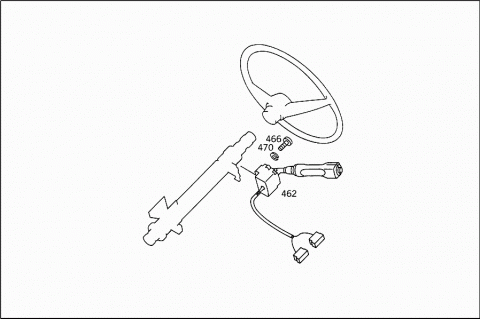

| 462 | A 4255400045 | SWITCH |
| STEERING COLUMN MOUNTED | ||
| 466 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 466 | N 000000001146 | SCREW |
| STEERING COLUMN MOUNTED | ||
| M 6X16 | ||
| 470 | N 912004006104 | LOCK WASHER |
| STEERING COLUMN MOUNTED | ||
