Transporto priemonė: O 100 CITY; VIN numerio dalis: 631399

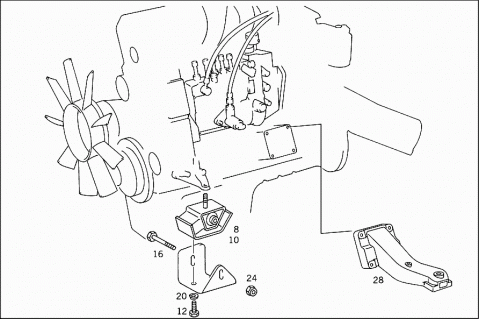

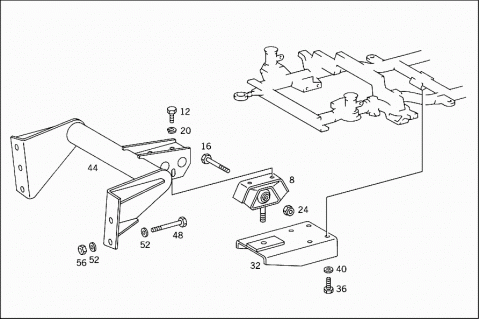

Grupė: 24 ENGINE SUSPENSION - 001 RUBBER MOUNTING TO ENGINE SUPPORT
| # | Kodas | Pavadinimas |
|---|---|---|
| 008 | A 4602407118 | RUBBER MOUNTING |
| FRONT LEFT | ||
| 008 | A 4602407118 | RUBBER MOUNTING |
| REAR | ||
| 010 | A 4602406718 | RUBBER MOUNTING |
| FRONT RIGHT | ||
| 012 | N 000933010128 | SCREW |
| ENGINE FRONT SUSPENSION | ||
| 012 | N 000933010128 | SCREW |
| ENGINE REAR SUSPENSION | ||
| M 10X20 | ||
| 016 | N 000931010272 | SCREW |
| ENGINE FRONT SUSPENSION | ||
| 016 | N 000931010272 | SCREW |
| ENGINE REAR SUSPENSION | ||
| M 10X85 | ||
| 020 | N 912004010102 | LOCK WASHER |
| ENGINE FRONT SUSPENSION | ||
| 020 | N 912004010102 | LOCK WASHER |
| ENGINE REAR SUSPENSION | ||
| 024 | N 913001010001 | NUT |
| ENGINE FRONT SUSPENSION | ||
| 024 | N 913001010001 | NUT |
| ENGINE REAR SUSPENSION | ||
| 028 | Q DUV220000 | PART NAME MISSING |
| Repalced by: Q DUV220008 | ||
| 028 | Q DUV220008 | PART NAME MISSING |
| SUPPORT | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| LEFT | ||
| 032 | Q DUV240007 | PART NAME MISSING |
| BRACKET | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| ENGINE REAR SUSPENSION | ||
| 036 | N 000933012058 | SCREW |
| ENGINE REAR SUSPENSION | ||
| M 12X20 | ||
| 040 | N 000125013008 | WASHER |
| ENGINE REAR SUSPENSION | ||
| 044 | Q DUV240018 | PART NAME MISSING |
| BRACKET | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| ENGINE REAR SUSPENSION | ||
| 048 | N 000931016077 | SCREW |
| ENGINE REAR SUSPENSION | ||
| M 16X120 | ||
| 052 | N 000125017010 | WASHER |
| ENGINE REAR SUSPENSION | ||
| 056 | N 000934016022 | NUT |
| ENGINE REAR SUSPENSION | ||
