Transporto priemonė: O 100 CITY; VIN numerio dalis: 631399

Grupė: 33 FRONT AXLE

#	Kodas	Pavadinimas

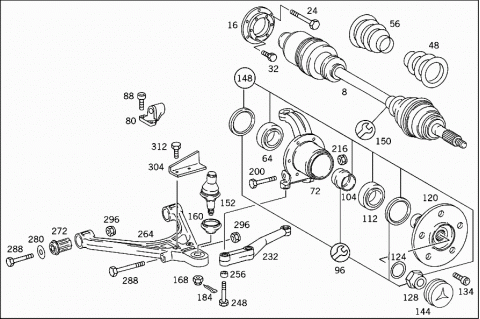

008	Q 8152210558002	PART NAME MISSING
	Repalced by: Q DUV330002
008	Q DUV330002	PART NAME MISSING
		DRIVE FLANGE
	Y YYYYYYYYYYYY	PART NAME MISSING
		LEFT
		507 MM
008	Q DUV331002	PART NAME MISSING
		DRIVE FLANGE
	Y YYYYYYYYYYYY	PART NAME MISSING
		LEFT
		1148 MM
008	Q 8152210558001	PART NAME MISSING
	Repalced by: Q DUV330003
008	Q DUV330003	PART NAME MISSING
		DRIVE FLANGE
	Y YYYYYYYYYYYY	PART NAME MISSING
		RIGHT
		397 MM
016	Q DUV330000	PART NAME MISSING
		INTERMEDIATE FLANGE
024	Q GKN0038960	PART NAME MISSING
		SCREW
		M12X65
032	A 0019905112	SCREW
		M10X30
048	Q DUV330005	PART NAME MISSING
		DRIVE SHAFT BOOT,WHEEL SIDE
056	Q DUV330004	PART NAME MISSING
		DRIVE SHAFT BOOT,TRANSMISSION SIDE
064	A 6319800102	TAPERED ROLLER BEARING
		INSIDE
064	A 0049818405	TAPERED ROLLER BEARING
		LEFT
064	A 0059810305	TAPERED ROLLER BEARING
		INSIDE
072	A 6313320701	STEERING KNUCKLE
		LEFT
072	A 6313320801	STEERING KNUCKLE
		RIGHT
080	A 6315420340	BRACKET
088	N 000912008009	SCREW
		M 8X20
096	A 6313300920	STEERING KNUCKLE
104	A 6313340253	SPACER TUBE
112	A 0009808202	TAPERED ROLLER BEARING
		OUTSIDE
112	A 0089815905	TAPERED ROLLER BEARING
		OUTSIDE
120	A 6313340401	WHEEL HUB
		INSIDE
124	A 6313340276	WASHER
		WHEEL HUB TO DRIVE SHAFT
128	A 6313370472	NUT
134	N 000912010038	SCREW
		M10X30
144	A 6313340020	END COVER
		FRONT WHEEL HUB
148	A 6313300251	ANTI-FRICTION BEARING
		PARTS KIT
150	A 6313301701	SLEEVE
		REPAIR SOLUTION
152	A 6313200028	JOINT
		TRANSVERSE CONTROL ARM
		ANSA LEMFOERDER
160	A 6313260092	BOOT
168	N 000979016006	NUT
		JOINT TO STEERING KNUCKLE
168	N 000979016006	NUT
		JOINT TO CROSS MEMBER
184	N 000094004055	COTTER PIN
		JOINT TO STEERING KNUCKLE
		4X28 MM
184	N 000094004055	COTTER PIN
		JOINT TO CROSS MEMBER
		4X28 MM
200	N 000960012199	SCREW
		JOINT TO STEERING KNUCKLE
200	N 000960012199	SCREW
		JOINT TO CROSS MEMBER
216	N 913004012008	NUT
		JOINT TO STEERING KNUCKLE
216	N 913004012008	NUT
		JOINT TO CROSS MEMBER
232	A 6313380507	STEERING ARM
		LEFT
232	A 6313380508	STEERING ARM
		RIGHT
248	A 6319900501	SCREW
		STEERING ARM TO STEERING KNUCKLE
256	A 6313380050	BUSHING
		STEERING ARM TO STEERING KNUCKLE
264	A 6313330502	TRANSVERSE CONTROL ARM
		LEFT
		333 MM "K"
264	A 6313330702	TRANSVERSE CONTROL ARM
		LEFT
		335 MM
264	A 6313330902	TRANSVERSE CONTROL ARM
		LEFT
		337 MM "L"
264	A 6313330602	TRANSVERSE CONTROL ARM
		RIGHT
		333 MM "K"
264	A 6313330802	TRANSVERSE CONTROL ARM
		RIGHT
		335 MM
264	A 6313331002	TRANSVERSE CONTROL ARM
		RIGHT
		337 MM "L"
272	A 6313300075	RUBBER MOUNTING
		TRANSVERSE CONTROL ARM
280	A 6313330152	SPACER WASHER
		AS REQUIRED
		0.50 MM
280	A 6313330252	SPACER WASHER
		AS REQUIRED
		1.00 MM
280	A 6313330352	SPACER WASHER
		AS REQUIRED
		2.00 MM
280	A 6313330452	SPACER WASHER
		AS REQUIRED
		3.00 MM
288	N 000960016260	SCREW
		LOWER CONTROL ARM TO FRAME
296	N 913004016005	NUT
		LOWER CONTROL ARM TO FRAME
304	A 6313330625	CLAMP
		LEFT
304	A 6313330725	CLAMP
		RIGHT
312	N 000933010128	SCREW
		CLAMP TO CONTROL ARM

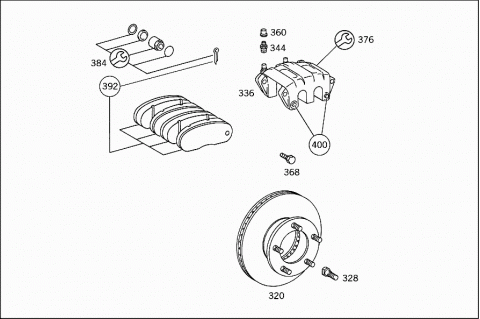

320	A 6314200172	BRAKE DISC
328	A 6313560071	SCREW
336	A 6314200083	CALIPER
		LEFT
336	A 6314200183	CALIPER
		RIGHT
344	A 6314210065	BLEEDER VALVE
344	A 0004205155	BLEEDER VALVE
360	A 6314210087	PROTECTIVE CAP
360	A 0004217187	PROTECTIVE CAP
	Repalced by: A 0004210887
360	A 0004210887	PROTECTIVE CAP
368	A 6319900101	SCREW
376	A 6314200044	REPAIR KIT
		BRAKE CALIPER LESS PISTON
384	A 6314200051	REPAIR KIT
		BRAKE CALIPER WITH PISTON
392	A 6314200220	TS BRAKE PAD
		(PARTS KIT)
400	A 6314200082	PIN
		(PARTS KIT)
