Transporto priemonė: O 100 CITY; VIN numerio dalis: 631399

Grupė: 35 REAR AXLE

#	Kodas	Pavadinimas

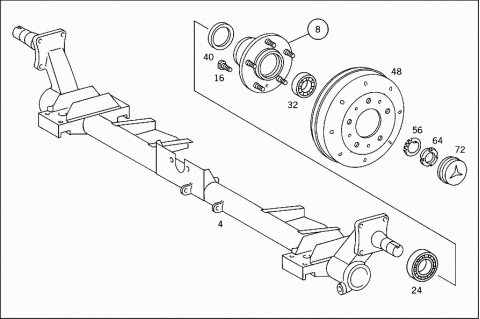

004	Q DUV350018	PART NAME MISSING
		REAR AXLE ASSEMBLY I
004	Q DUV351018	PART NAME MISSING
		REAR AXLE ASSEMBLY I
004	Q DUV350019	PART NAME MISSING
		REAR AXLE ASSEMBLY II
004	Q DUV351019	PART NAME MISSING
		REAR AXLE ASSEMBLY II
008	A 6313501735	WHEEL HUB
		PARTS KIT
016	A 6313560071	SCREW
024	A 0009808202	TAPERED ROLLER BEARING
		INSIDE
024	A 0089815905	TAPERED ROLLER BEARING
		INSIDE
032	A 0079817605	TAPERED ROLLER BEARING
		OUTSIDE
032	A 0079818605	TAPERED ROLLER BEARING
		OUTSIDE
032	A 0019816105	TAPERED ROLLER BEARING
		OUTSIDE
040	A 6319972346	SEAL RING
		WHEEL HUB
048	A 6314230001	BRAKE DRUM
056	A 6319940112	LOCK
		WHEEL HUB TO REAR AXLE TUBE
064	A 6319900560	NUT
		WHEEL HUB TO REAR AXLE TUBE
072	A 6313340020	END COVER
		AT REAR WHEEL HUB

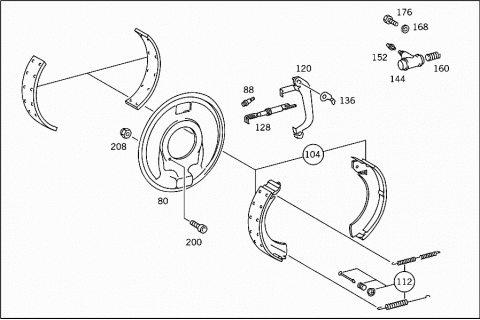

080	A 6314230405	BRAKE ANCHOR PLATE
		LEFT
080	A 6314230505	BRAKE ANCHOR PLATE
		RIGHT
088	A 6314230074	PIN
	A 6314210011	PLUG
104	A 6314230107	BRAKE SHOE
		(PARTS KIT)
112	A 6314230088	THRUST PIN
		(PARTS KIT)
120	A 6314230042	LEVER
		LEFT
120	A 6314230142	LEVER
		RIGHT
128	A 6314200040	ADJUSTING LEVER
		LEFT
128	A 6314200140	ADJUSTING LEVER
		RIGHT
136	A 6314230223	BRACKET
		LEFT
136	A 6314230323	BRACKET
		RIGHT
144	A 6314200118	WHEEL BRAKE CYLINDER
		LEFT AND RIGHT
152	A 6314230065	BLEEDER VALVE
160	A 6314230093	SPRING
168	N 912004006102	LOCK WASHER
		WHEEL CYLINDER TO BRAKE ANCHOR PLATE
176	N 000933006103	SCREW
		WHEEL CYLINDER TO BRAKE ANCHOR PLATE
	A 6314200151	REPAIR KIT
	A 6314202185	BRAKE CABLE
200	N 007984010029	SCREW
		REAR WHEEL BRAKE TO CONTROL ARM
208	N 913002010001	NUT
		REAR WHEEL BRAKE TO CONTROL ARM
