Transporto priemonė: O 100 CITY; VIN numerio dalis: 631399

Grupė: 32 SPRINGS AND SUSPENSION

#	Kodas	Pavadinimas

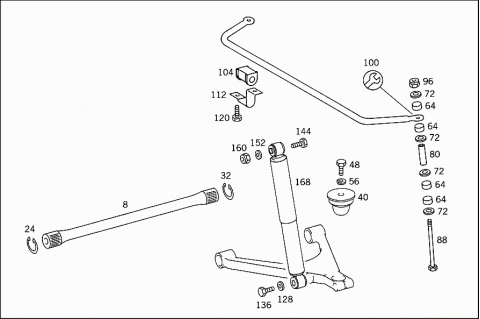

008	A 6313232265	TORSION BAR
		LEFT FRONT
008	A 6313232365	TORSION BAR
		RIGHT FRONT
024	N 900055042311	LOCK RING
		TORSION BAR,FRONT
032	N 900055037350	LOCK RING
		REAR
040	A 6313200077	RUBBER SPRING
	Repalced by: A 1153200344
040	A 1153200344	RUBBER BUFFER
		FRONT
048	N 000933010130	SCREW
		RUBBER SPRING TO FRAME
		M 10X15
056	N 912004010102	LOCK WASHER
		RUBBER SPRING TO FRAME
064	A 6313230044	RUBBER BUFFER
		TORSION BAR TO CONTROL ARM
072	A 6313230067	RETAINER
		TORSION BAR TO CONTROL ARM
080	A 6313230022	TUBE
		TORSION BAR TO CONTROL ARM
088	N 000931010224	SCREW
		TORSION BAR TO CONTROL ARM
		M 10X195
096	N 913004010011	NUT
		TORSION BAR TO CONTROL ARM
100	A 0003200111	REPAIR KIT
		TORSION BAR TO CONTROL ARM
104	A 6313230385	RUBBER MOUNTING
		TORSION BAR TO FRAME
112	A 6313230040	BRACKET
		TORSION BAR TO FRAME
120	N 000933010128	SCREW
		TORSION BAR TO FRAME
		M 10X20
128	A 6313260076	WASHER
		SHOCK ABSORBER TO LOWER CONTROL ARM
136	N 000960016140	SCREW
		SHOCK ABSORBER TO LOWER CONTROL ARM
		M 16X1.5X70
144	N 000960012184	SCREW
		SHOCK ABSORBER TO UPPER BEARING BRACKET
		M 12X1.5X85
152	A 6313300050	BUSHING
		SHOCK ABSORBER TO UPPER BEARING BRACKET
160	N 913004012008	NUT
		SHOCK ABSORBER TO UPPER BEARING BRACKET
168	Q DUV320045	PART NAME MISSING
		SHOCK ABSORBER
	Y YYYYYYYYYYYY	PART NAME MISSING
		FRONT
168	Q 82-2418	PART NAME MISSING
		FRONT LEFT AND RIGHT
		KP:DUO 323/01
168	Q 82-2418	PART NAME MISSING
		FRONT RIGHT
		KP:DUO 323/02
172	Q DUV320022	PART NAME MISSING
		AIR SPRING BELLOWS
180	Q DUV320048	PART NAME MISSING
	Repalced by: A 0109979348
180	A 0109979348	SEAL RING
		SEAL RING
180	Q DUV320049	PART NAME MISSING
		SEAL RING
188	N 000933008131	SCREW
	Repalced by: N 304017008016
188	N 304017008016	SCREW
		M 8X15
196	N 000961012107	SCREW
		M 12X1.5X50

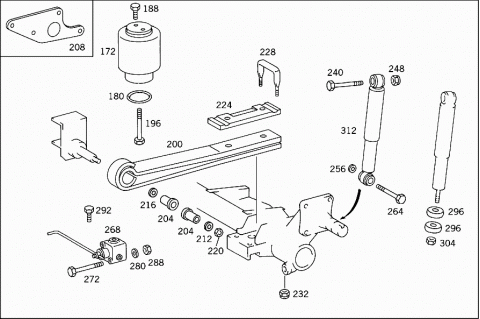

200	Q DUV320023	PART NAME MISSING
		SPRING
	Y YYYYYYYYYYYY	PART NAME MISSING
		REAR
204	Q DUV320026	PART NAME MISSING
		BUSHING
208	Q DUV320040	PART NAME MISSING
		BRACKET
	Y YYYYYYYYYYYY	PART NAME MISSING
		VACUUM PUMP
		KP:DUO 323/01/02
212	Q DUV320024	PART NAME MISSING
		WASHER
	Y YYYYYYYYYYYY	PART NAME MISSING
		REAR SPRING TO SPRING BRACKET
216	Q DUV320025	PART NAME MISSING
		WASHER
	Y YYYYYYYYYYYY	PART NAME MISSING
		REAR SPRING TO SPRING BRACKET
220	N 913002016002	NUT
		REAR SPRING TO SPRING BRACKET
224	Q DUV320027	PART NAME MISSING
		PLATE
	Y YYYYYYYYYYYY	PART NAME MISSING
		REAR SPRING TO REAR AXLE
228	Q DUV320028	PART NAME MISSING
		(SPRING SHACKLE)
	Y YYYYYYYYYYYY	PART NAME MISSING
		REAR SPRING TO REAR AXLE
232	N 913004014002	NUT
		REAR SPRING TO REAR AXLE
240	N 000960012079	SCREW
		SHOCK ABSORBER TO FRAME
		M 12X1.5X65
248	N 913004012008	NUT
		SHOCK ABSORBER TO FRAME
256	A 6313260076	WASHER
		SHOCK ABSORBER TO REAR AXLE
264	N 000960016140	SCREW
		SHOCK ABSORBER TO REAR AXLE
		M 16X1.5X70
268	Q 464-002-3300	PART NAME MISSING
		AIR SPRING VALVE
		(WABCO)
272	N 000931008248	SCREW
		M 8X60
280	N 000125008418	WASHER
288	N 000934008010	NUT
292	Q DUV320038	PART NAME MISSING
		SCREW
296	A 6679880011	BUFFER
304	N 000934008010	NUT
312	Q DUV320047	PART NAME MISSING
	Repalced by: Q 82-2407
312	Q 82-2407	PART NAME MISSING
		SHOCK ABSORBER
		(KONI)
	Y YYYYYYYYYYYY	PART NAME MISSING
		REAR
312	Q DUV320046	PART NAME MISSING
	Repalced by: Q 82-2416
312	Q 82-2416	PART NAME MISSING
		SHOCK ABSORBER
		(KONI)
	Y YYYYYYYYYYYY	PART NAME MISSING
		REAR
312	Q 82-2418	PART NAME MISSING
		SHOCK ABSORBER
	Y YYYYYYYYYYYY	PART NAME MISSING
		REAR RIGHT
		KP:DUO 323/02
