Transporto priemonė: O 100 CITY; VIN numerio dalis: 631399
Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|

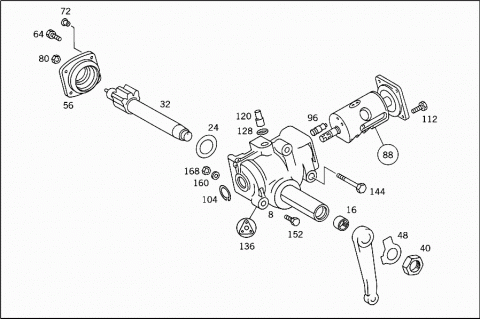

| 008 | A 6314600378 | STEERING BOX ASSEMBLY |
| 016 | A 0079810601 | CYLINDR. ROLLER BEARING |
| 024 | A 6314610052 | SPACER WASHER |
| 032 | A 6314620512 | STEERG. WORM SECTOR SHAFT |
| 040 | N 000936026000 | NUT |
| 048 | A 6319940007 | LOCK |
| 056 | A 6314610005 | COVER |
| LATERAL | ||
| 064 | A 6314610271 | SCREW |
| 072 | A 6314620085 | THRUST PIECE |
| 080 | A 6314610172 | NUT |
| 088 | A 6314620183 | PISTON |
| PARTS KIT | ||
| 096 | A 6314610082 | VALVE |
| 104 | A 0019947135 | SNAP RING |
| 112 | A 6314610371 | SCREW |
| 120 | A 6314660258 | CONNECTOR |
| 128 | A 6314610360 | SEAL RING |
| 136 | A 6314600161 | GASKET KIT |
| 144 | N 000961014149 | SCREW |
| STEERING GEAR TO STEERING BRACKET | ||
| M 14X1.5X110 | ||
| 152 | N 000961014027 | SCREW |
| STEERING GEAR TO STEERING BRACKET | ||
| M 14X1.5X30 | ||
| 160 | N 000125015013 | WASHER |
| STEERING GEAR TO STEERING BRACKET | ||
| 168 | N 000934014019 | NUT |
| STEERING GEAR TO STEERING BRACKET | ||

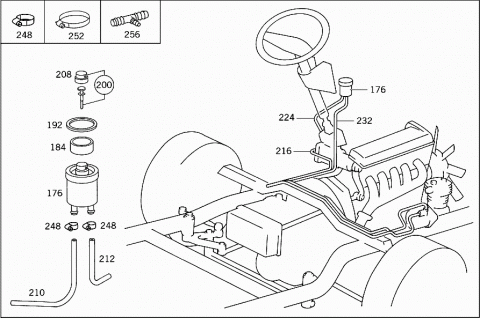

| 176 | A 3094601083 | OIL TANK |
| 184 | A 0002360055 | FILTER |
| 192 | A 0004611860 | SEAL RING |
| 200 | A 0004660567 | OIL DIPSTICK |
| 208 | A 1233270059 | PROTECTIVE CAP |
| 210 | A 6319973782 | HOSE |
| FROM STEERING GEAR TO OIL TANK | ||
| 212 | A 6319973682 | HOSE |
| FROM OIL TANK TO HOSE | ||
| 216 | Q DUV460039 | PART NAME MISSING |
| HOSE LINE | ||
| 216 | Q DUV461039 | PART NAME MISSING |
| HOSE LINE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FROM PUMP TO STEERING | ||
| 216 | Q DUV461039 | PART NAME MISSING |
| HOSE LINE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FROM PUMP TO STEERING | ||
| 224 | Q DUV460040 | PART NAME MISSING |
| HOSE LINE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FROM STEERING TO OIL TANK | ||
| 224 | Q DUV461040 | PART NAME MISSING |
| HOSE LINE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FROM STEERING TO OIL TANK | ||
| 232 | Q DUV460041 | PART NAME MISSING |
| HOSE LINE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FROM OIL TANK TO PUMP | ||
| 248 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 248 | N 000000000666 | CLAMP |
| POWER STEERING MOUNTING PARTS | ||
| 16-24 MM | ||
| 248 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 248 | N 000000000667 | CLAMP |
| POWER STEERING MOUNTING PARTS | ||
| 20-32 MM | ||
| 252 | N 916017090000 | CLAMP |
| POWER STEERING MOUNTING PARTS | ||
| 90-110 MM | ||
| 256 | A 6318050022 | DISTRIBUTOR |

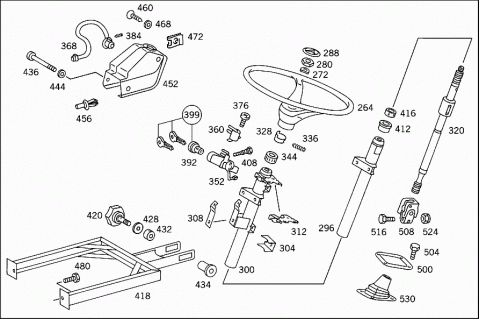

| 264 | A 6314600303 | STEERING WHEEL |
| Repalced by: A 6314600403 | ||
| 264 | A 6314600403 | STEERING WHEEL |
| 272 | N 000137018204 | SPRING WASHER |
| STEERING WHEEL TO STEERING COLUMN | ||
| 280 | N 000439018200 | NUT |
| STEERING WHEEL TO STEERING COLUMN | ||
| 288 | A 0004640432 | BADGE |
| 296 | A 6314600716 | STEER. COLUMN JACKET TUBE |
| 300 | Q DUV460030 | PART NAME MISSING |
| BRACKET | ||
| 304 | Q DUV460024 | PART NAME MISSING |
| STAY | ||
| 308 | Q DUV460023 | PART NAME MISSING |
| STAY | ||
| 312 | A 3574620039 | BRACKET |
| 320 | A 6314601708 | STEERING WORM |
| 328 | A 6314620251 | RING |
| STEERING COLUMN BEARING | ||
| 336 | N 000417006001 | HEADLESS SETSCREW |
| STEERING COLUMN BEARING | ||
| 344 | A 0149812810 | NEEDLE BEARING |
| 352 | A 6314600104 | STEERING LOCK |
| 360 | A 0004600284 | VALVE |
| 368 | A 6315450013 | SWITCH BOX |
| 376 | A 0019901120 | SCREW |
| VALVE TO STEERING LOCK | ||
| 384 | A 0009903577 | SCREW |
| SWITCH BOX TO STEERING LOCK | ||
| 392 | A 6314600304 | TUMBLER |
| LESS KEY | ||
| 399 | A 6314600404 | TUMBLER |
| WITH 2 KEYS | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FOR KEY,SEE GROUP 72 | ||
| 408 | A 0004622371 | SCREW |
| (BREAK-OFF BOLT),STEERING LOCK MOUNTING | ||
| 412 | Q DUV460018 | PART NAME MISSING |
| BUSHING | ||
| 416 | Q DUV460019 | PART NAME MISSING |
| SET COLLAR | ||
| 418 | Q DUV460051 | PART NAME MISSING |
| BUEGEL (VERSTELLBARE LENKSAEULE) | ||
| 418 | Q DUV461051 | PART NAME MISSING |
| BUEGEL (VERSTELLBARE LENKSAEULE) | ||
| 420 | A 6554600469 | HANDLE |
| ADJUSTABLE STEERING COLUMN | ||
| 428 | N 002093020102 | DISC SPRING |
| ADJUSTABLE STEERING COLUMN | ||
| 432 | Q DUV460016 | PART NAME MISSING |
| BUECHSE (VERSTELLBARE LENKSAEULE) | ||
| 434 | Q DUV460015 | PART NAME MISSING |
| MUTTER (VERSTELLBARE LENKSAEULE) | ||
| 436 | N 000912004034 | SCREW |
| SHELL TO STEERING COLUMN | ||
| 444 | N 009021004202 | WASHER |
| SHELL TO STEERING COLUMN | ||
| 452 | Q DUV460020 | PART NAME MISSING |
| STEERING COLUMN PANELLING | ||
| 456 | A 0009903492 | EXPANSION RIVET |
| STEERING COLUMN PANELLING | ||
| 460 | N 007982004312 | SHEET METAL SCREW |
| SHELL TO STEERING COLUMN | ||
| 468 | N 000125004311 | WASHER |
| SHELL TO STEERING COLUMN | ||
| 472 | A 0029949245 | LOCK |
| 472 | A 0029945045 | LOCK |
| 480 | N 000933010089 | SCREW |
| 500 | Q DUV460028 | PART NAME MISSING |
| PLATE | ||
| 504 | N 000933006089 | SCREW |
| 508 | A 3094600257 | UNIVERSAL JOINT |
| Repalced by: A 6114600057 | ||
| 508 | A 6114600057 | UNIVERSAL JOINT |
| 516 | A 6319900114 | SCREW |
| STEERING SHAFT TO STEERING | ||
| 524 | N 913004008005 | NUT |
| STEERING SHAFT TO STEERING | ||
| 530 | Q DUV460027 | PART NAME MISSING |
| BOOT | ||

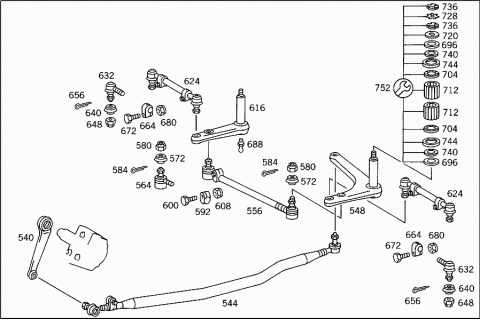

| 540 | A 6314631101 | PITMAN ARM |
| 544 | Q DUV460012 | PART NAME MISSING |
| STEERING LINKAGE | ||
| 548 | A 6313301649 | LEVER |
| (REVERSING LEVER) | ||
| 556 | Q DUV460013 | PART NAME MISSING |
| Repalced by: Q KH357461F005 | ||
| 556 | Q KH357461F005 | PART NAME MISSING |
| TIE ROD | ||
| 556 | Q DUV461014 | PART NAME MISSING |
| Repalced by: Q KH357461F006 | ||
| 556 | Q KH357461F006 | PART NAME MISSING |
| TIE ROD | ||
| 1200 MM | ||
| 564 | A 6313300535 | JOINT |
| 572 | A 6313380397 | BOOT |
| 580 | N 000979018001 | NUT |
| 584 | N 000094004065 | COTTER PIN |
| 4X36 MM | ||
| 592 | A 0009953644 | CLAMP |
| 600 | N 000960010008 | SCREW |
| M 10X1X45 | ||
| 608 | N 913004010003 | NUT |
| 616 | A 6313301549 | LEVER |
| INTERMEDIATE LEVER | ||
| 624 | A 6313300703 | TIE ROD |
| 632 | A 6313300435 | JOINT |
| LEFT | ||
| 632 | A 0013304835 | JOINT |
| RIGHT | ||
| 640 | A 6313380297 | BOOT |
| 648 | N 000979016005 | NUT |
| 656 | N 000094004055 | COTTER PIN |
| 4X28 MM | ||
| 664 | A 6313380145 | CLAMP |
| 664 | A 0003380563 | CLAMP |
| 672 | N 000960010026 | SCREW |
| 680 | N 913004010003 | NUT |
| 688 | N 071412008100 | GREASE NIPPLE |
| 696 | A 0009908540 | WASHER |
| REVERSING LEVER TO BRACKET | ||
| 696 | A 0009908540 | WASHER |
| INTERMEDIATE LEVER TO BRACKET | ||
| 704 | A 6319810710 | NEEDLE BEARING |
| REVERSING LEVER TO BRACKET | ||
| 704 | A 6319810710 | NEEDLE BEARING |
| INTERMEDIATE LEVER TO BRACKET | ||
| 712 | A 6319800110 | NEEDLE BEARING |
| REVERSING LEVER TO BRACKET | ||
| 712 | A 6319800110 | NEEDLE BEARING |
| INTERMEDIATE LEVER TO BRACKET | ||
| 720 | A 6313380276 | WASHER |
| REVERSING LEVER TO BRACKET | ||
| 720 | A 6313380276 | WASHER |
| INTERMEDIATE LEVER TO BRACKET | ||
| 728 | A 6319940012 | LOCK |
| REVERSING LEVER TO BRACKET | ||
| 728 | A 6319940012 | LOCK |
| INTERMEDIATE LEVER TO BRACKET | ||
| 736 | A 1869900060 | NUT |
| REVERSING LEVER TO BRACKET | ||
| 736 | A 1869900060 | NUT |
| INTERMEDIATE LEVER TO BRACKET | ||
| 740 | A 6319900540 | WASHER |
| REVERSING LEVER TO BRACKET | ||
| 740 | A 6319900540 | WASHER |
| INTERMEDIATE LEVER TO BRACKET | ||
| 744 | A 6319970041 | SEAL RING |
| REVERSING LEVER TO BRACKET | ||
| 744 | A 6319970041 | SEAL RING |
| INTERMEDIATE LEVER TO BRACKET | ||
| 752 | A 6313301449 | REPAIR KIT |
| REVERSING LEVER TO BRACKET | ||
| 752 | A 6313301449 | REPAIR KIT |
| INTERMEDIATE LEVER TO BRACKET | ||
