Transporto priemonė: O 170; VIN numerio dalis: 341252
Grupė: 25 CLUTCH
17242
17243
17244
17245
# Kodas Pavadinimas

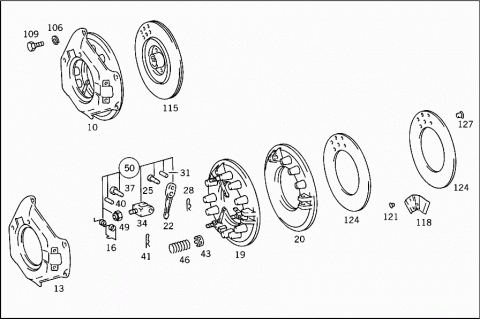

010 A 0002505104 CLUTCH PRESSURE PLATE
Repalced by: A 0032501104
010 A 0032501104 CLUTCH PRESSURE PLATE
013 A 0002521232 HOUSING
016 A 0002520527 SPRING
019 A 0002505504 CLUTCH PRESSURE PLATE
IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.:
003 250 50 04
020 A 0002521406 CLUTCH PRESSURE PLATE
TO 000 250 51 04
020 A 0002525312 PRESSURE PLATE
WITH 8.00-MM BEARING BORE FOR RELEASE LEVER AND 19-NEEDLE BEARING
TO 003 250 11 04
020 A 0002526012 PRESSURE PLATE
WITH 8.10-MM BEARING BORE FOR RELEASE LEVER AND 20-NEEDLE BEARING
TO 003 250 11 04
022 A 0002522013 RELEASE LEVER
TO 000 250 51 04
022 A 0002525713 RELEASE LEVER
WITH 11.00-MM BORE AND 19-NEEDLE BEARING
TO 003 250 11 04
022 A 0002526413 RELEASE LEVER
WITH 11.10-MM BORE AND 20-NEEDLE BEARING
TO 003 250 11 04
025 A 0002520016 SPINDLE
FOR RELEASE LEVERS
8.00 MM
025 A 0002523516 SPINDLE
FOR RELEASE LEVERS
8.10 MM
028 N 000094002052 COTTER PIN
031 A 0002520018 ROLLER
034 A 0002521014 BRACKET
TO 000 250 51 04
034 A 0002522414 BRACKET
WITH 8.00-MM BEARING BORE FOR RELEASE LEVER AND 19-NEEDLE BEARING
TO 003 250 11 04
034 A 0002522914 BRACKET
WITH 8.10-MM BEARING BORE FOR RELEASE LEVER AND 20-NEEDLE BEARING
TO 003 250 11 04
037 A 0002520516 SPINDLE
FOR BRACKETS
8.00 MM
037 A 0002523616 SPINDLE
FOR BRACKETS
8.10 MM
040 A 0002520018 ROLLER
041 N 000094002052 COTTER PIN
043 A 0002520024 INSULATING WASHER
046 A 0002523220 PRESSURE SPRING
049 A 0002521171 NUT
050 A 3415867025 REPAIR KIT

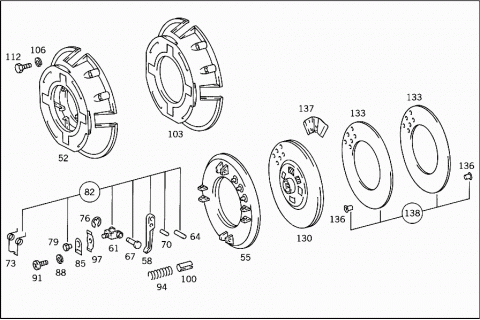

052 A 0012500304 CLUTCH PRESSURE PLATE
Repalced by: A 0022509404
052 A 0022509404 CLUTCH PRESSURE PLATE
Repalced by: A 0022509504
052 A 0022509504 CLUTCH PRESSURE PLATE
052 A 0022509604 CLUTCH PRESSURE PLATE
052 A 0022509504 CLUTCH PRESSURE PLATE
052 A 0022509704 CLUTCH PRESSURE PLATE
A 3512507204 CLUTCH PRESSURE PLATE
A 0002522512 PRESSURE PLATE
TO 001 250 03 04
055 A 0002524312 PRESSURE PLATE
Repalced by: A 0002527112
055 A 0002527112 PRESSURE PLATE
TO 002 250 94 04,002 250 95 04
Y YYYYYYYYYYYY PART NAME MISSING
TO 002 250 97 04,96 04
055 A 0002528112 PRESSURE PLATE
TO 351 250 72 04
058 A 0002523713 RELEASE LEVER
TO 000 252 43 12
058 A 0002527113 RELEASE LEVER
TO 000 252 71 12
058 A 0002527313 RELEASE LEVER
TO 351 250 72 04
061 A 0002522314 BRACKET
TO 000 252 43 12
061 A 0002523214 BRACKET
TO 000 252 71 12
061 A 0002523614 BRACKET
TO 351 250 72 04
064 A 0002521616 SPINDLE
TO 000 252 43 12
064 A 0002524016 SPINDLE
TO 000 252 71 12
064 A 0002524316 SPINDLE
TO 351 250 72 04
067 A 0002521716 SPINDLE
TO 000 252 43 12
067 A 0002524116 SPINDLE
TO 000 252 71 12
067 A 0002524416 SPINDLE
TO 351 250 72 04
070 A 0002520318 ROLLER
Y YYYYYYYYYYYY PART NAME MISSING
TO 002 250 94 04,95 04,96 04,97 04
070 A 0002520818 ROLLER
TO 351 250 72 04
073 A 0002520827 SPRING
TO 000 252 43 12
073 A 0002524427 SPRING
TO 000 252 71 12
073 A 0002524627 SPRING
TO 351 250 72 04
076 N 006799007007 LOCK PLATE
076 A 0079940241 LOCK
TO 351 250 72 04
079 A 0002522472 NUT
Repalced by: A 0002523372
079 A 0002523372 NUT
TO 002 250 94 04,002 250 95 04
Y YYYYYYYYYYYY PART NAME MISSING
TO 002 250 97 04,002 250 96 04
079 A 0002522772 NUT
TO 001 250 03 04
079 A 0002524072 NUT
TO 351 250 72 04
082 A 3515867025 REPAIR KIT
TO 002 250 94 04,002 250 95 04
085 A 0002520473 LOCK
Repalced by: A 0002521173
085 A 0002521173 LOCK
Y YYYYYYYYYYYY PART NAME MISSING
TO 002 250 94 04,95 04,96 04,97 04
085 A 0002521673 LOCK
TO 351 250 72 04
088 N 912004005100 LOCK WASHER
Y YYYYYYYYYYYY PART NAME MISSING
TO 002 250 94 04,95 04,96 04
088 A 0009906047 LOCK WASHER
TO 351 250 72 04
091 N 000085005106 SCREW
091 A 0002522971 SCREW
TO 002 250 94 04,95 04,96 04,97 04
091 A 0002520015 SCREW
TO 351 250 72 04
094 A 0002525020 PRESSURE SPRING
Y YYYYYYYYYYYY PART NAME MISSING
TO 002 250 94 04,95 04,96 04
094 A 0002525120 PRESSURE SPRING
TO 002 250 95 04
094 A 0002526420 PRESSURE SPRING
TO 002 250 97 04
094 A 0002529220 PRESSURE SPRING
TO 351 250 72 04
097 A 0002520619 LEAF SPRING
TO 000 252 43 12
097 A 0002524319 LEAF SPRING
TO 000 252 71 12
097 A 0002525619 LEAF SPRING
TO 351 250 72 04
100 A 0002520253 SPACER TUBE
100 A 0002520350 BUSHING
TO 351 250 72 04
103 A 0002524332 HOUSING
TO 002 250 94 04,002 250 95 04
103 A 0002524432 HOUSING
TO 002 250 97 04,002 250 96 04
103 A 0002522332 HOUSING
TO 001 250 03 04
106 N 912004008104 LOCK WASHER
CLUTCH TO FLYWHEEL
106 N 912004008104 LOCK WASHER
CLUTCH TO FLYWHEEL
109 A 3122521071 SCREW
CLUTCH TO FLYWHEEL
112 A 3452520071 SCREW
Repalced by: A 3412527071
112 A 3412527071 SCREW
CLUTCH TO FLYWHEEL
112 N 000931008045 SCREW
CLUTCH TO FLYWHEEL
115 A 0012504003 CLUTCH DISC
Repalced by: A 0012504103
115 A 0012504103 CLUTCH DISC
118 A 0002520219 LEAF SPRING
121 A 0002520175 RIVET
Repalced by: A 0412520075
121 A 0412520075 RIVET
124 A 0002523910 CLUTCH LINING
127 A 0002521275 RIVET
130 A 0022503403 CLUTCH DISC
130 A 0012506003 CLUTCH DISC
Repalced by: A 0032508303
130 A 0032508303 CLUTCH DISC
130 A 3442507103 CLUTCH DISC
Repalced by: A 3442500003
130 A 3442500003 CLUTCH DISC
Repalced by: A 3452507503
130 A 3452507503 CLUTCH DISC
Repalced by: A 0072502503
130 A 0072502503 CLUTCH DISC
133 A 3452527010 CLUTCH LINING
Repalced by: A 0002529010
133 A 0002525210 CLUTCH LINING
Repalced by: A 3452527010
133 A 0002529010 CLUTCH LINING
136 A 0002520375 RIVET
Repalced by: A 0002521275
136 A 0002521275 RIVET
TO 002 250 34 03,001 250 60 03
136 A 0002522075 RIVET
TO 001 250 60 03
136 A 0002522175 RIVET
TO 003 250 83 03
136 A 0002522575 RIVET
TO 003 250 83 03
137 A 0002522019 LEAF SPRING
TO 001 250 60 03
138 A 3455867025 REPAIR KIT
TO 345 250 75 03
A 3412500105 HOUSING
Repalced by: A 3212500605
H 993412500205 HOUSING

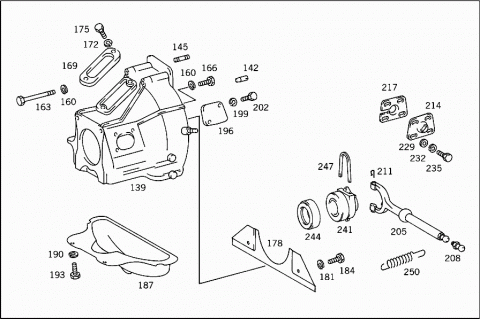

139 A 3212500605 HOUSING
Repalced by: A 3522510201

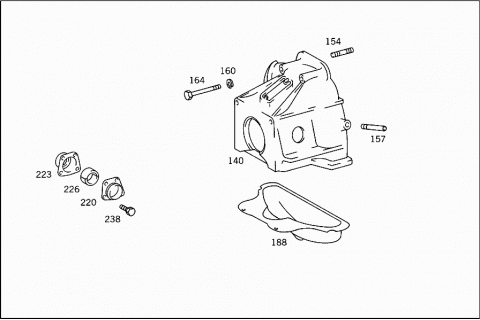

140 A 3522510201 BELL HOUSING
140 A 3452510401 BELL HOUSING
142 A 3122511127 POINTER
FLYWHEEL TIMING
145 N 000939010027 STUD BOLT
STARTING MOTOR TO BELL HOUSING
145 N 000939010116 STUD BOLT
STARTING MOTOR TO BELL HOUSING
145 A 0009904805 STUD
STARTING MOTOR TO BELL HOUSING
T YYYYYYYYYYYY PART NAME MISSING
SEE FIG. NO.:
140
154 N 000939010079 STUD BOLT
STARTING MOTOR TO BELL HOUSING
154 A 0009902605 STUD
Repalced by: A 6709900005
154 A 6709900005 STUD
STARTING MOTOR TO BELL HOUSING
157 A 3142540074 PIN
RELEASE SPRING
160 N 000127012203 LOCK WASHER
BELL HOUSING TO ENGINE
163 N 000931012073 SCREW
BELL HOUSING TO ENGINE
164 N 000931012277 SCREW
BELL HOUSING TO ENGINE
166 N 900170012005 SCREW
BELL HOUSING TO ENGINE
A 3122511004 END COVER
Repalced by: A 3602510004
169 A 3602510004 END COVER
172 N 000127006206 LOCK WASHER
BELL HOUSING COVER
175 N 000933006015 SCREW
BELL HOUSING COVER
178 A 3122511006 PROTECTIVE PLATE
Repalced by: A 3522510106
178 A 3522510106 PROTECTIVE PLATE
181 N 000137006102 SPRING WASHER
PROTECTIVE PLATE TO BELL HOUSING
184 N 000933006010 SCREW
PROTECTIVE PLATE TO BELL HOUSING
A 0122510002 BELL HOUSING
Repalced by: A 3122511002
187 A 3122511002 BELL HOUSING
188 A 3522510102 BELL HOUSING
188 A 3522510102 BELL HOUSING
A 3812510102 BELL HOUSING
A 3812510102 BELL HOUSING
188 A 3522510002 BELL HOUSING
190 N 000137006102 SPRING WASHER
BELL HOUSING
193 N 000933006010 SCREW
BELL HOUSING
196 A 3522510004 END COVER
199 N 912004008104 LOCK WASHER
COVER TO BELL HOUSING
202 N 000933008014 SCREW
COVER TO BELL HOUSING
205 A 3412900029 RELEASE YOKE
Repalced by: A 3412500013
205 A 3412500013 RELEASE LEVER
A 3412507215 RELEASE BEARING
208 A 3179910515 BALL PIVOT
Repalced by: A 3029910015
208 A 3029910015 BALL PIVOT
RELEASE YOKE
208 A 3419917015 BALL PIVOT
RELEASE YOKE
211 A 3122541013 SPRING LOCK
Repalced by: A 3402540013
211 A 3402540013 SPRING LOCK
RELEASE YOKE TO RELEASE BEARING
A 3142540197 BOOT
214 A 3122901231 BEARING
Repalced by: A 3522900131
214 A 3522900131 BEARING
RELEASE YOKE
217 A 3122931412 BRACKET
Repalced by: A 3522930112
217 A 3522930112 BRACKET
RELEASE YOKE
220 A 3522500243 BRACKET
Repalced by: A 3412500043
220 A 3412500043 BRACKET
OUTSIDE
223 A 3522540040 BRACKET
INSIDE
226 A 3522540135 BEARING
229 N 000125008413 WASHER
BEARING TO BELL HOUSING
232 N 912004008104 LOCK WASHER
BEARING TO BELL HOUSING
235 N 000933008048 SCREW
BEARING TO BELL HOUSING
238 N 000933008036 SCREW
A 3122501315 RELEASE BEARING
Repalced by: A 3222500215
A 3222500215 RELEASE BEARING
Repalced by: A 3522500515
A 3522500515 RELEASE BEARING
241 A 3122541110 RELEASE COLLAR
TO A 322 250 02 15
241 A 3522540110 RELEASE COLLAR
TO A 352 250 05 15
244 A 3122501016 FLANGED BEARING
Repalced by: A 0002540020
244 A 0002540020 RELEASE BEARING
244 A 0002540120 RELEASE BEARING
244 A 3452547020 RELEASE BEARING
247 A 3129870110 STRIP
250 A 3219930010 SPRING
BETWEEN RELEASE YOKE AND BELL HOUSING
250 A 3419937210 SPRING
BETWEEN RELEASE YOKE AND BELL HOUSING
