Transporto priemonė: O 170; VIN numerio dalis: 341252

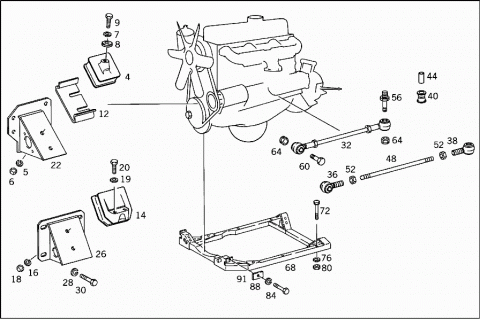

Grupė: 24 ENGINE SUSPENSION - 001 RUBBER MOUNTING TO ENGINE SUPPORT
| # | Kodas | Pavadinimas |
|---|---|---|
| A 3212200217 | RUBBER MOUNTING | |
| Repalced by: A 3522400217 | ||
| A 3522400417 | RUBBER MOUNTING | |
| Repalced by: A 3522400217 | ||
| 004 | A 3522400217 | RUBBER MOUNTING |
| 005 | N 000127012201 | LOCK WASHER |
| RUBBER MOUNTING TO SUPPORT | ||
| 006 | N 000934012022 | NUT |
| RUBBER MOUNTING TO SUPPORT | ||
| 007 | N 000127014201 | LOCK WASHER |
| PROTECTIVE PLATE TO CONSOLE | ||
| 008 | A 3529901040 | WASHER |
| PROTECTIVE PLATE TO CONSOLE | ||
| 009 | N 000960014215 | SCREW |
| PROTECTIVE PLATE TO CONSOLE | ||
| A 0412400145 | PROTECTIVE PLATE | |
| Repalced by: A 3522420509 | ||
| 012 | A 3522420509 | ENGINE STAY |
| 014 | A 3522400318 | RUBBER MOUNTING |
| CLUTCH END | ||
| A 3452400018 | RUBBER MOUNTING | |
| CLUTCH END | ||
| 016 | N 000127012201 | LOCK WASHER |
| CONSOLE TO RUBBER MOUNTING | ||
| 018 | N 000934012022 | NUT |
| CONSOLE TO RUBBER MOUNTING | ||
| 019 | N 000127014201 | LOCK WASHER |
| ENGINE TO RUBBER MOUNTING, CLUTCH END | ||
| 020 | N 000961014063 | SCREW |
| ENGINE TO RUBBER MOUNTING, CLUTCH END | ||
| 020 | N 000961014131 | SCREW |
| ENGINE TO RUBBER MOUNTING, CLUTCH END | ||
| A 3459907340 | WASHER | |
| ENGINE TO RUBBER MOUNTING, CLUTCH END | ||
| A 3529940032 | LOCK | |
| 022 | A 3442400006 | CONSOLE |
| FAN END,LEFT | ||
| A 3442400106 | CONSOLE | |
| FAN END,RIGHT | ||
| 026 | A 3442400206 | CONSOLE |
| CLUTCH END | ||
| 028 | N 000127012201 | LOCK WASHER |
| CONSOLE TO BODY | ||
| 030 | N 000961012151 | SCREW |
| CONSOLE TO BODY | ||
| 032 | A 3212400125 | ROD |
| Repalced by: A 3442407025 | ||
| 032 | A 3442407025 | ROD |
| ENGINE ALONGSIDE FIXING | ||
| 036 | A 0009960040 | ROD END |
| ENGINE ALONGSIDE FIXING | ||
| TO 321 240 01 25 | ||
| 036 | A 3442407021 | ROD END |
| ENGINE ALONGSIDE FIXING | ||
| TO 344 240 70 25 | ||
| 038 | A 3442407121 | ROD END |
| ENGINE ALONGSIDE FIXING | ||
| TO 344 240 70 25 | ||
| 040 | A 0002420050 | BUSHING |
| ENGINE ALONGSIDE FIXING | ||
| TO 321 240 01 25 | ||
| 044 | A 0002420150 | BUSHING |
| ENGINE ALONGSIDE FIXING | ||
| TO 321 240 01 25 | ||
| 048 | A 3212420037 | ROD |
| ENGINE ALONGSIDE FIXING | ||
| TO 321 240 01 25 | ||
| 052 | N 000936020000 | NUT |
| ENGINE ALONGSIDE FIXING | ||
| TO 321 240 01 25 | ||
| 056 | A 3212420120 | PIVOT PIN |
| Repalced by: A 3452427020 | ||
| 056 | A 3452427020 | PIVOT PIN |
| ENGINE ALONGSIDE FIXING | ||
| 060 | A 3212420070 | STUD |
| ENGINE ALONGSIDE FIXING | ||
| 064 | N 000937020001 | NUT |
| ENGINE ALONGSIDE FIXING | ||
| N 000979020001 | NUT | |
| ENGINE ALONGSIDE FIXING | ||
| N 000094004065 | COTTER PIN | |
| A 3212200708 | PART NAME MISSING | |
| Repalced by: A 0412200008 | ||
| 068 | A 0412200008 | ENGINE SUPPORT |
| 072 | N 000960012082 | SCREW |
| ENGINE SUPPORT TO SIDE MEMBERS | ||
| 076 | N 000127012203 | LOCK WASHER |
| ENGINE SUPPORT TO SIDE MEMBERS | ||
| 080 | N 000934012004 | NUT |
| ENGINE SUPPORT TO SIDE MEMBERS | ||
| 084 | N 000960014043 | SCREW |
| ENGINE SUPPORT TO SIDE MEMBERS | ||
| 088 | N 000127014203 | LOCK WASHER |
| ENGINE SUPPORT TO SIDE MEMBERS | ||
| 091 | A 3212230026 | INTERMEDIATE PIECE |
| ENGINE SUPPORT TO SIDE MEMBERS | ||
| A 3212230126 | INTERMEDIATE PIECE | |
| ENGINE SUPPORT TO SIDE MEMBERS | ||
| A 3212230226 | INTERMEDIATE PIECE | |
| ENGINE SUPPORT TO SIDE MEMBERS | ||
