Transporto priemonė: O 170; VIN numerio dalis: 341252

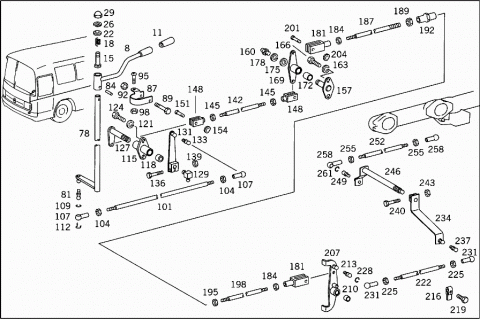

Grupė: 43 EXHAUST BRAKE
| # | Kodas | Pavadinimas |
|---|---|---|
| 008 | A 3214300452 | LEVER |
| 011 | A 1862680040 | KNOB |
| 015 | A 3124341133 | SET SCREW |
| EXHAUST BRAKE LEVER | ||
| 018 | A 3129935201 | SPRING |
| EXHAUST BRAKE LEVER | ||
| 022 | A 3129903740 | WASHER |
| EXHAUST BRAKE LEVER | ||
| 026 | N 000472016000 | LOCK RING |
| EXHAUST BRAKE LEVER | ||
| 029 | N 001587008001 | CAP NUT |
| EXHAUST BRAKE LEVER | ||
| 078 | A 3214301421 | GUIDE TUBE |
| 081 | N 071803010206 | BALL PIVOT |
| Repalced by: N 071803010209 | ||
| 081 | N 071803010209 | BALL PIVOT |
| 084 | N 001481006023 | CLAMPING SLEEVE |
| LEVER TO GUIDE TUBE | ||
| 087 | A 3214340043 | CLAMP |
| 089 | N 000931006055 | SCREW |
| EXHAUST BRAKE CLAMP | ||
| 092 | N 000934006007 | NUT |
| EXHAUST BRAKE CLAMP | ||
| 095 | A 3129900021 | SCREW |
| EXHAUST BRAKE CLAMP | ||
| 098 | N 000934008000 | NUT |
| EXHAUST BRAKE CLAMP | ||
| 101 | N 900331006006 | PULL ROD |
| 104 | N 000934006007 | NUT |
| A 0414300096 | PROTECTIVE CAP | |
| Repalced by: N 071805010202 | ||
| A 0219960196 | PART NAME MISSING | |
| Repalced by: N 071805010202 | ||
| 107 | N 071805010202 | BALL SOCKET |
| 109 | N 071805010300 | SNAP RING |
| 112 | N 071805010403 | SECURING CLIP |
| 115 | A 3214300138 | BEARING |
| INTERMEDIATE LEVER | ||
| 118 | A 3213010150 | BUSHING |
| 121 | N 912004008104 | LOCK WASHER |
| BEARING TO SUBSTRUCTURE | ||
| 124 | N 000933008036 | SCREW |
| BEARING TO SUBSTRUCTURE | ||
| 127 | A 3214300724 | LEVER |
| FRONT | ||
| 129 | N 071412008300 | GREASE NIPPLE |
| INTERMEDIATE LEVER | ||
| 131 | A 3214300624 | LEVER |
| FRONT | ||
| 133 | N 071803010206 | BALL PIVOT |
| Repalced by: N 071803010209 | ||
| 133 | N 071803010209 | BALL PIVOT |
| 136 | N 000931006027 | SCREW |
| LOVER TO INTERMEDIATE LEVER SHAFT | ||
| 139 | N 000934006007 | NUT |
| LOVER TO INTERMEDIATE LEVER SHAFT | ||
| 142 | A 3214340322 | ROD |
| 145 | N 000934006007 | NUT |
| YOKE TO PULL ROD | ||
| A 0419960001 | YOKE | |
| Repalced by: N 071752006001 | ||
| 148 | N 071752006001 | YOKE |
| A 0419910005 | PIN | |
| Repalced by: A 3219910005 | ||
| 151 | A 3219910005 | PIN |
| PULL ROD TO INTERMEDIATE LEVER | ||
| 154 | N 900055006002 | SPRING WASHER |
| PULL ROD TO INTERMEDIATE LEVER | ||
| N 000094001605 | COTTER PIN | |
| PULL ROD TO INTERMEDIATE LEVER | ||
| 157 | A 3214300082 | PIN |
| 160 | N 071412010100 | GREASE NIPPLE |
| INTERMEDIATE LEVER | ||
| 163 | N 912004008104 | LOCK WASHER |
| BEARING TO SUBSTRUCTURE | ||
| 166 | N 000933008036 | SCREW |
| BEARING TO SUBSTRUCTURE | ||
| 169 | A 3214300524 | LEVER |
| CENTRAL | ||
| 172 | A 3213010150 | BUSHING |
| 175 | A 3129901340 | WASHER |
| INTERMEDIATE LEVER TO PIVOT BEARING | ||
| 178 | N 000471014000 | LOCK RING |
| INTERMEDIATE LEVER TO PIVOT BEARING | ||
| A 0419960001 | YOKE | |
| Repalced by: N 071752006001 | ||
| 181 | N 071752006001 | YOKE |
| 184 | N 000934006007 | NUT |
| YOKE TO PULL ROD | ||
| 187 | A 3214340522 | ROD |
| FRONT | ||
| A 3214340122 | ROD | |
| 189 | N 000934008000 | NUT |
| 192 | A 1362930033 | NUT |
| 195 | N 000934008004 | NUT |
| L.H. THREAD | ||
| 198 | A 3214340222 | ROD |
| A 0419910005 | PIN | |
| Repalced by: A 3219910005 | ||
| 201 | A 3219910005 | PIN |
| PULL ROD TO INTERMEDIATE LEVER | ||
| 204 | N 900055006002 | SPRING WASHER |
| PULL ROD TO INTERMEDIATE LEVER | ||
| N 000094001605 | COTTER PIN | |
| PULL ROD TO INTERMEDIATE LEVER | ||
| 207 | A 3214300135 | LEVER |
| 210 | A 3213010150 | BUSHING |
| 213 | N 071803010206 | BALL PIVOT |
| Repalced by: N 071803010209 | ||
| 213 | N 071803010209 | BALL PIVOT |
| 216 | A 3214340032 | CLAMPING PIECE |
| 219 | N 000933006024 | SCREW |
| CLAMPING PIECE TO FOLLOWER LEVER | ||
| 222 | N 900331006031 | PULL ROD |
| 225 | N 000934006007 | NUT |
| 228 | N 071805010302 | SNAP RING |
| 231 | N 071805010102 | BALL SOCKET |
| 234 | A 3211400232 | LEVER |
| 237 | N 071803010206 | BALL PIVOT |
| Repalced by: N 071803010209 | ||
| 237 | N 071803010209 | BALL PIVOT |
| 240 | N 000931006027 | SCREW |
| LEVER TO INTERMEDIATE SHAFT | ||
| 243 | N 000934006007 | NUT |
| LEVER TO INTERMEDIATE SHAFT | ||
| 246 | A 3211400166 | INTERMEDIATE SHAFT |
| 249 | N 071803010206 | BALL PIVOT |
| Repalced by: N 071803010209 | ||
| 249 | N 071803010209 | BALL PIVOT |
| 252 | N 900331006028 | PULL ROD |
| 255 | N 000934006007 | NUT |
| 258 | A 0414300096 | PROTECTIVE CAP |
| 261 | N 071805010302 | SNAP RING |

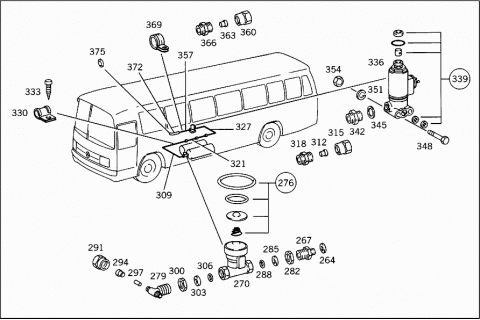

| 264 | N 007603022100 | SEAL RING |
| AT AIR RESERVOIR | ||
| 267 | N 074299022302 | DOUBLE FITTING |
| AT AIR RESERVOIR | ||
| 270 | A 0014299844 | VALVE |
| A 0014295244 | VALVE | |
| A 0014297944 | VALVE | |
| A 0004296344 | VALVE | |
| A 0024298844 | VALVE | |
| TO 001 429 79 44 | ||
| A 0004290645 | DIAPHRAGM | |
| Repalced by: A 0004290745 | ||
| A 0004290745 | DIAPHRAGM | |
| TO 001 429 79 44 | ||
| A 0004310328 | DIAPHRAGM | |
| TO 000 429 63 44 | ||
| A 0004290088 | VALVE SEAT RING | |
| TO 000 429 63 44 | ||
| A 0019932301 | SPRING | |
| TO 000 429 63 44 | ||
| A 0004290389 | SPRING RETAINER | |
| TO 000 429 63 44 | ||
| 276 | A 0015862642 | REPAIR KIT |
| TO 001 429 98 44 | ||
| A 0015862042 | REPAIR KIT | |
| TO 001 429 52 44 | ||
| A 0005863642 | REPAIR KIT | |
| TO 000 429 63 44 | ||
| 279 | A 3609900070 | T-FITTING |
| AT OVERFLOW VALVE | ||
| 282 | N 074305022202 | NUT |
| AT OVERFLOW VALVE | ||
| 285 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 285 | A 0009940203 | THRUST RING |
| AT OVERFLOW VALVE | ||
| 288 | A 0009870446 | O-RING |
| AT OVERFLOW VALVE | ||
| 291 | N 915017006105 | UNION NUT |
| T-FITTING | ||
| 294 | N 003861006007 | GLAND |
| T-FITTING | ||
| 297 | A 3414317274 | PIN |
| T-FITTING | ||
| 300 | N 074305022202 | NUT |
| OVERFLOW VALVE TO T-FITTING | ||
| 303 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 303 | A 0009940203 | THRUST RING |
| OVERFLOW VALVE TO T-FITTING | ||
| 306 | A 0009870446 | O-RING |
| OVERFLOW VALVE TO T-FITTING | ||
| 309 | A 3414209645 | LINE |
| FROM OVERFLOW VALVE TO FITTING | ||
| 312 | N 915017006100 | UNION NUT |
| 315 | N 003861006007 | GLAND |
| 318 | N 003902006001 | CONNECTION FITTING |
| 321 | A 3414209745 | LINE |
| FROM FITTING I TO CONNECTION FITTING II | ||
| 321 | A 3414209745 | LINE |
| FROM FITTING II TO CONNECTION FITTING III | ||
| 327 | A 3414209845 | LINE |
| FROM DOUBLE FITTING TO THREE-WAY VALVE | ||
| N 915017006100 | UNION NUT | |
| N 003861006007 | GLAND | |
| 330 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 330 | N 916016008200 | CLAMP |
| COMPRSSED AIR LINE TO SUBSTRUCTURE | ||
| 333 | N 007981005304 | SHEET METAL SCREW |
| 336 | A 0019971836 | VALVE |
| Repalced by: A 0039971736 | ||
| 336 | A 0039971736 | VALVE |
| 339 | A 0015863843 | REPAIR KIT |
| 342 | A 3454298136 | CONNECTOR |
| AT VALVE | ||
| 345 | N 007603012112 | SEAL RING |
| AT VALVE | ||
| 348 | N 000931008085 | SCREW |
| VALVE TO BRACKET | ||
| 351 | N 912004008104 | LOCK WASHER |
| VALVE TO BRACKET | ||
| 354 | N 000934008000 | NUT |
| VALVE TO BRACKET | ||
| 357 | A 3414209945 | LINE |
| Repalced by: A 3414208036 | ||
| 357 | A 3414208036 | LINE |
| FROM VALVE TO CONNECTION FITTING | ||
| 360 | N 915017006100 | UNION NUT |
| 363 | N 003861006007 | GLAND |
| 366 | N 003902006001 | CONNECTION FITTING |
| 369 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 369 | N 916016008200 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| 372 | A 3215420035 | HOSE |
| 375 | N 007603012112 | SEAL RING |
