Transporto priemonė: O 170; VIN numerio dalis: 341252
Grupė: 33 FRONT AXLE

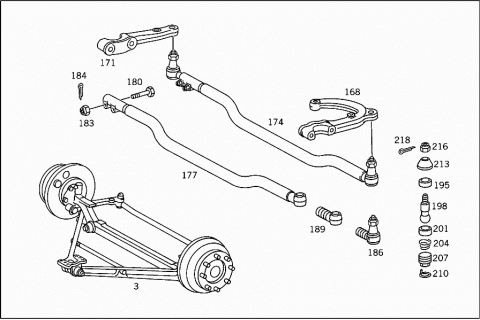

36078

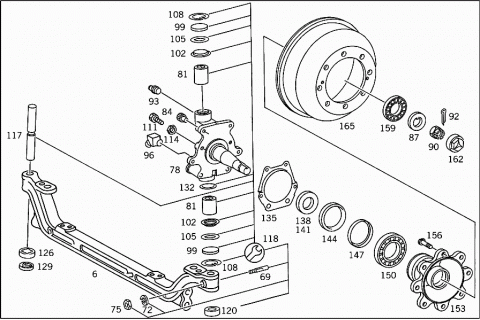

36079

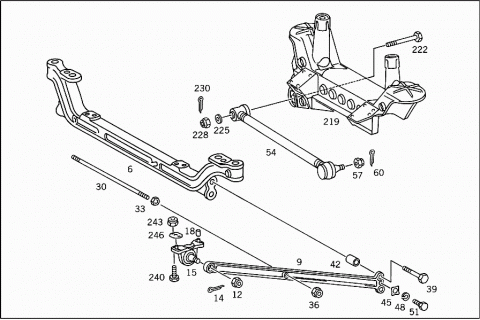

36080
# Kodas Pavadinimas
003 A 3413300700 FRONT AXLE
Repalced by: A 3213304999
003 A 3213304999 FRONT AXLE
003 A 3643300006 AXLE BEAM
006 A 3213311201 FRONT AXLE BEAM
006 A 3443310101 FRONT AXLE BEAM
009 A 3213310012 STRUT
009 A 3213310112 STRUT
012 N 000937028000 NUT
BEARING BRACKET TO STRUT
014 N 000094005040 COTTER PIN
BEARING BRACKET TO STRUT
A 3213300143 BEARING BRACKET
Repalced by: A 3443300043
015 A 3443300043 BEARING BRACKET
A 3643337064 RUBBER RING
018 N 001472010006 GROOVED PIN
030 A 3213310054 PIPE
STRUT
033 N 000934020001 NUT
TUBE TO STRUT
036 N 001587020000 CAP NUT
TUBE TO STRUT
039 A 3219901001 SCREW
STRUT TO FRONT AXLE BEAM
042 A 3213310050 BUSHING
STRUT TO FRONT AXLE BEAM
045 A 3213310273 LOCK
STRUT TO FRONT AXLE BEAM
048 N 000127010205 LOCK WASHER
LOCK TO STRUT
051 N 000933010016 SCREW
LOCK TO STRUT
054 A 3213300407 TRANSVERSE CONTROL ARM
Repalced by: A 3443307007
054 A 3443307007 TRANSVERSE CONTROL ARM
057 N 000937028000 NUT
CONTROL ARM TO FRONT AXLE
060 N 000094005040 COTTER PIN
CONTROL ARM TO FRONT AXLE
069 A 3279900137 BOLT
STEERING KNUCKLE TO FRONT AXLE BEAM
072 N 912004008104 LOCK WASHER
STEERING KNUCKLE TO FRONT AXLE BEAM
075 N 000934008000 NUT
STEERING KNUCKLE TO FRONT AXLE BEAM
078 A 3273300320 STEERING KNUCKLE
078 A 3443300120 STEERING KNUCKLE
A 3213320249 BUSHING
Repalced by: A 3213320048
081 A 3213320048 BUSHING
KINGPIN
081 A 3403320048 BUSHING
KINGPIN
A 0089977646 SEAL RING
KINGPIN
084 N 915042015000 PLUG
STEERING KNUCKLE STOP
087 A 3273321662 THRUST WASHER
FRONT WHEEL HUB TO STEERING KNUCKLE
090 N 000937032000 NUT
FRONT WHEEL HUB TO STEERING KNUCKLE
092 N 000094006315 COTTER PIN
FRONT WHEEL HUB TO STEERING KNUCKLE
093 N 071412010100 GREASE NIPPLE
TOP
096 N 071412010200 GREASE NIPPLE
BOTTOM
A 3273320029 SEALING CAP
Repalced by: A 3413320129
A 3273320029 SEALING CAP
Repalced by: A 3413320129
099 A 3413320129 SEALING CAP
OUTSIDE
099 A 3603320029 SEALING CAP
OUTSIDE
102 A 3413320029 SEALING CAP
INSIDE
102 A 3603320129 SEALING CAP
INSIDE
A 3279970145 SEAL RING
Repalced by: A 0099978245
105 A 0099978245 SEAL RING
105 A 3409970145 SEAL RING
108 N 000472042001 LOCK RING
108 N 000472045000 LOCK RING
111 N 000960012053 SCREW
STEERING KNUCKLE STOP
111 A 3023320471 SCREW
Repalced by: A 3873320271
111 A 3873320271 SCREW
STEERING KNUCKLE STOP
111 A 3873320071 SCREW
STEERING KNUCKLE STOP
114 N 000934012004 NUT
STEERING KNUCKLE STOP
114 N 000934016002 NUT
STEERING KNUCKLE STOP
117 A 3273320006 KINGPIN
STANDARD
35 MM
117 A 3603320306 KINGPIN
STANDARD
36.65 MM
117 A 3273320106 KINGPIN
STANDARD SIZE I
35.30 MM
117 A 3603320406 KINGPIN
STANDARD SIZE I
36.95 MM
117 A 3273320206 KINGPIN
REPAIR SIZE I
35.60 MM
117 A 3603320506 KINGPIN
REPAIR SIZE I
37.25 MM
117 A 3273320306 KINGPIN
REPAIR SIZE II
35.90 MM
117 A 3603320606 KINGPIN
REPAIR SIZE II
37.55 MM
118 A 3413300119 KING PIN
PARTS KIT
A 0009814505 TAPERED ROLLER BEARING
Repalced by: A 0009811918
120 A 0009811918 ROLLER BEARING
Repalced by: A 0019816618
120 A 0009812818 ROLLER BEARING
Repalced by: A 0019816618
120 A 0009813118 ROLLER BEARING
Repalced by: A 0019816618
120 A 0019816618 ROLLER BEARING
A 0009811818 ROLLER BEARING
Repalced by: A 0009815418
A 0009812718 ROLLER BEARING
Repalced by: A 0009815418
A 0009813218 ROLLER BEARING
Repalced by: A 0009815418
120 A 0009815418 ROLLER BEARING
120 A 0039817305 TAPERED ROLLER BEARING
126 A 3213320362 THRUST WASHER
STANDARD
126 A 3213321162 THRUST WASHER
STANDARD SIZE I
126 A 3213320762 THRUST WASHER
REPAIR SIZE I
126 A 3213320862 THRUST WASHER
REPAIR SIZE II
129 A 3213320462 THRUST WASHER
STANDARD
129 A 3213321262 THRUST WASHER
STANDARD SIZE I
129 A 3213320962 THRUST WASHER
REPAIR SIZE I
129 A 3213321062 THRUST WASHER
REPAIR SIZE II
132 A 3273320752 SPACER WASHER
AS REQUIRED
1.00 MM
132 A 3273320652 SPACER WASHER
AS REQUIRED
1.10 MM
132 A 3273320352 SPACER WASHER
AS REQUIRED
1.20 MM
132 A 3273320452 SPACER WASHER
AS REQUIRED
1.30 MM
132 A 3273320552 SPACER WASHER
AS REQUIRED
1.40 MM
132 A 3273320852 SPACER WASHER
AS REQUIRED
1.50 MM
132 A 3273320952 SPACER WASHER
AS REQUIRED
1.60 MM
132 A 3273321052 SPACER WASHER
AS REQUIRED
1.70 MM
132 A 3403320352 SPACER WASHER
AS REQUIRED
1.2 MM
132 A 3403320452 SPACER WASHER
AS REQUIRED
1.3 MM
132 A 3403320552 SPACER WASHER
AS REQUIRED
1.4 MM
132 A 3403320652 SPACER WASHER
AS REQUIRED
1.5 MM
132 A 3403320752 SPACER WASHER
AS REQUIRED
1.6 MM
132 A 3403320852 SPACER WASHER
AS REQUIRED
1.7 MM
132 A 3403320952 SPACER WASHER
AS REQUIRED
1.8 MM
132 A 3403321052 SPACER WASHER
AS REQUIRED
1.9 MM
132 A 3403321152 SPACER WASHER
AS REQUIRED
2.0 MM
132 A 3403321252 SPACER WASHER
AS REQUIRED
2.1 MM
135 A 3023340082 OIL COLLECTOR
135 A 3533340282 OIL COLLECTOR
138 A 3213340115 RING
LEFT
138 A 3603340115 RING
FRONT WHEEL HUB,INSIDE,LEFT
141 A 3213340215 RING
RIGHT
141 A 3603340215 RING
FRONT WHEEL HUB,INSIDE,RIGHT
144 A 0009973446 SEAL RING
FRONT WHEEL HUB
144 A 0079973646 SEAL RING
FRONT WHEEL HUB
144 A 0119977147 SEAL RING
FRONT WHEEL HUB
144 A 3459978446 SEAL RING
FRONT WHEEL HUB
147 A 3213340051 SPACER RING
FRONT WHEEL HUB
147 A 3523340151 SPACER RING
FRONT WHEEL HUB
150 A 0029810205 TAPERED ROLLER BEARING
INSIDE
150 A 0009818905 TAPERED ROLLER BEARING
INSIDE
150 A 0019819705 TAPERED ROLLER BEARING
INSIDE
150 A 0019801002 TAPERED ROLLER BEARING
INSIDE
150 A 0039817305 TAPERED ROLLER BEARING
INSIDE
150 A 0039817105 TAPERED ROLLER BEARING
INSIDE
153 A 3273301125 FRONT WHEEL HUB
A 3124021071 WHEEL MOUNTING BOLT
153 A 3453340201 WHEEL HUB
156 A 3274010671 WHEEL MOUNTING BOLT
159 A 0009819605 TAPERED ROLLER BEARING
Repalced by: A 0049813405
159 A 0039816405 TAPERED ROLLER BEARING
Repalced by: A 0049813405
159 A 0049813405 TAPERED ROLLER BEARING
OUTSIDE
159 A 0019815605 TAPERED ROLLER BEARING
Repalced by: A 0049813805
159 A 0069810705 TAPERED ROLLER BEARING
Repalced by: A 0049813805
159 A 0049813805 TAPERED ROLLER BEARING
OUTSIDE
162 A 3213340125 HUB CAP
Repalced by: A 3213340225
162 A 3213340225 HUB CAP
165 A 3524210001 BRAKE DRUM
165 A 3544210301 BRAKE DRUM
168 A 3213382108 STEERING ARM
LEFT
168 A 3443380207 STEERING ARM
LEFT
171 A 3213380206 STEERING ARM
RIGHT
171 A 3443380206 STEERING ARM
RIGHT
174 A 3213300503 TIE ROD
174 A 3413300003 TIE ROD
174 A 3443300203 TIE ROD
177 A 3213300109 TIE ROD TUBE
TO 321 330 05 03
177 A 3213300209 TIE ROD TUBE
TO 321 330 05 03
A 0003386615 TIE ROD
TO 341 330 00 03,344 330 02 03
180 N 000960010020 SCREW
TIE ROD
183 N 000935010001 NUT
TIE ROD
184 N 000094002072 COTTER PIN
TIE ROD
186 A 0003382129 BALL SOCKET HEAD
TO 321 330 05 03
186 A 0003382929 BALL SOCKET HEAD
TO 321 330 05 03
A 0003303035 JOINT
LEFT
186 A 0003301435 JOINT
RIGHT
TO 341 330 00 03
A 0003303235 JOINT
Repalced by: A 0004632229
A 0004632229 BALL JOINT
Repalced by: A 0004633429
186 A 0004633429 BALL JOINT
RIGHT
189 A 0003381830 BALL SOCKET HOUSING
TO 321 330 05 03
189 A 0003382530 BALL SOCKET HOUSING
TO 321 330 05 03
189 A 0003387230 BALL SOCKET HOUSING
LEFT
TO 341 330 00 03
189 A 0003389830 BALL SOCKET HOUSING
LEFT
189 A 0003386030 BALL SOCKET HOUSING
RIGHT
TO 341 330 00 03
189 A 0003388130 BALL SOCKET HOUSING
195 A 0003380027 BALL SOCKET
TOP
TO 321 330 05 03
195 A 0003380727 BALL SOCKET
TOP
TO 321 330 05 03
A 0003380682 RUBBER RING
BOTTOM
TO 341 330 00 03
A 0003380882 RUBBER RING
BOTTOM
198 N 071831030000 BALL PIVOT
TO 321 330 05 03
201 A 0003380026 BALL SOCKET
BOTTOM
TO 321 330 05 03
201 A 0003380126 BALL SOCKET
BOTTOM
TO 321 330 05 03
A 0003380782 RUBBER RING
TOP
T0 341 330 00 03
A 0003381182 RUBBER RING
204 A 0003380493 SPRING
TO 321 330 05 03
204 A 0003380593 SPRING
TO 321 330 05 03
204 A 0003381293 SPRING
TO 341 330 00 03
204 A 0003381493 SPRING
207 A 0003380331 LOCKING CAP
TO 321 330 05 03
207 A 0003380431 LOCKING CAP
TO 321 330 05 03
207 A 0003381231 LOCKING CAP
TO 341 330 00 03
207 A 0003381531 LOCKING CAP
210 A 0009940037 SNAP RING
TO 321 330 05 03
210 A 0009940537 SNAP RING
TO 321 330 05 03
213 A 0003381656 DUST CAP
TO 321 330 05 03
213 A 0003382256 DUST CAP
TO 321 330 05 03
A 0003300285 BOOT
TO 341 330 00 03
A 0003300385 BOOT
216 N 000937018004 NUT
TIE ROD TO STEERING ARM
216 N 000937020001 NUT
TIE ROD TO STEERING ARM
218 N 000094004026 COTTER PIN
TIE ROD TO STEERING ARM
218 N 000094004065 COTTER PIN
219 A 3213300304 AXLE CASING
219 A 3443300104 AXLE CASING
222 A 3213330030 PIN
CONTROL ARM TO AXLE CASING
225 N 000125027002 WASHER
CONTROL ARM TO AXLE CASING
228 N 000937026000 NUT
CONTROL ARM TO AXLE CASING
230 N 000094005040 COTTER PIN
CONTROL ARM TO AXLE CASING
A 3213310016 SPACER
BEARING BRACKET TO STRUT
N 000960014033 SCREW
BEARING BRACKET TO STRUT
N 000960014040 SCREW
BEARING BRACKET TO STRUT
N 000935014002 NUT
BEARING BRACKET TO STRUT
N 000094003221 COTTER PIN
BEARING BRACKET TO STRUT
240 N 000960016023 SCREW
BEARING BRACKET TO STRUT
243 N 913004016002 NUT
BEARING BRACKET TO STRUT
246 A 3443310093 SHIM
BEARING BRACKET TO STRUT
