Transporto priemonė: O 170; VIN numerio dalis: 341252

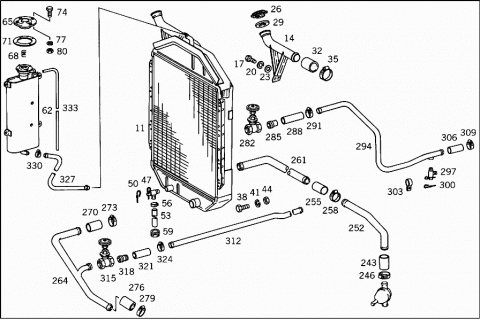

Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|
| 011 | H 993415010101 | RADIATOR |
| Repalced by: A 0415010501 | ||
| 011 | A 0415010501 | RADIATOR |
| Repalced by: A 3215011301 | ||
| 011 | A 3215011301 | RADIATOR |
| 012 | A 3415017103 | TANK |
| 014 | A 3215000207 | FILLER NECK |
| 017 | N 000933006015 | SCREW |
| FILLER NECK | ||
| 020 | N 000127006206 | LOCK WASHER |
| FILLER NECK | ||
| 023 | N 009021006100 | WASHER |
| FILLER NECK | ||
| 026 | A 1365010054 | FILLER CAP |
| FILLER NECK | ||
| 029 | A 3209970140 | SEAL RING |
| FILLER NECK | ||
| 032 | N 900271045001 | HOSE |
| FILLER NECK | ||
| A 0419970690 | LOOM TIE | |
| Repalced by: N 916017040000 | ||
| 035 | H 990009970690 | LOOM TIE |
| Repalced by: N 916017040000 | ||
| 035 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 035 | N 000000000671 | CLAMP |
| FILLER NECK | ||
| 038 | N 000933008014 | SCREW |
| RADIATOR MOUNTING | ||
| 041 | N 912004008104 | LOCK WASHER |
| RADIATOR MOUNTING | ||
| 044 | N 000934008000 | NUT |
| RADIATOR MOUNTING | ||
| 047 | A 0009976436 | VALVE |
| 050 | A 0009930225 | SPRING |
| N 007604018101 | SCREW PLUG | |
| N 007603018101 | SEAL RING | |
| 053 | A 3129970682 | HOSE |
| 056 | N 900264009500 | LOOM TIE |
| 059 | A 0009973481 | GROMMET |

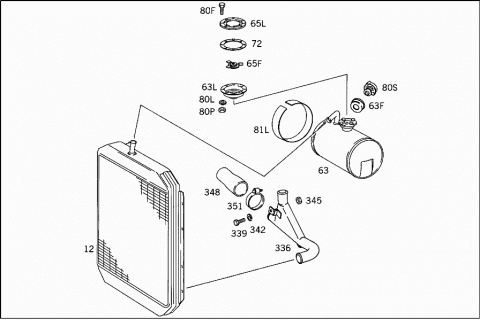

| 062 | A 3215000349 | TANK |
| 063 | A 3455007349 | TANK |
| A 3455007049 | TANK | |
| 063F | A 3455067056 | PIPE |
| 063L | A 3455017040 | VALVE HOUSING |
| 065 | A 0005000740 | VALVE |
| 065F | A 0005000640 | VALVE |
| 065L | A 3205010144 | COVER |
| 068 | A 3129936901 | SPRING |
| 071 | A 0005010080 | GASKET |
| 072 | A 3205010180 | GASKET |
| 074 | N 000933005012 | SCREW |
| 077 | N 000127005205 | LOCK WASHER |
| 080 | N 000934005001 | NUT |
| 080F | N 000933005058 | SCREW |
| 080L | N 912004005100 | LOCK WASHER |
| 080P | N 000934005000 | NUT |
| 080S | A 3455017015 | RADIATOR CAP |
| A 3415007274 | CLAMP | |
| EXPANSION TANK TO SUPPORT | ||
| A 3415047274 | PIN | |
| EXPANSION TANK TO SUPPORT | ||
| N 000094006315 | COTTER PIN | |
| EXPANSION TANK TO SUPPORT | ||
| 081L | A 3449870214 | RUBBER STRIP |
| EXPANSION TANK TO SUPPORT | ||
| N 000934008000 | NUT | |
| EXPANSION TANK TO SUPPORT | ||
| A 3415007145 | RADIATOR STRUT | |
| 083 | A 3215000327 | SUPPORT |

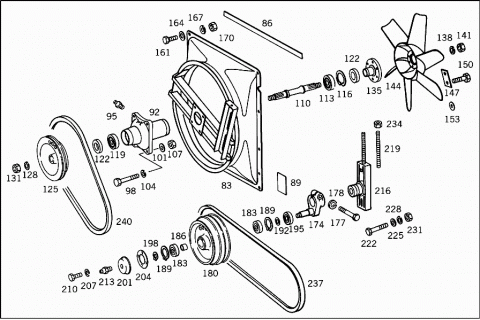

| A 3415007055 | FAN SHROUD | |
| 086 | A 3219870014 | RUBBER STRIP |
| 089 | A 3219870314 | RUBBER STRIP |
| 092 | A 3212050405 | BEARING BODY |
| FAN DRIVE | ||
| 095 | N 071412010100 | GREASE NIPPLE |
| 098 | N 000931008185 | SCREW |
| Repalced by: N 304017008022 | ||
| 098 | N 304017008022 | SCREW |
| BEARING BODY TO SUPPORT | ||
| 101 | N 000125008413 | WASHER |
| BEARING BODY TO SUPPORT | ||
| 104 | N 912004008104 | LOCK WASHER |
| BEARING BODY TO SUPPORT | ||
| 107 | N 000934008005 | NUT |
| BEARING BODY TO SUPPORT | ||
| 110 | A 3212050302 | FAN SHAFT |
| 113 | N 000628003304 | ANG. CONTACT BALL BEARING |
| 113 | A 3459817125 | BALL BEARING |
| 116 | N 000472052000 | LOCK RING |
| 119 | N 000625006304 | GROOVED BALL BEARING |
| 119 | A 3449817025 | BALL BEARING |
| 122 | N 003760030300 | RADIAL SEAL RING |
| A 3212050710 | PULLEY | |
| A 3212050610 | PULLEY | |
| 125 | A 3212051810 | PULLEY |
| 128 | N 912004016101 | LOCK WASHER |
| PULLEY TO FAN SHAFT | ||
| 131 | N 000934016007 | NUT |
| PULLEY TO FAN SHAFT | ||
| N 007604010100 | SCREW PLUG | |
| N 007603010110 | SEAL RING | |
| 135 | A 3212050012 | HUB |
| FAN | ||
| 138 | N 912004016101 | LOCK WASHER |
| 141 | N 000934016007 | NUT |
| 144 | A 3212050006 | FAN |
| 147 | A 3159940030 | LOCK |
| FAN TO HUB | ||
| 150 | N 304017008005 | SCREW |
| FAN TO HUB | ||
| 153 | A 3219900440 | WASHER |
| 3.2 MM | ||
| 153 | A 3219900540 | WASHER |
| 1.5 MM | ||
| 153 | A 3219900840 | WASHER |
| 2.5 MM | ||
| N 000912006017 | SCREW | |
| BALANCING PLATE TO FAN | ||
| N 000912006010 | SCREW | |
| BALANCING PLATE TO FAN | ||
| N 000912006003 | SCREW | |
| BALANCING PLATE TO FAN | ||
| N 000125006421 | WASHER | |
| BALANCING PLATE TO FAN | ||
| N 006797006146 | TOOTHED WASHER | |
| BALANCING PLATE TO FAN | ||
| N 000934006007 | NUT | |
| BALANCING PLATE TO FAN | ||
| A 3415007227 | SUPPORT | |
| RADIATOR MOUNTING | ||
| 161 | N 000933008014 | SCREW |
| RADIATOR BASE FRAME TO BODY | ||
| 161 | N 000933008036 | SCREW |
| RADIATOR BASE FRAME TO BODY | ||
| 164 | N 000125010518 | WASHER |
| RADIATOR BASE FRAME TO BODY | ||
| 164 | N 000125008413 | WASHER |
| RADIATOR BASE FRAME TO BODY | ||
| 167 | N 912004008104 | LOCK WASHER |
| RADIATOR BASE FRAME TO BODY | ||
| 170 | N 000934008000 | NUT |
| RADIATOR BASE FRAME TO BODY | ||
| 174 | A 3212000473 | LEVER |
| 177 | N 000960012053 | SCREW |
| CLAMPING LEVER TO SUPPORT | ||
| 178 | N 000127012203 | LOCK WASHER |
| CLAMPING LEVER TO SUPPORT | ||
| A 3212060719 | TIGHTENER PULLEY | |
| 180 | A 3212061019 | TIGHTENER PULLEY |
| Repalced by: A 3902067019 | ||
| 180 | A 3902067019 | TIGHTENER PULLEY |
| 183 | N 000625006302 | GROOVED BALL BEARING |
| 186 | A 3212060053 | SPACER TUBE |
| 189 | N 000472042001 | LOCK RING |
| 192 | A 3212050052 | SPACER WASHER |
| AS REQUIRED | ||
| 0.2 MM | ||
| 192 | A 3212050152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.5 MM | ||
| 192 | A 3212050252 | SPACER WASHER |
| AS REQUIRED | ||
| 1.0 MM | ||
| 195 | N 006503020100 | SEAL RING |
| 195 | N 003760020202 | RADIAL SEAL RING |
| 198 | N 000471015000 | LOCK RING |
| A 3212060257 | EXPANSION PLUG | |
| 201 | A 3212060157 | EXPANSION PLUG |
| 204 | A 3212060079 | GASKET |
| 207 | N 000127006206 | LOCK WASHER |
| COVER TO TIGHTENER PULLEY | ||
| 210 | N 000933006010 | SCREW |
| COVER TO TIGHTENER PULLEY | ||
| 213 | N 071412010100 | GREASE NIPPLE |
| 216 | A 3212000039 | SUPPORT |
| CLAMPING LEVER | ||
| 219 | A 3219900005 | STUD |
| 222 | N 000931010264 | SCREW |
| SUPPORT TO FRAME | ||
| 225 | N 000125010518 | WASHER |
| SUPPORT TO FRAME | ||
| 228 | N 000127010205 | LOCK WASHER |
| SUPPORT TO FRAME | ||
| 231 | N 000934010000 | NUT |
| SUPPORT TO FRAME | ||
| 234 | N 000934012004 | NUT |
| SUPPORT TO FRAME | ||
| N 000127012203 | LOCK WASHER | |
| SUPPORT TO FRAME | ||
| 237 | N 007753012532 | NARROW V-BELT |
| 237 | N 007753012532 | NARROW V-BELT |
| 240 | N 007753012506 | NARROW V-BELT |
| 243 | N 900271045002 | HOSE |
| A 0419970690 | LOOM TIE | |
| Repalced by: N 916017040000 | ||
| H 990009970690 | LOOM TIE | |
| Repalced by: N 916017040000 | ||
| 246 | A 0009971690 | LOOM TIE |
| Repalced by: N 916017040000 | ||
| 246 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 246 | N 000000000671 | CLAMP |
| A 3215011924 | COOLING WATER PIPE | |
| Repalced by: H 993415000058 | ||
| A 3215000458 | LINE | |
| Repalced by: H 993415000058 | ||
| 252 | H 993415000058 | INTERMEDIATE PIPE |
| FROM THERMOSTAT TO RADIATOR | ||
| 255 | N 900271038012 | HOSE |
| 258 | A 0419970590 | LOOM TIE |
| Repalced by: N 916017040000 | ||
| 258 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 258 | N 000000000671 | CLAMP |
| 261 | A 3215012024 | COOLING WATER PIPE |
| 261 | A 3215012624 | COOLING WATER PIPE |
| 264 | A 0415000058 | INTERMEDIATE PIPE |
| Repalced by: A 3215000358 | ||
| 264 | A 3215000358 | LINE |
| FROM RADIATOR TO WATER PUMP | ||
| A 0415000358 | INTERMEDIATE PIPE | |
| 270 | N 900271038012 | HOSE |
| FROM RADIATOR TO COOLING WATER PIPE | ||
| A 0419970590 | LOOM TIE | |
| Repalced by: N 916017040000 | ||
| H 990009970590 | LOOM TIE | |
| Repalced by: N 916017040000 | ||
| 273 | A 0009971590 | LOOM TIE |
| Repalced by: N 916017040000 | ||
| 273 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 273 | N 000000000671 | CLAMP |
| N 900271045000 | HOSE | |
| Repalced by: A 3405010382 | ||
| 276 | A 3405010382 | HOSE |
| FROM COOLING WATER LINE TO WATER PUMP | ||
| A 0419970690 | LOOM TIE | |
| Repalced by: N 916017040000 | ||
| H 990009970690 | LOOM TIE | |
| Repalced by: N 916017040000 | ||
| 279 | A 0009971690 | LOOM TIE |
| Repalced by: N 916017040000 | ||
| 279 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 279 | N 000000000671 | CLAMP |
| 282 | A 0415060064 | VALVE |
| 285 | A 3215000072 | LINE |
| 288 | N 900271028013 | HOSE |
| A 0419970490 | LOOM TIE | |
| Repalced by: G 990009970490 | ||
| 291 | H 990009970490 | LOOM TIE |
| Repalced by: N 916017032000 | ||
| 291 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 291 | N 000000000670 | CLAMP |
| 294 | A 3215002489 | LINE |
| A 0415000158 | INTERMEDIATE PIPE | |
| 297 | A 0009970436 | VALVE |
| 300 | A 0009930225 | SPRING |
| 303 | A 3219950935 | CLAMP |
| 306 | N 900271028001 | HOSE |
| A 0419970490 | LOOM TIE | |
| Repalced by: G 990009970490 | ||
| 309 | H 990009970490 | LOOM TIE |
| Repalced by: N 916017032000 | ||
| 309 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 309 | N 000000000670 | CLAMP |
| 312 | A 3215062360 | PIPE |
| Repalced by: A 3215061360 | ||
| 312 | A 3215061360 | PIPE |
| 315 | A 3215060264 | VALVE |
| Repalced by: A 0415060064 | ||
| 315 | A 0415060064 | VALVE |
| 318 | A 3215000072 | LINE |
| 321 | N 900271028013 | HOSE |
| A 0419970490 | LOOM TIE | |
| Repalced by: N 916017032000 | ||
| 324 | H 990009970490 | LOOM TIE |
| Repalced by: N 916017032000 | ||
| 324 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 324 | N 000000000670 | CLAMP |
| 327 | A 3449970482 | HOSE |
| FROM RADIATOR TO WATER EXPANSION TANK | ||
| 327 | N 900271020031 | HOSE |
| FROM RADIATOR TO WATER EXPANSION TANK | ||
| 330 | N 916017011000 | CLAMP |
| Repalced by: N 000000000665 | ||
| 330 | N 000000000665 | CLAMP |
| FROM RADIATOR TO WATER EXPANSION TANK | ||
| 330 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 330 | N 000000000667 | CLAMP |
| FROM RADIATOR TO WATER EXPANSION TANK | ||
| 333 | A 3415010224 | COOLING WATER PIPE |
| OVERFLOW | ||
| 336 | A 3445007069 | SEPARATOR |
| 336 | A 3645007369 | SEPARATOR |
| 339 | N 000933010130 | SCREW |
| 342 | N 000127010205 | LOCK WASHER |
| 345 | N 000934010000 | NUT |
| 348 | A 3405010382 | HOSE |
| 351 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 351 | N 000000000671 | CLAMP |
| A 3415007572 | LINE | |
| A 3445000358 | INTERMEDIATE PIPE | |
| N 915003010201 | SEAL CONE | |
| N 915017012200 | UNION NUT | |
| N 900271012010 | HOSE | |
| N 916017016000 | CLAMP | |
| Repalced by: N 000000000666 | ||
| N 000000000666 | CLAMP | |
| A 3415010025 | BREATHER PIPE | |
| N 900271020013 | HOSE | |
| N 916017020000 | CLAMP | |
| Repalced by: N 000000000667 | ||
| N 000000000667 | CLAMP | |
| A 3215001158 | INTERMEDIATE PIPE | |
| N 900271012047 | HOSE | |
| N 916017016000 | CLAMP | |
| Repalced by: N 000000000666 | ||
| N 000000000666 | CLAMP | |
| N 900271020013 | HOSE | |
| N 916017020000 | CLAMP | |
| Repalced by: N 000000000667 | ||
| N 000000000667 | CLAMP | |
| A 3415010124 | COOLING WATER PIPE | |
| N 900271020031 | HOSE | |
| N 916017020000 | CLAMP | |
| Repalced by: N 000000000667 | ||
| N 000000000667 | CLAMP | |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
