Transporto priemonė: O 170; VIN numerio dalis: 341252
Grupė: 26 TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT PARTS LIST | ||
| 713.0 | ||

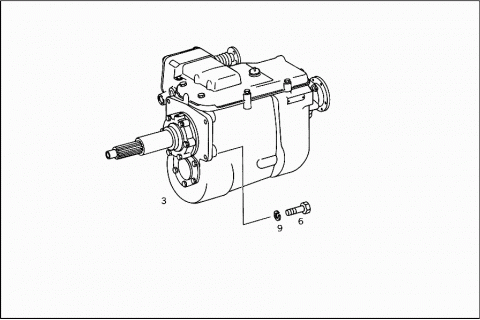

| 003 | A 3212603000 | TRANSMISSION |
| Repalced by: A 3412601400 | ||
| 003 | A 3412601400 | TRANSMISSION |

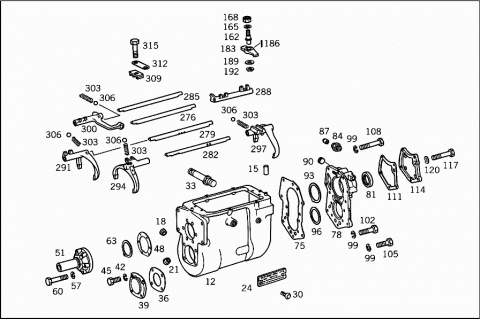

| 006 | N 000933014004 | SCREW |
| 009 | N 000127014201 | LOCK WASHER |
| A 3522600011 | TRANSMISSION CASE | |
| Repalced by: A 3022600611 | ||
| 012 | A 3022600611 | TRANSMISSION CASE |
| 015 | N 000007010239 | CYLINDRICAL PIN |
| 018 | A 1869970032 | SCREW PLUG |
| OIL FILLING | ||
| 021 | A 0009972632 | SCREW PLUG |
| OIL DRAIN | ||
| A 3415840124 | UNIT IDENTIFICATION PLATE | |
| Repalced by: A 3785840024 | ||
| 024 | A 3785840024 | UNIT IDENTIFICATION PLATE |
| A 0415840824 | UNIT IDENTIFICATION PLATE | |
| Repalced by: A 3415840624 | ||
| A 3225842024 | UNIT IDENTIFICATION PLATE | |
| Repalced by: A 3415840624 | ||
| A 3415840624 | UNIT IDENTIFICATION PLATE | |
| 030 | N 001476003007 | GROOVED NAIL |
| UNIT IDENTIFICATION PLATE TO TRANSMISSION CASE | ||
| 033 | A 3212420120 | PIVOT PIN |
| Repalced by: A 3452427020 | ||
| 033 | A 3452427020 | PIVOT PIN |
| A 3212610779 | GASKET | |
| Repalced by: A 3522611280 | ||
| 036 | A 3522611280 | GASKET |
| Repalced by: A 3412617080 | ||
| 036 | A 3412617080 | GASKET |
| BETWEEN COVER AND TRANSMISSION | ||
| 039 | A 3212610133 | COVER |
| FRONT | ||
| 042 | N 912004008104 | LOCK WASHER |
| COVER TO TRANSMISSION | ||
| 045 | N 000933008036 | SCREW |
| COVER TO TRANSMISSION | ||
| 048 | A 3122612179 | GASKET |
| Repalced by: A 3122611180 | ||
| 048 | A 3122611180 | GASKET |
| BETWEEN CASE COVER AND TRANSMISSION | ||
| 051 | A 3212610318 | TRANSMISSION CASE COVER |
| FRONT | ||
| A 0029971346 | SEAL RING | |
| Repalced by: A 0089970142 | ||
| A 0089970146 | SEAL RING | |
| Repalced by: A 0159977647 | ||
| A 0159977647 | SEAL RING | |
| A 0159977747 | SEAL RING | |
| A 0179971447 | SEAL RING | |
| 057 | N 912004008104 | LOCK WASHER |
| CASE COVER TO TRANSMISSION | ||
| 060 | N 000931008085 | SCREW |
| CASE COVER TO TRANSMISSION | ||
| 063 | A 3122625362 | THRUST WASHER |
| AS REQUIRED | ||
| 2.85 MM | ||
| 063 | A 3122625462 | THRUST WASHER |
| AS REQUIRED | ||
| 2.90 MM | ||
| 063 | A 3122625562 | THRUST WASHER |
| AS REQUIRED | ||
| 2.95 MM | ||
| 063 | A 3122623462 | THRUST WASHER |
| AS REQUIRED | ||
| 3.00 MM | ||
| 063 | A 3122624362 | THRUST WASHER |
| AS REQUIRED | ||
| 3.05 MM | ||
| 063 | A 3122624462 | THRUST WASHER |
| AS REQUIRED | ||
| 3.10 MM | ||
| 063 | A 3122623562 | THRUST WASHER |
| AS REQUIRED | ||
| 3.15 MM | ||
| 063 | A 3122623662 | THRUST WASHER |
| AS REQUIRED | ||
| 3.20 MM | ||
| 063 | A 3122623762 | THRUST WASHER |
| AS REQUIRED | ||
| 3.25 MM | ||
| 075 | A 3212611379 | GASKET |
| BETWEEN CASE COVER AND TRANSMISSION | ||
| 078 | A 3372610220 | TRANSMISSION CASE COVER |
| REAR | ||
| N 006503058200 | SEAL RING | |
| Repalced by: A 0089971146 | ||
| 081 | A 0089971146 | SEAL RING |
| CASE COVER | ||
| 084 | A 3212600086 | THREADED BUSHING |
| TRANSMISSION CASE REAR COVER | ||
| 084 | A 3212610031 | THREADED BUSHING |
| CASE COVER,LEFT TOP | ||
| 087 | A 1202610080 | GASKET |
| 090 | N 915015024000 | PLUG |
| A 3122832452 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.15 MM | ||
| 093 | A 3212620862 | THRUST WASHER |
| AS REQUIRED | ||
| 2.90 MM | ||
| 093 | A 3212620962 | THRUST WASHER |
| AS REQUIRED | ||
| 3.00 MM | ||
| 093 | A 3212621062 | THRUST WASHER |
| AS REQUIRED | ||
| 3.10 MM | ||
| 093 | A 3212621162 | THRUST WASHER |
| AS REQUIRED | ||
| 3.20 MM | ||
| 093 | A 3212621262 | THRUST WASHER |
| AS REQUIRED | ||
| 3.30 MM | ||
| 093 | A 3212621362 | THRUST WASHER |
| AS REQUIRED | ||
| 3.40 MM | ||
| 093 | A 3212621462 | THRUST WASHER |
| AS REQUIRED | ||
| 3.50 MM | ||
| 093 | A 3212621562 | THRUST WASHER |
| AS REQUIRED | ||
| 3.60 MM | ||
| 096 | A 3122831752 | SPACER WASHER |
| AS REQUIRED | ||
| 0.05 MM | ||
| 096 | A 3122831052 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 096 | A 3122831152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 096 | A 3122831252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.40 MM | ||
| 096 | A 3122832152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.80 MM | ||
| 099 | N 912004008104 | LOCK WASHER |
| CASE COVER TO TRANSMISSION | ||
| 102 | N 000931008091 | SCREW |
| CASE COVER TO TRANSMISSION | ||
| 105 | N 000933008071 | SCREW |
| CASE COVER TO TRANSMISSION | ||
| 108 | N 000931008123 | SCREW |
| CASE COVER TO TRANSMISSION | ||
| A 3212611479 | GASKET | |
| Repalced by: A 3522611180 | ||
| A 3522610580 | GASKET | |
| Repalced by: A 3522611180 | ||
| 111 | A 3522611180 | GASKET |
| Repalced by: A 3522611680 | ||
| 111 | A 3522611680 | GASKET |
| Repalced by: A 3522611980 | ||
| 111 | A 3522611980 | GASKET |
| BETWEEN COVER AND CASE COVER | ||
| 114 | A 3212610333 | COVER |
| REAR | ||
| 117 | N 000931008057 | SCREW |
| COVER TO TRANSMISSION | ||
| 120 | N 000137008205 | SPRING WASHER |
| COVER TO TRANSMISSION | ||
| 123 | A 3522610880 | GASKET |
| Repalced by: A 3212611279 | ||
| 123 | A 3212611279 | GASKET |
| Repalced by: A 3212610680 | ||
| 123 | A 3212610680 | GASKET |
| BETWEEN CASE COVER AND TRANSMISSION | ||

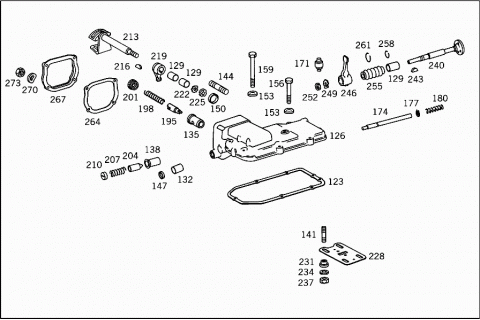

| 126 | A 3212601114 | TRANSMISSION CASE COVER |
| TOP | ||
| 129 | A 3212610050 | BUSHING |
| 30 MM | ||
| 132 | A 3212610150 | BUSHING |
| 30 MM | ||
| 135 | A 3212650250 | BUSHING |
| 138 | A 3212650150 | BUSHING |
| 141 | N 000835008007 | STUD |
| Repalced by: A 3142650044 | ||
| 141 | A 3142650044 | GUIDE PIN |
| Repalced by: A 3442657044 | ||
| 141 | A 3442657044 | GUIDE PIN |
| 144 | N 000835008015 | STUD |
| TRANSMISSION CASE TOP COVER | ||
| 147 | N 000443020000 | EXPANSION PLUG |
| A 0009973746 | SEAL RING | |
| Repalced by: A 0089971046 | ||
| 150 | A 0089971046 | SEAL RING |
| 150 | A 3449977916 | THREADED CHUCK |
| 153 | N 000137008203 | SPRING WASHER |
| CASE COVER TO TRANSMISSION | ||
| 156 | N 000931008057 | SCREW |
| CASE COVER TO TRANSMISSION | ||
| 159 | N 000931008085 | SCREW |
| CASE COVER TO TRANSMISSION | ||
| 162 | A 3412657074 | PIN |
| Repalced by: A 3212650474 | ||
| 162 | A 3212650474 | PIN |
| 1ST SPEED ROCKER ARM | ||
| 165 | N 000125013008 | WASHER |
| 1ST SPEED ROCKER ARM | ||
| N 913004012003 | NUT | |
| 1ST SPEED ROCKER ARM | ||
| TO 341 265 70 74 | ||
| 168 | N 000979012001 | NUT |
| 1ST SPEED ROCKER ARM | ||
| TO 321 265 04 74 | ||
| N 000094003217 | COTTER PIN | |
| 1ST SPEED ROCKER ARM | ||
| TO 321 265 04 74 | ||
| 171 | A 1112600058 | BREATHER |
| A 3212610274 | PIN | |
| Repalced by: A 3172610174 | ||
| 174 | A 3172610174 | PIN |
| N 900055005300 | LOCK RING | |
| Repalced by: A 0019946341 | ||
| 177 | A 0019946341 | LOCK |
| 180 | A 3129934201 | SPRING |
| 183 | A 3372650007 | LEVER |
| ROCKER ARM | ||
| 186 | N 005402302104 | CYLINDRICAL ROLLER |
| LEVER TO PIN | ||
| 189 | N 000433017000 | WASHER |
| LEVER TO PIN | ||
| 192 | N 900055017300 | LOCK RING |
| LEVER TO PIN | ||
| A 3212650016 | THRUST PIECE | |
| Repalced by: A 3212650516 | ||
| 195 | A 3212650516 | THRUST PIECE |
| DETENT PLATE | ||
| 198 | A 3219930501 | SPRING |
| DETENT PLATE | ||
| 201 | A 3219970103 | PLUG |
| TRANSMISSION CASE TOP COVER | ||
| 204 | A 3212650148 | INTERLOCK PIN |
| DETENT PLATE | ||
| 207 | A 3219930601 | SPRING |
| 1ST SPEED/REVERSE SPEED STOP | ||
| 210 | N 915015024000 | PLUG |
| TRANSMISSION CASE TOP COVER | ||
| 213 | A 3212680729 | SHIFTING ROD |
| Repalced by: A 3442680029 | ||
| 213 | A 3442680029 | SHIFTING ROD |
| 216 | N 006888005006 | WOODRUFF KEY |
| TRANSMISSION CASE TOP COVER | ||
| 219 | A 3212680433 | SHIFTING FINGER |
| TRANSMISSION CASE TOP COVER | ||
| 222 | N 070952016101 | LOCK PLATE |
| Repalced by: A 3219940112 | ||
| 222 | A 3219940112 | LOCK |
| TRANSMISSION CASE TOP COVER | ||
| 225 | N 070852016000 | NUT |
| TRANSMISSION CASE TOP COVER | ||
| A 3212600946 | PLATE | |
| Repalced by: A 3212601046 | ||
| 228 | A 3212601046 | PLATE |
| DETENT PLATE | ||
| 231 | A 3212650350 | BUSHING |
| DETENT PLATE | ||
| 234 | N 900055008003 | SPRING WASHER |
| DETENT PLATE | ||
| N 000937008000 | NUT | |
| Repalced by: A 1362650272 | ||
| 237 | A 1362650272 | NUT |
| Repalced by: N 000979008000 | ||
| 237 | N 000979008000 | NUT |
| DETENT PLATE | ||
| N 000094002068 | COTTER PIN | |
| A 1369908240 | WASHER | |
| DETENT PLATE | ||
| 240 | A 3212681029 | SHIFTING ROD |
| TRANSMISSION CASE TOP COVER | ||
| 243 | N 006888005006 | WOODRUFF KEY |
| SHIFTING ROD | ||
| 246 | A 3212650330 | SELECTOR LEVER |
| SHIFTING ROD | ||
| 249 | N 070952020101 | LOCK PLATE |
| Repalced by: A 3229940112 | ||
| 249 | A 3229940112 | LOCK |
| SELECTOR LEVER TO SHIFTING ROD | ||
| 252 | A 3219900160 | NUT |
| SELECTOR LEVER TO SHIFTING ROD | ||
| 255 | A 0002680497 | BOOT |
| SHIFTING ROD | ||
| 258 | N 009045028001 | SNAP RING |
| 261 | N 009045038001 | SNAP RING |
| 264 | A 3212610480 | GASKET |
| Repalced by: A 3212610979 | ||
| 264 | A 3212610979 | GASKET |
| 267 | A 3212610905 | TRANSMISSION CASE COVER |
| RIGHT TOP | ||
| 270 | N 000137008203 | SPRING WASHER |
| CASE COVER | ||
| 273 | N 000934008000 | NUT |
| CASE COVER | ||
| 276 | A 3212650805 | SHIFTING ROD |
| 1ST SPEED | ||
| 279 | A 3212651805 | SHIFTING ROD |
| 2ND AND 3RD SPEED | ||
| 282 | A 3212651905 | SHIFTING ROD |
| 4TH AND 5TH SPEED | ||
| 285 | A 3222650305 | SHIFTING ROD |
| REVERSE SPEED | ||
| 288 | A 3222650123 | SHIFTING DOG |
| 1ST SPEED | ||
| 291 | A 3212651202 | SHIFTING FORK |
| 2ND AND 3RD SPEED | ||
| 294 | A 3212650802 | SHIFTING FORK |
| 4TH AND 5TH SPEED | ||
| 297 | A 3212651301 | SHIFTING FORK |
| 1ST SPEED | ||
| 300 | A 3212650403 | SHIFTING FORK |
| REVERSE SPEED | ||
| 303 | A 3129931001 | SPRING |
| 306 | N 005401311000 | BALL |
| 11 MM | ||
| A 3122651236 | BRACKET | |
| Repalced by: A 3122651036 | ||
| 309 | A 3122651036 | BRACKET |
| SHIFTING ROD | ||
| 312 | A 3129940332 | LOCK |
| BRACKET TO TRANSMISSION CASE | ||
| 315 | N 000933008153 | SCREW |
| BRACKET TO TRANSMISSION CASE | ||

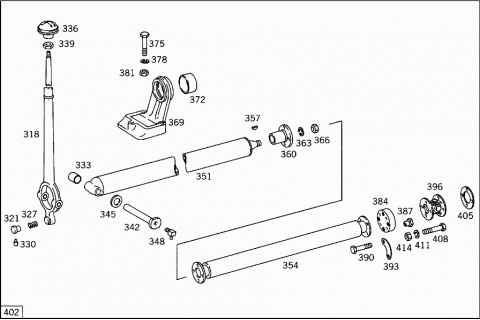

| 318 | A 3212604139 | SHIFT LEVER |
| Repalced by: A 3412607039 | ||
| A 0412600439 | SHIFT LEVER | |
| Repalced by: A 3412607039 | ||
| A 3412607039 | SHIFT LEVER | |
| 321 | A 3212680138 | THRUST PIECE |
| SHIFT LEVER LOWER PART | ||
| A 3212680238 | THRUST PIECE | |
| SHIFT LEVER LOWER PART | ||
| 327 | A 3219932701 | SPRING |
| SHIFT LEVER LOWER PART | ||
| 330 | N 000417005011 | HEADLESS SETSCREW |
| SHIFT LEVER LOWER PART | ||
| 333 | A 3212680550 | BUSHING |
| SHIFT LEVER | ||
| 336 | A 3222600040 | HANDLE |
| 339 | N 000936010002 | NUT |
| GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER | ||
| 342 | A 3212680174 | PIN |
| SHIFTING ROD TO SHIFT LEVER | ||
| 345 | N 000433019000 | WASHER |
| SHIFTING ROD TO SHIFT LEVER | ||
| N 000094005028 | COTTER PIN | |
| SHIFTING ROD TO SHIFT LEVER | ||
| 348 | N 071412010300 | GREASE NIPPLE |
| SHIFTING ROD TO SHIFT LEVER | ||
| 351 | A 3212600933 | SHIFTING ROD |
| FRONT | ||
| A 3212600333 | SHIFTING ROD | |
| FRONT | ||
| 354 | A 3212601133 | SHIFTING ROD |
| REAR | ||
| 357 | N 006888005006 | WOODRUFF KEY |
| CONNECTOR TO SHIFTING ROD | ||
| 360 | A 3212680228 | CONNECTOR |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 363 | N 000127012203 | LOCK WASHER |
| CONNECTOR TO SHIFTING ROD | ||
| 366 | N 000934012004 | NUT |
| CONNECTOR TO SHIFTING ROD | ||
| 369 | A 3212600072 | SHIFT CASE |
| SHIFTING ROD | ||
| 372 | A 3212680850 | BUSHING |
| SHIFT CASE | ||
| 375 | N 000931010264 | SCREW |
| SHIFT CASE TO FRAME | ||
| 378 | N 000127010202 | LOCK WASHER |
| SHIFT CASE TO FRAME | ||
| 381 | N 000934010000 | NUT |
| SHIFT CASE TO FRAME | ||
| 384 | A 3222600075 | CONNECTOR |
| BETWEEN SHIFTING ROD AND JOINT | ||
| 387 | A 3222680150 | BUSHING |
| CONNECTOR | ||
| 390 | A 3179900301 | SCREW |
| 393 | A 3222680073 | LOCK |
| FRONT AND REAR | ||
| A 3022680089 | JOINT | |
| Repalced by: A 0002681989 | ||
| 396 | A 0002681989 | JOINT |
| A 3022680189 | JOINT | |
| Repalced by: A 0002681889 | ||
| A 0002681889 | JOINT | |
| A 3442687089 | JOINT | |
| A 3442687289 | JOINT | |
| 402 | N 071412006100 | GREASE NIPPLE |
| 405 | A 3212680352 | SPACER WASHER |
| AS REQUIRED | ||
| 5.00 MM | ||
| 405 | A 3212680452 | SPACER WASHER |
| AS REQUIRED | ||
| 3.00 MM | ||
| 405 | A 3212680552 | SPACER WASHER |
| AS REQUIRED | ||
| 2.00 MM | ||
| 408 | A 3219900601 | SCREW |
| 411 | N 912004008102 | LOCK WASHER |
| 414 | N 000934008000 | NUT |

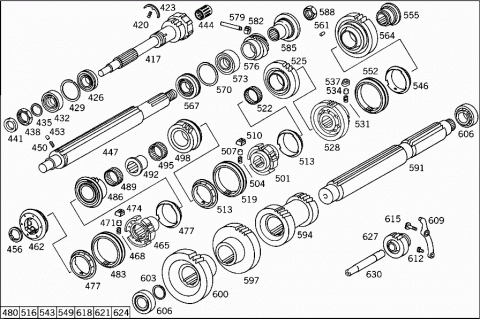

| 417 | A 3222620102 | DRIVE SHAFT |
| A 3222620802 | DRIVE SHAFT | |
| 420 | A 3219931201 | SPRING |
| DRIVE SHAFT | ||
| 423 | A 3212620073 | LOCK |
| DRIVE SHAFT | ||
| 426 | A 0019813101 | CYLINDR. ROLLER BEARING |
| DRIVE SHAFT | ||
| 429 | N 005417085001 | SNAP RING |
| AS REQUIRED | ||
| 1.70 MM | ||
| 429 | A 0009943435 | SNAP RING |
| AS REQUIRED | ||
| 1.80 MM | ||
| 429 | A 0009942835 | SNAP RING |
| AS REQUIRED | ||
| 1.90 MM | ||
| A 0009810527 | ANGULAR CONTACT BEARING | |
| Repalced by: A 0009812827 | ||
| 432 | A 0009812827 | ANGULAR CONTACT BEARING |
| A 0009814327 | ANGULAR CONTACT BEARING | |
| Repalced by: A 3459817027 | ||
| A 3459817027 | ANGULAR CONTACT BEARING | |
| A 3459817327 | ANGULAR CONTACT BEARING | |
| 435 | A 3122623162 | THRUST WASHER |
| 438 | A 3122621172 | NUT |
| BEARING TO DRIVE SHAFT | ||
| A 0029971346 | SEAL RING | |
| Repalced by: A 0089970146 | ||
| 441 | A 0089970146 | SEAL RING |
| Repalced by: A 0159977647 | ||
| 441 | A 0159977647 | SEAL RING |
| 441 | A 0159977747 | SEAL RING |
| 441 | A 0179971447 | SEAL RING |
| 444 | A 0009814312 | ROLLER ASSEMBLY |
| A 0009814512 | ROLLER ASSEMBLY | |
| A 0009814612 | ROLLER ASSEMBLY | |
| A 3222620005 | MAIN SHAFT | |
| Repalced by: A 3222620505 | ||
| 447 | A 3222620505 | MAIN SHAFT |
| 450 | A 3129931701 | SPRING |
| A 3212620374 | PIN | |
| Repalced by: A 3852621074 | ||
| 453 | A 3852621074 | PIN |
| 456 | A 3212623862 | THRUST WASHER |
| AS REQUIRED | ||
| 6.90 MM | ||
| 456 | A 3212623762 | THRUST WASHER |
| AS REQUIRED | ||
| 7.00 MM | ||
| 456 | A 3212623662 | THRUST WASHER |
| AS REQUIRED | ||
| 7.10 MM | ||
| 456 | A 3212623562 | THRUST WASHER |
| AS REQUIRED | ||
| 7.20 MM | ||
| 456 | A 3212623462 | THRUST WASHER |
| AS REQUIRED | ||
| 7.30 MM | ||
| 456 | A 3212623962 | THRUST WASHER |
| AS REQUIRED | ||
| 7.40 MM | ||
| 456 | A 3212624662 | THRUST WASHER |
| AS REQUIRED | ||
| 7.45 MM | ||
| 456 | A 3212624062 | THRUST WASHER |
| AS REQUIRED | ||
| 7.50 MM | ||
| 456 | A 3212624762 | THRUST WASHER |
| AS REQUIRED | ||
| 7.55 MM | ||
| 456 | A 3212624162 | THRUST WASHER |
| AS REQUIRED | ||
| 7.60 MM | ||
| 456 | A 3212624862 | THRUST WASHER |
| AS REQUIRED | ||
| 7.65 MM | ||
| 456 | A 3212624262 | THRUST WASHER |
| AS REQUIRED | ||
| 7.70 MM | ||
| 456 | A 3212624362 | THRUST WASHER |
| AS REQUIRED | ||
| 7.80 MM | ||
| 456 | A 3212624462 | THRUST WASHER |
| AS REQUIRED | ||
| 7.90 MM | ||
| 456 | A 3212624562 | THRUST WASHER |
| AS REQUIRED | ||
| 8.00 MM | ||
| 462 | A 3222620034 | SYNCHRONIZER RING |
| 5TH SPEED | ||
| A 3222600645 | SYNCHRONIZER BODY | |
| 465 | A 3212621835 | SYNCHRONIZER BODY |
| 4TH AND 5TH SPEED | ||
| 468 | A 3219930701 | SPRING |
| 471 | A 3212620774 | PIN |
| 474 | A 3212621040 | FOLLOWER |
| 477 | A 3222620137 | SYNCHRONIZER CONE |
| 480 | A 3212600469 | SPRING |
| 483 | A 3212620823 | SLIDING COLLAR |
| A 3222600244 | GEAR | |
| Repalced by: A 3222601744 | ||
| 486 | A 3222601744 | GEAR |
| A 3229810612 | ROLLER ASSEMBLY | |
| Repalced by: A 3529810012 | ||
| A 3229810812 | ROLLER ASSEMBLY | |
| Repalced by: A 3529810012 | ||
| 489 | A 3529810012 | ROLLER ASSEMBLY |
| A 0009819112 | ROLLER ASSEMBLY | |
| Repalced by: A 3459817312 | ||
| A 3459817312 | ROLLER ASSEMBLY | |
| 492 | A 3222624050 | BUSHING |
| AS REQUIRED | ||
| 44.50 MM | ||
| 492 | A 3222624150 | BUSHING |
| AS REQUIRED | ||
| 44.60 MM | ||
| A 3229810512 | ROLLER ASSEMBLY | |
| Repalced by: A 3529810112 | ||
| A 3229810712 | ROLLER ASSEMBLY | |
| Repalced by: A 3529810112 | ||
| 495 | A 3529810112 | ROLLER ASSEMBLY |
| 495 | A 3459817212 | ROLLER ASSEMBLY |
| 498 | A 3222600644 | GEAR |
| Repalced by: A 3412600044 | ||
| 498 | A 3412600044 | GEAR |
| 3RD SPEED | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 322 260 24 44 | ||
| 498 | A 3512620013 | GEAR |
| 3RD SPEED | ||
| A 3222600545 | SYNCHRONIZER BODY | |
| 2ND AND 3RD SPEED | ||
| 501 | A 3222620435 | SYNCHRONIZER BODY |
| 2ND AND 3RD SPEED | ||
| 504 | A 3219930701 | SPRING |
| 507 | A 3212620774 | PIN |
| 510 | A 3212621040 | FOLLOWER |
| 513 | A 3222620137 | SYNCHRONIZER CONE |
| 516 | A 3212600469 | SPRING |
| 519 | A 3212620823 | SLIDING COLLAR |
| A 3229810512 | ROLLER ASSEMBLY | |
| Repalced by: A 3529810112 | ||
| A 3229810712 | ROLLER ASSEMBLY | |
| Repalced by: A 3529810112 | ||
| 522 | A 3529810112 | ROLLER ASSEMBLY |
| A 3459817212 | ROLLER ASSEMBLY | |
| 525 | A 3222620112 | GEAR |
| 2ND SPEED | ||
| 525 | A 3222620412 | GEAR |
| A 3222600625 | GEAR | |
| MAIN SHAFT | ||
| 528 | A 3222630333 | REVERSE IDLER GEAR |
| REVERSE SPEED | ||
| 531 | A 3219930701 | SPRING |
| 534 | A 3212620674 | PIN |
| 537 | A 3212620940 | FOLLOWER |
| A 3212620376 | BALL SOCKET | |
| Repalced by: A 3142620076 | ||
| 543 | A 3142620076 | BALL SOCKET |
| 546 | A 3222620137 | SYNCHRONIZER CONE |
| 549 | A 3212600469 | SPRING |
| 552 | A 3212620723 | SLIDING COLLAR |
| 555 | A 3222621150 | BUSHING |
| AS REQUIRED | ||
| 44.20 MM | ||
| A 3222625650 | BUSHING | |
| AS REQUIRED | ||
| 44.20 MM | ||
| 555 | A 3222621250 | BUSHING |
| AS REQUIRED | ||
| 44.30 MM | ||
| A 3222625750 | BUSHING | |
| AS REQUIRED | ||
| 44.30 MM | ||
| 555 | A 3222621350 | BUSHING |
| AS REQUIRED | ||
| 44.40 MM | ||
| A 3222625850 | BUSHING | |
| AS REQUIRED | ||
| 44.40 MM | ||
| 555 | A 3222621450 | BUSHING |
| AS REQUIRED | ||
| 44.50 MM | ||
| A 3222625950 | BUSHING | |
| AS REQUIRED | ||
| 44.50 MM | ||
| 555 | A 3222621550 | BUSHING |
| AS REQUIRED | ||
| 44.60 MM | ||
| A 3222626050 | BUSHING | |
| AS REQUIRED | ||
| 44.60 MM | ||
| 555 | A 3222621650 | BUSHING |
| AS REQUIRED | ||
| 44.70 MM | ||
| A 3222626150 | BUSHING | |
| AS REQUIRED | ||
| 44.70 MM | ||
| 555 | A 3222621750 | BUSHING |
| AS REQUIRED | ||
| 44.80 MM | ||
| A 3222626250 | BUSHING | |
| AS REQUIRED | ||
| 44.80 MM | ||
| 555 | A 3222621850 | BUSHING |
| AS REQUIRED | ||
| 44.90 MM | ||
| A 3222626350 | BUSHING | |
| AS REQUIRED | ||
| 44.90 MM | ||
| 561 | N 005402004203 | CYLINDRICAL ROLLER |
| 564 | A 3212620611 | GEAR |
| 1ST SPEED | ||
| 567 | A 0009811201 | CYLINDR. ROLLER BEARING |
| A 3459817001 | CYLINDR. ROLLER BEARING | |
| A 3449817001 | CYLINDR. ROLLER BEARING | |
| A 0049815101 | CYLINDR. ROLLER BEARING | |
| 570 | A 3219940040 | SNAP RING |
| AS REQUIRED | ||
| 2.68 MM | ||
| 570 | A 3219940140 | SNAP RING |
| AS REQUIRED | ||
| 2.73 MM | ||
| 570 | A 3219940240 | SNAP RING |
| AS REQUIRED | ||
| 2.78 MM | ||
| 570 | A 3219940340 | SNAP RING |
| AS REQUIRED | ||
| 2.83 MM | ||
| 570 | A 3219940440 | SNAP RING |
| AS REQUIRED | ||
| 2.88 MM | ||
| 570 | A 3219940540 | SNAP RING |
| AS REQUIRED | ||
| 2.93 MM | ||
| A 0009810627 | ANGULAR CONTACT BEARING | |
| Repalced by: A 0009812927 | ||
| 573 | A 0009812927 | ANGULAR CONTACT BEARING |
| A 0009814227 | ANGULAR CONTACT BEARING | |
| Repalced by: A 3459817127 | ||
| A 3459817127 | ANGULAR CONTACT BEARING | |
| A 3459817227 | ANGULAR CONTACT BEARING | |
| A 3212640530 | DRIVE GEAR | |
| Repalced by: A 3522640030 | ||
| 576 | A 3522640030 | DRIVE GEAR |
| A 3212640532 | SHAFT | |
| Repalced by: A 3142640032 | ||
| 579 | A 3142640032 | SHAFT |
| 582 | A 3212640531 | DRIVE GEAR |
| SPEEDOMETER | ||
| 585 | A 3222620045 | FLANGE |
| 588 | A 3222620072 | NUT |
| FLANGE TO MAIN SHAFT | ||
| 591 | A 3212630502 | COUNTERSHAFT |
| 594 | A 3222630313 | GEAR |
| 2ND AND 3RD SPEED | ||
| 594 | A 3222630513 | GEAR |
| A 3222630314 | GEAR | |
| Repalced by: A 3222630514 | ||
| 597 | A 3222630514 | GEAR |
| 4TH SPEED | ||
| 600 | A 3222630010 | GEAR |
| 603 | N 900055052300 | LOCK RING |
| 606 | A 0019813105 | TAPERED ROLLER BEARING |
| 606 | A 0019815005 | TAPERED ROLLER BEARING |
| 606 | A 0069814305 | TAPERED ROLLER BEARING |
| 606 | A 0069815305 | TAPERED ROLLER BEARING |
| 609 | A 3212650208 | LEVER |
| 612 | A 3212650449 | SLIDE |
| A 3142650349 | SLIDE | |
| A 3212650074 | PIN | |
| Repalced by: A 3022650074 | ||
| 615 | A 3022650074 | PIN |
| LEVER TO TRANSMISSION CASE | ||
| 618 | A 3212650050 | BUSHING |
| LEVER TO TRANSMISSION CASE | ||
| 621 | N 000127010205 | LOCK WASHER |
| LEVER TO TRANSMISSION CASE | ||
| 624 | N 000934010000 | NUT |
| LEVER TO TRANSMISSION CASE | ||
| A 3222600325 | GEAR | |
| Repalced by: A 3222600725 | ||
| 627 | A 3222600725 | GEAR |
| REVERSE SPEED | ||
| 630 | A 3212630430 | REVERSE IDLER SHAFT |
| Repalced by: A 3412637030 | ||
| 630 | A 3412637030 | REVERSE IDLER SHAFT |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
