Transporto priemonė: O 301; VIN numerio dalis: 697006
Grupė: 42 BRAKES
| # | Kodas | Pavadinimas |
|---|---|---|

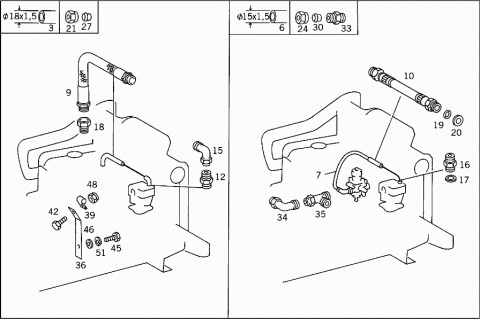

| 003 | A 0004291501 | LINE |
| FROM AIR COMPRESSOR TO COMPRESSED AIR HOSE | ||
| 18 MM | ||

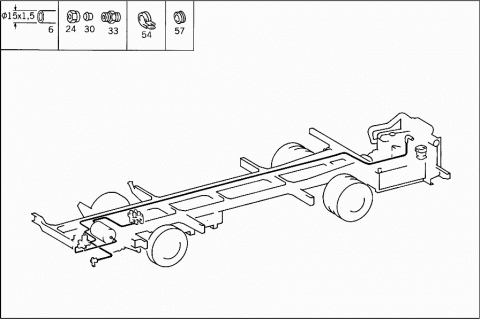

| 006 | A 0004291401 | LINE |
| FROM AIR COMPRESSOR TO COMPRESSED AIR HOSE | ||
| 15 MM | ||
| 006 | A 0004291401 | LINE |
| PRESSURE REGULATOR | ||
| 15 MM | ||
| 006 | A 0004291401 | LINE |
| AIR RESERVOIR,FOUR-CIRCUIT PROTECTIVE VALVE | ||
| 15 MM | ||
| 006 | A 0004291401 | LINE |
| TEST CONNECTION | ||
| 15 MM | ||
| 007 | A 6974200536 | LINE |
| 15 MM | ||
| 009 | A 6979970091 | FLEXIBLE METAL TUBE |
| BETWEEN THE LINES | ||
| 010 | A 0004297735 | BRAKE HOSE |
| BETWEEN THE LINES | ||
| 012 | A 6979970078 | SCREW CONNECTION |
| Repalced by: A 0049970472 | ||
| 012 | A 0049970472 | FITTING |
| AT AIR COMPRESSOR | ||
| 015 | A 0029904871 | ELBOW FITTING |
| AT AIR COMPRESSOR | ||
| 016 | N 074299026203 | DOUBLE FITTING |
| AT AIR COMPRESSOR | ||
| 017 | N 007603026104 | SEAL RING |
| AT AIR COMPRESSOR | ||
| 018 | A 6979970878 | SCREW CONNECTION |
| BETWEEN THE LINES | ||
| 019 | N 915045014100 | SEAL RING |
| LINE CONNECTION | ||
| 020 | A 0004291027 | THRUST RING |
| LINE CONNECTION | ||
| 021 | N 915017018100 | UNION NUT |
| LINE CONNECTION | ||
| 024 | N 915017015100 | UNION NUT |
| LINE CONNECTION | ||
| 024 | N 915018015000 | UNION NUT |
| LINE CONNECTION | ||
| 027 | N 003861018003 | GLAND |
| Repalced by: A 0019901167 | ||
| 027 | A 0019901167 | SEAL CONE |
| LINE CONNECTION | ||
| 030 | N 003861015004 | GLAND |
| LINE CONNECTION | ||
| 033 | N 003902015002 | CONNECTION FITTING |
| BETWEEN THE LINES | ||
| 034 | N 003952015102 | FITTING |
| Repalced by: N 003952015100 | ||
| 034 | N 003952015100 | FITTING |
| COMPRESSED AIR LINE TO PRESSURE REGULATOR | ||
| 035 | N 003954015101 | FITTING |
| COMPRESSED AIR LINE TO PRESSURE REGULATOR | ||
| 036 | A 6974290240 | BRACKET |
| COMPRESSED AIR LINE | ||
| 036 | A 6974291640 | BRACKET |
| Repalced by: A 3434290940 | ||
| 036 | A 3434290940 | BRACKET |
| 036 | A 6974291440 | BRACKET |
| 039 | A 6979950001 | CLAMP |
| Repalced by: N 916016014201 | ||
| 039 | N 916016014201 | CLAMP |
| COMPRESSED AIR LINE | ||
| 18/20 | ||
| 042 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 042 | N 304017008021 | SCREW |
| MOUNTING USED FOR COMPRESSED AIR LINES | ||
| 042 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 042 | N 304017008034 | SCREW |
| MOUNTING USED FOR COMPRESSED AIR LINES | ||
| 045 | N 000933012058 | SCREW |
| MOUNTING USED FOR COMPRESSED AIR LINES | ||
| 045 | N 000933010128 | SCREW |
| MOUNTING USED FOR COMPRESSED AIR LINES | ||
| 046 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 046 | N 000125008443 | WASHER |
| MOUNTING USED FOR COMPRESSED AIR LINES | ||
| 048 | N 913004008004 | NUT |
| MOUNTING USED FOR COMPRESSED AIR LINES | ||
| 051 | N 912004012100 | LOCK WASHER |
| MOUNTING USED FOR COMPRESSED AIR LINES | ||
| 051 | N 912004010102 | LOCK WASHER |
| MOUNTING USED FOR COMPRESSED AIR LINES | ||
| 054 | N 916016015200 | CLAMP |
| MOUNTING USED FOR COMPRESSED AIR LINES | ||
| 15/20 | ||
| 057 | A 0009978181 | GROMMET |
| COMPRESSED AIR LINE TO FRAME | ||

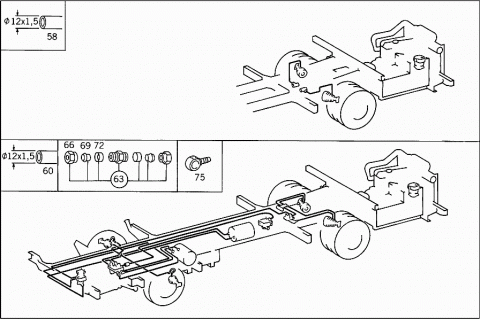

| 058 | A 0004292101 | LINE |
| TRISTOP CYLINDER | ||
| 12 MM | ||
| 058 | A 0004292101 | LINE |
| SHUTTLE VALVE | ||
| 12 MM | ||
| 060 | A 0109975982 | HOSE |
| Repalced by: A 0009872827 | ||
| 060 | A 0009872827 | PLASTIC PIPE |
| AIR RESERVOIR,FOUR-CIRCUIT PROTECTIVE VALVE | ||
| 9X12 MM | ||
| 060 | A 0009872827 | PLASTIC PIPE |
| SERVICE BRAKE VALVE | ||
| 9X12 MM | ||
| 060 | A 0009872827 | PLASTIC PIPE |
| FRONT AXLE BRAKE CIRCUIT | ||
| 9X12 MM | ||
| 060 | A 0009872827 | PLASTIC PIPE |
| CHECK VALVE,RELAY VALVE | ||
| 9X12 MM | ||
| 060 | A 0009872827 | PLASTIC PIPE |
| TRISTOP CYLINDER | ||
| 9X12 MM | ||
| 060 | A 0009872827 | PLASTIC PIPE |
| QUICK-RELEASE VALVE | ||
| 9X12 MM | ||
| 063 | A 0049971772 | FITTING |
| Repalced by: A 0029906171 | ||
| 063 | A 0029906171 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| A 0009907378 | CONNECTOR | |
| REPAIR SIZE | ||
| 066 | N 915017012100 | UNION NUT |
| Repalced by: N 000000006239 | ||
| 066 | N 000000006239 | UNION NUT |
| 069 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 069 | A 0019901967 | SEAL CONE |
| 072 | N 915062009000 | SLEEVE |
| 075 | N 915052009009 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 9X16 MM | ||

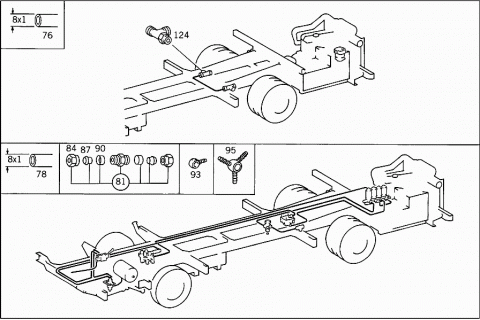

| 076 | A 0004291201 | LINE |
| TOMBAC | ||
| 8 MM | ||
| 076 | A 0004291201 | LINE |
| FROM TWO-WAY VALVE TO TWO-WAY VALVE | ||
| 8 MM | ||
| 078 | A 0089979082 | HOSE |
| Repalced by: A 0009872727 | ||
| 078 | A 0009872727 | PLASTIC PIPE |
| AIR RESERVOIR,RELAY VALVE,TWO-WAY VALVE,HAND BRAKE VALVE | ||
| 6X8 MM | ||
| 078 | A 0009872727 | PLASTIC PIPE |
| DRAIN VALVE | ||
| 6X8 MM | ||
| 078 | A 0009872727 | PLASTIC PIPE |
| CHECK VALVE,HAND BRAKE VALVE,TWO-WAY VALVE,PRESSURE VALVE | ||
| 6X8 MM | ||
| 078 | A 0009872727 | PLASTIC PIPE |
| QUICK-RELEASE VALVE | ||
| 6X8 MM | ||
| 078 | A 0009872727 | PLASTIC PIPE |
| PRESSURE RELIEF VALVE | ||
| 6X8 MM | ||
| 081 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 081 | A 0029905971 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 084 | N 915017008100 | UNION NUT |
| 087 | N 003861008005 | GLAND |
| 087 | N 003861008005 | GLAND |
| 090 | N 915062006000 | SLEEVE |
| 093 | N 915052004015 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/12 MM | ||
| 093 | N 915052006013 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/12 MM | ||
| 093 | N 915052006021 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/14 MM | ||
| 093 | N 915052006014 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/16 MM | ||
| 095 | A 0009909488 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/16 MM | ||

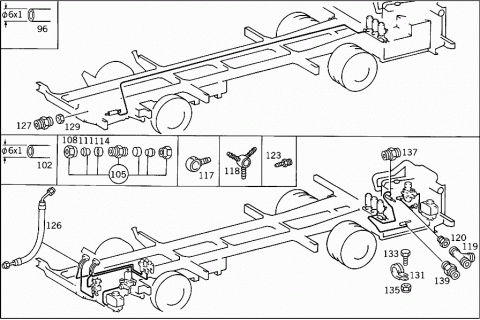

| 096 | A 0004291101 | LINE |
| TOMBAC | ||
| 6 MM | ||
| 096 | A 0004291101 | LINE |
| ENGINE SHUT-OFF | ||
| 6 MM | ||
| 102 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 102 | A 0009872627 | PLASTIC PIPE |
| REFILLING CONNECTION,CHECK VALVE, TEST CONNECTION | ||
| 4X6 MM | ||
| 102 | A 0009872627 | PLASTIC PIPE |
| PRESSURE GAUGE,FOUR-CIRCUIT PROTECTIVE VALVE | ||
| 4X6 MM | ||
| 102 | A 0009872627 | PLASTIC PIPE |
| SERVICE BRAKE VALVE | ||
| 4X6 MM | ||
| 102 | A 0009872627 | PLASTIC PIPE |
| SOLENOID VALVE,EXHAUST BRAKE CYLINDER & GAS RESET CYLINDER | ||
| 4X6 MM | ||
| 102 | A 0009872627 | PLASTIC PIPE |
| FROM PRESSURE REGULATOR TO ANTI-FREEZE DEVICE | ||
| 4X6 MM | ||
| 105 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 108 | N 915017006100 | UNION NUT |
| 111 | N 003861006007 | GLAND |
| 114 | N 915062004000 | SLEEVE |
| 117 | N 915052004019 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/16 MM | ||
| 117 | N 915052004026 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/14 MM | ||
| 117 | N 915052004015 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/12 MM | ||
| 118 | A 0019901788 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/4/12 MM | ||
| 119 | A 0019900170 | T-FITTING |
| REFILLING CONNECTION BRANCH-OFF | ||
| 119 | A 0029901170 | T-FITTING |
| REFILLING CONNECTION BRANCH-OFF | ||
| 120 | A 6979970478 | SCREW CONNECTION |
| REFILLING CONNECTION BRANCH-OFF | ||
| 120 | A 6979970378 | SCREW CONNECTION |
| REFILLING CONNECTION BRANCH-OFF | ||
| 123 | N 915059004001 | FITTING |
| 124 | A 0029901270 | T-FITTING |
| FROM T-FITTING TO RIGHT BRAKE CYLINDER | ||
| 126 | A 3525420035 | HOSE |
| Repalced by: A 3074290035 | ||
| 126 | A 3074290035 | BRAKE HOSE |
| DOUBLE PRESSURE GAUGE | ||
| 126 | A 3074290035 | BRAKE HOSE |
| ENGINE SHUT-OFF AND EXHAUST BRAKE | ||
| A 0029906071 | FITTING | |
| BRAKE HOSE CONNECTION | ||
| A 0019909871 | ELBOW FITTING | |
| BRAKE HOSE CONNECTION | ||
| 127 | A 0019973872 | FITTING |
| Repalced by: A 0009977172 | ||
| 127 | A 0009977172 | FITTING |
| FITTING TO FIRE WALL | ||
| 129 | N 000936012005 | NUT |
| Repalced by: N 308675012000 | ||
| 129 | N 308675012000 | NUT |
| FITTING TO FIRE WALL | ||
| 131 | N 916016006208 | CLAMP |
| MOUNTING USED FOR COMPRESSED AIR LINES | ||
| 131 | N 916016010201 | CLAMP |
| Repalced by: N 916016010211 | ||
| 131 | N 916016010211 | CLAMP |
| Repalced by: N 000000001045 | ||
| 131 | N 000000001045 | CLAMP |
| MOUNTING USED FOR COMPRESSED AIR LINES | ||
| 133 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 133 | N 304017006016 | SCREW |
| MOUNTING USED FOR COMPRESSED AIR LINES | ||
| 135 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 135 | N 913004006001 | NUT |
| MOUNTING USED FOR COMPRESSED AIR LINES | ||
| 137 | N 003952006100 | FITTING |
| Repalced by: A 0019909871 | ||
| 137 | A 0019909871 | ELBOW FITTING |
| EXHAUST BRAKE VALVE LINE CONNECTION | ||
| 139 | A 0039979172 | FITTING |
| ENGINE SHUT-OFF | ||

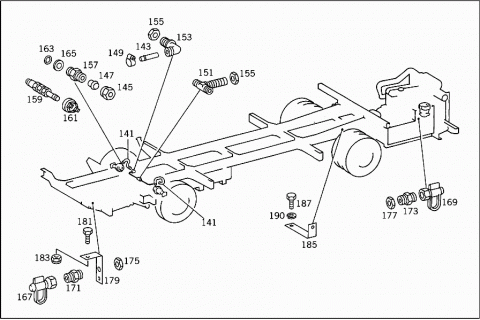

| 141 | N 916027011014 | HOSE |
| FRONT LEFT AND RIGHT,DIAPHRAGM CYLINDERS | ||
| 143 | A 0004290541 | FITTING |
| BRAKE HOSE | ||
| 145 | N 915017012100 | UNION NUT |
| FRONT LEFT AND RIGHT,DIAPHRAGM CYLINDERS | ||
| Repalced by: N 000000006239 | ||
| 145 | N 000000006239 | UNION NUT |
| FRONT LEFT AND RIGHT,DIAPHRAGM CYLINDERS | ||
| 147 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 147 | A 0019901967 | SEAL CONE |
| FRONT LEFT AND RIGHT,DIAPHRAGM CYLINDERS | ||
| 149 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 149 | N 000000000666 | CLAMP |
| FRONT LEFT AND RIGHT,DIAPHRAGM CYLINDERS | ||
| 16-27X13 MM | ||
| 149 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 149 | N 000000000667 | CLAMP |
| FITTING TO BRAKE HOSE | ||
| 151 | A 0019902670 | T-FITTING |
| BRANCH-OFF LEADING TO FRONT AXLE BRAKE CYLINDER | ||
| N 003911012100 | FITTING | |
| Repalced by: A 0009907871 | ||
| 153 | A 0009907871 | ELBOW FITTING |
| FRONT LEFT AND RIGHT,DIAPHRAGM CYLINDERS | ||
| Repalced by: N 000000006195 | ||
| 153 | N 000000006195 | FITTING |
| FRONT LEFT AND RIGHT,DIAPHRAGM CYLINDERS | ||
| 155 | N 000439018204 | NUT |
| T-FITTING | ||
| 155 | N 000439018204 | NUT |
| FITTING TO FRAME SIDE MEMBER | ||
| 157 | A 0029971172 | FITTING |
| DIAPHRAGM CYLINDER CONNECTION | ||
| Repalced by: N 000000006191 | ||
| 157 | N 000000006191 | FITTING |
| DIAPHRAGM CYLINDER CONNECTION | ||
| 159 | A 0019901378 | CONNECTOR |
| DIAPHRAGM CYLINDER CONNECTION | ||
| 161 | A 6734210073 | LOCK |
| 163 | A 0009870446 | O-RING |
| DIAPHRAGM CYLINDER CONNECTION | ||
| 165 | A 0004290227 | THRUST RING |
| DIAPHRAGM CYLINDER CONNECTION | ||
| 167 | A 0004312031 | TEST CONNECTION |
| VOSS | ||
| 167 | A 0004314531 | TEST CONNECTION |
| SCHAEFER | ||
| 167 | A 0004314831 | TEST CONNECTION |
| WABCO | ||
| 167 | A 0004316131 | TEST CONNECTION |
| WIRA | ||
| 167 | A 0004316131 | TEST CONNECTION |
| REFILLING CONNECTION,FRONT | ||
| WIRA | ||
| 167 | A 0004316131 | TEST CONNECTION |
| REAR AXLE TRISTOP CYLINDER | ||
| WIRA | ||
| 169 | A 0004312531 | TEST CONNECTION |
| REFILLING CONNECTION | ||
| A 0019973872 | FITTING | |
| Repalced by: A 0009977172 | ||
| 171 | A 0009977172 | FITTING |
| TEST CONNECTION | ||
| 173 | A 0019972772 | FITTING |
| TEST CONNECTION | ||
| 175 | N 000936012005 | NUT |
| Repalced by: N 308675012000 | ||
| 175 | N 308675012000 | NUT |
| 177 | N 000439014203 | NUT |
| Repalced by: N 308675014001 | ||
| 177 | N 308675014001 | NUT |
| 179 | A 6974360040 | BRACKET |
| Repalced by: A 3634292740 | ||
| 179 | A 3634292740 | BRACKET |
| REFILLING CONNECTION | ||
| 181 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 181 | N 304017008021 | SCREW |
| BRACKET TO FRAME | ||
| 183 | N 913004008004 | NUT |
| BRACKET TO FRAME | ||
| A 6974290740 | BRACKET | |
| Repalced by: A 3184924841 | ||
| 185 | A 3184924841 | BRACKET |
| LEFT REAR AXLE TUBE | ||
| A 6974290640 | BRACKET | |
| Repalced by: A 3812710540 | ||
| 185 | A 3812710540 | BRACKET |
| RIGHT REAR AXLE TUBE | ||
| 187 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 187 | N 304017008016 | SCREW |
| BRACKET TO REAR AXLE | ||
| 190 | N 912004008102 | LOCK WASHER |
| BRACKET TO REAR AXLE | ||

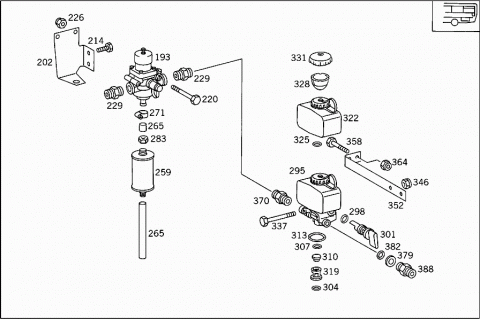

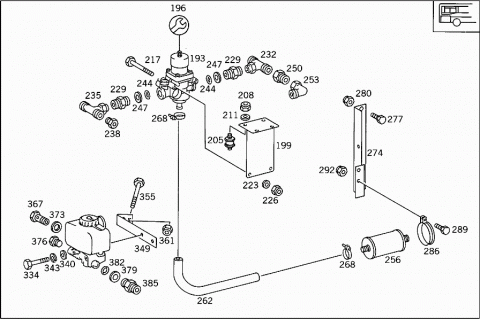

| 193 | A 0024316206 | PRESSURE REGULATOR |
| Repalced by: A 0024316506 | ||
| 193 | A 0024316506 | PRESSURE REGULATOR |
| WABCO | ||
| 196 | A 0014306860 | REPAIR KIT |
| TO 002 431 62 06,WABCO 975 300 156 0 | ||
| 196 | A 0014304960 | REPAIR KIT |
| TO A 002 431 65 06 | ||
| 199 | A 6974300210 | BRACKET |
| PRESSURE REGULATOR AND DRAIN VALVE | ||
| 202 | A 6974315840 | BRACKET |
| PRESSURE REGULATOR | ||
| 205 | A 0019875240 | RUBBER BUFFER |
| BRACKET TO FRAME | ||
| 208 | N 000934008010 | NUT |
| BRACKET TO FRAME | ||
| 211 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 211 | N 009021008213 | WASHER |
| BRACKET TO FRAME | ||
| 214 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 214 | N 304017008021 | SCREW |
| BRACKET TO FRAME | ||
| 217 | N 000931008251 | SCREW |
| PRESSURE REGULATOR TO BRACKET | ||
| M 8X75 MM | ||
| 220 | N 000931008228 | SCREW |
| Repalced by: N 000933008134 | ||
| 220 | N 000933008134 | SCREW |
| PRESSURE REGULATOR TO BRACKET | ||
| M 8X80 MM | ||
| 223 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 223 | N 000125008443 | WASHER |
| PRESSURE REGULATOR TO BRACKET | ||
| 226 | N 913004008004 | NUT |
| PRESSURE REGULATOR TO BRACKET | ||
| 229 | A 6979970278 | SCREW CONNECTION |
| PRESSURE REGULATOR,CONNECTIONS: | ||
| "10,20" | ||
| 229 | A 0009904068 | FITTING |
| PRESSURE REGULATOR,CONNECTIONS: | ||
| 232 | N 003953015100 | FITTING |
| PRESSURE REGULATOR,CONNECTIONS: | ||
| "10,20" | ||
| 235 | N 003952015102 | FITTING |
| Repalced by: N 003952015100 | ||
| 235 | N 003952015100 | FITTING |
| PRESSURE REGULATOR,CONNECTION: | ||
| "20" | ||
| 238 | A 6979970378 | SCREW CONNECTION |
| PRESSURE REGULATOR,CONNECTION: | ||
| "20" | ||
| A 0019902171 | ELBOW FITTING | |
| PRESSURE REGULATOR,CONNECTION: | ||
| "20" | ||
| 244 | A 0009870446 | O-RING |
| PRESSURE REGULATOR,CONNECTIONS: | ||
| "10,20" | ||
| 247 | A 0004290227 | THRUST RING |
| PRESSURE REGULATOR,CONNECTIONS: | ||
| "10,20" | ||
| 250 | A 6979970478 | SCREW CONNECTION |
| PRESSURE REGULATOR,CONNECTION: | ||
| "10" | ||
| N 003952006102 | FITTING | |
| Repalced by: A 0019909871 | ||
| 253 | A 0019909871 | ELBOW FITTING |
| PRESSURE REGULATOR,CONNECTION: | ||
| "10" | ||
| 253 | N 003953006101 | FITTING |
| PRESSURE REGULATOR,CONNECTION: | ||
| "10" | ||
| 256 | A 3074300070 | MUFFLER |
| PRESSURE REGULATOR | ||
| 259 | A 3574300070 | MUFFLER |
| PRESSURE REGULATOR | ||
| 262 | A 1235066335 | HOSE |
| FROM PRESSURE REGULATOR TO MUFFLER | ||
| 265 | N 900271015037 | HOSE |
| HOSE TO MUFFLER AND TO PRESSURE REGULATOR | ||
| 268 | N 916026016001 | CLAMP |
| Repalced by: A 0059970190 | ||
| 268 | A 0059970190 | HOSE CLAMP |
| HOSE TO MUFFLER AND TO PRESSURE REGULATOR | ||
| 268 | N 916026020001 | CLAMP |
| Repalced by: N 000000000667 | ||
| 268 | N 000000000667 | CLAMP |
| HOSE TO MUFFLER AND TO PRESSURE REGULATOR | ||
| 271 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 271 | N 000000000667 | CLAMP |
| HOSE TO MUFFLER AND TO PRESSURE REGULATOR | ||
| 274 | A 6974300439 | SUPPORT |
| MUFFLER | ||
| 277 | N 000933012064 | SCREW |
| BRACKET TO FRAME | ||
| 280 | N 913002012004 | NUT |
| BRACKET TO FRAME | ||
| 283 | N 000439022202 | NUT |
| Repalced by: N 308675022002 | ||
| 283 | N 308675022002 | NUT |
| MUFFLER TO APPARATUS SUPPORT | ||
| 286 | A 6979950135 | CLAMP |
| AT BRACKET | ||
| 289 | N 000933008148 | SCREW |
| Repalced by: N 304017008023 | ||
| 289 | N 304017008023 | SCREW |
| AT BRACKET | ||
| 292 | N 913004008004 | NUT |
| AT BRACKET | ||
| 295 | A 0004313115 | ANTI-FREEZE DEVICE |
| 298 | A 0049977945 | SEAL RING |
| Repalced by: A 0179974148 | ||
| 298 | A 0179974148 | SEAL RING |
| 301 | A 0004311864 | ACTUATING PART |
| 304 | A 0129972548 | SEAL RING |
| 307 | A 0014312860 | SEAL RING |
| 310 | A 0004312981 | VALVE DISC |
| 313 | A 0129972648 | SEAL RING |
| Repalced by: A 0029971640 | ||
| 313 | A 0029971640 | SEAL RING |
| 319 | A 0004315634 | STRAINER |
| 322 | A 0014317302 | RESERVOIR |
| 325 | A 0049978045 | SEAL RING |
| 328 | A 0004315734 | STRAINER |
| 331 | A 0004316133 | FILLER CAP |
| 334 | N 000931008211 | SCREW |
| ANTI-FREEZE PUMP TO BRACKET | ||
| 337 | N 000931008228 | SCREW |
| Repalced by: N 000933008134 | ||
| 337 | N 000933008134 | SCREW |
| ANTI-FREEZE PUMP TO BRACKET | ||
| 340 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 340 | N 000125008443 | WASHER |
| ANTI-FREEZE PUMP TO BRACKET | ||
| 343 | N 912004008102 | LOCK WASHER |
| ANTI-FREEZE PUMP TO BRACKET | ||
| 346 | N 913004008004 | NUT |
| ANTI-FREEZE PUMP TO BRACKET | ||
| 349 | A 6974310840 | BRACKET |
| ANTI-FREEZE PUMP | ||
| 352 | A 6974315940 | BRACKET |
| ANTI-FREEZE PUMP | ||
| 355 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 355 | N 304017006020 | SCREW |
| BRACKET TO BEARING BRACKET | ||
| 358 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 358 | N 304017008034 | SCREW |
| BRACKET TO APPARATUS SUPPORT | ||
| 361 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 361 | N 913004006001 | NUT |
| BRACKET TO BEARING BRACKET | ||
| 364 | N 913004008004 | NUT |
| BRACKET TO APPARATUS SUPPORT | ||
| 367 | N 915036008202 | HOLLOW SCREW |
| ANTI-FREEZE DEVICE | ||
| 370 | A 6989970072 | FITTING |
| Repalced by: A 3899970272 | ||
| 370 | A 3899970272 | FITTING |
| ANTI-FREEZE DEVICE | ||
| 373 | N 007603012405 | SEAL RING |
| ANTI-FREEZE DEVICE | ||
| 376 | N 007604022102 | SCREW PLUG |
| ANTI-FREEZE DEVICE | ||
| 379 | A 0004290227 | THRUST RING |
| ANTI-FREEZE DEVICE | ||
| 382 | A 0009870446 | O-RING |
| ANTI-FREEZE DEVICE | ||
| 385 | A 0009904468 | FITTING |
| ANTI-FREEZE DEVICE | ||
| 388 | A 0009904068 | FITTING |
| 388 | A 6979970278 | SCREW CONNECTION |

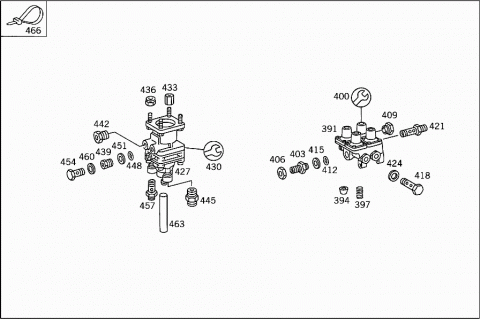

| 391 | A 0014314706 | VALVE |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| WABCO | ||
| 391 | A 0014318406 | VALVE |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| KNORR | ||
| 391 | A 0024310406 | VALVE |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| BOSCH | ||
| 391 | A 0024312906 | VALVE |
| Repalced by: A 0024319306 | ||
| 391 | A 0024319306 | VALVE |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| GRAU | ||
| 394 | A 0014310986 | CUP |
| BOSCH | ||
| 397 | A 0009935205 | SPRING |
| BOSCH | ||
| 400 | A 0025862843 | REPAIR KIT |
| WABCO 2100 | ||
| 400 | A 0004300468 | REPAIR KIT |
| WABCO | ||
| 400 | A 0004302906 | GASKET KIT |
| BOSCH | ||
| 400 | A 0034300881 | REPAIR KIT |
| TO 002 431 93 06 GRAU 74001 | ||
| 400 | A 0004303160 | REPAIR KIT |
| KNORR | ||
| 403 | N 003910015002 | BULKHEAD FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "10" | ||
| 406 | N 000439022202 | NUT |
| Repalced by: N 308675022002 | ||
| 406 | N 308675022002 | NUT |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "10" | ||
| 409 | A 0029971572 | FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "23" | ||
| 412 | A 0009870446 | O-RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "10" | ||
| 415 | A 0004290227 | THRUST RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "10" | ||
| 418 | N 915047012203 | HOLLOW SCREW |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS: | ||
| "11,12,21,22,24" | ||
| 421 | N 915040012206 | HOLLOW SCREW FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "24" | ||
| 424 | N 007603016105 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS: | ||
| "11,12,21,22,24" | ||
| 427 | A 0024317205 | BRAKE VALVE |
| (TWO-CIRCUIT BRAKE VALVE) | ||
| BOSCH | ||
| 427 | A 0024318005 | BRAKE VALVE |
| (TWO-CIRCUIT BRAKE VALVE) | ||
| WABCO | ||
| 427 | A 0024318705 | BRAKE VALVE |
| (TWO-CIRCUIT BRAKE VALVE) | ||
| KNORR | ||
| 430 | A 0025868743 | REPAIR KIT |
| Repalced by: A 0004303506 | ||
| 430 | A 0004303506 | REPAIR KIT |
| BOSCH | ||
| 430 | A 0014300560 | REPAIR KIT |
| WABCO | ||
| 433 | A 6732920072 | NUT |
| Repalced by: N 913004008004 | ||
| 433 | N 913004008004 | NUT |
| BRAKE VALVE TO PEDAL BEARING BRACKET | ||
| 436 | N 913004008004 | NUT |
| BRAKE VALVE TO PEDAL BEARING BRACKET | ||
| 439 | A 0009904468 | FITTING |
| TWO-CIRCUIT BRAKE VALVE,CONNECTIONS: | ||
| "11,21,22" | ||
| 442 | A 0009905168 | FITTING |
| TWO-CIRCUIT BRAKE VALVE,CONNECTIONS: | ||
| "11,21,22" | ||
| 445 | A 0029971172 | FITTING |
| TWO-CIRCUIT BRAKE VALVE,CONNECTIONS: | ||
| "12,22" | ||
| Repalced by: N 000000006191 | ||
| 445 | N 000000006191 | FITTING |
| TWO-CIRCUIT BRAKE VALVE,CONNECTIONS: | ||
| "12,22" | ||
| 448 | A 0009870446 | O-RING |
| TWO-CIRCUIT BRAKE VALVE,CONNECTIONS: | ||
| "11,12,21,22" | ||
| 451 | A 0004290227 | THRUST RING |
| TWO-CIRCUIT BRAKE VALVE,CONNECTIONS: | ||
| "11,12,21,22" | ||
| 454 | N 915036012203 | HOLLOW SCREW |
| TWO-CIRCUIT BRAKE VALVE,CONNECTIONS: | ||
| "11,21" | ||
| 457 | N 915039012205 | HOLLOW SCREW FITTING |
| TWO-CIRCUIT BRAKE VALVE,CONNECTIONS: | ||
| "21,22" | ||
| 460 | N 007603016105 | SEAL RING |
| TWO-CIRCUIT BRAKE VALVE,CONNECTIONS: | ||
| "11,21,22" | ||
| 463 | A 6979971782 | HOSE |
| TWO-CIRCUIT BRAKE VALVE BLEEDING | ||
| 466 | A 0019978390 | LOOM TIE |
| TWO-CIRCUIT BRAKE VALVE BLEEDING | ||

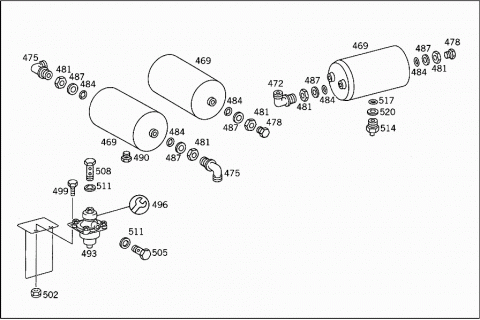

| 469 | A 6974320001 | RESERVOIR |
| Repalced by: A 0034322101 | ||
| 469 | A 0034322101 | RESERVOIR |
| (WET AIR RESERVOIR) | ||
| 30 L | ||
| 469 | A 0034322101 | RESERVOIR |
| FRONT AXLE BRAKE CIRCUIT | ||
| 30 L | ||
| 469 | A 0034322101 | RESERVOIR |
| REAR AXLE BRAKE CIRCUIT | ||
| 30 L | ||
| 472 | A 0019902871 | ELBOW FITTING |
| FROM AIR RESERVOIR TO ANTI-FREEZE DEVICE | ||
| 475 | N 003911015102 | FITTING |
| WET AIR RESERVOIR | ||
| 478 | A 3019900301 | SCREW |
| AIR RESERVOIR | ||
| 481 | N 000439022202 | NUT |
| Repalced by: N 308675022002 | ||
| 481 | N 308675022002 | NUT |
| AIR RESERVOIR | ||
| 484 | A 0009870446 | O-RING |
| COMPRESSED AIR LINE TO AIR RESERVOIR | ||
| 487 | A 0004290227 | THRUST RING |
| COMPRESSED AIR LINE TO AIR RESERVOIR | ||
| 490 | A 0009904468 | FITTING |
| FROM AIR RESERVOIR TO DRAIN VALVE | ||
| 493 | A 0004295444 | VALVE |
| AUTOMATIC DRAIN | ||
| 496 | A 0005868342 | REPAIR KIT |
| DRAIN VALVE | ||
| 499 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 499 | N 304017008021 | SCREW |
| DRAIN VALVE TO BRACKET | ||
| 502 | N 913004008004 | NUT |
| DRAIN VALVE TO BRACKET | ||
| 505 | N 915036008202 | HOLLOW SCREW |
| AIR RESERVOIR DRAIN | ||
| 508 | N 915047008202 | HOLLOW SCREW |
| COMPRESSED AIR LINE TO DRAIN VALVE | ||
| 511 | N 007603012105 | SEAL RING |
| AIR RESERVOIR DRAIN | ||
| 511 | N 007603012111 | SEAL RING |
| COMPRESSED AIR LINE TO DRAIN VALVE | ||
| 514 | A 0004321107 | VALVE |
| AIR RESERVOIR DRAIN | ||
| Repalced by: A 0004322407 | ||
| 514 | A 0004322407 | DRAIN VALVE |
| AIR RESERVOIR DRAIN | ||
| Repalced by: A 0004322107 | ||
| 514 | A 0004322107 | DRAIN VALVE |
| AIR RESERVOIR DRAIN | ||
| 514 | A 0004322107 | VALVE |
| AIR RESERVOIR DRAIN | ||
| 514 | A 0004322407 | VALVE |
| AIR RESERVOIR DRAIN | ||
| Repalced by: A 0004322107 | ||
| 514 | A 0004322107 | DRAIN VALVE |
| AIR RESERVOIR DRAIN | ||
| 514 | A 0004322107 | DRAIN VALVE |
| REAR BRAKE CIRCUIT AIR RESERVOIR | ||
| 517 | A 0009870446 | O-RING |
| DRAIN VALVE TO AIR RESERVOIR | ||
| 520 | A 0004290227 | THRUST RING |
| DRAIN VALVE TO AIR RESERVOIR | ||

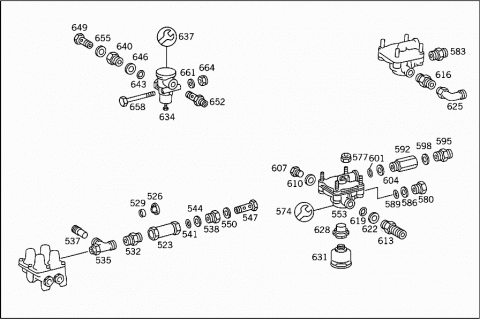

| 523 | A 0034290744 | VALVE |
| (CHECK VALVE) | ||
| 526 | A 0004290088 | VALVE SEAT RING |
| 529 | A 0004290049 | BUSHING |
| A 0004205855 | REPAIR KIT | |
| 532 | A 6979970072 | FITTING |
| CHECK VALVE,CONNECTION: | ||
| "10" | ||
| 532 | A 0029971572 | FITTING |
| CHECK VALVE,CONNECTION: | ||
| "10" | ||
| N 003954012101 | FITTING | |
| Repalced by: A 0019900970 | ||
| 535 | A 0019900970 | T-FITTING |
| CHECK VALVE,CONNECTION: | ||
| "10" | ||
| 535 | A 0029901270 | T-FITTING |
| CHECK VALVE,CONNECTION: | ||
| "10" | ||
| 537 | A 0039971272 | FITTING |
| PARKING BRAKE VALVE PRESSURE-SWITCH | ||
| 538 | A 0009904468 | FITTING |
| CHECK VALVE,CONNECTION: | ||
| "20" | ||
| 541 | A 0009870446 | O-RING |
| CHECK VALVE,CONNECTIONS: | ||
| "10,20" | ||
| 544 | A 0004290227 | THRUST RING |
| CHECK VALVE,CONNECTIONS: | ||
| "10,20" | ||
| 547 | N 915047012203 | HOLLOW SCREW |
| CHECK VALVE,CONNECTION: | ||
| "20" | ||
| 550 | N 007603016105 | SEAL RING |
| CHECK VALVE,CONNECTION: | ||
| "20" | ||
| 553 | A 0014296844 | VALVE |
| (RELAY VALVE) | ||
| WABCO | ||
| 553 | A 0024298444 | VALVE |
| (RELAY VALVE) | ||
| WABCO | ||
| 574 | A 0005865742 | REPAIR KIT |
| TO 001 429 6844,WABCO | ||
| 574 | A 0004309060 | REPAIR KIT |
| TO 002 429 8844,WABCO | ||
| 577 | N 913004008004 | NUT |
| RELAY VALVE TO BRACKET | ||
| 580 | A 6979970178 | SCREW CONNECTION |
| RELAY VALVE,CONNECTION: | ||
| "10" | ||
| 583 | A 0029971172 | FITTING |
| RELAY VALVE,CONNECTION: | ||
| "10" | ||
| Repalced by: N 000000006191 | ||
| 583 | N 000000006191 | FITTING |
| RELAY VALVE,CONNECTION: | ||
| "10" | ||
| 586 | A 0004290227 | THRUST RING |
| RELAY VALVE;CONNECTIONS: | ||
| "10" | ||
| 586 | A 0004290227 | THRUST RING |
| RELAY VALVE BREATHING | ||
| "10" | ||
| 589 | A 0009870446 | O-RING |
| RELAY VALVE,CONNECTION: | ||
| "10" | ||
| 589 | A 0009870446 | O-RING |
| RELAY VALVE BREATHING | ||
| "10" | ||
| 592 | A 6979970578 | SCREW CONNECTION |
| RELAY VALVE,CONNECTION: | ||
| "40" | ||
| 595 | A 0019972572 | FITTING |
| RELAY VALVE,CONNECTION: | ||
| "40" | ||
| Repalced by: N 000000006446 | ||
| 595 | N 000000006446 | FITTING |
| RELAY VALVE,CONNECTION: | ||
| "40" | ||
| 595 | A 0029979572 | FITTING |
| RELAY VALVE,CONNECTION: | ||
| "40" | ||
| 598 | N 007603012405 | SEAL RING |
| RELAY VALVE,CONNECTION: | ||
| "40" | ||
| 598 | N 007603016401 | SEAL RING |
| RELAY VALVE,CONNECTION: | ||
| "40" | ||
| 601 | A 0009971548 | SEAL RING |
| RELAY VALVE,CONNECTION: | ||
| "40" | ||
| 604 | A 0004290927 | THRUST RING |
| RELAY VALVE,CONNECTION: | ||
| "40" | ||
| 607 | N 007604016102 | SCREW PLUG |
| RELAY VALVE,CONNECTION: | ||
| "20" | ||
| 610 | N 007603016105 | SEAL RING |
| RELAY VALVE,CONNECTION: | ||
| "20" | ||
| 613 | N 003910010000 | BULKHEAD FITTING |
| RELAY VALVE,CONNECTION: | ||
| "20" | ||
| 616 | A 0029971572 | FITTING |
| RELAY VALVE,CONNECTION: | ||
| "20" | ||
| 619 | A 0009971548 | SEAL RING |
| RELAY VALVE,CONNECTION: | ||
| "20" | ||
| 622 | A 0004290927 | THRUST RING |
| RELAY VALVE,CONNECTION: | ||
| "20" | ||
| 625 | A 0019902771 | ELBOW FITTING |
| "20" | ||
| 628 | A 6974310035 | CONNECTOR |
| RELAY VALVE | ||
| 631 | A 0004300370 | MUFFLER |
| Repalced by: A 0004302370 | ||
| 631 | A 0004302370 | MUFFLER |
| RELAY VALVE | ||
| 634 | A 0034297644 | VALVE |
| PRESSURE LIMIT | ||
| 637 | A 0014302660 | REPAIR KIT |
| PRESSURE LIMIT VALVE | ||
| 640 | A 0009904468 | FITTING |
| PRESSURE LIMIT VALVE,CONNECTIONS: | ||
| "10,20" | ||
| 643 | A 0009870446 | O-RING |
| PRESSURE LIMIT VALVE,CONNECTIONS: | ||
| "10,20" | ||
| 646 | A 0004290227 | THRUST RING |
| PRESSURE LIMIT VALVE,CONNECTIONS: | ||
| "10,20" | ||
| 649 | N 915036012203 | HOLLOW SCREW |
| PRESSURE LIMIT VALVE,CONNECTIONS: | ||
| "10" | ||
| 649 | N 915036012203 | HOLLOW SCREW |
| PRESSURE LIMIT VALVE,CONNECTIONS: | ||
| "20" | ||
| 652 | N 915039012205 | HOLLOW SCREW FITTING |
| PRESSURE LIMIT VALVE,CONNECTIONS: | ||
| "20" | ||
| 655 | N 007603016105 | SEAL RING |
| PRESSURE LIMIT VALVE,CONNECTIONS: | ||
| "10,20" | ||
| 658 | N 304014008004 | SCREW |
| Repalced by: N 304014008001 | ||
| 658 | N 304014008001 | SCREW |
| PRESSURE LIMIT VALVE TO FRAME | ||
| 661 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 661 | N 000125008443 | WASHER |
| PRESSURE LIMIT VALVE TO FRAME | ||
| 664 | N 913004008004 | NUT |
| PRESSURE LIMIT VALVE TO FRAME | ||
| 667 | A 0014292444 | VALVE |
| (TWO-WAY VALVE),REAR AXLE | ||
| WABCO | ||
| 667 | A 0014292444 | VALVE |
| (TWO-WAY VALVE),REAR AXLE | ||
| WABCO | ||
| 670 | A 0034294644 | VALVE |
| (SHUTTLE VALVE) | ||
| WABCO | ||
| 670 | A 0034295144 | VALVE |
| (SHUTTLE VALVE) | ||
| VOSS | ||
| A 0004290782 | VALVE | |
| Repalced by: A 0004291182 | ||

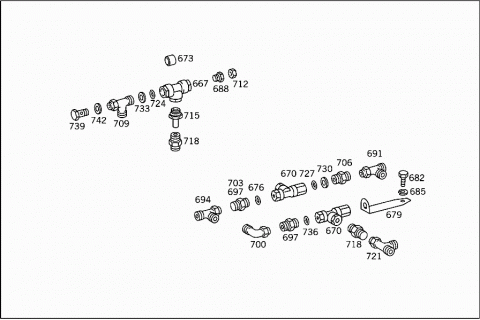

| 673 | A 0004291182 | VALVE BODY |
| TO 001 429 24 44,WABCO | ||
| 676 | A 0109973348 | SEAL RING |
| RO 003 429 46 44,WABCO | ||
| 679 | A 6974291140 | BRACKET |
| Repalced by: A 3184920841 | ||
| 679 | A 3184920841 | BRACKET |
| 682 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 682 | N 304017008021 | SCREW |
| 685 | N 912004008102 | LOCK WASHER |
| 688 | A 0009905168 | FITTING |
| TWO-WAY VALVE,CONNECTIONS: | ||
| "11,20" | ||
| 691 | A 0019900970 | T-FITTING |
| TWO-WAY VALVE,CONNECTION: | ||
| "11" | ||
| 694 | A 0009909970 | T-FITTING |
| TWO-WAY VALVE,CONNECTION: | ||
| "12" | ||
| 697 | A 0039979972 | FITTING |
| TWO-WAY VALVE,CONNECTION: | ||
| "12" | ||
| 700 | A 0019902171 | ELBOW FITTING |
| TWO-WAY VALVE,CONNECTION: | ||
| "12" | ||
| 703 | A 0029971172 | FITTING |
| TWO-WAY VALVE,CONNECTION: | ||
| "12" | ||
| Repalced by: N 000000006191 | ||
| 703 | N 000000006191 | FITTING |
| TWO-WAY VALVE,CONNECTION: | ||
| "12" | ||
| 706 | N 074313012304 | FITTING |
| TWO-WAY VALVE,CONNECTION: | ||
| "10" | ||
| 709 | A 0029901270 | T-FITTING |
| TWO-WAY VALVE,CONNECTION: | ||
| "12" | ||
| 712 | N 000439016203 | NUT |
| TWO-WAY VALVE,CONNECTION: | ||
| "11,20" | ||
| 712 | N 000439018204 | NUT |
| TWO-WAY VALVE,CONNECTION: | ||
| "11" | ||
| 715 | A 6979970072 | FITTING |
| TWO-WAY VALVE,CONNECTION: | ||
| "20" | ||
| 718 | A 0029971572 | FITTING |
| TWO-WAY VALVE,CONNECTION: | ||
| "20" | ||
| 721 | A 0029901270 | T-FITTING |
| TWO-WAY VALVE,CONNECTION: | ||
| "20" | ||
| 724 | A 0009870446 | O-RING |
| TWO-WAY VALVE,CONNECTIONS: | ||
| "11,12" | ||
| 727 | A 0009971548 | SEAL RING |
| TWO-WAY VALVE,CONNECTIONS: | ||
| "11,20" | ||
| 730 | A 0004290627 | THRUST RING |
| TWO-WAY VALVE,CONNECTION: | ||
| "12" | ||
| 733 | A 0004290227 | THRUST RING |
| TWO-WAY VALVE,CONNECTIONS: | ||
| "11,12" | ||
| 733 | A 0004290927 | THRUST RING |
| TWO-WAY VALVE,CONNECTIONS: | ||
| "11,20" | ||
| 736 | A 0079974245 | SEAL RING |
| TWO-WAY VALVE,CONNECTION: | ||
| "12" | ||
| 739 | N 915036012203 | HOLLOW SCREW |
| TWO-WAY VALVE,CONNECTION: | ||
| "12" | ||
| 739 | N 915036012203 | HOLLOW SCREW |
| TWO-WAY VALVE,CONNECTION: | ||
| "11" | ||
| 742 | N 007603016105 | SEAL RING |
| TWO-WAY VALVE,CONNECTIONS: | ||
| "11" | ||

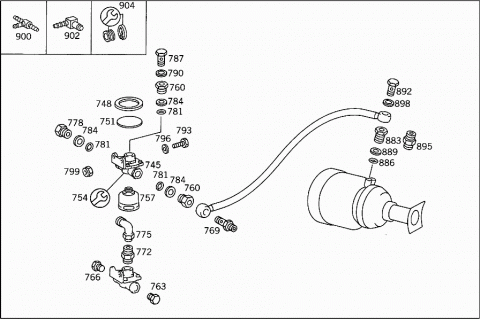

| 745 | A 0034295844 | VALVE |
| (QUICK-RELEASE VALVE),REAR AXLE | ||
| 745 | A 0004294144 | VALVE |
| (QUICK-RELEASE VALVE),REAR AXLE | ||
| 748 | A 0159970448 | SEAL RING |
| 751 | A 0004290345 | DIAPHRAGM |
| 754 | A 0004302468 | REPAIR KIT |
| QUICK-RELEASE VALVE | ||
| 757 | A 0004300370 | MUFFLER |
| Repalced by: A 0004302370 | ||
| 757 | A 0004302370 | MUFFLER |
| QUICK-RELEASE VALVE | ||
| 760 | A 0009904468 | FITTING |
| QUICK-RELEASE VALVE,CONNECTION: | ||
| "10" | ||
| 763 | A 0009905168 | FITTING |
| QUICK-RELEASE VALVE,CONNECTIONS: | ||
| "10,20" | ||
| 766 | N 007604022102 | SCREW PLUG |
| QUICK-RELEASE VALVE,CONNECTION: | ||
| "20" | ||
| 769 | N 915039012205 | HOLLOW SCREW FITTING |
| QUICK-RELEASE VALVE,LEFT CONNECTION | ||
| 772 | A 0029971172 | FITTING |
| QUICK-RELEASE VALVE,CONNECTION: | ||
| "11" | ||
| Repalced by: N 000000006191 | ||
| 772 | N 000000006191 | FITTING |
| QUICK-RELEASE VALVE,CONNECTION: | ||
| "11" | ||
| 775 | A 0019902771 | ELBOW FITTING |
| QUICK-RELEASE VALVE,CONNECTION: | ||
| "11" | ||
| 778 | A 6979970178 | SCREW CONNECTION |
| QUICK-RELEASE VALVE,RIGHT CONNECTION | ||
| 781 | A 0009870446 | O-RING |
| QUICK-RELEASE VALVE,CONNECTIONS: | ||
| "10,20" | ||
| 784 | A 0004290227 | THRUST RING |
| QUICK-RELEASE VALVE,CONNECTIONS: | ||
| "10,20" | ||
| 787 | N 915036012203 | HOLLOW SCREW |
| QUICK-RELEASE VALVE,CONNECTIONS: | ||
| "10,20" | ||
| 790 | N 007603016105 | SEAL RING |
| QUICK-RELEASE VALVE,CONNECTIONS: | ||
| "10,20" | ||
| 793 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 793 | N 304017008034 | SCREW |
| QUICK-RELEASE VALVE TO SIDE MEMBER | ||
| 796 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 796 | N 000125008443 | WASHER |
| QUICK-RELEASE VALVE TO SIDE MEMBER | ||
| 799 | N 913004008004 | NUT |
| QUICK-RELEASE VALVE TO SIDE MEMBER | ||

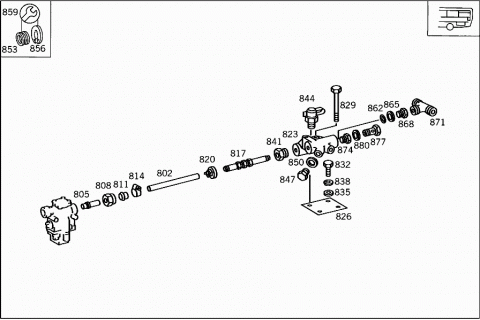

| 802 | N 916027011014 | HOSE |
| FROM VALVE TO DISTRIBUTOR | ||
| 805 | A 0004290541 | FITTING |
| FROM VALVE TO DISTRIBUTOR | ||
| 808 | N 915017012100 | UNION NUT |
| FROM VALVE TO DISTRIBUTOR | ||
| Repalced by: N 000000006239 | ||
| 808 | N 000000006239 | UNION NUT |
| FROM VALVE TO DISTRIBUTOR | ||
| 811 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 811 | A 0019901967 | SEAL CONE |
| FROM VALVE TO DISTRIBUTOR | ||
| 814 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 814 | N 000000000666 | CLAMP |
| FROM VALVE TO DISTRIBUTOR | ||
| 16-27X13 MM | ||
| 817 | A 0019901378 | CONNECTOR |
| COMPRESSED AIR LINE TO DISTRIBUTOR | ||
| TO M 22 | ||
| 820 | A 6734210073 | LOCK |
| TORSION PREVENTER,BRAKE HOSE | ||
| TO M 22 | ||
| 823 | A 6734290037 | DISTRIBUTOR |
| COMPRESSED AIR LINE | ||
| 826 | A 6974290540 | BRACKET |
| DISTRIBUTOR | ||
| 829 | N 000931008244 | SCREW |
| DISTRIBUTOR TO REAR AXLE | ||
| M 8X45 | ||
| 832 | N 000933008148 | SCREW |
| Repalced by: N 304017008023 | ||
| 832 | N 304017008023 | SCREW |
| DISTRIBUTOR TO REAR AXLE | ||
| M 8X20 | ||
| 835 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 835 | N 000125008443 | WASHER |
| DISTRIBUTOR TO REAR AXLE | ||
| 838 | N 912004008102 | LOCK WASHER |
| DISTRIBUTOR TO REAR AXLE | ||
| 841 | A 0009970934 | UNION SCREW |
| AT DISTRIBUTOR | ||
| TO M 22 | ||
| 844 | A 0004317031 | TEST CONNECTION |
| AT DISTRIBUTOR | ||
| 844 | A 0004318831 | TEST CONNECTION |
| AT DISTRIBUTOR | ||
| 847 | N 007604012102 | SCREW PLUG |
| AT DISTRIBUTOR | ||
| Repalced by: N 007604012105 | ||
| 847 | N 007604012105 | SCREW PLUG |
| AT DISTRIBUTOR | ||
| 850 | N 007603012111 | SEAL RING |
| AT DISTRIBUTOR | ||
| 853 | A 0009940147 | SEAL RING |
| AT DISTRIBUTOR | ||
| TO M 22 | ||
| 856 | A 0009941448 | LOCK |
| AT DISTRIBUTOR | ||
| TO M 22 | ||
| 859 | A 6739970145 | TS SEALING RING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| TO M 22 | ||
| 862 | A 0009870446 | O-RING |
| DISTRIBUTOR,CONNECTION: | ||
| "21,22" | ||
| 865 | A 0004290227 | THRUST RING |
| DISTRIBUTOR,CONNECTION: | ||
| "21,22" | ||
| 868 | A 0029971172 | FITTING |
| DISTRIBUTOR,CONNECTION: | ||
| "21,22" | ||
| Repalced by: N 000000006191 | ||
| 868 | N 000000006191 | FITTING |
| DISTRIBUTOR,CONNECTION: | ||
| "21,22" | ||
| 871 | A 0019903170 | T-FITTING |
| DISTRIBUTOR,CONNECTION: | ||
| "21" | ||
| 874 | A 0009905168 | FITTING |
| DISTRIBUTOR,CONNECTION: | ||
| "22" | ||
| 877 | N 915047012203 | HOLLOW SCREW |
| DISTRIBUTOR,CONNECTION: | ||
| "22" | ||
| 880 | N 007603016401 | SEAL RING |
| DISTRIBUTOR,CONNECTION: | ||
| "22" | ||
| 883 | A 0009904468 | FITTING |
| REAR AXLE TRISTOP CYLINDER | ||
| 886 | A 0009870446 | O-RING |
| TRISTOP CYLINDER;CONNECTION: | ||
| "11,12" | ||
| 889 | A 0004290227 | THRUST RING |
| TRISTOP CYLINDER;CONNECTION: | ||
| "11,12" | ||
| 892 | N 915036012203 | HOLLOW SCREW |
| COMPRESSED AIR LINES TO TRISTOP CYLINDER | ||
| 895 | A 0029971172 | FITTING |
| TRISTOP CYLINDER;CONNECTION: | ||
| "11,12" | ||
| Repalced by: N 000000006191 | ||
| 895 | N 000000006191 | FITTING |
| TRISTOP CYLINDER;CONNECTION: | ||
| "11,12" | ||
| 898 | N 007603016401 | SEAL RING |
| COMPRESSED AIR LINES TO TRISTOP CYLINDER | ||
| 900 | A 0019908370 | T-FITTING |
| (TRISTOP CYLINDER),LEFT | ||
| TO M 22 | ||
| 902 | A 0019908171 | ELBOW FITTING |
| TRISTOP CYLINDER,EXHAUST BRAKE | ||
| TO M 22 | ||
| 904 | A 6739970145 | TS SEALING RING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| TO M 22 | ||

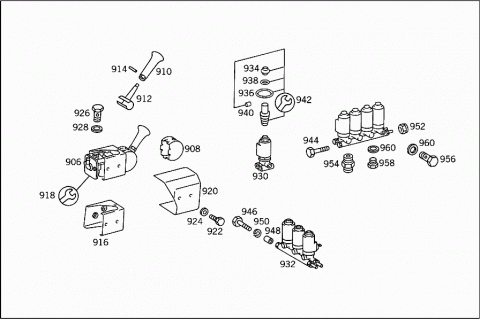

| 906 | A 0014305281 | VALVE |
| (PARKING BRAKE VALVE) | ||
| 908 | A 0014310887 | PROTECTIVE CAP |
| 910 | A 0009972777 | HANDLE |
| 912 | A 0004312139 | LEVER |
| Repalced by: A 0034302881 | ||
| 912 | A 0034302881 | REPAIR KIT |
| HAND BRAKE LEVER | ||
| 914 | A 0009910855 | PIN |
| 916 | A 3074200068 | SUPPORT |
| 918 | A 0025867243 | REPAIR KIT |
| Repalced by: A 0034303381 | ||
| 918 | A 0034303381 | REPAIR KIT |
| PARKING BRAKE VALVE | ||
| 920 | A 3574310062 | COVERING |
| PARKING BRAKE VALVE | ||
| 922 | N 000933004037 | SCREW |
| HAND BRAKE VALVE COVERING | ||
| 924 | N 000125004311 | WASHER |
| Repalced by: N 000125004319 | ||
| 924 | N 000125004319 | WASHER |
| HAND BRAKE VALVE COVERING | ||
| 926 | N 915036008202 | HOLLOW SCREW |
| COMPRESSED AIR LINE TO PARKING BRAKE VALVE | ||
| 926 | N 915036008202 | HOLLOW SCREW |
| COMPRESSED AIR LINE TO PARKING BRAKE VALVE | ||
| 926 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 926 | N 915036010108 | HOLLOW SCREW |
| COMPRESSED AIR LINE TO PARKING BRAKE VALVE | ||
| 928 | N 007603012405 | SEAL RING |
| COMPRESSED AIR LINE TO PARKING BRAKE VALVE | ||
| 928 | N 007603014106 | SEAL RING |
| COMPRESSED AIR LINE TO PARKING BRAKE VALVE | ||
| 930 | A 0039971136 | VALVE |
| Repalced by: A 0039975336 | ||
| 930 | A 0039975336 | VALVE |
| Repalced by: A 0049975736 | ||
| 930 | A 0049975736 | VALVE |
| (SOLENOID VALVE),SECONDARY CONSUMING UNITS,EMERGENCY RELEASE DEVICE | ||
| 930 | A 0049975736 | VALVE |
| (3/2-WAY SOLENOID VALVE) BUS STOP BRAKE | ||
| 932 | A 0039971236 | VALVE |
| (3/2-WAY SOLENOID VALVE) | ||
| 932 | A 0039971336 | VALVE |
| (3/2-WAY SOLENOID VALVE) | ||
| 934 | A 0014310087 | PROTECTIVE CAP |
| 936 | A 0109974448 | SEAL RING |
| 24X2 MM | ||
| 938 | A 0079970248 | SEAL RING |
| 17.3X2.4 MM | ||
| 940 | A 0049970640 | SEAL RING |
| BETWEEN THE VALVES | ||
| 7X12X11.5 MM | ||
| 942 | A 0004305660 | REPAIR KIT |
| 944 | N 000931008222 | SCREW |
| 3/2-WAY VALVE TO BRACKET | ||
| M 8X125 MM | ||
| 944 | N 000931008340 | SCREW |
| 3/2-WAY VALVE TO BRACKET | ||
| M 8X160 MM | ||
| 946 | N 000931008401 | SCREW |
| 3/2-WAY SOLENOID VALVE TO FRAME SIDE MEMBER | ||
| M 8X135 MM | ||
| 948 | A 6979921501 | BUSHING |
| 3/2-WAY SOLENOID VALVE TO FRAME SIDE MEMBER | ||
| 950 | N 912004008102 | LOCK WASHER |
| 3/2-WAY SOLENOID VALVE TO FRAME SIDE MEMBER | ||
| 952 | N 913004008004 | NUT |
| 3/2-WAY VALVE TO BRACKET | ||
| 952 | N 913004008004 | NUT |
| THREE-WAY VALVE TO SUBSTRUCTURE | ||
| 954 | A 0019972572 | FITTING |
| 3/2-WAY VALVE;CONNECTION: | ||
| "10" | ||
| Repalced by: N 000000006446 | ||
| 954 | N 000000006446 | FITTING |
| 3/2-WAY VALVE;CONNECTION: | ||
| "10" | ||
| 956 | N 915036008202 | HOLLOW SCREW |
| 3/2-WAY VALVE;CONNECTIONS: | ||
| "21,22,23" | ||
| N 915047008202 | HOLLOW SCREW | |
| FROM 3/2-WAY VALVE TO EXHAUST BRAKE CYLINDER | ||
| 958 | N 007604012102 | SCREW PLUG |
| 3/2-WAY VALVE;CONNECTIONS: | ||
| "20" | ||
| Repalced by: N 007604012105 | ||
| 958 | N 007604012105 | SCREW PLUG |
| 3/2-WAY VALVE;CONNECTIONS: | ||
| "20" | ||
| 960 | N 007603012111 | SEAL RING |
| 3/2-WAY VALVE;CONNECTIONS: | ||
| "10,21,22,23" | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
