Transporto priemonė: O 301; VIN numerio dalis: 697006
Grupė: 25 CLUTCH
| # | Kodas | Pavadinimas |
|---|---|---|

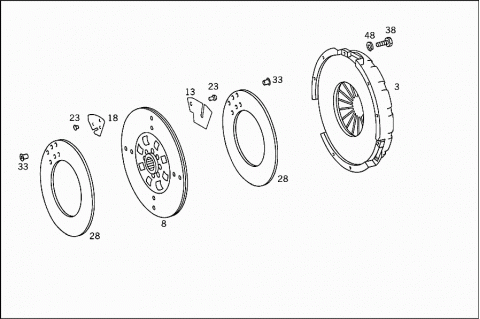

| 003 | A 0032509804 | CLUTCH PRESSURE PLATE |
| 003 | A 0032509904 | CLUTCH PRESSURE PLATE |
| 008 | A 0072509803 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 008 | A 0072509903 | CLUTCH DISC |
| Repalced by: A 0132509803 | ||
| 008 | A 0132509803 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 008 | A 0082500603 | CLUTCH DISC |
| Repalced by: A 0132509503 | ||
| 008 | A 0132509503 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 013 | A 0002522819 | LEAF SPRING |
| Repalced by: A 0002524919 | ||
| 013 | A 0002524919 | LEAF SPRING |
| 018 | A 0002523519 | LEAF SPRING |
| Repalced by: A 0002524719 | ||
| 018 | A 0002524719 | LEAF SPRING |
| 023 | A 0002522075 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| 5X6 MM | ||
| 023 | A 0002523975 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| 6X6 MM | ||
| 028 | A 0012525110 | CLUTCH LINING |
| Repalced by: A 0012527410 | ||
| 028 | A 0012527410 | CLUTCH LINING |
| ASBESTOS-FREE | ||
| 028 | A 0012524710 | CLUTCH LINING |
| Repalced by: A 0012529010 | ||
| 028 | A 0012529010 | CLUTCH LINING |
| ASBESTOS-FREE | ||
| 033 | A 0002521275 | RIVET |
| Repalced by: A 0002524375 | ||
| 033 | A 0002524375 | RIVET |
| LINING WITH INTERMEDIATE SPRING | ||
| 033 | A 0002521475 | RIVET |
| Repalced by: A 0002523875 | ||
| 033 | A 0002523875 | RIVET |
| LINING WITH CLUTCH DISC | ||
| 038 | N 000933008317 | SCREW |
| CLUTCH TO FLYWHEEL | ||
| 038 | N 000931008311 | SCREW |
| Repalced by: N 304017008030 | ||
| 038 | N 304017008030 | SCREW |
| CLUTCH TO FLYWHEEL | ||
| 048 | N 912004008102 | LOCK WASHER |
| CLUTCH TO FLYWHEEL | ||

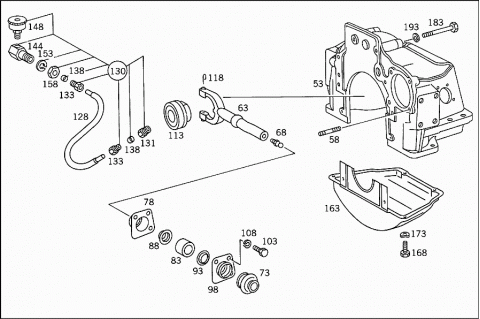

| 053 | A 3812510501 | BELL HOUSING |
| 058 | A 0009902605 | STUD |
| BELL HOUSING | ||
| 063 | A 3812540208 | RELEASE LEVER |
| (RELEASE YOKE) | ||
| 068 | A 3029910015 | BALL PIVOT |
| RELEASE YOKE | ||
| 068 | A 3529910415 | BALL PIVOT |
| RELEASE YOKE | ||
| 073 | A 6152540097 | BOOT |
| RELEASE YOKE | ||
| 078 | A 3812540540 | BRACKET |
| INSIDE | ||
| 083 | A 3802540035 | BEARING |
| RELEASE YOKE | ||
| 083 | A 3802540135 | BEARING |
| RELEASE YOKE | ||
| 088 | A 3802540059 | SEAL RING |
| RELEASE YOKE | ||
| 088 | A 3802540259 | SEAL RING |
| RELEASE YOKE | ||
| 093 | A 3802540159 | SEAL RING |
| RELEASE YOKE | ||
| 093 | A 3802540359 | SEAL RING |
| RELEASE YOKE | ||
| 098 | A 3812500243 | BRACKET |
| OUTSIDE | ||
| 103 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 103 | N 304017008021 | SCREW |
| BRACKET TO BELL HOUSING | ||
| 108 | N 912004008102 | LOCK WASHER |
| BRACKET TO BELL HOUSING | ||
| 113 | A 0002504215 | RELEASE BEARING |
| 113 | A 0002504615 | RELEASE BEARING |
| Repalced by: A 0012509315 | ||
| 113 | A 0012509315 | RELEASE BEARING |
| 118 | A 3812540113 | SPRING LOCK |
| RELEASE BEARING TO RELEASE LEVER | ||
| 128 | A 3059971982 | HOSE |
| RELEASE BEARING LUBRICATION | ||
| 130 | A 6209970288 | GREASE NIPPLE |
| (PARTS KIT) RELEASE BEARING LUBRICATION | ||
| 131 | N 071428004102 | SCREW-IN FITTING |
| RELEASE BEARING LUBRICATION | ||
| 133 | N 003871004102 | UNION SCREW |
| RELEASE BEARING LUBRICATION | ||
| 138 | N 003862004001 | DOUBLE TAPER RING |
| RELEASE BEARING LUBRICATION | ||
| 144 | A 6209970088 | GREASE NIPPLE |
| RELEASE BEARING LUBRICATION | ||
| 148 | A 6209880135 | CAP |
| RELEASE BEARING LUBRICATION | ||
| 153 | N 912004014100 | LOCK WASHER |
| RELEASE BEARING LUBRICATION | ||
| 158 | N 000936014010 | NUT |
| Repalced by: N 308675014000 | ||
| 158 | N 308675014000 | NUT |
| Repalced by: N 308675014002 | ||
| 158 | N 308675014002 | NUT |
| RELEASE BEARING LUBRICATION | ||
| 163 | A 3812501005 | HOUSING |
| Repalced by: A 6762500105 | ||
| 163 | A 6762500105 | HOUSING |
| Repalced by: A 6762510002 | ||
| 163 | A 6762510002 | BELL HOUSING |
| LOWER PART | ||
| A 3522500055 | PROTECTIVE PLATE | |
| Repalced by: A 3522510106 | ||
| A 3522510106 | PROTECTIVE PLATE | |
| BELL HOUSING | ||
| 168 | N 914125006306 | SCREW |
| Repalced by: N 910106006006 | ||
| 168 | N 910106006006 | HEXAGON HEAD BOLT |
| Repalced by: N 000000002270 | ||
| 168 | N 000000002270 | SCREW |
| BELL HOUSING LOWER PART TO BELL HOUSING | ||
| 173 | N 000137006204 | SPRING WASHER |
| BELL HOUSING LOWER PART TO BELL HOUSING | ||
| 183 | N 900170012005 | SCREW |
| Repalced by: A 0029906804 | ||
| 183 | A 0029906804 | SCREW |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| M 12X35 | ||
| 183 | N 000931012206 | SCREW |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| M 12X145 | ||
| 193 | N 912004012100 | LOCK WASHER |
| BELL HOUSING TO CYLINDER CRANKCASE | ||

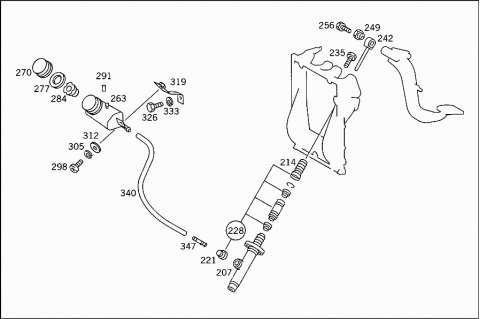

| 207 | A 0012952506 | MASTER CYLINDER |
| Repalced by: A 0012955306 | ||
| 207 | A 0012955306 | MASTER CYLINDER |
| Repalced by: A 0012959706 | ||
| 207 | A 0012959706 | MASTER CYLINDER |
| CLUTCH | ||
| 214 | A 0002954983 | BOOT |
| 221 | A 0009971186 | PLUG |
| 228 | A 0002902367 | REPAIR KIT |
| Repalced by: A 0002900512 | ||
| 228 | A 0002900512 | REPAIR KIT |
| CLUTCH MASTER CYLINDER | ||
| 235 | N 000933006130 | SCREW |
| MASTER CYLINDER TO BEARING BRACKET | ||
| 242 | A 1262900339 | ROD |
| MASTER CYLINDER | ||
| 242 | A 6732900439 | ROD |
| MASTER CYLINDER | ||
| 249 | A 1232950150 | BUSHING |
| ECCENTRIC | ||
| 256 | N 000933008168 | SCREW |
| ROD TO CLUTCH PEDAL | ||
| 263 | A 0002951715 | RESERVOIR |
| EXPANSION TANK | ||
| 270 | A 0002950116 | LOCKING CAP |
| 277 | A 0009972940 | SEAL RING |
| 284 | A 0004314334 | STRAINER |
| 291 | A 0009885435 | CAP |
| RESERVOIR DE-AERATION | ||
| 298 | N 007985006157 | SCREW |
| Repalced by: N 000000001145 | ||
| 298 | N 000000001145 | SCREW |
| EXPANSION TANK TO BRACKET | ||
| 305 | N 912004006102 | LOCK WASHER |
| EXPANSION TANK TO BRACKET | ||
| 312 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 312 | N 009021006208 | WASHER |
| EXPANSION TANK TO BRACKET | ||
| 319 | A 3872900433 | BRACKET |
| RESERVOIR | ||
| 326 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 326 | N 304017006016 | SCREW |
| BRACKET TO BASE FRAME | ||
| 333 | N 912004006102 | LOCK WASHER |
| BRACKET TO BASE FRAME | ||
| 340 | A 0009978952 | HOSE |
| FROM RESERVOIR TO MASTER CYLINDER | ||
| 347 | A 0002950836 | INTERMEDIATE PIECE |
| REFILLING LINE TO MASTER CYLINDER | ||

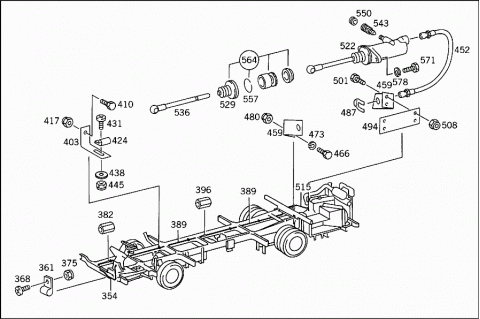

| 354 | A 3812902513 | LINE |
| Repalced by: A 3812902214 | ||
| 354 | A 3812902214 | LINE |
| FROM CLUTCH MASTER CYLINDER TO CONNECTOR | ||
| 2000 MM | ||
| 361 | A 3609950301 | CLAMP |
| LINE TO FRONT CROSS MEMBER | ||
| 368 | N 000000001147 | SCREW |
| LINE TO FRONT CROSS MEMBER | ||
| M 6X20 | ||
| 375 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 375 | N 913004006001 | NUT |
| LINE TO FRONT CROSS MEMBER | ||
| 382 | A 0002950736 | INTERMEDIATE PIECE |
| FRONT | ||
| 389 | A 3812909813 | LINE |
| Repalced by: A 3812902414 | ||
| 389 | A 3812902414 | LINE |
| FROM CONNECTOR TO CLUTCH HYDRAULIC HODE BRACKET | ||
| 3000 MM | ||
| 396 | A 0002950736 | INTERMEDIATE PIECE |
| BETWEEN THE LINES | ||
| 403 | A 3812950440 | BRACKET |
| LINE TO SIDE MEMBER | ||
| 410 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 410 | N 304017006020 | SCREW |
| LINE TO SIDE MEMBER | ||
| 417 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 417 | N 913004006001 | NUT |
| LINE TO SIDE MEMBER | ||
| 424 | A 3609950301 | CLAMP |
| LINE TO BRACKET | ||
| 431 | N 000000001147 | SCREW |
| LINE TO BRACKET | ||
| M 6X20 | ||
| 438 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 438 | N 009021006208 | WASHER |
| LINE TO BRACKET | ||
| 445 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 445 | N 913004006001 | NUT |
| LINE TO BRACKET | ||
| 452 | A 0002951835 | HOSE |
| (HIGH PRESSURE HOSE) | ||
| 459 | A 6162951540 | BRACKET |
| 466 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 466 | N 304017008021 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 8X20 | ||
| 466 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 466 | N 304017006020 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 466 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 466 | N 304017008034 | SCREW |
| BRACKET TO BRACKET | ||
| M 8X25 | ||
| 473 | N 912004008102 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 473 | N 912004006102 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 480 | N 913004008004 | NUT |
| BRACKET TO BRACKET | ||
| 487 | A 0004280473 | BRACKET |
| Repalced by: A 6525040038 | ||
| 487 | A 6525040038 | MOUNTING PLATE |
| HOSE TO BRACKET | ||
| 494 | A 6972950040 | BRACKET |
| HYDRAULIC LINE | ||
| 501 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 501 | N 304017008034 | SCREW |
| BRACKET TO BRACKET | ||
| 508 | N 913004008004 | NUT |
| BRACKET TO BRACKET | ||
| 515 | A 3812907413 | LINE |
| Repalced by: A 3812901514 | ||
| 515 | A 3812901514 | LINE |
| FROM HYDRAULIC HOSE TO CLUTCH SLAVE CYLINDER | ||
| 400 MM | ||
| 522 | A 0002957207 | SLAVE CYLINDER |
| CLUTCH | ||
| 529 | A 0002952983 | BOOT |
| 536 | A 0002950233 | ROD |
| 543 | A 3075530107 | VALVE |
| 550 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 550 | A 0004217187 | PROTECTIVE CAP |
| 557 | N 071805016402 | CIRCLIP |
| ROD TO RELEASE LEVER | ||
| 564 | A 0005864329 | REPAIR KIT |
| Repalced by: A 0002900811 | ||
| 564 | A 0002900811 | REPAIR KIT |
| CLUTCH SLAVE CYLINDER | ||
| 571 | N 000933010157 | SCREW |
| CLUTCH SLAVE CYLINDER TO SUPPORTING ARM | ||
| 578 | N 912004010102 | LOCK WASHER |
| CLUTCH SLAVE CYLINDER TO SUPPORTING ARM | ||
