Transporto priemonė: O 301; VIN numerio dalis: 697006
Grupė: 30 CONTROL

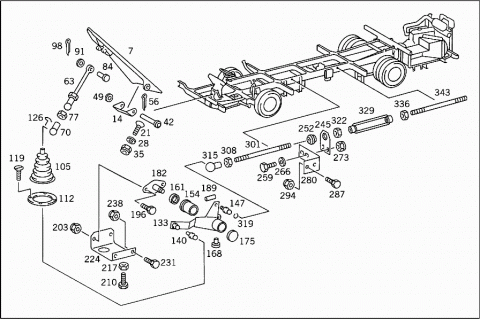

27598

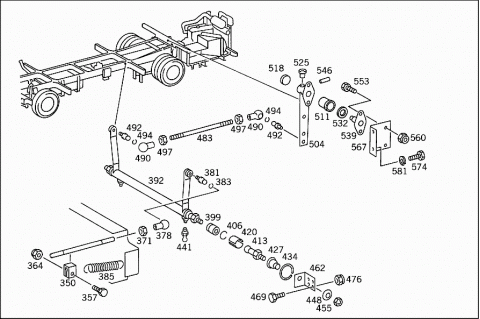

27599

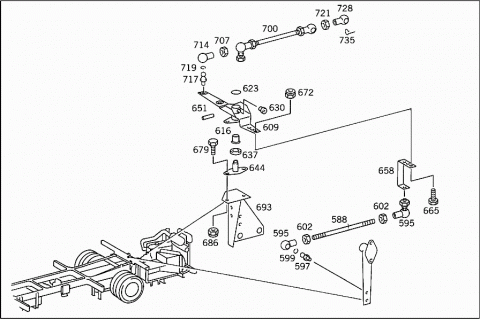

27600

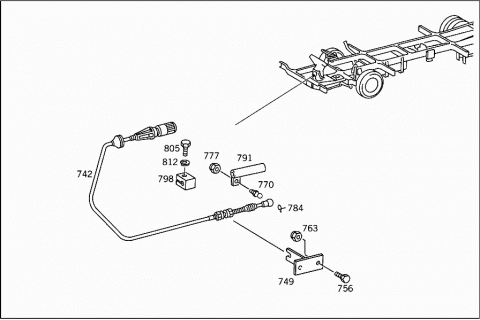

27601
# Kodas Pavadinimas
007 A 3073010002 PEDAL PLATE
ACCELERATOR PEDAL
014 A 3013010305 ARTICULATION PIECE
ACCELERATOR PEDAL
021 N 000933008147 SCREW
Repalced by: N 304017008021
021 N 304017008021 SCREW
ARTICULATION ELEMENT TO FLOOR
028 A 3129901940 WASHER
ARTICULATION ELEMENT TO FLOOR
N 912004008102 LOCK WASHER
ARTICULATION ELEMENT TO FLOOR
035 N 913004008004 NUT
ARTICULATION ELEMENT TO FLOOR
042 N 001444010224 PIN
ACCELERATOR PEDAL TO JOINT
049 N 000125010518 WASHER
Repalced by: N 000125010532
049 N 000125010532 WASHER
ACCELERATOR PEDAL TO JOINT
056 N 000094003210 COTTER PIN
ACCELERATOR PEDAL TO JOINT
063 A 3073000415 ROD
FROM PEDAL PLATE TO LEVER
070 N 071805013203 BALL SOCKET
077 N 000934008010 NUT
084 N 001434006099 PIN
ROD TO PEDAL PLATE
084 N 001444006228 PIN
ROD TO PEDAL PLATE
091 N 000125006421 WASHER
ROD TO PEDAL PLATE
098 N 000094001617 COTTER PIN
ROD TO PEDAL PLATE
105 A 6973010097 BOOT
112 A 6973010076 WASHER
BOOT TO CAB FLOOR
119 N 000964004000 SCREW
BOOT TO CAB FLOOR
126 N 071805013402 CIRCLIP
ROD TO LEVER
N 071805013402 CIRCLIP
ROD TO LEVER
N 000934008010 NUT
ROD TO LEVER
N 912004008102 LOCK WASHER
ROD TO LEVER
133 A 6973000028 LEVER
140 N 071803013208 BALL PIVOT
13X5 MM
147 N 071803010202 BALL PIVOT
10X45 MM
154 A 3073010150 BUSHING
161 A 0089974046 SEAL RING
168 A 0009970488 GREASE NIPPLE
175 N 000470020000 EXPANSION PLUG
182 A 3073000074 PIN
189 N 000007003104 CYLINDRICAL PIN
196 N 000933008147 SCREW
Repalced by: N 304017008021
196 N 304017008021 SCREW
DOUBLE LEVER TO SUBSTRUCTURE
203 N 913004008004 NUT
DOUBLE LEVER TO SUBSTRUCTURE
210 N 000933008160 SCREW
Repalced by: N 304017008040
210 N 304017008040 SCREW
Repalced by: N 910105008010
210 N 910105008010 SCREW
Repalced by: N 910143008005
210 N 910143008005 SCREW
ADJUSTER STOP
217 N 000934008010 NUT
ADJUSTER STOP
224 A 6973010040 BRACKET
231 N 000933008147 SCREW
Repalced by: N 304017008021
231 N 304017008021 SCREW
BRACKET TO SIDE MEMBER
238 N 913004008004 NUT
BRACKET TO SIDE MEMBER
245 A 3053000240 BRACKET
PULL ROD
245 A 3053000240 BRACKET
PULL ROD
252 A 3013020050 BUSHING
252 A 3013020050 BUSHING
259 N 000933008147 SCREW
Repalced by: N 304017008021
259 N 304017008021 SCREW
BRACKET TO CROSS MEMBER
259 N 304017008021 SCREW
BRACKET TO BRACKET
266 N 000125008418 WASHER
Repalced by: N 000125008443
266 N 000125008443 WASHER
BRACKET TO CROSS MEMBER
266 N 000125008443 WASHER
BRACKET TO BRACKET
273 N 913004008004 NUT
BRACKET TO CROSS MEMBER
273 N 913004008004 NUT
BRACKET TO BRACKET
280 A 6973000640 BRACKET
PULL ROD BRACKET
287 N 000933008147 SCREW
Repalced by: N 304017008021
287 N 304017008021 SCREW
BRACKET TO SIDE MEMBER
N 000125008418 WASHER
Repalced by: N 000125008443
N 000125008443 WASHER
BRACKET TO SIDE MEMBER
N 912004008102 LOCK WASHER
BRACKET TO SIDE MEMBER
294 N 913004008004 NUT
BRACKET TO SIDE MEMBER
A 6973000540 BRACKET
EXHAUST BRAKE LEVER
A 3073010250 BUSHING
EXHAUST BRAKE LEVER
A 0089974046 SEAL RING
EXHAUST BRAKE LEVER
A 6979900240 WASHER
EXHAUST BRAKE LEVER
N 000125015013 WASHER
Repalced by: N 000125015019
N 000125015019 WASHER
EXHAUST BRAKE LEVER
N 000007003104 CYLINDRICAL PIN
EXHAUST BRAKE LEVER
N 071412008302 GREASE NIPPLE
EXHAUST BRAKE LEVER
A 0004303226 CYLINDER
Repalced by: A 0004304926
A 0004303026 CYLINDER
Repalced by: A 0004304926
A 0004304926 CYLINDER
EXHAUST BRAKE LEVER
A 4070720674 PIN
Repalced by: A 4421440374
A 4421440374 PIN
POWER CYLINDER TO BRACKET AT SUBSTRUCTURE
N 000934008010 NUT
POWER CYLINDER TO BRACKET AT SUBSTRUCTURE
N 912004008102 LOCK WASHER
POWER CYLINDER TO BRACKET AT SUBSTRUCTURE
N 000125008418 WASHER
Repalced by: N 000125008443
N 000125008443 WASHER
POWER CYLINDER TO BRACKET AT SUBSTRUCTURE
N 913004008010 NUT
POWER CYLINDER TO BRACKET AT SUBSTRUCTURE
N 071805013203 BALL SOCKET
POWER CYLINDER TO CONTROL LEVER
N 071803013102 BALL PIVOT
POWER CYLINDER TO CONTROL LEVER
N 071805013402 CIRCLIP
POWER CYLINDER TO CONTROL LEVER
N 000934008010 NUT
POWER CYLINDER TO CONTROL LEVER
N 912004008102 LOCK WASHER
POWER CYLINDER TO CONTROL LEVER
N 000934008010 NUT
POWER CYLINDER TO CONTROL LEVER
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
LEVER TO FRAME
N 912004008102 LOCK WASHER
LEVER TO FRAME
N 000933008135 SCREW
STOP TO SIDE MEMBER
N 000934008010 NUT
STOP TO SIDE MEMBER
301 N 900331006632 PULL ROD
FROM DOUBLE LEVER TO TURNBUCKLE NUT
2400 MM
308 N 000934006007 NUT
PULL ROD TO LEVER
N 912004006102 LOCK WASHER
PULL ROD TO LEVER
315 N 071805010204 BALL SOCKET
PULL ROD TO LEVER
315 N 071803010102 BALL PIVOT
Repalced by: N 071803010301
315 N 071803010301 BALL PIVOT
PULL ROD TO LEVER
Repalced by: N 000000004467
315 N 000000004467 BALL STUD
PULL ROD TO LEVER
319 N 071805010403 CIRCLIP
PULL ROD TO LEVER
322 N 000934006012 NUT
L.H. THREAD
329 N 001479006001 TURNBUCKLE
PULL ROD TO LEVER
336 N 000934006007 NUT
PULL ROD TO LEVER
343 N 900331006625 PULL ROD
FROM TURNBUCKLE NUT TO SHAFT
2700 MM
N 900331006339 PULL ROD
FROM TURNBUCKLE NUT TO SHAFT
2100 MM
350 A 6973020028 STOP
RELEASE SPRING
357 N 000933006127 SCREW
STOP TO PULL ROD
364 N 913004006002 NUT
Repalced by: N 913004006001
364 N 913004006001 NUT
STOP TO PULL ROD
N 009021006205 WASHER
Repalced by: N 009021006208
N 009021006208 WASHER
STOP TO PULL ROD
371 N 000934006007 NUT
PULL ROD TO INTERMEDIATE SHAFT
378 N 071805010204 BALL SOCKET
PULL ROD TO INTERMEDIATE SHAFT
381 N 071803010102 BALL PIVOT
Repalced by: N 071803010301
381 N 071803010301 BALL PIVOT
PULL ROD TO INTERMEDIATE SHAFT
Repalced by: N 000000004467
381 N 000000004467 BALL STUD
PULL ROD TO INTERMEDIATE SHAFT
383 N 071805010403 CIRCLIP
PULL ROD TO INTERMEDIATE SHAFT
385 A 6989930110 SPRING
RELEASE SPRING
392 A 6973000020 SHAFT
399 A 0009974086 PLUG
406 N 007993016200 SNAP RING
413 A 3059910015 BALL PIVOT
420 A 3013010053 SPACER TUBE
427 A 3053010097 BOOT
434 N 007993024100 SNAP RING
441 N 071412008101 GREASE NIPPLE
Repalced by: N 071412008102
441 N 071412008102 GREASE NIPPLE
448 N 002093012100 DISC SPRING
SHAFT TO BRACKET
455 N 000936012010 NUT
Repalced by: N 304035012002
455 N 304035012002 NUT
SHAFT TO BRACKET
462 A 6973030240 BRACKET
SHAFT,LEFT
469 N 000933008015 SCREW
BRACKET TO CROSS MEMBER
476 N 913004008004 NUT
BRACKET TO CROSS MEMBER
483 N 900331006621 PULL ROD
FROM SHAFT TO INTERMEDIATE LEVER
1500 MM
490 N 071805010204 BALL SOCKET
PULL ROD TO SHAFT AND TO INTERMEDIATE LEVER
492 N 071803010102 BALL PIVOT
Repalced by: N 071803010301
492 N 071803010301 BALL PIVOT
PULL ROD TO SHAFT AND TO INTERMEDIATE LEVER
Repalced by: N 000000004467
492 N 000000004467 BALL STUD
PULL ROD TO SHAFT AND TO INTERMEDIATE LEVER
494 N 071805010403 CIRCLIP
PULL ROD TO SHAFT AND TO INTERMEDIATE LEVER
497 N 000934006007 NUT
PULL ROD TO SHAFT AND TO INTERMEDIATE LEVER
504 A 6973000025 LEVER
INTERMEDIATE LEVER
511 A 3073010150 BUSHING
518 N 000470020000 EXPANSION PLUG
525 A 0009970488 GREASE NIPPLE
532 A 0089974046 SEAL RING
539 A 3073000074 PIN
546 N 000007003104 CYLINDRICAL PIN
553 N 000933008145 SCREW
LEVER TO BRACKET
560 N 913004008004 NUT
LEVER TO BRACKET
567 A 6973030440 BRACKET
INTERMEDIATE LEVER
574 N 000933008145 SCREW
BRACKET TO CROSS MEMBER
581 N 912004008102 LOCK WASHER
BRACKET TO CROSS MEMBER
588 N 900331006616 PULL ROD
FROM INTERMEDIATE LEVER TO REVERSING LEVER
400 MM
595 N 071805010204 BALL SOCKET
PULL ROD TO INTERMEDIATE LEVER AND TO REVERSING LEVER
597 N 071803010102 BALL PIVOT
Repalced by: N 071803010301
597 N 071803010301 BALL PIVOT
PULL ROD TO INTERMEDIATE LEVER AND TO REVERSING LEVER
Repalced by: N 000000004467
597 N 000000004467 BALL STUD
PULL ROD TO INTERMEDIATE LEVER AND TO REVERSING LEVER
599 N 071805010403 CIRCLIP
PULL ROD TO INTERMEDIATE LEVER AND TO REVERSING LEVER
602 N 000934006007 NUT
PULL ROD TO INTERMEDIATE LEVER AND TO REVERSING LEVER
609 A 6973000228 LEVER
REVERSING LEVER
616 A 3073010150 BUSHING
623 N 000470020000 EXPANSION PLUG
630 A 0009970488 GREASE NIPPLE
637 A 0089974046 SEAL RING
644 A 3073000074 PIN
651 N 000007003104 CYLINDRICAL PIN
658 A 6973000125 LEVER
AT REVERSING LEVER
665 N 000933006183 SCREW
Repalced by: N 304017006016
665 N 304017006016 SCREW
LEVER TO REVERSING LEVER
672 N 913004006002 NUT
Repalced by: N 913004006001
672 N 913004006001 NUT
LEVER TO REVERSING LEVER
679 N 000933008145 SCREW
REVERSING LEVER TO BRACKET
686 N 913004008004 NUT
REVERSING LEVER TO BRACKET
693 A 6973000140 BRACKET
700 A 6973030508 ROD
707 N 000934006007 NUT
PULL ROD TO REVERSING LEVER
714 N 071805010204 BALL SOCKET
PULL ROD TO REVERSING LEVER
717 N 071803010102 BALL PIVOT
Repalced by: N 071803010301
717 N 071803010301 BALL PIVOT
PULL ROD TO REVERSING LEVER
Repalced by: N 000000004467
717 N 000000004467 BALL STUD
PULL ROD TO REVERSING LEVER
719 N 071805010403 CIRCLIP
PULL ROD TO REVERSING LEVER
721 N 000934008010 NUT
PULL ROD TO LEVER AT ENGINE
728 N 071805013203 BALL SOCKET
PULL ROD TO LEVER AT ENGINE
735 N 071805013402 CIRCLIP
PULL ROD TO LEVER AT ENGINE
A 6973000325 LEVER
INTERMEDIATE LEVER
A 3073010250 BUSHING
INTERMEDIATE LEVER
A 0089974046 SEAL RING
INTERMEDIATE LEVER
A 3073000074 PIN
INTERMEDIATE LEVER
N 000007003104 CYLINDRICAL PIN
INTERMEDIATE LEVER
N 071412008302 GREASE NIPPLE
INTERMEDIATE LEVER
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
LEVER TO FRAME
N 912004008102 LOCK WASHER
LEVER TO FRAME
N 071802010202 ANGLE JOINT
PULL ROD TO LEVER
N 000934006007 NUT
PULL ROD TO LEVER
N 912004006102 LOCK WASHER
PULL ROD TO LEVER
A 6970700021 LEVER
AT ENGINE
N 000933006183 SCREW
Repalced by: N 304017006016
N 304017006016 SCREW
LEVER TO LEVER
N 913004006002 NUT
Repalced by: N 913004006001
N 913004006001 NUT
LEVER TO LEVER
N 900331008421 PULL ROD
FROM INTERMEDIATE LEVER TO REVERSING LEVER
600 MM
N 071805013203 BALL SOCKET
PULL ROD TO LEVER
N 071803013102 BALL PIVOT
PULL ROD TO LEVER
N 071805013402 CIRCLIP
PULL ROD TO LEVER
N 000934008010 NUT
PULL ROD TO LEVER
N 912004008102 LOCK WASHER
PULL ROD TO LEVER
N 071805013203 BALL SOCKET
PULL ROD TO REVERSING LEVER
N 071805013402 CIRCLIP
PULL ROD TO REVERSING LEVER
N 000934008010 NUT
PULL ROD
742 A 6733000132 WIRE CABLE
IDLING ADJUSTMENT
A 0003000007 KNOB
A 6979900069 WASHER
WIRE CABLE BRACKET
749 A 6973000040 BRACKET
756 N 000933008147 SCREW
Repalced by: N 304017008021
756 N 304017008021 SCREW
BRACKET TO SIDE MEMBER
763 N 913004008004 NUT
BRACKET TO SIDE MEMBER
770 N 071803010102 BALL PIVOT
Repalced by: N 071803010301
770 N 071803010301 BALL PIVOT
WIRE CABLE TO GUIDE
Repalced by: N 000000004467
770 N 000000004467 BALL STUD
WIRE CABLE TO GUIDE
777 N 913004006002 NUT
Repalced by: N 913004006001
777 N 913004006001 NUT
WIRE CABLE TO GUIDE
784 N 071805010403 CIRCLIP
WIRE CABLE TO GUIDE
N 912004006102 LOCK WASHER
WIRE CABLE TO GUIDE
791 A 6973000022 GUIDE
N 001479006001 TURNBUCKLE
N 900331006623 PULL ROD
MANUAL CONTROL
2100 MM
N 000934006012 NUT
L.H. THREAD
798 A 6973020028 STOP
MANUAL CONTROL
805 N 000933006183 SCREW
Repalced by: N 304017006016
805 N 304017006016 SCREW
STOP TO PULL ROD
812 N 912004006102 LOCK WASHER
STOP TO PULL ROD
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
