Transporto priemonė: O 301; VIN numerio dalis: 697006
Grupė: 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
| # | Kodas | Pavadinimas |
|---|---|---|

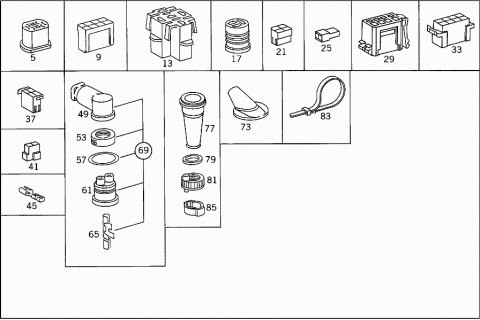

| 005 | A 0065455528 | PIN BUSHING HOUSING |
| 10-POLE | ||
| 009 | A 0015458328 | PIN BUSHING HOUSING |
| 8-POLE | ||
| A 6115450028 | PIN BUSHING HOUSING | |
| 8-POLE | ||
| A 0075450528 | PIN BUSHING HOUSING | |
| 6-POLE | ||
| 013 | A 0065450728 | PIN BUSHING HOUSING |
| 5-POLE | ||
| 017 | A 0125450928 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 021 | A 0015458428 | PIN BUSHING HOUSING |
| 4-POLE | ||
| A 0125452128 | PIN BUSHING HOUSING | |
| 4-POLE | ||
| A 0105457128 | PIN BUSHING HOUSING | |
| 3-POLE | ||
| 025 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| A 0025451128 | PIN BUSHING HOUSING | |
| UNIPOLAR | ||
| 029 | A 3575450028 | PLUG HOUSING |
| 8-POLE | ||
| 033 | A 0015458228 | PLUG HOUSING |
| 8-POLE | ||
| A 0145451528 | PLUG HOUSING | |
| 6-POLE | ||
| A 0115452728 | PLUG HOUSING | |
| 5-POLE | ||
| 037 | A 0025451228 | PLUG HOUSING |
| 4-POLE | ||
| 041 | A 0015457928 | PLUG HOUSING |
| BIPOLAR | ||
| A 0025458728 | PLUG HOUSING | |
| UNIPOLAR | ||
| A 0025451328 | PIN BUSHING HOUSING | |
| UNIPOLAR | ||
| 045 | A 0005453826 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 045 | A 0005454026 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 045 | A 0025454026 | FLAT PIN BUSHING |
| Repalced by: A 0035455326 | ||
| 045 | A 0035455326 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 6 MM2 | ||
| 045 | A 0005453826 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 045 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 045 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| A 0115452928 | PIN BUSHING | |
| A 0025451428 | PLUG | |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 6 MM2 | ||
| A 0025450628 | PLUG | |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| A 0005453545 | PIN BUSHING HOUSING | |
| A 0005451745 | BOOT | |
| A 0009970781 | GROMMET | |
| 049 | A 3805460335 | BOOT |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1,24X1 | ||
| 049 | A 6015460335 | BOOT |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1,24X1 | ||
| 053 | A 0009902054 | NUT |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| M 24X1 | ||
| 053 | A 0009903654 | NUT |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| M 27X1 | ||
| 057 | A 0009906840 | WASHER |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 24X1 | ||
| 057 | A 3809900140 | WASHER |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1 | ||
| 061 | A 3805450026 | PLUG SOCKET |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 24X1 | ||
| 061 | A 3805450226 | PLUG SOCKET |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1 | ||
| 065 | A 0015454826 | ROUND PIN BUSHING |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1,M 24X1 | ||
| 069 | A 3805402181 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 24X1 | ||
| 069 | A 3805402281 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 27X1 | ||
| 073 | A 6735450145 | BOOT |
| STEERING COLUMN MOUNTED SWITCH | ||
| 077 | A 0005463435 | BOOT |
| FROM TACHOGRAPH TO SPEED RECORDER SENDER UNIT | ||
| 079 | A 3019901440 | WASHER |
| FROM TACHOGRAPH TO SPEED RECORDER SENDER UNIT | ||
| 081 | A 0005421572 | NUT |
| FROM TACHOGRAPH TO SPEED RECORDER SENDER UNIT | ||
| 083 | A 0019978390 | LOOM TIE |
| 280 MM | ||
| 083 | A 0019978490 | LOOM TIE |
| 376 MM | ||
| 085 | A 0029978590 | CLIP |

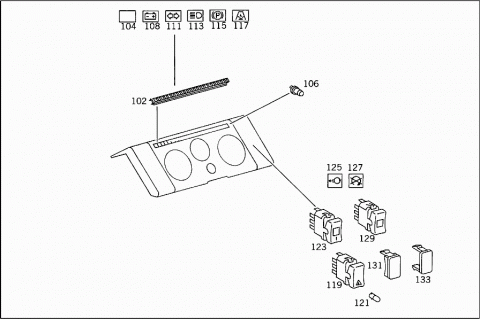

| 102 | A 6736890408 | COVERING |
| INSTRUMENT PANEL | ||
| 104 | A 0015456090 | LENS |
| BLIND ELEMENT | ||
| 106 | A 3075440094 | BULB |
| WITH SOCKET | ||
| 24V/1.2W | ||
| 108 | A 0035453290 | LENS |
| CHARGE CONTROL | ||
| 111 | A 0035455290 | LENS |
| BLINKER CONTROL | ||
| 113 | A 0035453390 | LENS |
| Repalced by: A 0065451990 | ||
| 113 | A 0065451990 | LENS |
| HIGH BEAM | ||
| 115 | A 0035453790 | LENS |
| PARKING BRAKE | ||
| 117 | A 0045455390 | LENS |
| WEBASTO HEATER | ||
| 119 | A 0055459224 | HAZARD WARNG.LIGHT SWITCH |
| 121 | N 072601024230 | BULB |
| 123 | A 0025450607 | SWITCH |
| Repalced by: A 0025454407 | ||
| 123 | A 0025456607 | SWITCH |
| Repalced by: A 0025454407 | ||
| 123 | A 0025454407 | SWITCH |
| ENGINE STOP | ||
| 123 | A 0025451207 | SWITCH |
| Repalced by: A 0025456907 | ||
| 123 | A 0025456907 | SWITCH |
| EXHAUST BRAKE,"OFF" | ||
| 125 | A 0055454690 | LENS |
| ENGINE STOP | ||
| 127 | A 0045450290 | LENS |
| EXHAUST BRAKE,"OFF" | ||
| 129 | A 0025454707 | SWITCH |
| SPRING-LOADED-BRAKE EMERGENCY RELEASE | ||
| 131 | A 6736890339 | COVER |
| WITH TWO HOLES,IN CENTER AND LATERALLY | ||
| 131 | A 6736890439 | COVER |
| INSTRUMENT PANEL | ||
| 131 | A 6736890139 | COVER |
| TO PLUG THE FREE BORES IN INSTRUMENT PANEL | ||
| 131 | A 6736891239 | COVER |
| TO PLUG THE FREE BORES IN INSTRUMENT PANEL | ||
| 133 | A 6736880035 | COVER |
| TO PLUG THE FREE HOLES USED FOR SWITCH | ||

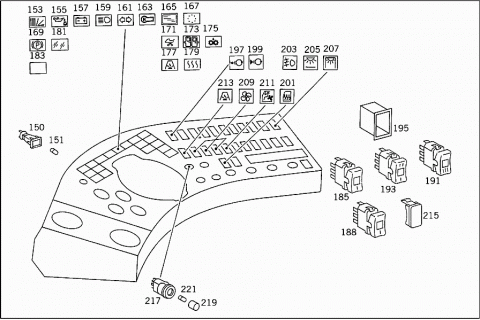

| 150 | A 3075420032 | TELL-TALE LAMP |
| LESS LENS | ||
| 151 | A 3075440094 | BULB |
| WITH SOCKET | ||
| 24V/1.2W | ||
| 153 | A 0025459290 | LENS |
| FAILURE | ||
| 155 | A 0025458590 | LENS |
| OIL SUPPLY | ||
| 157 | A 0025459790 | LENS |
| CHARGE CONTROL | ||
| 159 | A 0035450190 | LENS |
| HIGH BEAM | ||
| 161 | A 0035450290 | LENS |
| BLINKER CONTROL | ||
| 163 | A 0025458390 | LENS |
| STOP SIGN | ||
| 165 | A 0025459990 | LENS |
| DOOR OPEN | ||
| 167 | A 0055453590 | LENS |
| START SIGNAL | ||
| 169 | A 0025458790 | LENS |
| PARKING BRAKE | ||
| 171 | A 0045456090 | LENS |
| BABY-CARRIAGE | ||
| 173 | A 0045457290 | LENS |
| DOOR RELEASE | ||
| 175 | A 0025458490 | LENS |
| CENTRAL LUBRICATION | ||
| 177 | A 0035450490 | LENS |
| WEBASTO HEATER | ||
| 179 | A 0025459590 | LENS |
| DRIVER'S WINDOW HEATING | ||
| A 0025458890 | LENS | |
| BUS STOP BRAKE | ||
| 181 | A 3075450090 | LENS |
| COVERING USED FOR LENS WITH SYMBOL | ||
| 183 | A 3075450190 | BLIND ELEMENT |
| 185 | A 0025451207 | SWITCH |
| Repalced by: A 0025456907 | ||
| 185 | A 0025456907 | SWITCH |
| EXHAUST BRAKE DIRECT CONTROL | ||
| 185 | A 0025456907 | SWITCH |
| EXHAUST BRAKE,"OFF" | ||
| 185 | A 0025456907 | SWITCH |
| DRIVER'S WINDOW HEATING | ||
| 185 | A 0025456907 | SWITCH |
| FOGLAMP | ||
| 185 | A 0025456907 | SWITCH |
| COUNTER LIGHTING | ||
| 185 | A 0025456907 | SWITCH |
| INTERIOR LIGHTING | ||
| 185 | A 0025456907 | SWITCH |
| FRONT END BLOWER,STAGES 1 AND 2 | ||
| 185 | A 0025456907 | SWITCH |
| WEBASTO HEATER | ||
| 188 | A 0025454707 | SWITCH |
| SPRING-LOADED-BRAKE EMERGENCY RELEASE | ||
| 191 | A 0025453007 | SWITCH |
| Repalced by: A 0025457407 | ||
| 191 | A 0025457407 | SWITCH |
| Repalced by: A 0035453807 | ||
| 191 | A 0035453807 | SWITCH |
| FRONT END BLOWER,STAGE 3 | ||
| 193 | A 0025451407 | SWITCH |
| Repalced by: A 0025457007 | ||
| 193 | A 0025457007 | SWITCH |
| DRIVER'S VENTILATOR | ||
| 193 | A 0025457007 | SWITCH |
| UNDERSEAT HEATING | ||
| 195 | A 6115400066 | ADAPTER FRAME |
| (ROCKER SWITCH) | ||
| 197 | A 0045455790 | LENS |
| EXHAUST BRAKE DIRECT CONTROL | ||
| 199 | A 0045455890 | LENS |
| EXHAUST BRAKE,"OFF" | ||
| 201 | A 0035458890 | LENS |
| DRIVER'S WINDOW HEATING | ||
| 203 | A 0055455490 | LENS |
| FOGLAMP | ||
| 205 | A 0035458990 | LENS |
| DRIVER'S LAMP | ||
| 207 | A 0045450990 | LENS |
| INTERIOR LIGHTING | ||
| 209 | A 0035458690 | LENS |
| FRONT END BLOWER,STAGES 1 AND 2 | ||
| 211 | A 0045450690 | LENS |
| DRIVER'S VENTILATOR | ||
| 213 | A 0045455390 | LENS |
| WEBASTO HEATER | ||
| 215 | A 3575420090 | BLIND CAP |
| TO PLUG THE FREE BORES IN INSTRUMENT PANEL | ||
| 217 | A 0045450224 | SWITCH |
| HAZARD WARNING LIGHT | ||
| 219 | A 0005453637 | BUTTON |
| HAZARD WARNING LIGHT SWITCH | ||
| 221 | A 0015443294 | BULB |
| HAZARD WARNING LIGHT SWITCH | ||
| 24V/2W | ||

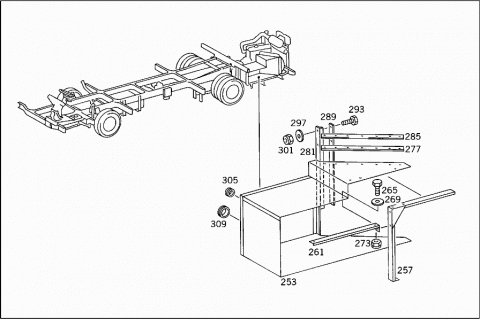

| 253 | A 6975400014 | BATTERY CASE |
| Repalced by: A 6975400614 | ||
| 253 | A 6975400614 | BATTERY CASE |
| Repalced by: A 6975400214 | ||
| 253 | A 6975400214 | BATTERY CASE |
| 257 | A 6975400073 | BRACKET |
| BATTERY CASE | ||
| 261 | A 6975400051 | SUPPORT |
| BATTERY CASE | ||
| 265 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 265 | N 304017006016 | SCREW |
| BATTERY CASE TO SUPPORT | ||
| 265 | N 304017006016 | SCREW |
| BRACKET TO BATTERY CASE | ||
| 265 | N 304017006016 | SCREW |
| BATTERY CASE TO SUPPORT | ||
| 269 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 269 | N 009021006208 | WASHER |
| BATTERY CASE TO SUPPORT | ||
| 269 | N 009021006208 | WASHER |
| BRACKET TO BATTERY CASE | ||
| 269 | N 009021006208 | WASHER |
| BATTERY CASE TO SUPPORT | ||
| 273 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 273 | N 913004006001 | NUT |
| BATTERY CASE TO SUPPORT | ||
| 273 | N 913004006001 | NUT |
| BRACKET TO BATTERY CASE | ||
| 273 | N 913004006001 | NUT |
| BATTERY CASE TO SUPPORT | ||
| 277 | A 6975410080 | GASKET |
| TOP AND BOTTOM | ||
| 281 | A 6975410180 | GASKET |
| REAR | ||
| 285 | A 6975410084 | SHIM |
| GASKET TO BRACKET | ||
| 289 | A 6975410184 | SHIM |
| GASKET TO SUPPORT | ||
| 293 | N 000933005075 | SCREW |
| Repalced by: N 304017005002 | ||
| 293 | N 304017005002 | SCREW |
| GASKET TO BRACKET | ||
| 293 | N 304017005002 | SCREW |
| GASKET TO SUPPORT | ||
| 297 | N 009021005202 | WASHER |
| Repalced by: N 009021005205 | ||
| 297 | N 009021005205 | WASHER |
| GASKET TO BRACKET | ||
| 297 | N 009021005205 | WASHER |
| GASKET TO SUPPORT | ||
| 301 | N 913004005001 | NUT |
| GASKET TO BRACKET | ||
| 301 | N 913004005001 | NUT |
| GASKET TO SUPPORT | ||
| 305 | A 3189970381 | GROMMET |
| REAR LEFT,TOP | ||
| 20 MM | ||
| 309 | A 6979970081 | GROMMET |
| REAR BOTTOM | ||
| 60 MM | ||
| 309 | A 6979970581 | GROMMET |
| REAR BOTTOM | ||
| 60 MM | ||

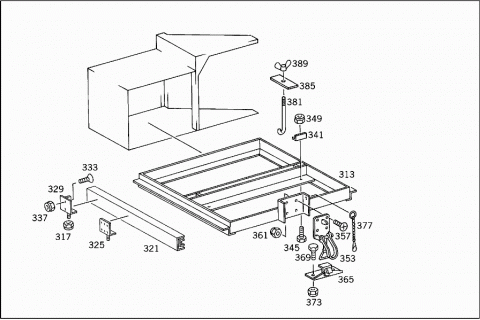

| 313 | A 6978900063 | FRAME |
| BATTERY CARRIAGE | ||
| 317 | N 999901008005 | NUT |
| Repalced by: A 0009903250 | ||
| 317 | A 0009903250 | NUT |
| FRAME TO BATTERY CASE | ||
| 321 | A 6978900000 | GUIDE RAIL |
| LEFT | ||
| 321 | A 6978900100 | GUIDE RAIL |
| RIGHT | ||
| 325 | A 6978900013 | ANGLE |
| CENTRAL AND REAR | ||
| 329 | A 6978900113 | ANGLE |
| FRONT LEFT | ||
| 329 | A 6978900213 | ANGLE |
| FRONT RIGHT | ||
| 333 | N 000965005014 | SCREW |
| 337 | N 913004005001 | NUT |
| 341 | A 6978950166 | STOP |
| BATTERY CARRIAGE | ||
| 345 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 345 | N 304017006016 | SCREW |
| STOP TO BATTERY CARRIAGE | ||
| 349 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 349 | N 913004006001 | NUT |
| STOP TO BATTERY CARRIAGE | ||
| 353 | A 6978900089 | FASTENER |
| BATTERY CARRIAGE DETENT | ||
| 357 | N 000965005004 | SCREW |
| 357 | N 000963005020 | SCREW |
| LOCK TO BATTERY CARRIAGE | ||
| 361 | N 913004005001 | NUT |
| 365 | A 6978900032 | BOW |
| BATTERY CARRIAGE DETENT | ||
| 369 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 369 | N 304017006020 | SCREW |
| CLAMP TO BATTERY CASE | ||
| 373 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 373 | N 913004006001 | NUT |
| CLAMP TO BATTERY CASE | ||
| A 6975410026 | BRACKET | |
| BRACKET TO BATTERY CASE | ||
| N 000933006183 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| BRACKET TO BATTERY CASE | ||
| N 009021006205 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| BRACKET TO BATTERY CASE | ||
| N 913004006002 | NUT | |
| Repalced by: N 913004006001 | ||
| N 913004006001 | NUT | |
| BRACKET TO BATTERY CASE | ||
| 377 | A 6978900062 | CHAIN |
| A 6978900005 | SPRING | |
| BATTERY TO BATTERY CARRIAGE | ||
| 381 | A 6978950179 | HOOK |
| BATTERY TO BATTERY CARRIAGE | ||
| 385 | A 6978950126 | REST |
| 385 | A 6978950026 | REST |
| BATTERY TO BATTERY CARRIAGE | ||
| 389 | N 000315008006 | NUT |
| BATTERY TO BATTERY CARRIAGE | ||

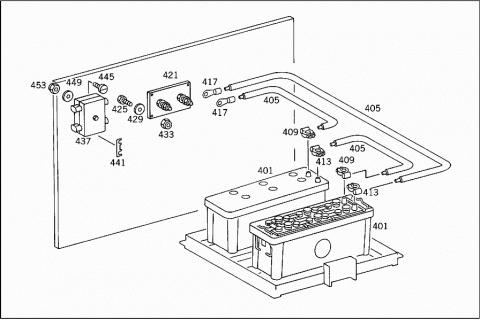

| 401 | A 0025411101 | BATTERY |
| 12 V/135 AH | ||
| 405 | N 922002070000 | ELECTRIC CABLE |
| Repalced by: A 6735460013 | ||
| 405 | A 6735460013 | ELECTRIC CABLE |
| FROM BATTERY TO PLATE | ||
| 405 | A 6735460013 | ELECTRIC CABLE |
| FROM BATTERY I TO BATTERY II | ||
| 405 | A 6735460013 | ELECTRIC CABLE |
| FROM BATTERY TO GROUND POINT | ||
| 409 | N 072332013100 | SOLDERING TERMINAL |
| POS. POLE | ||
| 413 | N 072332013200 | SOLDERING TERMINAL |
| NEG.POLE | ||
| 417 | N 046234010007 | CABLE SHOE |
| POS. CABLE TO PLATE | ||
| 417 | N 046234010007 | CABLE SHOE |
| ELECTRIC CABLE TO GROUND ON SIDE MEMBER | ||
| 421 | A 6975400042 | PLATE |
| CABLE CONNECTIONS | ||
| A 6205460035 | BOOT | |
| CABLE CONNECTIONS | ||
| 425 | N 000933005075 | SCREW |
| Repalced by: N 304017005002 | ||
| 425 | N 304017005002 | SCREW |
| PLATE TO BATTERY CASE | ||
| 429 | N 009021005202 | WASHER |
| Repalced by: N 009021005205 | ||
| 429 | N 009021005205 | WASHER |
| PLATE TO BATTERY CASE | ||
| 433 | N 913004005001 | NUT |
| PLATE TO BATTERY CASE | ||
| 437 | A 0005457701 | FUSE BOX |
| 441 | A 0005451934 | FUSE |
| 100 A | ||
| 441 | A 0005452534 | FUSE |
| 50 A | ||
| 441 | A 0005450334 | FUSE |
| 80 A | ||
| 445 | N 000084005180 | SCREW |
| Repalced by: N 007985005175 | ||
| 445 | N 007985005175 | SCREW |
| FUSE BOX TO BATTERY CASE | ||
| 449 | N 009021005202 | WASHER |
| Repalced by: N 009021005205 | ||
| 449 | N 009021005205 | WASHER |
| FUSE BOX TO BATTERY CASE | ||
| 453 | N 913004005001 | NUT |
| FUSE BOX TO BATTERY CASE | ||
| N 922002035000 | ELECTRIC CABLE | |
| A 6975400105 | CABLE HARNESS | |
| CAB MAIN CABLE HARNESS | ||
| A 6975400008 | CABLE HARNESS | |
| TELL-TALE LAMP | ||
| A 6975400005 | CABLE HARNESS | |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| A 6975400151 | SUPPORT | |
| APPARATUS PLATE | ||
| N 000933006127 | SCREW | |
| SUPPORT TO FRAME | ||
| N 913004006002 | NUT | |
| Repalced by: N 913004006001 | ||
| N 913004006001 | NUT | |
| SUPPORT TO FRAME | ||
| A 6975400451 | SUPPORT | |
| APPARATUS PLATE | ||
| A 6975421740 | BRACKET | |
| SUPPORT TO FRAME | ||
| N 000933006121 | SCREW | |
| Repalced by: N 304017006020 | ||
| N 304017006020 | SCREW | |
| SUPPORT AND BRACKET TO FRAME | ||
| N 009021006205 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| SUPPORT AND BRACKET TO FRAME | ||
| N 913004006002 | NUT | |
| Repalced by: N 913004006001 | ||
| N 913004006001 | NUT | |
| SUPPORT AND BRACKET TO FRAME | ||

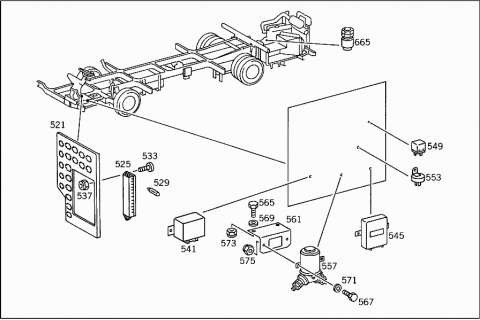

| 521 | A 6735420039 | PLATE |
| APPARATUS | ||
| 525 | A 0005458401 | FUSE BOX |
| 12-POLE;TERMINALS 1-4;5-10;11-12 SHUNTED | ||
| 525 | A 0005458501 | FUSE BOX |
| 12-POLE; TERMINALS 1-2,3-4,5-11 SHUNTED | ||
| 529 | A 0005458134 | FUSE |
| Repalced by: N 072581005100 | ||
| 529 | N 072581005100 | FUSE |
| 5 A | ||
| 529 | A 0005458234 | FUSE |
| Repalced by: N 072581008101 | ||
| 529 | N 072581008101 | FUSE |
| 8A | ||
| 533 | N 007985006168 | SCREW |
| FUSE BOX TO APPARATUS PLATE | ||
| 537 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 537 | N 913004006001 | NUT |
| FUSE BOX TO APPARATUS PLATE | ||
| 541 | A 0055450624 | SENDER UNIT |
| Repalced by: A 0225452532 | ||
| 541 | A 0225452532 | CONTROL UNIT |
| WIPER INTERMITTENT ACTION | ||
| 541 | A 0055451424 | SENDER UNIT |
| WIPER INTERMITTENT ACTION | ||
| 541 | A 0055451624 | SENDER UNIT |
| WIPER INTERMITTENT ACTION | ||
| 545 | A 0025448432 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 545 | A 0025449532 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 549 | A 0005455405 | RELAY |
| Repalced by: A 0035459605 | ||
| 549 | A 0035459605 | RELAY |
| 549 | A 0005458405 | RELAY |
| 553 | A 0005400624 | DIODE CASE |
| EXHAUST BRAKE | ||
| A 6975450032 | CONTROL UNIT | |
| ENGINE SPEED | ||
| 557 | A 0005450967 | CONTACTOR |
| 561 | A 6975450540 | BRACKET |
| CONTACTOR | ||
| 565 | N 000933006083 | SCREW |
| BRACKET TO SUPPORT | ||
| 567 | N 000933005059 | SCREW |
| CONTACTOR TO BRACKET | ||
| 569 | N 000125006421 | WASHER |
| BRACKET TO SUPPORT | ||
| 571 | N 000125005317 | WASHER |
| Repalced by: N 000433005304 | ||
| 571 | N 000433005304 | WASHER |
| CONTACTOR TO BRACKET | ||
| 573 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 573 | N 913004006001 | NUT |
| BRACKET TO SUPPORT | ||
| 575 | N 913004005001 | NUT |
| CONTACTOR TO BRACKET | ||
| A 0025457132 | CONTROL UNIT | |
| OVERLOAD PROTECTOR | ||
| A 6975451440 | BRACKET | |
| OVERLOAD PROTECTOR TO SECONDARY INSTRUMENT PANEL | ||
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| BRACKET TO APPARATUS SUPPORT | ||
| N 000933006130 | SCREW | |
| OVERLOAD PROTECTOR TO BRACKET | ||
| N 913004008004 | NUT | |
| BRACKET TO APPARATUS SUPPORT | ||
| N 913004006002 | NUT | |
| Repalced by: N 913004006001 | ||
| N 913004006001 | NUT | |
| OVERLOAD PROTECTOR TO BRACKET | ||

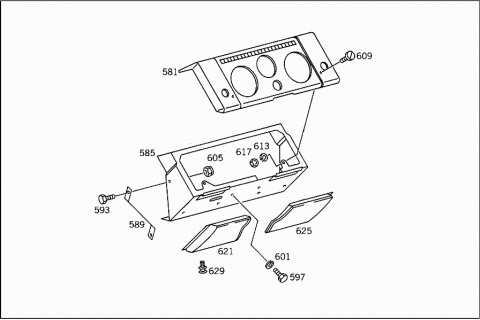

| 581 | A 6736800087 | INSTRUMENT PANEL |
| 585 | A 6975400273 | BRACKET |
| INSTRUMENT PANEL | ||
| 589 | A 6975420241 | STRUT |
| INSTRUMENT PANEL | ||
| 593 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 593 | N 304017006016 | SCREW |
| STRUT TO BRACKET | ||
| M 6X16 | ||
| 593 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 593 | N 304017006020 | SCREW |
| STRUT TO BRACKET | ||
| M 6X20 | ||
| 597 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 597 | N 304017008021 | SCREW |
| BRACKET TO STEERING COLUMN BRACKET | ||
| 601 | N 912004008102 | LOCK WASHER |
| BRACKET TO STEERING COLUMN BRACKET | ||
| 605 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 605 | N 913004006001 | NUT |
| STRUT TO BRACKET | ||
| 609 | N 000084005134 | SCREW |
| INSTRUMENT PANEL TO BRACKET | ||
| 613 | N 912004005103 | LOCK WASHER |
| INSTRUMENT PANEL TO BRACKET | ||
| 617 | N 000934005008 | NUT |
| INSTRUMENT PANEL TO BRACKET | ||
| 621 | A 6736880506 | PANELLING |
| INSTRUMENT PANEL,LEFT | ||
| 625 | A 6736880606 | PANELLING |
| INSTRUMENT PANEL,RIGHT | ||
| 629 | A 1269900292 | RIVET |
| PANELLING TO BRACKET | ||

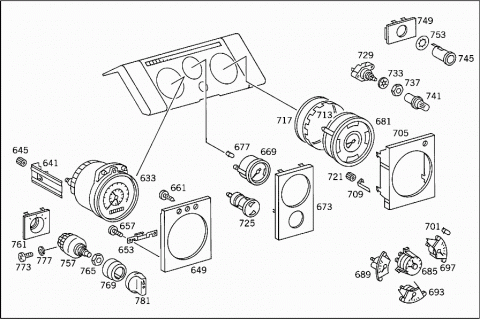

| 633 | A 0115423410 | TACHOGRAPH |
| Repalced by: A 0115423710 | ||
| 633 | A 0115423710 | TACHOGRAPH |
| MEASURING RANGE,125KM/H; ONE-DAY/DRIVER'S CHANGE REGISTRATION | ||
| A 0015442694 | BULB | |
| WITH SOCKET | ||
| A 0005423394 | DIAGRAM PAPER | |
| 641 | A 0005421840 | BRACKET |
| TACHOGRAPH | ||
| 645 | A 0005421172 | NUT |
| Repalced by: N 000934005008 | ||
| 645 | N 000934005008 | NUT |
| TACHOGRAPH | ||
| 645 | N 000466005000 | NUT |
| TACHOGRAPH | ||
| 649 | A 6736891408 | COVERING |
| TACHOGRAPH | ||
| 653 | A 0005422740 | BRACKET |
| COVERING | ||
| 657 | N 000084003101 | SCREW |
| COVERING | ||
| 661 | N 007971002234 | SHEET METAL SCREW |
| COVERING | ||
| 665 | A 0055429417 | SENDER UNIT |
| ELECTRONIC TACHOGRAPH | ||
| 665 | A 0065424617 | SENDER UNIT |
| ELECTRONIC TACHOGRAPH | ||
| 669 | A 6975420016 | TACHOMETER |
| 669 | A 6975420116 | TACHOMETER |
| 673 | A 6736890108 | COVERING |
| TACHOMETER | ||
| 677 | N 072601024801 | BULB |
| TACHOMETER | ||
| 24 V/2 W | ||
| 681 | A 0035409647 | INSTRUMENT CLUSTER |
| 685 | A 0015424208 | AIR PRESSURE GAUGE |
| TO 003 540 39 47,003 540 96 47 | ||
| 689 | A 0025421702 | OIL PRESSURE GAUGE |
| 693 | A 0025428503 | FUEL GAUGE DASH UNIT |
| 697 | A 0035427405 | TEMPERATURE GAUGE |
| A 0005423578 | CONNECTION PLATE | |
| 701 | A 0015442694 | BULB |
| WITH SOCKET | ||
| 24 V/1.2 W | ||
| 705 | A 6736890208 | COVERING |
| INSTRUMENT CLUSTER | ||
| 709 | A 0005422440 | BRACKET |
| INSTRUMENT CLUSTER | ||
| 713 | A 6735420051 | SPACER RING |
| INSTRUMENT CLUSTER | ||
| 717 | A 6735420151 | SPACER RING |
| INSTRUMENT CLUSTER | ||
| 721 | N 000466004001 | NUT |
| INSTRUMENT CLUSTER | ||
| 725 | A 0005422527 | WARNING INDICATOR |
| AIR CLEANER | ||
| 729 | A 0005423425 | POTENTIOMETER |
| INSTRUMENT LIGHTING | ||
| 733 | N 006797012153 | TOOTHED WASHER |
| POTENTIOMETER TO INSTRUMENT PANEL | ||
| 737 | A 0029906251 | NUT |
| POTENTIOMETER TO INSTRUMENT PANEL | ||
| 741 | A 0005422289 | KNOB |
| POTENTIOMETER | ||
| 745 | A 0005458026 | PLUG SOCKET |
| Repalced by: A 0045454326 | ||
| 745 | A 0045454326 | PLUG SOCKET |
| INSTRUMENT PANEL | ||
| 749 | A 6736890539 | COVER |
| PLUG SOCKET | ||
| 753 | A 0009900946 | WASHER |
| PLUG SOCKET TO INSTRUMENT PANEL | ||
| 757 | A 0005454704 | LIGHT SWITCH |
| Repalced by: A 0005453704 | ||
| 757 | A 0005453704 | LIGHT SWITCH |
| 761 | A 6736890739 | COVER |
| LIGHT ROTARY SWITCH | ||
| 765 | A 1075450072 | NUT |
| LIGHT SWITCH TO INSTRUMENT PANEL | ||
| 769 | A 0005452345 | BOOT |
| LIGHT SWITCH | ||
| 773 | N 007985004123 | SCREW |
| ELECTRIC CABLE TO LIGHT ROTARY SWITCH | ||
| 777 | N 912004004102 | LOCK WASHER |
| ELECTRIC CABLE TO LIGHT ROTARY SWITCH | ||
| 781 | A 2015400183 | HANDLE |
| Repalced by: A 2025450081 | ||
| 781 | A 2025450081 | KNOB |
| LIGHT ROTARY SWITCH | ||

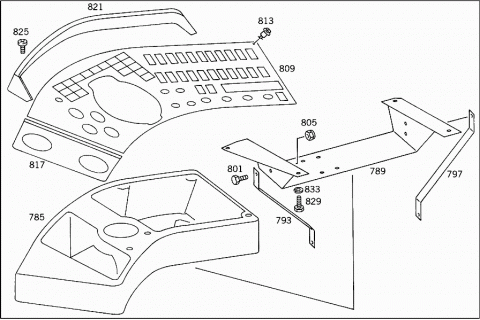

| 785 | A 3576800052 | HOUSING |
| INSTRUMENT PANEL | ||
| 789 | A 6975420140 | BRACKET |
| A 0009974781 | GROMMET | |
| 793 | A 6975420041 | STRUT |
| HOUSING;BOTTOM LEFT | ||
| 797 | A 6975420141 | STRUT |
| HOUSING;BOTTOM RIGHT | ||
| 801 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 801 | N 304017006020 | SCREW |
| BRACKET TO STEERING COLUMN BRACKET | ||
| 801 | N 304017006020 | SCREW |
| STRUT TO BRACKET | ||
| 801 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 801 | N 304017006016 | SCREW |
| STRUT TO BRACKET | ||
| 805 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 805 | N 913004006001 | NUT |
| BRACKET TO STEERING COLUMN BRACKET | ||
| 805 | N 913004006001 | NUT |
| STRUT TO BRACKET | ||
| 809 | A 3576890090 | INSTRUMENT PANEL |
| 813 | A 0009888242 | FASTENER |
| INSTRUMENT PANEL TO HOUSING | ||
| 817 | A 3056890908 | COVERING |
| INSTRUMENT PANEL,LEFT | ||
| 821 | A 3576800007 | COVERING |
| GLARE SHIELD | ||
| 825 | N 000964004008 | SCREW |
| Repalced by: N 000966004005 | ||
| 825 | N 000966004005 | SCREW |
| COVERING TO INSTRUMENT PANEL | ||
| 825 | N 007985003120 | SCREW |
| COVERING TO INSTRUMENT PANEL,TOP | ||
| 829 | N 000933006127 | SCREW |
| INSTRUMENT PANEL TO BRACKET | ||
| 833 | N 912004006102 | LOCK WASHER |
| INSTRUMENT PANEL TO BRACKET | ||
| 850 | A 0125422310 | TACHOGRAPH |
| Repalced by: A 0125429110 | ||
| 850 | A 0125429110 | TACHOGRAPH |
| MEASURING RANGE,125KM/H; ONE-DAY REGISTRATION | ||
| 854 | A 0015442694 | BULB |
| WITH SOCKET | ||
| A 0005423394 | DIAGRAM PAPER | |
| 859 | A 0005420481 | GROMMET |
| TACHOGRAFH TO INSTRUMENT PANEL | ||
| 863 | A 0055429417 | SENDER UNIT |
| ELECTRONIC TACHOGRAPH | ||
| 863 | A 0065424617 | SENDER UNIT |
| ELECTRONIC TACHOGRAPH | ||
| 867 | A 0035426705 | TEMPERATURE GAUGE |
| COOLING WATER TEMPERATURE | ||
| 871 | A 0025424203 | FUEL GAUGE DASH UNIT |
| 875 | A 0025421102 | OIL PRESSURE GAUGE |
| 879 | A 0015421608 | AIR PRESSURE GAUGE |
| FRONT AXLE BRAKE PRESSURE | ||
| 879 | A 0015421608 | AIR PRESSURE GAUGE |
| REAR AXLE BRAKE PRESSURE | ||
| 883 | A 0015443294 | BULB |
| INSTRUMENTS | ||
| 24 V/2 W | ||
| 887 | A 3055450391 | ORNAMENTAL COVER |
| TO PLUG THE HOLE USED FOR TRANSMISSION OIL TEMPERATURE GAUGE | ||
| 891 | A 3055450491 | ORNAMENTAL COVER |
| TO PLUG THE OPENING USED FOR AUTOMATIC TRANSMISSION GEAR SELECTOR SWITCH | ||
| 895 | A 0015425617 | SENDER UNIT |
| ENGINE OIL PRESSURE | ||
| 899 | A 0025453314 | SWITCH |
| Repalced by: A 0045459414 | ||
| 899 | A 0045459414 | SWITCH |
| STARTING | ||
| 903 | A 0025453214 | SWITCH |
| Repalced by: A 0045459514 | ||
| 903 | A 0045459514 | SWITCH |
| ENGINE STOP | ||
| 907 | A 3169880135 | CAP |
| TO PLUG THE HOLE USED FOR REAR FOGLAMP SWITCH | ||
| 911 | A 0005453013 | SWITCH |
| (IGNITION AND LIGHT SWITH) | ||
| 913 | A 0005450376 | WASHER |
| IGNITION SWITCH TO INSTRUMENT PANEL | ||
| 915 | A 0005451072 | NUT |
| IGNITION SWITCH TO INSTRUMENT PANEL | ||
| 917 | A 0005451235 | KEY |
| IGNITION AND LIGHT SWITCH | ||
| 919 | A 0015458107 | SWITCH |
| BUS STOP BRAKE | ||
| 921 | A 0005455237 | BUTTON |
| 923 | A 0025455514 | SWITCH |
| FRONT DOOR | ||
| 925 | A 0005452272 | NUT |
| PUSH BUTTON SWITCH | ||
| 927 | A 0005457414 | SWITCH |
| Repalced by: A 0045459914 | ||
| 927 | A 0045459914 | SWITCH |
| CENTRAL DOOR | ||
| A 0095458590 | LENS | |
| NEUTRAL | ||
| N 000000000439 | BULB | |
| 929 | A 0005454737 | BUTTON |
| 931 | A 0015443294 | BULB |
| 24 V/2 W | ||
| 933 | A 0005456214 | SWITCH |
| TEST BUTTON | ||

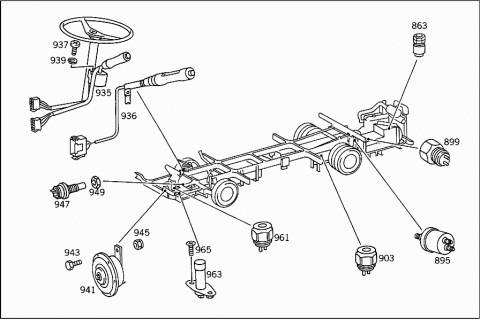

| 935 | A 6735400445 | STEERG.COLUMN MTD. SWITCH |
| 936 | A 0005400284 | LEVER |
| WITH ELECTRIC CABLES | ||
| A 6734620996 | BOOT | |
| STEERING COLUMN MOUNTED SWITCH | ||
| 937 | N 007985005193 | SCREW |
| STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN JACKET TUBE | ||
| 939 | N 912004005103 | LOCK WASHER |
| STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN JACKET TUBE | ||
| A 6974360040 | BRACKET | |
| Repalced by: A 3634292740 | ||
| A 3634292740 | BRACKET | |
| HORN | ||
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| BRACKET TO FRAME | ||
| N 913004008004 | NUT | |
| BRACKET TO FRAME | ||
| 941 | A 0035420520 | HORN |
| Repalced by: A 0045424420 | ||
| 941 | A 0045424420 | HORN |
| 943 | N 000933010128 | SCREW |
| HORN TO BRACKET | ||
| 945 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 945 | N 910113010000 | NUT |
| HORN TO BRACKET | ||
| 947 | A 0005456909 | SWITCH |
| STOP LIGHT | ||
| 949 | A 0009909251 | NUT |
| STOP LIGHT SWITCH TO PEDAL BEARING BRACKET | ||
| A 6975460041 | CABLE CONNECTOR | |
| REAR | ||
| N 000933005066 | SCREW | |
| Repalced by: N 304017005011 | ||
| N 304017005011 | SCREW | |
| REAR CABLE CONNECTOR TO FRAME | ||
| N 913004005001 | NUT | |
| REAR CABLE CONNECTOR TO FRAME | ||
| 961 | A 0005455414 | SWITCH |
| PARKING BRAKE CONTROL | ||
| 961 | A 0005455414 | SWITCH |
| SUPPLY PRESSURE CONTROL | ||
| 961 | A 0005455414 | SWITCH |
| SPRING-LOAD UNIT TELL-TALE LAMP | ||
| A 0015455714 | SWITCH | |
| BUS STOP BRAKE | ||
| A 0015455714 | SWITCH | |
| EMERGENCY RELEASE | ||
| 963 | A 6975400044 | SWITCH |
| EXHAUST BRAKE | ||
| 965 | N 000963006001 | SCREW |
| SWITCH TO SUBSTRUCTURE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
