Transporto priemonė: O 301; VIN numerio dalis: 697006

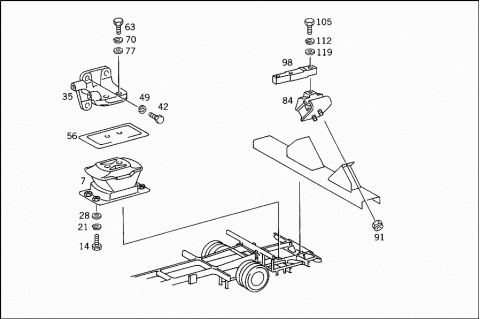

Grupė: 24 ENGINE SUSPENSION - 001 RUBBER MOUNTING TO ENGINE SUPPORT

#	Kodas	Pavadinimas
	Y YYYYYYYYYYYY	PART NAME MISSING
		FOR ENGINE FRONT SUPPORT,SEE GROUP:
		31
007	A 6152400218	RUBBER MOUNTING
		FRONT LEFT AND RIGHT
007	A 6152400318	RUBBER MOUNTING
		FRONT LEFT AND RIGHT
007	A 6152400418	RUBBER MOUNTING
		FRONT LEFT AND RIGHT
014	N 000961012151	SCREW
		RUBBER MOUNTING TO SIDE MEMBER
021	N 912004012100	LOCK WASHER
		RUBBER MOUNTING TO SIDE MEMBER
028	N 000125013008	WASHER
035	A 3812420205	SUPPORTING ARM
		FRONT LEFT
035	A 3812420305	SUPPORTING ARM
		FRONT RIGHT
042	N 000933016040	SCREW
		SUPPORTING ARM AND BRACKET TO CRANKCASE
049	N 912004016101	LOCK WASHER
		SUPPORTING ARM AND BRACKET TO CRANKCASE
056	A 3812420034	SCREENING PLATE
		SUPPORTING ARM TO FRONT RUBBER MOUNTING
063	N 000960014167	SCREW
	Repalced by: N 000961014064
063	N 000961014064	SCREW
		SUPPORTING ARM TO FRONT RUBBER MOUNTING
070	N 912004014100	LOCK WASHER
		SUPPORTING ARM TO FRONT RUBBER MOUNTING
077	A 3609901840	WASHER
		SUPPORTING ARM TO FRONT RUBBER MOUNTING
	Y YYYYYYYYYYYY	PART NAME MISSING
		FOR ENGINE REAR SUPPORT,SEE GROUP:
		31
084	A 6152400317	RUBBER MOUNTING
		REAR LEFT AND RIGHT
091	N 913004012008	NUT
		RUBBER MOUNTING TO FRAME
098	A 6972230004	ENGINE SUPPORT
		REAR LEFT AND RIGHT
	N 913004014005	NUT
	Repalced by: N 910113014000
	N 910113014000	NUT
		SUPPORTING ARM TO ENGINE
105	N 000912016075	SCREW
		SUPPORTING ARM TO REAR RUBBER MOUNTING
112	N 912004016101	LOCK WASHER
		SUPPORTING ARM TO REAR RUBBER MOUNTING
119	A 3529902440	WASHER
		SUPPORTING ARM TO REAR RUBBER MOUNTING
