Transporto priemonė: O 301; VIN numerio dalis: 697006

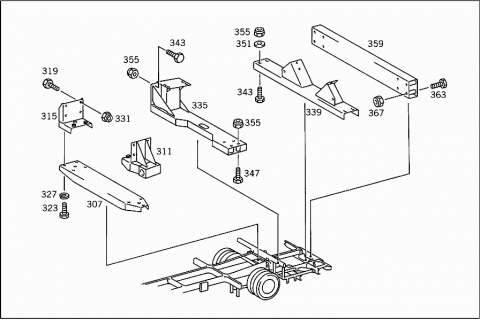

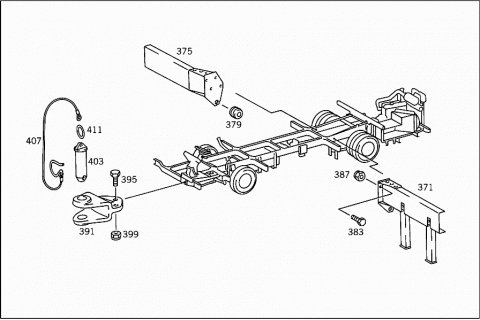

Grupė: 31 FRAME
| # | Kodas | Pavadinimas |
|---|---|---|
| 307 | A 6973200134 | SUPPORT |
| REAR AXLE STABILIZER | ||
| 311 | A 6973200178 | CONSOLE |
| LEFT | ||
| 315 | A 6973200078 | CONSOLE |
| RIGHT | ||
| 319 | N 000961014008 | SCREW |
| Repalced by: N 308676014003 | ||
| 319 | N 308676014003 | SCREW |
| CONSOLE TO FRAME | ||
| 323 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 323 | A 9429901304 | SCREW |
| SUPPORT TO CONSOLE | ||
| 327 | N 912004014100 | LOCK WASHER |
| SUPPORT TO CONSOLE | ||
| 331 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 331 | N 910113014000 | NUT |
| CONSOLE TO FRAME | ||
| 335 | A 6972400301 | ENGINE SUPPORT |
| FRONT | ||
| 339 | A 6972400002 | ENGINE SUPPORT |
| REAR | ||
| 343 | N 000961014008 | SCREW |
| Repalced by: N 308676014003 | ||
| 343 | N 308676014003 | SCREW |
| ENGINE SUPPORT TO SIDE MEMBERS | ||
| 347 | N 308676014002 | SCREW |
| ENGINE FRONT SUPPORT TO FRAME | ||
| 351 | A 6979900040 | WASHER |
| Repalced by: N 000125015013 | ||
| 351 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 351 | N 000125015019 | WASHER |
| ENGINE REAR SUPPORT TO FRAME | ||
| 355 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 355 | N 910113014000 | NUT |
| ENGINE SUPPORT TO SIDE MEMBERS | ||
| 359 | A 6973100046 | CROSS MEMBER |
| Repalced by: A 6973100146 | ||
| 359 | A 6973100146 | CROSS MEMBER |
| (REAR CROSS MEMBER) | ||
| 363 | N 000960016269 | SCREW |
| Repalced by: N 308765016010 | ||
| 363 | N 308765016010 | SCREW |
| REAR CROSS MEMBER TO SIDE MEMBERS | ||
| 367 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 367 | N 910113016001 | NUT |
| REAR CROSS MEMBER TO SIDE MEMBERS | ||
| 371 | A 6973101167 | BODY SUPPORT |
| LEFT | ||
| A 6973103467 | BODY SUPPORT | |
| LEFT | ||
| A 6973101367 | BODY SUPPORT | |
| LEFT | ||
| 375 | A 6973101067 | BODY SUPPORT |
| RIGHT | ||
| A 6973103567 | BODY SUPPORT | |
| RIGHT | ||
| A 6973101467 | BODY SUPPORT | |
| RIGHT | ||
| 375 | A 6973101267 | BODY SUPPORT |
| RIGHT | ||
| 375 | A 6973102567 | BODY SUPPORT |
| RIGHT | ||
| A 6973101767 | BODY SUPPORT | |
| RIGHT | ||
| 379 | A 3093200073 | BEARING |
| TORSION BAR,REAR | ||
| 383 | N 000961012106 | SCREW |
| BODY SUPPORT TO SIDE MEMBER | ||
| 387 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 387 | N 910113012003 | HEXAGON NUT |
| BODY SUPPORT TO SIDE MEMBER | ||
| 391 | A 3123151005 | COUPLING MOUTH |
| FRONT FRAME AREA | ||
| 395 | N 000960014237 | SCREW |
| COUPLING MOUTH TO FRAME | ||
| 399 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 399 | N 910113014000 | NUT |
| COUPLING MOUTH TO FRAME | ||
| 403 | A 3223150506 | COUPLING PIN |
| 407 | A 3058900062 | CHAIN |
| TO SECURE COUPLING PIN | ||
| A 3217550365 | ROPE | |
| TO SECURE COUPLING PIN | ||
| 411 | N 005296020204 | RING |
| CHAIN TO COUPLING PIN | ||
