Transporto priemonė: O 301; VIN numerio dalis: 697006
Grupė: 47 FUEL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|

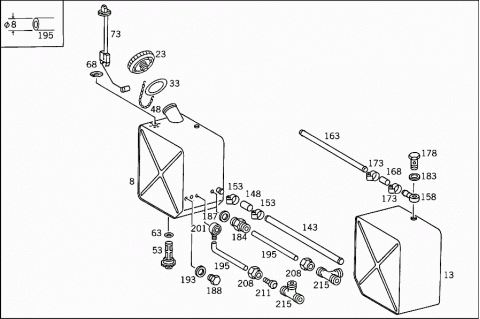

| 008 | A 6974700801 | FUEL TANK |
| Repalced by: A 6974700301 | ||
| 008 | A 6974700301 | FUEL TANK |
| WITH SHORT FILLER NECK | ||
| 95 L | ||
| 013 | A 6974700401 | FUEL TANK |
| ADDITIONAL TANK,LEFT | ||
| 95 L | ||

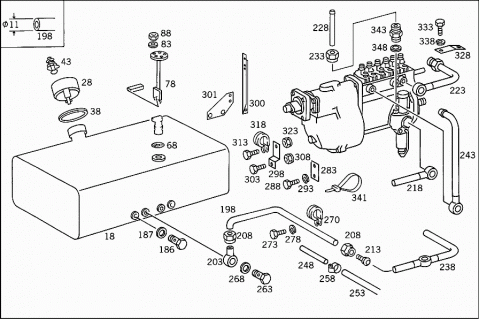

| 018 | A 3074702601 | FUEL TANK |
| 150 L | ||
| 023 | A 0004717930 | FILLER CAP |
| Repalced by: A 0004700305 | ||
| 028 | A 0004716630 | FILLER CAP |
| 033 | A 3049970340 | SEAL RING |
| 038 | A 0004710980 | GASKET |
| Repalced by: A 0004712780 | ||
| 038 | A 0004712780 | GASKET |
| 043 | A 0004700993 | VALVE |
| 048 | A 3034700031 | CHAIN |
| 053 | A 3074700106 | FUEL STRAINER |
| A 3604700006 | FUEL STRAINER | |
| Repalced by: A 3074700106 | ||
| 063 | A 0029977245 | SEAL RING |
| 068 | A 4044710080 | GASKET |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 073 | A 6975420017 | SENDER UNIT |
| 078 | A 0005426117 | SENDER UNIT |
| FUEL GAUGE | ||
| 083 | A 0669970640 | SEAL RING |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 088 | N 000934005008 | NUT |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||

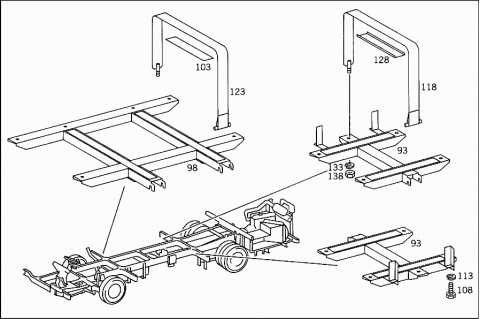

| 093 | A 6974700942 | SUPPORT |
| FUEL TANK | ||
| 098 | A 6974701142 | SUPPORT |
| FUEL TANK | ||
| 098 | A 6974701342 | SUPPORT |
| FUEL TANK | ||
| 103 | A 0009873960 | RUBBER PAD |
| 108 | N 000961014112 | SCREW |
| SUPPORT TO FRAME | ||
| 113 | N 912004014100 | LOCK WASHER |
| SUPPORT TO FRAME | ||
| 118 | A 6974700140 | STRAP |
| FUEL TANK TO SUPPORT | ||
| 123 | A 3068900171 | STRAP |
| FUEL TANK TO SUPPORT | ||
| 128 | A 3634750320 | PAD |
| FUEL TANK TO SUPPORT | ||
| 133 | N 912004010102 | LOCK WASHER |
| STRAP TO SUPPORT | ||
| 138 | N 000934010014 | NUT |
| STRAP TO SUPPORT | ||
| 143 | A 6974710023 | LINE |
| FUEL COMPENSATING | ||
| 40X1,5 MM | ||
| 148 | A 6979970582 | HOSE |
| FUEL COMPENSATING LINE TO FUEL TANK | ||
| 153 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 153 | N 000000002775 | CLAMP |
| FUEL COMPENSATING LINE TO FUEL TANK | ||
| 40-60X13 MM | ||
| 158 | A 6974700025 | BREATHER |
| BREATHER LINE | ||
| 163 | A 6974710415 | BREATHER PIPE |
| Repalced by: A 0004291601 | ||
| 163 | A 0004291601 | LINE |
| BREATHER LINE TO TANK BREATHER PIPE | ||
| 1465 MM | ||
| 168 | A 6979970482 | HOSE |
| BREATHER LINE TO TANK BREATHER PIPE | ||
| 173 | N 916017025000 | CLAMP |
| Repalced by: N 000000000668 | ||
| 173 | N 000000000668 | CLAMP |
| BREATHER LINE TO TANK BREATHER PIPE | ||
| 178 | N 915036022100 | HOLLOW SCREW |
| BREATHER LINE TO FUEL TANK | ||
| 183 | N 007603026104 | SEAL RING |
| BREATHER LINE TO FUEL TANK | ||
| 184 | A 4039971172 | FITTING |
| FUEL LINE TO TANK | ||
| 186 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 186 | N 915036010108 | HOLLOW SCREW |
| FUEL LINE TO TANK | ||
| 187 | N 007603014106 | SEAL RING |
| FUEL LINE TO TANK | ||
| 188 | N 007604014101 | SCREW PLUG |
| TO PLUG THE FREE CONNECTIONS IN FUEL TANK | ||
| 193 | N 007603014106 | SEAL RING |
| TO PLUG THE FREE CONNECTIONS IN FUEL TANK | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FUEL LINES | ||
| 195 | A 0089979082 | HOSE |
| Repalced by: A 0009872727 | ||
| 195 | A 0009872727 | PLASTIC PIPE |
| 6X8 MM | ||
| 198 | A 0089975582 | PLASTIC TUBE |
| Repalced by: A 0089975482 | ||
| 198 | A 0089975482 | HOSE |
| FROM FUEL TANK TO FEED PUMP | ||
| 8X11 MM | ||
| 201 | N 915052006021 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/14 | ||
| 203 | N 915052008016 | BANJO UNION |
| Repalced by: N 000000000363 | ||
| 203 | N 000000000363 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 8/14 MM | ||
| 208 | N 915017010200 | UNION NUT |
| 211 | A 6979970572 | FITTING |
| WITH SEAL CONE | ||
| 213 | A 0019974972 | FITTING |
| WITH SEAL CONE | ||
| 215 | N 915021010000 | FITTING |
| FROM FUEL TANK TO CONNECTION POINT I | ||
| 218 | A 3074709765 | LINE |
| WITH BANJO UNION | ||
| 1000 MM | ||
| 223 | A 3074709865 | LINE |
| WITH FITTING | ||
| 1000 MM | ||
| 228 | A 3074702766 | LINE |
| WITH SEAL CONE | ||
| 1000 MM | ||
| 233 | N 915017010200 | UNION NUT |
| 238 | A 6974700065 | LINE |
| WITH DOUBLE BANJO UNION | ||
| 243 | A 6974701564 | LINE |
| WITH BANJO UNION AND SEAL CONE | ||
| 248 | A 0004293301 | LINE |
| LESS CONNECTIONS | ||
| 253 | A 3054760126 | HOSE |
| TO CONNECT THE FUEL LINES | ||
| 258 | N 916026016001 | CLAMP |
| Repalced by: A 0059970190 | ||
| 258 | A 0059970190 | HOSE CLAMP |
| TO CONNECT THE FUEL LINES | ||
| 263 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 263 | N 915036010108 | HOLLOW SCREW |
| CONNECTION OF FUEL LINES | ||
| 268 | N 007603014106 | SEAL RING |
| CONNECTION OF FUEL LINES | ||
| 270 | N 916016010201 | CLAMP |
| Repalced by: N 916016010211 | ||
| 270 | N 916016010211 | CLAMP |
| Repalced by: N 000000001045 | ||
| 270 | N 000000001045 | CLAMP |
| FUEL LINES TO BRACKET | ||
| 273 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 273 | N 304017006016 | SCREW |
| FUEL LINES TO BRACKET | ||
| 278 | N 912004006102 | LOCK WASHER |
| FUEL LINES TO BRACKET | ||
| 283 | A 6974760636 | BRACKET |
| Repalced by: A 3184924841 | ||
| 283 | A 3184924841 | BRACKET |
| FUEL LINES TO ENGINE,FRONT LEFT | ||
| 288 | N 000933012058 | SCREW |
| BRACKET TO ENGINE | ||
| 293 | N 912004012100 | LOCK WASHER |
| BRACKET TO ENGINE | ||
| 298 | A 6974760736 | BRACKET |
| Repalced by: A 3184924841 | ||
| 298 | A 3184924841 | BRACKET |
| FUEL LINES TO ENGINE,FRONT RIGHT | ||
| 300 | A 6974761036 | BRACKET |
| 301 | A 6972950540 | BRACKET |
| 303 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 303 | N 304017008016 | SCREW |
| BRACKET TO ENGINE | ||
| M 8X16 | ||
| 303 | N 000931008266 | SCREW |
| BRACKET TO ENGINE | ||
| M 8X40 | ||
| 308 | N 913004008004 | NUT |
| BRACKET TO ENGINE | ||
| 313 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 313 | N 304017006016 | SCREW |
| FUEL LINES TO ENGINE,SIDE | ||
| 318 | N 916016010201 | CLAMP |
| Repalced by: N 916016010211 | ||
| 318 | N 916016010211 | CLAMP |
| Repalced by: N 000000001045 | ||
| 318 | N 000000001045 | CLAMP |
| FUEL LINES TO ENGINE,SIDE | ||
| 323 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 323 | N 913004006001 | NUT |
| FUEL LINES TO ENGINE,SIDE | ||
| 328 | N 000931008326 | SCREW |
| 333 | N 000933010128 | SCREW |
| BRACKET TO ENGINE | ||
| 338 | N 912004010102 | LOCK WASHER |
| BRACKET TO ENGINE | ||
| 341 | A 0019978490 | LOOM TIE |
| 343 | A 4039971172 | FITTING |
| FUEL LINE TO FUEL PUMP | ||
| 348 | N 007603014106 | SEAL RING |
| FUEL LINE TO FUEL PUMP | ||
| 353 | A 0039974482 | HOSE |
| FROM FUEL PUMP TO MANUAL PUMP | ||

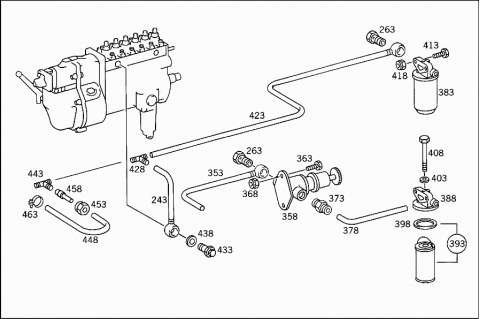

| 358 | A 0000911690 | PUMP |
| (MANUAL AUXILIARY PUMP) | ||
| 363 | N 000933006123 | SCREW |
| MANUAL AUXILIARY PUMP TO SUPPORT | ||
| 368 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 368 | N 913004006001 | NUT |
| MANUAL AUXILIARY PUMP TO SUPPORT | ||
| 373 | A 4039971172 | FITTING |
| FUEL HOSE TO FUEL PUMP | ||
| 378 | A 0039974482 | HOSE |
| FROM MANUAL FEED PUMP TO TWO-STAGE FUEL FILTER | ||
| 383 | A 0000926801 | FILTER |
| Repalced by: A 0010926101 | ||
| 383 | A 0010926101 | FILTER |
| FUEL FILTER | ||
| 388 | A 0000920508 | FILTER HEAD |
| 393 | A 3524700092 | FILTER ELEMENT |
| Repalced by: A 0000901151 | ||
| 393 | A 0000901151 | TS FILTER INSERT |
| 398 | A 0004773580 | SEAL RING |
| 403 | N 007603008109 | SEAL RING |
| 408 | N 000931008326 | SCREW |
| Repalced by: N 304014008009 | ||
| 408 | N 304014008009 | SCREW |
| 413 | N 000931010293 | SCREW |
| FUEL FILTER TO SUPPORT | ||
| 418 | N 913004010011 | NUT |
| FUEL FILTER TO SUPPORT | ||
| 423 | A 0039974482 | HOSE |
| FROM FUEL FILTER TO INJECTION PUMP | ||
| 423 | A 0039974482 | HOSE |
| FROM FUEL FILTER TO INJECTION PUMP | ||
| 428 | N 915021010000 | FITTING |
| BRANCH-OFF TO PRESSURE RELIEF VALVE | ||
| 433 | A 0000740515 | PRESSURE VALVE |
| PRESSURE RELIEF | ||
| 438 | N 007603014106 | SEAL RING |
| 443 | N 915021010000 | FITTING |
| ENGINE LEAK RETURN BRANCH-OFF | ||
| 448 | N 073379006203 | HOSE |
| LEAK RETURN | ||
| 6X10 MM | ||
| 453 | N 915017010200 | UNION NUT |
| 458 | A 6974700564 | CONNECTOR |
| 463 | A 6979970090 | LOOM TIE |

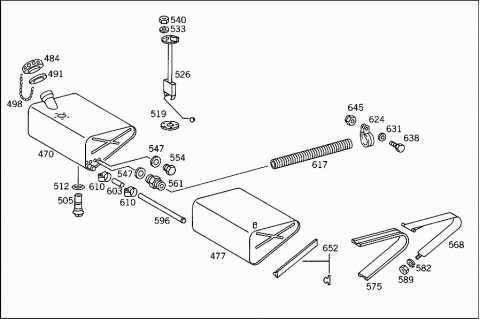

| 470 | A 6974707001 | FUEL TANK |
| RIGHT | ||
| 477 | A 6974701001 | FUEL TANK |
| LEFT | ||
| 484 | A 0004700305 | FILLER CAP |
| 491 | A 3049970340 | SEAL RING |
| 498 | A 3034700031 | CHAIN |
| 505 | A 3074700106 | FUEL STRAINER |
| 512 | A 0029977245 | SEAL RING |
| 519 | A 4044710080 | GASKET |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 526 | A 6975420117 | SENDER UNIT |
| FUEL GAUGE | ||
| 533 | A 0669970640 | SEAL RING |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 540 | N 000934005008 | NUT |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 547 | N 007603014106 | SEAL RING |
| TO PLUG THE FREE CONNECTIONS IN FUEL TANK | ||
| 554 | N 007604014106 | SCREW PLUG |
| Repalced by: N 007604014110 | ||
| 554 | N 007604014110 | SCREW PLUG |
| TO PLUG THE FREE CONNECTIONS IN FUEL TANK | ||
| 561 | A 4039971172 | FITTING |
| FEED LINE TO FUEL TANK | ||
| 568 | A 6974700340 | STRAP |
| FUEL TANK TO SUPPORT | ||
| 575 | A 3634750320 | PAD |
| STRAP | ||
| 582 | N 912004010102 | LOCK WASHER |
| FUEL TANK TO SUPPORT | ||
| 589 | N 000934010014 | NUT |
| FUEL TANK TO SUPPORT | ||
| 596 | A 6974700066 | LINE |
| FUEL COMPENSATING | ||
| 40X1.5 MM | ||
| 603 | A 6979970582 | HOSE |
| FUEL COMPENSATING LINE TO FUEL TANK | ||
| 610 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 610 | N 000000002775 | CLAMP |
| FUEL COMPENSATING LINE TO FUEL TANK | ||
| 40-60X13 MM | ||
| 617 | A 0015460030 | INSULATING HOSE |
| 26 MM | ||
| 624 | N 916016032200 | CLAMP |
| 631 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 631 | N 000125008443 | WASHER |
| 638 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 638 | N 304017008021 | SCREW |
| 645 | N 913004008004 | NUT |
| 652 | A 0019855551 | METAL SECTION |
| 100 MM | ||
