Transporto priemonė: O 301; VIN numerio dalis: 697006

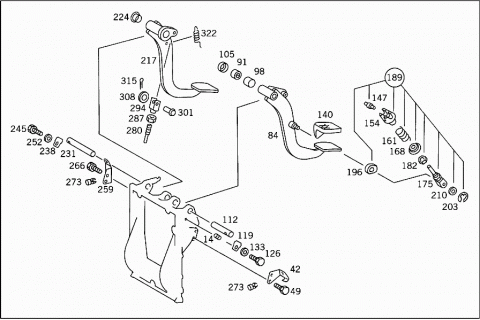

Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 007 | A 6732903119 | BEARING BRACKET |
| (PEDAL BEARING BRACKET) | ||
| 014 | N 900421008002 | THREADED INSERT |
| 021 | A 6732940270 | STUD |
| BEARING BRACKET TO CAB | ||
| 028 | A 6732940180 | GASKET |
| BEARING BRACKET TO CAB | ||
| 035 | N 913004008004 | NUT |
| BEARING BRACKET TO CAB | ||
| 042 | A 6732910130 | STOP |
| CLUTCH PEDAL | ||
| 049 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 049 | N 304017006018 | SCREW |
| STOP TO BEARING BRACKET | ||
| 056 | A 6972900133 | BRACKET |
| 063 | N 000933010145 | SCREW |
| BRACKET TO FRAME | ||
| M 10X35 | ||
| 070 | N 000933010105 | SCREW |
| BRACKET TO FRAME | ||
| M 10X25 | ||
| 077 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 077 | N 910113010000 | NUT |
| BRACKET TO FRAME | ||
| 084 | A 6732900816 | PEDAL |
| CLUTCH | ||
| 091 | A 0019816310 | NEEDLE BEARING |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 091 | A 0139814610 | NEEDLE BEARING |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 098 | A 6732910053 | SPACER TUBE |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 105 | A 6732910076 | WASHER |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 112 | A 6732940074 | PIN |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 119 | A 3852920073 | LOCK |
| Repalced by: A 6732920073 | ||
| 119 | A 6732920073 | LOCK |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 126 | N 000933006102 | SCREW |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 133 | N 000125006421 | WASHER |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 140 | A 1072910182 | PAD |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 147 | A 6732910074 | PIN |
| CLUTCH PEDAL RESET | ||
| 154 | A 6732910191 | SPRING RETAINER |
| CLUTCH PEDAL RESET | ||
| 161 | A 6739930601 | SPRING |
| CLUTCH PEDAL RESET | ||
| 168 | A 6732910291 | SPRING RETAINER |
| CLUTCH PEDAL RESET | ||
| 175 | A 6732900339 | ROD |
| CLUTCH PEDAL RESET | ||
| 182 | N 913021010001 | NUT |
| Repalced by: N 304035010001 | ||
| 182 | N 304035010001 | NUT |
| 189 | A 6732900093 | REPAIR KIT |
| DEAD CENTER SPRING | ||
| 196 | A 6732910186 | STOP |
| DEAD CENTER SPRING TO LEVER | ||
| 203 | N 006799007007 | LOCK PLATE |
| DEAD CENTER SPRING TO LEVER | ||
| 210 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 210 | N 000125010532 | WASHER |
| DEAD CENTER SPRING TO LEVER | ||
| 217 | A 6732900118 | PEDAL |
| Repalced by: A 6972900118 | ||
| 217 | A 6972900118 | PEDAL |
| BRAKE | ||
| 224 | A 1102910550 | BUSHING |
| BRAKE PEDAL | ||
| 231 | A 6732940174 | PIN |
| BRAKE PEDAL | ||
| 238 | A 3852920073 | LOCK |
| Repalced by: A 6732920073 | ||
| 238 | A 6732920073 | LOCK |
| BRAKE PEDAL | ||
| 245 | N 000933006102 | SCREW |
| BRAKE PEDAL | ||
| 252 | N 000125006421 | WASHER |
| BRAKE PEDAL | ||
| 259 | A 6732920030 | STOP |
| BRAKE PEDAL | ||
| 266 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 266 | N 304017006018 | SCREW |
| STOP TO BEARING BRACKET | ||
| 273 | A 1232910286 | STOP |
| BRAKE PEDAL | ||
| 280 | A 6732920032 | ROD |
| FROM BRAKE PEDAL TO BRAKE VALVE | ||
| 287 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 287 | N 304035008001 | NUT |
| ROD TO BRAKE PEDAL | ||
| 294 | A 6209960001 | YOKE |
| ROD TO BRAKE PEDAL | ||
| 301 | A 6732940174 | PIN |
| ROD TO BRAKE PEDAL | ||
| 308 | N 000433008406 | WASHER |
| ROD TO BRAKE PEDAL | ||
| 315 | N 000094002059 | COTTER PIN |
| ROD TO BRAKE PEDAL | ||
| Repalced by: N 000094002060 | ||
| 315 | N 000094002060 | COTTER PIN |
| ROD TO BRAKE PEDAL | ||
| 322 | A 6739930110 | SPRING |
| BRAKE PEDAL RESET | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR BRAKE VALVE,SEE GROUP 42 | ||
| 329 | A 6974600031 | STEERING COLUMN BRACKET |
| 336 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 336 | N 304017008021 | SCREW |
| BRACKET TO PEDAL ASSEMBLY BEARING BRACKET | ||
| 343 | N 913004008004 | NUT |
| BRACKET TO PEDAL ASSEMBLY BEARING BRACKET | ||
| 350 | A 6975400151 | SUPPORT |
| RESERVOIR AND LINES | ||
| 357 | N 000933006127 | SCREW |
| SUPPORT TO FRAME | ||
| 364 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 364 | N 913004006001 | NUT |
| SUPPORT TO FRAME | ||
| A 6976100655 | FLOOR | |
| DRIVER'S PEDESTAL | ||
| 371 | A 6976100055 | FLOOR |
| DRIVER'S PEDESTAL | ||
| A 6976100955 | FLOOR | |
| DRIVER'S PEDESTAL | ||
| 378 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 378 | N 304017006020 | SCREW |
| FLOOR TO FRAME | ||
| 385 | N 000933006207 | SCREW |
| FLOOR TO FRAME | ||
| N 912004006102 | LOCK WASHER | |
| FLOOR TO FRAME | ||
| 392 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 392 | N 913004006001 | NUT |
| FLOOR TO FRAME | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR CYLINDERS & HYDRAULIC LINES, SEE GROUP 25 | ||
