Transporto priemonė: O 301; VIN numerio dalis: 697006

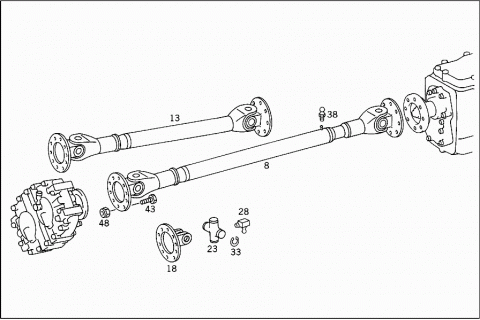

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 008 | A 6974100102 | PROPELLER SHAFT |
| FROM TRANSMISSION TO TRANSFER CASE | ||
| 1974 MM | ||
| 013 | A 6744102302 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO REAR AXLE | ||
| 1235 MM | ||
| 018 | A 3814110811 | DRIVE FLANGE |
| 023 | A 6174100031 | UNIVERSAL JOINT CROSS |
| Repalced by: A 0004104031 | ||
| 023 | A 0004104031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 028 | N 071412008302 | GREASE NIPPLE |
| 033 | A 0039944441 | LOCK |
| Repalced by: A 0059949441 | ||
| 033 | A 0059949441 | LOCK |
| Repalced by: N 000472042001 | ||
| 033 | N 000472042001 | LOCK RING |
| AS REQUIRED | ||
| 1.750 MM | ||
| 033 | A 0039945041 | LOCK |
| Repalced by: A 0059949941 | ||
| 033 | A 0059949941 | LOCK |
| AS REQUIRED | ||
| 1.875 MM | ||
| 033 | A 0059941041 | LOCK |
| Repalced by: A 0069940441 | ||
| 033 | A 0069940441 | LOCK |
| AS REQUIRED | ||
| 2.000 MM | ||
| 038 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 038 | N 071412008102 | GREASE NIPPLE |
| PROPELLER SHAFT | ||
| 043 | A 3529900401 | SCREW |
| Repalced by: A 3529904701 | ||
| 043 | A 3529904701 | SCREW |
| Repalced by: A 0079901001 | ||
| 043 | A 0079901001 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION AND TO TRANSFER CASE | ||
| 043 | A 0079901001 | SCREW |
| PROPELLER SHAFT TO TRANSFER CASE AND TO REAR AXLE | ||
| 048 | N 913004010014 | NUT |
| Repalced by: N 910113010003 | ||
| 048 | N 910113010003 | NUT |
| PROPELLER SHAFT TO TRANSMISSION AND TO TRANSFER CASE | ||
| 048 | N 910113010003 | NUT |
| PROPELLER SHAFT TO TRANSFER CASE AND TO REAR AXLE | ||
