Transporto priemonė: O 301; VIN numerio dalis: 697006
Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|

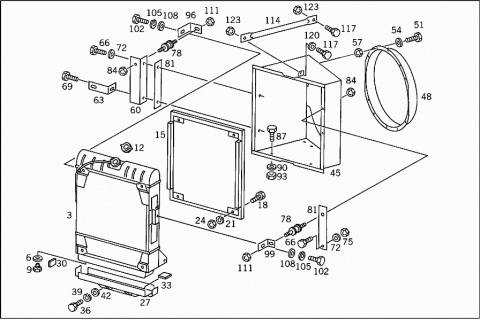

| 003 | A 3135000802 | RADIATOR |
| WATER | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR APPARATUS SUPPORT,SEE GROUP: | ||
| 52 | ||
| 006 | N 007603014405 | SEAL RING |
| WATER DRAIN | ||
| 009 | N 007604014101 | SCREW PLUG |
| WATER DRAIN | ||
| 012 | A 6975010015 | RADIATOR CAP |
| LESS VALVE | ||
| 015 | A 6975000056 | SEAL |
| 018 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 018 | N 304017006018 | SCREW |
| RADIATOR COVERING TO RADIATOR | ||
| 021 | N 912004006102 | LOCK WASHER |
| RADIATOR COVERING TO RADIATOR | ||
| 024 | N 000934006007 | NUT |
| RADIATOR COVERING TO RADIATOR | ||
| 027 | A 6975000127 | SUPPORT |
| RADIATOR TO SUBSTRUCTURE | ||
| 030 | A 6978950096 | BASE |
| 40X30 MM | ||
| 033 | A 6979870060 | RUBBER PAD |
| 036 | N 000933014011 | SCREW |
| SUPPORT TO FRAME | ||
| 039 | N 912004014100 | LOCK WASHER |
| SUPPORT TO FRAME | ||
| 042 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 042 | N 000125015019 | WASHER |
| SUPPORT TO FRAME | ||
| 045 | A 6975000161 | AIR DUCT |
| AIR BAFFLE | ||
| 048 | A 6975000039 | REINFORCEMENT |
| 051 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 051 | N 304017006016 | SCREW |
| REINFORCEMENT TO AIR DUCT | ||
| 054 | N 000125006421 | WASHER |
| REINFORCEMENT TO AIR DUCT | ||
| 057 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 057 | N 913004006001 | NUT |
| REINFORCEMENT TO AIR DUCT | ||
| 060 | A 6975050340 | BRACKET |
| RUBBER BUFFER | ||
| 063 | A 6978320014 | BRACKET |
| AIR DUCT | ||
| 066 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 066 | N 304017008021 | SCREW |
| BRACKET TO AIR BAFFLE | ||
| M 8X20 | ||
| 069 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 069 | N 304017008034 | SCREW |
| BRACKET TO AIR BAFFLE | ||
| M 8X25 | ||
| 072 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 072 | N 000125008443 | WASHER |
| BRACKET TO AIR BAFFLE | ||
| 075 | N 913004008004 | NUT |
| BRACKET TO AIR BAFFLE | ||
| 078 | A 0019875240 | RUBBER BUFFER |
| 081 | A 6975050043 | BASE |
| 084 | N 913004008004 | NUT |
| RUBBER BUFFER TO BRACKET | ||
| 087 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 087 | N 304017006016 | SCREW |
| AIR BAFFLE TO RADIATOR BASE FRAME | ||
| 090 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 090 | N 009021006208 | WASHER |
| AIR BAFFLE TO RADIATOR BASE FRAME | ||
| 093 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 093 | N 913004006001 | NUT |
| AIR BAFFLE TO RADIATOR BASE FRAME | ||
| 096 | A 6975040039 | ANGLE |
| Repalced by: A 3464296040 | ||
| 096 | A 3464296040 | BRACKET |
| RADIATOR,LEFT | ||
| 099 | A 6975040139 | ANGLE |
| Repalced by: A 6454310740 | ||
| 099 | A 6454310740 | BRACKET |
| RADIATOR,RIGHT | ||
| 102 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 102 | N 304017008021 | SCREW |
| BRACKET TO BASE FRAME | ||
| 105 | N 912004008102 | LOCK WASHER |
| BRACKET TO BASE FRAME | ||
| 108 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 108 | N 000125008443 | WASHER |
| BRACKET TO BASE FRAME | ||
| 108 | N 000125008443 | WASHER |
| RUBBER BUFFER TO BRACKET | ||
| 111 | N 913004008004 | NUT |
| RUBBER BUFFER TO BRACKET | ||
| 114 | A 6975040322 | STRUT |
| AIR DUCT TO APPARATUS SUPPORT | ||
| 117 | N 000933010128 | SCREW |
| STRUT TO AIR DUCT & TO APPARATUS SUPPORT | ||
| 120 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 120 | N 000125010532 | WASHER |
| STRUT TO AIR DUCT & TO APPARATUS SUPPORT | ||
| 123 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 123 | N 910113010000 | NUT |
| STRUT TO AIR DUCT & TO APPARATUS SUPPORT | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| COOLING WATER EXPANSION | ||

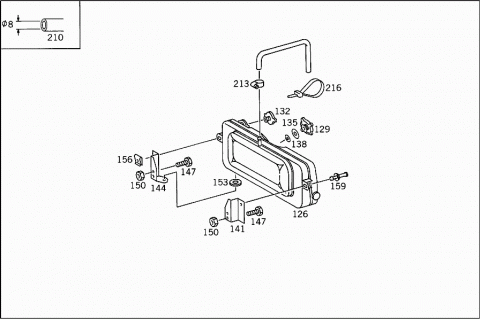

| 126 | A 6735000149 | TANK |
| COOLING WATER EXPANSION | ||
| 129 | A 0005014615 | RADIATOR CAP |
| FILLER NECK | ||
| 129 | A 0005017215 | RADIATOR CAP |
| FILLER NECK | ||
| 132 | A 0005014215 | RADIATOR CAP |
| WITH PRESSURE RELIEF VALVE | ||
| 135 | A 0005010480 | GASKET |
| O.D., | ||
| 52 MM | ||
| 138 | A 0005010880 | GASKET |
| O.D., | ||
| 37 MM | ||
| 141 | A 6975000231 | BRACKET |
| EXPANSION TANK,LEFT | ||
| 144 | A 6975000131 | BRACKET |
| EXPANSION TANK,RIGHT | ||
| 147 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 147 | N 304017008021 | SCREW |
| BRACKET TO APPARATUS SUPPORT | ||
| 150 | N 913004008004 | NUT |
| BRACKET TO APPARATUS SUPPORT | ||
| 153 | A 6735040212 | RUBBER MOUNTING |
| EXPANSION TANK TO BRACKET | ||
| 156 | N 912007016001 | CLIP |
| EXPANSION TANK TO BRACKET | ||
| 159 | A 6739900192 | RIVET |
| EXPANSION TANK TO BRACKET | ||

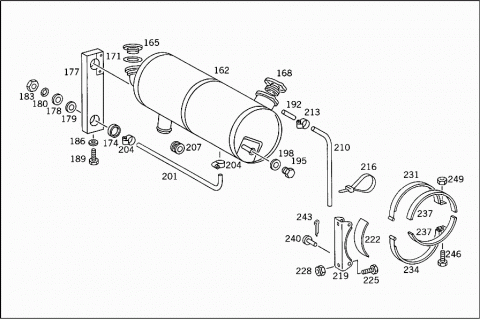

| 162 | A 3075003349 | TANK |
| COOLING WATER EXPANSION | ||
| 165 | A 0005013415 | RADIATOR CAP |
| FILLER NECK | ||
| 168 | A 0005013515 | RADIATOR CAP |
| WITH PRESSURE RELIEF VALVE | ||
| 171 | A 0005010480 | GASKET |
| O.D., | ||
| 52 MM | ||
| 171 | A 0005010880 | GASKET |
| O.D., | ||
| 37 MM | ||
| 174 | A 0009910445 | RING |
| 177 | A 0009971939 | SIGHT GLASS |
| 178 | A 0049976540 | SEAL RING |
| 179 | A 0009970426 | WASHER |
| 180 | A 0039978248 | SEAL RING |
| 183 | A 3079900051 | NUT |
| 186 | A 0039978540 | SEAL RING |
| 189 | N 000933008123 | SCREW |
| Repalced by: N 304017008008 | ||
| 189 | N 304017008008 | HEXAGON HEAD BOLT |
| 192 | A 0005010010 | DRAIN PIPE |
| 195 | N 007604022102 | SCREW PLUG |
| COOLING WATER DRAIN | ||
| 198 | N 007603022105 | SEAL RING |
| COOLING WATER DRAIN | ||
| 201 | N 900271008043 | HOSE |
| COOLING WATER LEVEL INDICATOR | ||
| 8 MM | ||
| 204 | N 916017011000 | CLAMP |
| Repalced by: N 916017011001 | ||
| 204 | N 916017011001 | CLAMP |
| Repalced by: N 000000000665 | ||
| 204 | N 000000000665 | CLAMP |
| COOLING WATER LEVEL INDICATOR | ||
| 12-22X12MM | ||
| 207 | A 0009974781 | GROMMET |
| HOSE THRU APPARATUS SUPPORT | ||
| 210 | A 6975012582 | HOSE |
| Repalced by: A 0029976482 | ||
| 210 | A 0029976482 | HOSE |
| OVERFLOW, EXPANSION TANK | ||
| 8X1500 MM | ||
| 213 | N 916017011000 | CLAMP |
| Repalced by: N 916017011001 | ||
| 213 | N 916017011001 | CLAMP |
| Repalced by: N 000000000665 | ||
| 213 | N 000000000665 | CLAMP |
| HOSE TO EXPANSION TANK | ||
| 12-22X12MM | ||
| 216 | A 0019978390 | LOOM TIE |
| HOSE TO SUPPORT | ||
| 219 | A 3055000046 | CLAMP |
| EXPANSION TANK TO SUPPORT | ||
| 222 | A 3029870814 | RUBBER STRIP |
| 225 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 225 | N 304017008021 | SCREW |
| CLAMP TO SUPPORT | ||
| 228 | N 913004008004 | NUT |
| CLAMP TO SUPPORT | ||
| 231 | A 3055000131 | BRACKET |
| EXPANSION TANK,TOP | ||
| 234 | A 3055000031 | BRACKET |
| EXPANSION TANK,BOTTOM | ||
| 237 | A 3029870814 | RUBBER STRIP |
| 240 | N 001444006227 | PIN |
| BRACKET TO RETAINING CLAMP | ||
| 243 | N 000094001610 | COTTER PIN |
| Repalced by: N 000094001617 | ||
| 243 | N 000094001617 | COTTER PIN |
| BRACKET TO RETAINING CLAMP | ||
| 246 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 246 | N 304017008034 | SCREW |
| BRACKET TO BRACKET | ||
| 249 | N 912004008102 | LOCK WASHER |
| BRACKET TO BRACKET | ||

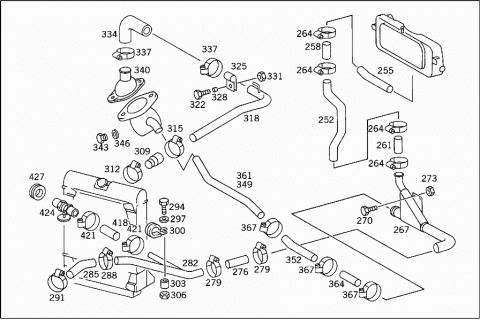

| 252 | A 6975010224 | COOLING WATER PIPE |
| FROM RESERVOIR TO BUBBLE SEPARATOR | ||
| 255 | A 6975000172 | LINE |
| FROM RESERVOIR TO BUBBLE SEPARATOR | ||
| 258 | N 900271028026 | HOSE |
| COOLING WATER LINE TO EXPANSION TANK & TO BUBBLE SEPARATOR | ||
| 28 MM | ||
| 258 | N 900271028026 | HOSE |
| COOLING WATER LINE TO BUBBLE SEPARATOR | ||
| 28 MM | ||
| 261 | N 900271038015 | HOSE |
| COOLING WATER LINE TO EXPANSION TANK | ||
| 38 MM | ||
| 264 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 264 | N 000000000670 | CLAMP |
| COOLING WATER LINE TO EXPANSION TANK & TO BUBBLE SEPARATOR | ||
| 267 | A 6975000069 | SEPARATOR |
| 270 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 270 | N 304017006020 | SCREW |
| BUBBLE SEPARATOR TO RADIATOR MOUNTING SUPPORT | ||
| 273 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 273 | N 913004006001 | NUT |
| BUBBLE SEPARATOR TO RADIATOR MOUNTING SUPPORT | ||
| 276 | N 900271042012 | HOSE |
| COOLING WATER LINE TO BUBBLE SEPARATOR | ||
| 279 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 279 | N 000000002775 | CLAMP |
| COOLING WATER LINE TO BUBBLE SEPARATOR | ||
| 40-60X13 MM | ||
| 282 | A 6975000572 | LINE |
| FROM BUBBLE SEPARATOR TO RADIATOR | ||
| 285 | A 4249870443 | RUBBER SLEEVE |
| COOLING WATER LINE TO RADIATOR | ||
| 288 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 288 | N 000000002775 | CLAMP |
| RUBBER BUFFER TO COOLING WATER LINE | ||
| 40-60X13 MM | ||
| 291 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 291 | N 000000000670 | CLAMP |
| RUBBER BUFFER TO RADIATOR,BOTTOM | ||
| 294 | N 000931008248 | SCREW |
| Repalced by: N 304017008053 | ||
| 294 | N 304017008053 | SCREW |
| COOLING WATER LINE TO FRAME | ||
| 297 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 297 | N 009021008213 | WASHER |
| COOLING WATER LINE TO FRAME | ||
| 300 | N 916016042201 | CLAMP |
| 303 | A 3854310153 | SPACER TUBE |
| Repalced by: A 4409910040 | ||
| 303 | A 4409910040 | SPACER TUBE |
| COOLING WATER LINE TO FRAME | ||
| 306 | N 913004008004 | NUT |
| COOLING WATER LINE TO FRAME | ||
| 309 | A 3405010382 | HOSE |
| COOLING WATER LINE TO RADIATOR | ||
| 312 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 312 | N 000000000670 | CLAMP |
| HOSE TO RADIATOR | ||
| 315 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 315 | N 000000002775 | CLAMP |
| HOSE TO COOLING WATER PIPE | ||
| 40-60X13 MM | ||
| 318 | A 6975000272 | LINE |
| Repalced by: A 6975000772 | ||
| A 6975000772 | LINE | |
| FROM RADIATOR TO THERMOSTAT | ||
| 322 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 322 | N 304017008027 | SCREW |
| COOLING WATER LINE TO BASE FRAME | ||
| 325 | N 916016045200 | CLAMP |
| COOLING WATER LINE TO BASE FRAME | ||
| Repalced by: N 000000004044 | ||
| 325 | N 000000004044 | CLAMP |
| COOLING WATER LINE TO BASE FRAME | ||
| 328 | A 6979920701 | BUSHING |
| Repalced by: A 6999922901 | ||
| 328 | A 6999922901 | BUSHING |
| Repalced by: A 6013250453 | ||
| 328 | A 6013250453 | SPACER TUBE |
| COOLING WATER LINE TO BASE FRAME | ||
| 331 | N 913004008004 | NUT |
| COOLING WATER LINE TO BASE FRAME | ||
| 334 | A 3055010582 | HOSE |
| COOLING WATER PIPE TO THERMOSTAT HOUSING | ||
| 337 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 337 | N 000000002775 | CLAMP |
| COOLING WATER PIPE TO THERMOSTAT HOUSING | ||
| 40-60X13 MM | ||
| 340 | A 3662031174 | COVER |
| THERMOSTAT HOUSING | ||
| 343 | N 007604018102 | SCREW PLUG |
| THERMOSTAT HOUSING | ||
| 346 | N 007603018101 | SEAL RING |
| THERMOSTAT HOUSING | ||
| 349 | A 6975011382 | HOSE |
| Repalced by: A 6745010682 | ||
| 352 | A 6975010324 | COOLING WATER PIPE |
| FROM HOSE TO BUBBLE SEPARATOR | ||
| 355 | A 6972030015 | PIPE |
| Repalced by: A 3662030315 | ||
| 355 | A 3662030315 | PIPE |
| SEE ENGINE STANDARD VERSION | ||
| 358 | A 6975010024 | COOLING WATER PIPE |
| 361 | A 6975010182 | HOSE |
| Repalced by: A 6745010682 | ||
| 361 | A 6745010682 | HOSE |
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FROM WATER PUMP TO COOLING WATER PIPE | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FROM COOLING WATER PIPE TO BUBBLE SEPARATOR | ||
| 364 | N 900271042012 | HOSE |
| COOLING WATER PIPE CONNECTION | ||
| 42X54 MM | ||
| 367 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 367 | N 000000002775 | CLAMP |
| COOLING WATER PIPE CONNECTION | ||
| 40-60X13 MM | ||

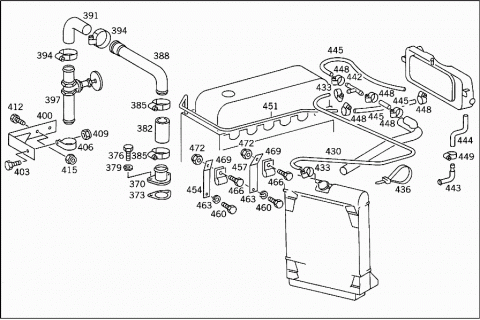

| 370 | A 6978300025 | PIPE SOCKET |
| HEATING PIPE TO ENGINE | ||
| 373 | A 3522031980 | GASKET |
| Repalced by: A 3662030380 | ||
| 373 | A 3662030380 | GASKET |
| PIPE SOCKET TO CYLINDER HEAD COVER | ||
| 376 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 376 | N 304017008021 | SCREW |
| PIPE SOCKET TO CYLINDER HEAD COVER | ||
| 379 | N 912004008102 | LOCK WASHER |
| PIPE SOCKET TO CYLINDER HEAD COVER | ||
| 382 | N 900271028026 | HOSE |
| PIPE SOCKET TO CYLINDER HEAD COVER | ||
| 28 MM | ||
| 385 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 385 | N 000000000670 | CLAMP |
| PIPE SOCKET TO CYLINDER HEAD COVER | ||
| 388 | A 6978300171 | ELBOW |
| HEATING FEED | ||
| 391 | A 6978320023 | HOSE |
| HEATING FEED | ||
| 394 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 394 | N 000000000670 | CLAMP |
| HEATING FEED | ||
| 397 | A 3058303316 | PIPE LINE |
| (SHUT-OFF VALVE) | ||
| 400 | A 6975000331 | BRACKET |
| SHUT-OFF VALVE | ||
| 403 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 403 | N 304017008021 | SCREW |
| SHUT-OFF VALVE TO BRACKET | ||
| 406 | N 916016038205 | CLAMP |
| SHUT-OFF VALVE TO BRACKET | ||
| 409 | N 913004008005 | NUT |
| SHUT-OFF VALVE TO BRACKET | ||
| 412 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 412 | N 304017008034 | SCREW |
| BRACKET TO BASE FRAME | ||
| 415 | N 913004008005 | NUT |
| BRACKET TO BASE FRAME | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| HEATING RETURN | ||
| 418 | N 900271038015 | HOSE |
| PIPE LINE TO ENGINE,BOTTOM | ||
| 38 MM | ||
| 421 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 421 | N 000000000670 | CLAMP |
| PIPE LINE TO ENGINE,BOTTOM | ||
| 424 | A 3058303316 | PIPE LINE |
| (SHUT-OFF VALVE) | ||
| 427 | A 6979970181 | GROMMET |

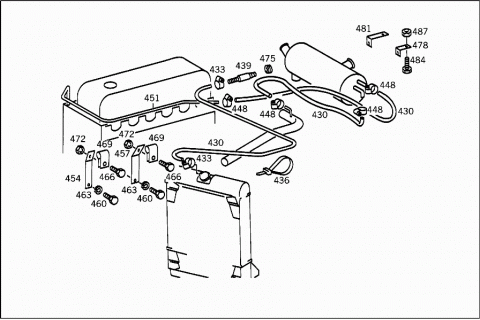

| X XXXXXXXXXXXX | PART NAME MISSING | |
| RADIATOR/ENGINE/EXPANSION-TANK DE-AERATION LINES | ||
| 430 | N 900271008043 | HOSE |
| FROM RADIATOR TO EXPANSION TANK | ||
| 8 MM | ||
| 433 | N 916026014000 | CLAMP |
| Repalced by: A 1409950036 | ||
| 433 | A 1409950036 | CLAMP |
| Repalced by: A 0059970190 | ||
| 433 | A 0059970190 | HOSE CLAMP |
| HOSE TO RADIATOR | ||
| 433 | A 6979900090 | SLEEVE |
| HOSE TO BREATHER PIPE | ||
| 436 | A 0019978390 | LOOM TIE |
| 280 MM | ||
| 439 | A 6975000024 | BREATHER PIPE |
| 442 | A 6975000091 | LINE |
| T-FITTING | ||
| 443 | A 6975000078 | PIPE ELBOW |
| 444 | A 6975011982 | HOSE |
| A 6975011924 | COOLING WATER PIPE | |
| Repalced by: A 0004292101 | ||
| A 6975011824 | COOLING WATER PIPE | |
| Repalced by: A 0004292101 | ||
| A 0004292101 | LINE | |
| DE-AERATION AT UPPER COOLING WATER PIPE | ||
| A 0004292101 | LINE | |
| FROM EXPANSION TANK TO PIPE ELBOW | ||
| 445 | N 900271012018 | HOSE |
| FROM ENGINE TO EXPANSION TANK | ||
| 12X21 MM | ||
| 448 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 448 | N 000000000666 | CLAMP |
| HOSE TO EXPANSION TANK AND TO PIPE ELBOW | ||
| 16-27X13 MM | ||
| 449 | N 916017011000 | CLAMP |
| Repalced by: N 916017011001 | ||
| 449 | N 916017011001 | CLAMP |
| Repalced by: N 000000000665 | ||
| 449 | N 000000000665 | CLAMP |
| HOSE TO EXPANSION TANK AND TO PIPE ELBOW | ||
| 12-22X12MM | ||
| 451 | A 6975010125 | BREATHER PIPE |
| 454 | A 6975010620 | BRACKET |
| Repalced by: A 6975010320 | ||
| 457 | A 6975010320 | BRACKET |
| 460 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 460 | N 304017008021 | SCREW |
| 463 | N 912004008102 | LOCK WASHER |
| 466 | N 000933006194 | SCREW |
| 469 | N 916016012200 | CLAMP |
| 472 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 472 | N 913004006001 | NUT |
| 475 | A 0009973481 | GROMMET |
| DE-AERATION PIPE THRU SUPPORT | ||
| 478 | A 6975010220 | BRACKET |
| Repalced by: A 3464295540 | ||
| 478 | A 3464295540 | BRACKET |
| Repalced by: A 3464296040 | ||
| 478 | A 3464296040 | BRACKET |
| DE-AERATION LINE TO SIDE PANEL | ||
| 478 | A 3464296040 | BRACKET |
| DE-AERATION LINE TO SIDE PANEL | ||
| 481 | A 6975010720 | BRACKET |
| Repalced by: A 3464296040 | ||
| 481 | A 3464296040 | BRACKET |
| DE-AERATION LINE TO SIDE PANEL | ||
| A 6975011020 | BRACKET | |
| DE-AERATION LINE TO SIDE PANEL | ||
| A 6975010220 | BRACKET | |
| Repalced by: A 3464295540 | ||
| A 3464295540 | BRACKET | |
| Repalced by: A 3464296040 | ||
| A 3464296040 | BRACKET | |
| COOLING WATER EXPANSION | ||
| A 6975011120 | BRACKET | |
| Repalced by: A 6735460243 | ||
| A 6735460243 | BRACKET | |
| COOLING WATER EXPANSION | ||
| N 916016012200 | CLAMP | |
| PIPE LINE TO BRACKET | ||
| N 000933006183 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| BRACKET TO SUPPORT | ||
| M 6X16 | ||
| N 304017006016 | SCREW | |
| PIPE LINE TO BRACKET | ||
| M 6X16 | ||
| 484 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 484 | N 304017006020 | SCREW |
| BRACKET TO SUPPORT | ||
| M 6X20 | ||
| N 000965008002 | SCREW | |
| BRACKET TO SUPPORT | ||
| M 8X16 | ||
| N 000933010105 | SCREW | |
| BRACKET TO SUPPORT | ||
| M 10X25 | ||
| N 009021006205 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| BRACKET TO SUPPORT | ||
| N 912004008102 | LOCK WASHER | |
| BRACKET TO SUPPORT | ||
| N 913004006002 | NUT | |
| Repalced by: N 913004006001 | ||
| N 913004006001 | NUT | |
| BRACKET TO SUPPORT | ||
| N 913004006001 | NUT | |
| PIPE LINE TO BRACKET | ||
| 487 | N 913004006004 | NUT |
| BRACKET TO SUPPORT | ||
| N 000934008010 | NUT | |
| BRACKET TO SUPPORT | ||
| N 913004010008 | NUT | |
| Repalced by: N 910113010000 | ||
| N 910113010000 | NUT | |
| BRACKET TO SUPPORT | ||
| 490 | A 0019978490 | LOOM TIE |
| 376 MM | ||
| 490 | A 0019978390 | LOOM TIE |
| 280 MM | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| AIR COOLING | ||

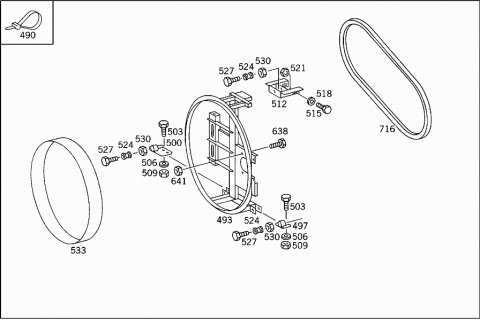

| 493 | A 6972000028 | BEARING BRACKET |
| FAN DRIVE | ||
| 497 | A 6972000240 | BRACKET |
| LOWER LEFT BEARING BRACKET | ||
| 500 | A 6972000340 | BRACKET |
| LOWER RIGHT BEARING BRACKET | ||
| 503 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 503 | N 304017010002 | SCREW |
| REAR FLANGE | ||
| 506 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 506 | N 000125010532 | WASHER |
| REAR FLANGE | ||
| 509 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 509 | N 910113010000 | NUT |
| REAR FLANGE | ||
| 512 | A 6972000140 | BRACKET |
| UPPER BEARING BRACKET | ||
| 515 | N 000933010105 | SCREW |
| BRACKET TO BASE FRAME | ||
| 518 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 518 | N 000125010532 | WASHER |
| BRACKET TO BASE FRAME | ||
| 521 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 521 | N 910113010000 | NUT |
| BRACKET TO BASE FRAME | ||
| 524 | A 0009884211 | BUFFER |
| BEARING BRACKET TO BRACKET | ||
| 527 | N 000960012230 | SCREW |
| BEARING BRACKET TO BRACKET | ||
| 530 | N 913004012008 | NUT |
| BEARING BRACKET TO BRACKET | ||
| 533 | A 6972060097 | BOOT |
| AIR BAFFLE | ||

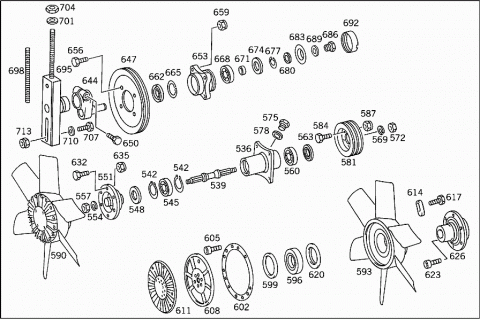

| 536 | A 3012050005 | BEARING BODY |
| FAN DRIVE | ||
| 539 | A 3012050002 | FAN SHAFT |
| 542 | N 000472052000 | LOCK RING |
| ON FAN SIDE | ||
| 545 | N 000625900200 | GROOVED BALL BEARING |
| ON FAN SIDE | ||
| 548 | N 003760030300 | RADIAL SEAL RING |
| Repalced by: A 0019978447 | ||
| 548 | A 0019978447 | SEAL RING |
| ON FAN SIDE | ||
| 551 | A 3222050204 | HUB |
| ON FAN SIDE | ||
| 554 | N 912004016101 | LOCK WASHER |
| HUB TO FAN SHAFT | ||
| 557 | N 000439016203 | NUT |
| HUB TO FAN SHAFT | ||
| 560 | N 005412600304 | CYLINDR. ROLLER BEARING |
| ON RADIATOR SIDE | ||
| 560 | A 0059819701 | CYLINDR. ROLLER BEARING |
| ON RADIATOR SIDE | ||
| 563 | N 003760030300 | RADIAL SEAL RING |
| Repalced by: A 0019978447 | ||
| 563 | A 0019978447 | SEAL RING |
| ON RADIATOR SIDE | ||
| 569 | N 912004016101 | LOCK WASHER |
| HUB TO FAN SHAFT | ||
| 572 | N 000439016203 | NUT |
| HUB TO FAN SHAFT | ||
| 575 | N 007604010102 | SCREW PLUG |
| Repalced by: N 007604010108 | ||
| 575 | N 007604010108 | SCREW PLUG |
| LUBRICATION | ||
| 578 | N 007603010404 | SEAL RING |
| COOLING WATER LINE TO BASE FRAME | ||
| 581 | A 6972050010 | PULLEY |
| TWO-GROOVE | ||
| 584 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 584 | N 304017008034 | SCREW |
| PULLEY TO HUB | ||
| 587 | N 913004008004 | NUT |
| PULLEY TO HUB | ||
| 590 | A 3072050006 | FAN |
| POWER SAVER FAN | ||
| 593 | A 0012050306 | FAN |
| 596 | A 0039812925 | BALL BEARING |
| SET = 2 PIECES | ||
| 599 | A 0002060151 | SPACER RING |
| 602 | A 0002060180 | GASKET |
| Repalced by: A 0002060680 | ||
| 602 | A 0002060680 | GASKET |
| 605 | N 000912006040 | SCREW |
| 608 | A 0002060328 | PRIMARY CUP |
| 611 | A 0002061103 | COVER |
| 614 | A 0002060118 | GUIDE |
| 617 | A 0002060071 | SCREW |
| 620 | A 0039979440 | SEAL RING |
| 623 | A 0009842029 | SCREW |
| 626 | A 0002060245 | FLANGE |
| A 0005831835 | RECEPTACLE | |
| 632 | N 000933008177 | SCREW |
| Repalced by: N 304017008024 | ||
| 632 | N 304017008024 | SCREW |
| FAN TO HUB | ||
| 635 | N 913004008004 | NUT |
| FAN TO HUB | ||
| 638 | N 000933008177 | SCREW |
| Repalced by: N 304017008024 | ||
| 638 | N 304017008024 | SCREW |
| BEARING BODY TO BEARING BRACKET | ||
| 641 | N 913004008004 | NUT |
| BEARING BODY TO BEARING BRACKET | ||
| 644 | A 3072000573 | LEVER |
| TIGHTENER PULLEY | ||
| 647 | A 3012060110 | PULLEY |
| ONE-GROOVE,ELBOWED | ||
| 188 MM | ||
| 647 | A 3012060210 | PULLEY |
| ONE-GROOVE,FLAT | ||
| 188 MM | ||
| 647 | A 3072050210 | PULLEY |
| ONE-GROOVE,FLAT | ||
| 159 MM | ||
| 650 | N 000960012189 | SCREW |
| Repalced by: N 308676012031 | ||
| 650 | N 308676012031 | SCREW |
| Repalced by: N 308676012011 | ||
| 650 | N 308676012011 | SCREW |
| CLAMPING LEVER ON SUPPORT | ||
| 653 | A 3012060113 | HUB |
| 656 | N 000931008244 | SCREW |
| PULLEY TO HUB | ||
| 656 | N 000931008046 | SCREW |
| Repalced by: N 304017008018 | ||
| 656 | N 304017008018 | SCREW |
| PULLEY TO HUB | ||
| 659 | N 913004008004 | NUT |
| PULLEY TO HUB | ||
| 662 | A 0119975447 | SEAL RING |
| 665 | N 000472052001 | LOCK RING |
| Repalced by: N 000472052000 | ||
| 665 | N 000472052000 | LOCK RING |
| 668 | N 000625900200 | GROOVED BALL BEARING |
| 671 | A 3012060053 | SPACER TUBE |
| 674 | A 3022050552 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 674 | A 3022050652 | SPACER WASHER |
| AS REQUIRED | ||
| 0.50 MM | ||
| 677 | N 000471020001 | LOCK RING |
| 680 | N 915035000012 | SEAL RING |
| 683 | A 3012060157 | EXPANSION PLUG |
| 686 | N 007604010102 | SCREW PLUG |
| Repalced by: N 007604010108 | ||
| 686 | N 007604010108 | SCREW PLUG |
| 689 | N 007603010404 | SEAL RING |
| COVER TO HUB | ||
| 692 | A 3012060072 | NUT |
| COVER TO HUB | ||
| 695 | A 3052000439 | SUPPORT |
| CLAMPING LEVER | ||
| 698 | A 3019900005 | STUD |
| 701 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 701 | N 000125010532 | WASHER |
| CLAMPING LEVER TO SUPPORT | ||
| 704 | N 000934012022 | NUT |
| CLAMPING LEVER TO SUPPORT | ||
| 707 | N 000931010264 | SCREW |
| SUPPORT TO FAN SUPPORT | ||
| 710 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 710 | N 009021010209 | WASHER |
| SUPPORT TO FAN SUPPORT | ||
| 713 | N 913002010001 | NUT |
| SUPPORT TO FAN SUPPORT | ||
| 716 | A 0079971092 | V-BELT |
| SET = 2 PIECES | ||
| 12.5X1450 MM | ||
| 716 | A 0079971092 | V-BELT |
| FROM ENGINE TO BELT TIGHTENER PULLEY | ||
| 12.5X1450 MM | ||
| 716 | A 0049971392 | V-BELT |
| FROM ENGINE TO BELT TIGHTENER PULLEY | ||
| 12.5X1450 MM | ||
| 716 | A 0079971692 | V-BELT |
| Repalced by: A 0099976992 | ||
| 716 | A 0099976992 | V-BELT |
| SET = 2 PIECES | ||
| 13X1025 | ||
| 716 | A 0099976992 | V-BELT |
| FROM TIGHTENER PULLEY TO FAN DRIVE | ||
| 13X1025 | ||
| 716 | A 0049973692 | V-BELT |
| FROM TIGHTENER PULLEY TO FAN DRIVE | ||
| 12.5X975 MM | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
