Transporto priemonė: O 301; VIN numerio dalis: 697006
Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|

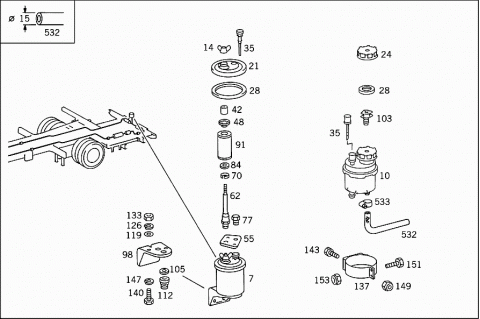

| 007 | A 0004662802 | TANK |
| 010 | A 0004664502 | TANK |
| 014 | N 000315008006 | NUT |
| 021 | A 0004661305 | COVER |
| 024 | A 0004660068 | FILLER CAP |
| 028 | A 0004660260 | SEAL RING |
| 028 | A 0004661760 | SEAL RING |
| 035 | A 0004660067 | OIL DIPSTICK |
| 035 | A 0004660267 | OIL DIPSTICK |
| Repalced by: A 0004660867 | ||
| 035 | A 0004660867 | OIL DIPSTICK |
| A 1233270059 | PROTECTIVE CAP | |
| 042 | A 0009870643 | RUBBER SLEEVE |
| 048 | A 0004660675 | CENTERING RING |
| 055 | A 0004660037 | REINFORCEMENT |
| 062 | A 0014664465 | FILTER CARRIER |
| 070 | A 0004660153 | SPACER TUBE |
| 077 | A 0004660571 | FITTING |
| 084 | A 0004660275 | WASHER |
| Repalced by: A 9402680552 | ||
| 084 | A 9402680552 | SPACER WASHER |
| 091 | A 0004660604 | FILTER |
| 098 | A 0004660840 | BRACKET |
| 103 | A 0004660740 | BRACKET |
| 105 | A 0059970848 | SEAL RING |
| 112 | A 0004660458 | CONNECTOR |
| 119 | A 0099970145 | SEAL RING |
| 126 | N 912004008102 | LOCK WASHER |
| 133 | N 000934008010 | NUT |
| 137 | A 6974600135 | BRACKET |
| OIL TANK TO BRACKET | ||
| 140 | N 000933010128 | SCREW |
| OIL TANK TO BRACKET | ||
| 143 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 143 | N 304017008021 | SCREW |
| BRACKET TO APPARATUS SUPPORT | ||
| 147 | N 912004010102 | LOCK WASHER |
| OIL TANK TO BRACKET | ||
| 149 | N 913004008004 | NUT |
| BRACKET TO APPARATUS SUPPORT | ||
| 151 | N 000931006118 | SCREW |
| OIL TANK | ||
| 153 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 153 | N 913004006001 | NUT |
| OIL TANK | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FEED LINE | ||

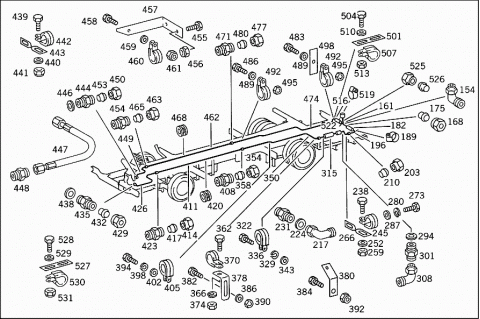

| 154 | N 003952022100 | FITTING |
| FROM OIL TANK TO PUMP | ||
| 161 | A 6974601088 | LINE |
| Repalced by: A 3834660765 | ||
| 161 | A 3834660765 | LINE |
| WITH BEAD | ||
| 22 MM | ||
| 161 | A 3834660765 | LINE |
| FROM OIL TANK TO PUMP | ||
| 22 MM | ||
| 168 | N 915017022100 | UNION NUT |
| Repalced by: N 000000006243 | ||
| 168 | N 000000006243 | NUT |
| 175 | N 003861022004 | GLAND |
| 182 | A 3819970082 | HOSE |
| Repalced by: A 3859971582 | ||
| 182 | A 6979971282 | HOSE |
| Repalced by: A 3859971582 | ||
| 182 | A 3859971582 | HOSE |
| SUCTION LINE | ||
| 189 | N 916026025000 | CLAMP |
| Repalced by: A 0069970490 | ||
| 189 | A 0069970490 | LOOM TIE |
| Repalced by: N 000000000668 | ||
| 189 | N 000000000668 | CLAMP |
| HOSE TO SUCTION LINE | ||
| 196 | A 6974600088 | LINE |
| WITH BEAD | ||
| 22 MM | ||
| 196 | A 6974600088 | LINE |
| (SUCTION LINE),FROM HOSE TO OIL PUMP | ||
| 22 MM | ||
| 203 | N 915017022100 | UNION NUT |
| Repalced by: N 000000006243 | ||
| 203 | N 000000006243 | NUT |
| 210 | N 003861022004 | GLAND |
| 217 | N 003952022100 | FITTING |
| SUCTION LINE TO OIL PUMP | ||
| 224 | N 007603027101 | SEAL RING |
| SUCTION LINE TO OIL PUMP | ||
| 224 | N 007603026104 | SEAL RING |
| SUCTION LINE TO OIL PUMP | ||
| 231 | N 003901022006 | SCREW-IN FITTING |
| SUCTION LINE TO OIL PUMP | ||
| 231 | N 003901022006 | SCREW-IN FITTING |
| SUCTION LINE TO OIL PUMP | ||
| 238 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 238 | N 304017008034 | SCREW |
| SUCTION LINE TO BRACKET | ||
| 245 | N 916016022202 | CLAMP |
| SUCTION LINE TO BRACKET | ||
| 252 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 252 | N 000125008443 | WASHER |
| SUCTION LINE TO BRACKET | ||
| 259 | N 913004008004 | NUT |
| SUCTION LINE TO BRACKET | ||
| 266 | A 6974660340 | BRACKET |
| Repalced by: A 3184924841 | ||
| 266 | A 3184924841 | BRACKET |
| SUCTION LINE | ||
| 273 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 273 | N 304017008021 | SCREW |
| BRACKET TO ENGINE | ||
| 280 | N 912004008102 | LOCK WASHER |
| BRACKET TO ENGINE | ||
| 287 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 287 | N 000125008443 | WASHER |
| BRACKET TO ENGINE | ||
| 294 | N 007603018101 | SEAL RING |
| DELIVERY LINE TO PUMP | ||
| 294 | N 007603016103 | SEAL RING |
| DELIVERY LINE TO PUMP | ||
| 301 | A 3529970671 | FITTING |
| DELIVERY LINE TO PUMP | ||
| 308 | N 003952015102 | FITTING |
| Repalced by: N 003952015100 | ||
| 308 | N 003952015100 | FITTING |
| DELIVERY LINE TO PUMP | ||
| 315 | A 0129979782 | HOSE |
| Repalced by: A 0169973782 | ||
| 315 | A 0169973782 | HOSE |
| Repalced by: A 0269972582 | ||
| 315 | A 0269972582 | EXPANSION HOSE |
| 322 | N 000933006123 | SCREW |
| DELIVERY LINE TO SUCTION DUCT BRACKET | ||
| 329 | N 912004006102 | LOCK WASHER |
| DELIVERY LINE TO SUCTION DUCT BRACKET | ||
| 336 | N 916016015202 | CLAMP |
| DELIVERY LINE TO SUCTION DUCT BRACKET | ||
| 343 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 343 | N 913004006001 | NUT |
| DELIVERY LINE TO SUCTION DUCT BRACKET | ||
| 350 | A 6974660365 | LINE |
| FROM EXPANSION HOSE TO CONNECTOR I | ||
| 15 MM | ||
| 354 | N 915017015100 | UNION NUT |
| 358 | N 003861015004 | GLAND |
| 362 | N 000933006123 | SCREW |
| DELIVERY LINE TO BRACKET | ||
| 366 | N 912004006102 | LOCK WASHER |
| DELIVERY LINE TO BRACKET | ||
| 370 | N 916016015202 | CLAMP |
| DELIVERY LINE TO BRACKET | ||
| 374 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 374 | N 913004006001 | NUT |
| DELIVERY LINE TO BRACKET | ||
| 378 | A 6974660640 | BRACKET |
| Repalced by: A 3974290140 | ||
| 378 | A 3974290140 | BRACKET |
| Repalced by: A 6205243040 | ||
| 378 | A 6205243040 | BRACKET |
| DELIVERY LINE TO FRAME | ||
| 380 | A 6974660940 | BRACKET |
| Repalced by: A 3464290340 | ||
| 380 | A 3464290340 | BRACKET |
| DELIVERY LINE TO FRAME | ||
| 382 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 382 | N 304017006016 | SCREW |
| BRACKET TO FRAME | ||
| 384 | N 000961014154 | SCREW |
| BRACKET TO FRAME | ||
| 386 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 386 | N 000125008443 | WASHER |
| BRACKET TO FRAME | ||
| 390 | N 913004008004 | NUT |
| BRACKET TO FRAME | ||
| 392 | N 913004014007 | NUT |
| 394 | N 000933006123 | SCREW |
| DELIVERY LINE TO FRAME | ||
| 398 | N 912004006102 | LOCK WASHER |
| DELIVERY LINE TO FRAME | ||
| 402 | N 000125006421 | WASHER |
| DELIVERY LINE TO FRAME | ||
| 405 | N 916016015202 | CLAMP |
| DELIVERY LINE TO FRAME | ||
| 408 | N 003902015002 | CONNECTION FITTING |
| NO.I | ||
| 411 | A 6974660465 | LINE |
| FROM CONNECTOR I TO CONNECTOR II | ||
| 15 MM | ||
| 414 | N 915017015100 | UNION NUT |
| 417 | N 003861015004 | GLAND |
| 420 | A 0009978181 | GROMMET |
| DELIVERY LINE TO FRAME | ||
| 423 | N 003902015002 | CONNECTION FITTING |
| NO.II, 15 MM | ||
| 423 | A 6979972778 | SCREW CONNECTION |
| Repalced by: A 0059979472 | ||
| 423 | A 0059979472 | FITTING |
| NO.II, 12 MM | ||
| 426 | A 6974660165 | LINE |
| (DELIVERY LINE) FROM CONNECTOR II TO STEERING | ||
| 15 MM | ||
| 426 | A 6974661765 | LINE |
| (DELIVERY LINE) FROM CONNECTOR II TO STEERING | ||
| 12 MM | ||
| 429 | N 915017015100 | UNION NUT |
| 15 MM | ||
| 429 | N 915017012100 | UNION NUT |
| 12 MM | ||
| Repalced by: N 000000006239 | ||
| 429 | N 000000006239 | UNION NUT |
| 12 MM | ||
| 432 | N 003861015004 | GLAND |
| 15 MM | ||
| 432 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 432 | A 0019901967 | SEAL CONE |
| 12 MM | ||
| 435 | A 6979971178 | SCREW CONNECTION |
| DELIVERY LINE TO STEERING | ||
| 15 MM | ||
| 435 | A 6979972878 | SCREW CONNECTION |
| Repalced by: A 3099970172 | ||
| 435 | A 3099970172 | FITTING |
| DELIVERY LINE TO STEERING | ||
| 12 MM | ||
| 438 | N 007603014405 | SEAL RING |
| DELIVERY LINE TO STEERING | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| LINE MOUNTING | ||
| 12 MM | ||
| 439 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 439 | N 304017008021 | SCREW |
| 440 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 440 | N 009021008213 | WASHER |
| 441 | N 913004008004 | NUT |
| 442 | N 916016012201 | CLAMP |
| 443 | A 6984297740 | BRACKET |
| Repalced by: A 3184924841 | ||
| 443 | A 3184924841 | BRACKET |
| BRACKET TO FRAME | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| RETURN LINE | ||
| 444 | A 6979971078 | SCREW CONNECTION |
| RETURN LINE TO STEERING | ||
| 444 | A 0029971572 | FITTING |
| HOSE TO STEERING | ||
| 446 | N 007603016105 | SEAL RING |
| RETURN LINE TO STEERING | ||
| 447 | A 6979971682 | HOSE |
| FROM STEERING TO RETURN LINE | ||
| 448 | A 6979972678 | SCREW CONNECTION |
| HOSE TO RETURN LINE | ||
| 449 | A 6974660065 | LINE |
| RETURN; FROM STEERING TO CONNECTOR III | ||
| 22 MM | ||
| 449 | A 6974661665 | LINE |
| FROM HOSE TO CONNECTOR III | ||
| 22 MM | ||
| 450 | N 915017022100 | UNION NUT |
| Repalced by: N 000000006243 | ||
| 450 | N 000000006243 | NUT |
| 453 | N 003861022004 | GLAND |
| 454 | N 003902022001 | FITTING |
| NO.III | ||
| 455 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 455 | N 308676012012 | HEXAGON HEAD BOLT |
| RETURN LINE TO SIDE MEMBER | ||
| 456 | N 913004012008 | NUT |
| RETURN LINE TO SIDE MEMBER | ||
| 457 | A 6974661040 | BRACKET |
| Repalced by: A 6204750340 | ||
| 457 | A 6204750340 | BRACKET |
| RETURN LINE | ||
| 458 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 458 | N 304017008021 | SCREW |
| RETURN LINE TO BRACKET | ||
| 459 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 459 | N 009021008213 | WASHER |
| RETURN LINE TO BRACKET | ||
| 460 | N 916016012201 | CLAMP |
| RETURN LINE TO BRACKET | ||
| 461 | N 913004008004 | NUT |
| RETURN LINE TO BRACKET | ||
| 462 | A 6974660765 | LINE |
| RETURN; FROM CONNECTOR III TO CONNECTOR IV | ||
| 22 MM | ||
| 463 | N 915017022100 | UNION NUT |
| Repalced by: N 000000006243 | ||
| 463 | N 000000006243 | NUT |
| 465 | N 003861022004 | GLAND |
| 468 | A 0009973481 | GROMMET |
| RETURN LINE IN CROSS MEMBER | ||
| 471 | N 003902022001 | FITTING |
| NO.IV | ||
| 474 | A 6974661065 | LINE |
| RETURN; FROM CONNECTOR IV TO HOSE | ||
| 22 MM | ||
| 477 | N 915017022100 | UNION NUT |
| Repalced by: N 000000006243 | ||
| 477 | N 000000006243 | NUT |
| 480 | N 003861022004 | GLAND |
| 483 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 483 | N 304017008034 | SCREW |
| RETURN LINE TO COMPRESSOR LINE BRACKET | ||
| M 8X25 | ||
| 486 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 486 | N 304017008027 | SCREW |
| RETURN LINE TO COMPRESSOR LINE BRACKET | ||
| M 8X30 | ||
| 489 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 489 | N 000125008443 | WASHER |
| RETURN LINE TO COMPRESSOR LINE BRACKET | ||
| 492 | N 916016022202 | CLAMP |
| RETURN LINE TO COMPRESSOR LINE BRACKET | ||
| 495 | N 913004008004 | NUT |
| RETURN LINE TO COMPRESSOR LINE BRACKET | ||
| 498 | A 6974660040 | BRACKET |
| 501 | A 6974660240 | BRACKET |
| Repalced by: A 6984292140 | ||
| 501 | A 6984292140 | BRACKET |
| RETURN LINE TO SIDE MEMBER | ||
| 504 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 504 | N 304017008034 | SCREW |
| RETURN LINE TO SIDE MEMBER | ||
| 507 | N 916016022202 | CLAMP |
| RETURN LINE TO SIDE MEMBER | ||
| 510 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 510 | N 000125008443 | WASHER |
| RETURN LINE TO SIDE MEMBER | ||
| 513 | N 913004008004 | NUT |
| RETURN LINE TO SIDE MEMBER | ||
| 516 | A 3609970982 | HOSE |
| Repalced by: A 3859971582 | ||
| 516 | A 6979971182 | HOSE |
| Repalced by: A 3859971582 | ||
| 516 | A 3859971582 | HOSE |
| FROM RETURN LINE TO OIL TANK | ||
| 519 | N 916026025000 | CLAMP |
| Repalced by: A 0069970490 | ||
| 519 | A 0069970490 | LOOM TIE |
| Repalced by: N 000000000668 | ||
| 519 | N 000000000668 | CLAMP |
| 522 | A 6974601088 | LINE |
| Repalced by: A 3834660765 | ||
| 522 | A 3834660765 | LINE |
| WITH BEAD | ||
| 22 MM | ||
| 522 | A 6974661965 | LINE |
| FROM RETURN LINE TO OIL TANK | ||
| 522 | A 6974661965 | LINE |
| FROM RETURN LINE TO OIL TANK | ||
| 525 | N 915017022100 | UNION NUT |
| Repalced by: N 000000006243 | ||
| 525 | N 000000006243 | NUT |
| 526 | N 003861022004 | GLAND |
| 527 | A 6974660240 | BRACKET |
| Repalced by: A 6984292140 | ||
| 527 | A 6984292140 | BRACKET |
| RETURN LINE TO OIL TANK | ||
| 528 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 528 | N 304017008034 | SCREW |
| LINE MOUNTING | ||
| 529 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 529 | N 000125008443 | WASHER |
| LINE MOUNTING | ||
| 530 | N 916016022202 | CLAMP |
| LINE MOUNTING | ||
| 531 | N 913004008004 | NUT |
| LINE MOUNTING | ||
| 532 | A 3574660081 | HOSE |
| RETURN LINE TO OIL TANK | ||
| 533 | N 916026020001 | CLAMP |
| Repalced by: N 000000000667 | ||
| 533 | N 000000000667 | CLAMP |
| 533 | N 916026025000 | CLAMP |
| Repalced by: A 0069970490 | ||
| A 0069970490 | LOOM TIE | |
| Repalced by: N 000000000668 | ||
| N 000000000668 | CLAMP | |
| X XXXXXXXXXXXX | PART NAME MISSING | |

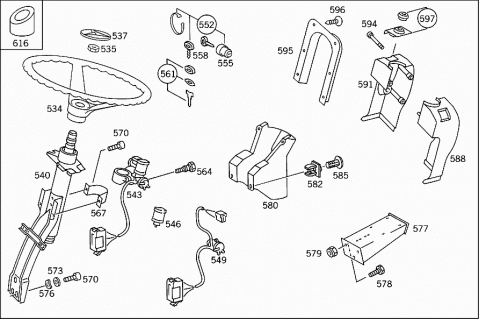

| STEERING MOUNTING, DRAG LINK, AND STEERING WHEEL | ||
| 534 | A 6734640201 | STEERING WHEEL |
| Repalced by: A 3184640001 | ||
| 534 | A 3184640001 | STEERING WHEEL |
| 535 | N 000439022205 | NUT |
| STEERING WHEEL TO STEERING COLUMN | ||
| 537 | A 0004640432 | BADGE |
| 540 | A 6734600237 | BEARING |
| STEERING SHAFT | ||
| 543 | A 0014622030 | STEERING LOCK |
| WITHOUT LOCK CYLINDER WITH BRACKET | ||
| 546 | A 0005451367 | CONTACTOR |
| SOLENOID SWITCH | ||
| 549 | A 0005455813 | SWITCH |
| IGNITION SWITCH | ||
| 552 | A 3814600004 | TUMBLER |
| WITH 2 KEYS | ||
| HUF | ||
| 552 | A 3094620079 | TUMBLER |
| WITH 2 KEYS | ||
| YMOS | ||
| 555 | A 3814600104 | TUMBLER |
| LESS KEY | ||
| HUF | ||
| 555 | A 3094600004 | TUMBLER |
| LESS KEY | ||
| YMOS | ||
| 558 | A 0007600006 | KEY |
| STEERING LOCK | ||
| HUF | ||
| 558 | A 0007600606 | KEY |
| YMOS | ||
| 561 | A 0007663706 | KEY |
| BLANK | ||
| HUF | ||
| 561 | A 0007665306 | KEY |
| BLANK | ||
| YMOS | ||
| 564 | A 0004622371 | SCREW |
| (BREAK-OFF BOLT),STEERING LOCK MOUNTING | ||
| 567 | A 6734620042 | STRAP |
| STEERING SHAFT BEARING TO CAB | ||
| 570 | N 000912008009 | SCREW |
| Repalced by: N 000912008200 | ||
| 570 | N 000912008200 | SCREW |
| Repalced by: N 000912008219 | ||
| 570 | N 000912008219 | SCREW |
| STEERING SHAFT BEARING TO CAB | ||
| 570 | N 000912008219 | SCREW |
| STEERING SHAFT BEARING TO BEARING BRACKET | ||
| 573 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 573 | N 000137008212 | SPRING WASHER |
| STEERING SHAFT BEARING TO CAB | ||
| 573 | N 000137008212 | SPRING WASHER |
| STEERING SHAFT BEARING TO BEARING BRACKET | ||
| 576 | N 001440008002 | WASHER |
| STEERING SHAFT BEARING TO BEARING BRACKET | ||
| 577 | A 6974600031 | STEERING COLUMN BRACKET |
| 578 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 578 | N 304017008021 | SCREW |
| STEERING COLUMN BRACKET TO SUBSTRUCTURE | ||
| 579 | N 913004008004 | NUT |
| STEERING COLUMN BRACKET TO SUBSTRUCTURE | ||
| 580 | A 6736880306 | PANELLING |
| STEERING COLUMN PANELLING,FRONT | ||
| 582 | A 0019880942 | FASTENER |
| PANELLING TO STEERING COLUMN JACKET TUBE | ||
| 585 | A 0019881042 | FASTENER |
| Repalced by: A 0019881242 | ||
| 585 | A 0019881242 | FASTENER |
| PANELLING TO STEERING COLUMN JACKET TUBE | ||
| 588 | A 6734620743 | SHELL |
| STEERING COLUMN PANELLING,LEFT | ||
| 591 | A 6734620843 | SHELL |
| STEERING COLUMN PANELLING,RIGHT | ||
| 594 | A 3019900021 | SCREW |
| SHELL TO STEERING COLUMN | ||
| M 5X95 | ||
| 594 | A 3819900221 | SCREW |
| SHELL TO STEERING COLUMN | ||
| M 5X75.5 | ||
| 594 | A 3819900921 | SCREW |
| SHELL TO STEERING COLUMN | ||
| M 5X52 | ||
| 595 | A 6976880008 | COVERING |
| STEERING COLUMN | ||
| 596 | N 914127004217 | SHEET METAL SCREW |
| STEERING GEAR COVERING | ||
| 597 | A 6734600195 | COVERING |
| IDLING ADJUSTMENT | ||

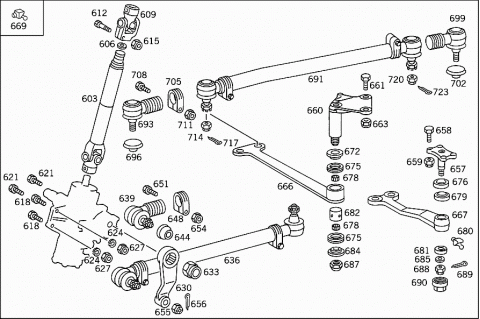

| 603 | A 6974600009 | STEERING SHAFT |
| 606 | A 3814620251 | RING |
| 609 | A 3164600057 | UNIVERSAL JOINT |
| Repalced by: A 0004600057 | ||
| 609 | A 0004600057 | UNIVERSAL JOINT |
| STEERING SHAFT TO STEERING | ||
| 609 | A 3164600157 | UNIVERSAL JOINT |
| Repalced by: A 0004600157 | ||
| 609 | A 0004600157 | UNIVERSAL JOINT |
| STEERING SHAFT TO STEERING | ||
| 612 | A 3169900114 | SCREW |
| UNIVERSAL JOINT TO STEERING COLUMN AND TO STEERING BOX ASSEMBLY | ||
| M 8X38 | ||
| 615 | N 913004008005 | NUT |
| UNIVERSAL JOINT TO STEERING COLUMN AND TO STEERING BOX ASSEMBLY | ||
| 615 | A 3819900114 | SCREW |
| UNIVERSAL JOINT | ||
| M 8X42 | ||
| 616 | A 6974620096 | BOOT |
| STEERING TO FRAME | ||
| 618 | N 000960016250 | SCREW |
| STEERING TO FRAME | ||
| M 16X85 | ||
| 621 | N 000960016057 | SCREW |
| STEERING TO FRAME | ||
| M 16X80 | ||
| 624 | N 912004016101 | LOCK WASHER |
| STEERING TO FRAME | ||
| 627 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 627 | N 910113016001 | NUT |
| STEERING TO FRAME | ||
| 630 | A 6754631701 | PITMAN ARM |
| Repalced by: A 6974630201 | ||
| 630 | A 6974630201 | PITMAN ARM |
| 633 | A 0029901051 | NUT |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| 636 | A 6974600005 | DRAG LINK |
| FROM PITMAN ARM TO STEERING BRACKET | ||
| 639 | A 0013300335 | JOINT |
| TO BE SCREWED INTO DRAG LINK | ||
| 644 | A 0003300385 | BOOT |
| Repalced by: A 0003301185 | ||
| 644 | A 0003301185 | BOOT |
| 648 | A 0003381645 | CLAMP |
| Repalced by: A 4619955044 | ||
| 648 | A 4619955044 | CLAMP |
| JOINT TO DRAG LINK | ||
| "6245" | ||
| 651 | N 000931010260 | SCREW |
| Repalced by: N 304017010030 | ||
| 651 | N 304017010030 | SCREW |
| Repalced by: N 304017010053 | ||
| 651 | N 304017010053 | SCREW |
| JOINT TO DRAG LINK | ||
| 654 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 654 | N 910113010000 | NUT |
| JOINT TO DRAG LINK | ||
| 655 | N 000937018008 | NUT |
| Repalced by: N 000979018005 | ||
| 655 | N 000979018005 | NUT |
| DRAG LINK TO PITMAN ARM AND TO STEERING INTERMEDIATE ARM | ||
| 656 | N 000094004061 | COTTER PIN |
| DRAG LINK TO PITMAN ARM AND TO STEERING INTERMEDIATE ARM | ||
| 657 | A 3174630011 | TRUNNION BEARING |
| STEERING INTERMEDIATE ARM | ||
| 658 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 658 | N 308676014012 | SCREW |
| PIVOT BEARING TO SUBSTRUCTURE | ||
| 659 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 659 | N 910113014001 | NUT |
| PIVOT BEARING TO SUBSTRUCTURE | ||
| 660 | A 3914610540 | STEERING SUPPORT |
| INTERMEDIATE LEVER TO SIDE MEMBER | ||
| 661 | N 000961016075 | SCREW |
| Repalced by: N 308676016020 | ||
| 661 | N 308676016020 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| 663 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 663 | N 910113016002 | NUT |
| STEERING SUPPORT TO FRAME | ||
| 666 | A 6974600019 | INTERMEDIATE LEVER |
| 666 | A 6974630110 | STEERING INTERMEDIATE ARM |
| 667 | A 6974630510 | STEERING INTERMEDIATE ARM |
| 669 | N 071412008200 | GREASE NIPPLE |
| 672 | A 3919900040 | WASHER |
| INTERMEDIATE LEVER TO STEERING SUPPORT | ||
| 675 | A 0029973040 | SEAL RING |
| INTERMEDIATE LEVER TO STEERING SUPPORT | ||
| 676 | A 0079976446 | SEAL RING |
| STEERING INTERMEDIATE ARM,TOP | ||
| 678 | A 0049813810 | NEEDLE BEARING |
| INTERMEDIATE LEVER TO STEERING SUPPORT | ||
| 679 | N 000720030206 | TAPERED ROLLER BEARING |
| STEERING INTERMEDIATE ARM,TOP | ||
| 680 | N 071412010200 | GREASE NIPPLE |
| 681 | N 000720030205 | TAPERED ROLLER BEARING |
| Repalced by: A 0059819105 | ||
| 681 | A 0059819105 | TAPERED ROLLER BEARING |
| STEERING INTERMEDIATE ARM,BOTTOM | ||
| 682 | A 3634630153 | SPACER TUBE |
| INTERMEDIATE LEVER TO STEERING SUPPORT | ||
| 684 | A 3639900140 | WASHER |
| INTERMEDIATE LEVER TO STEERING SUPPORT | ||
| 685 | A 3174630062 | THRUST WASHER |
| STEERING INTERMEDIATE ARM,BOTTOM | ||
| 687 | N 000439022205 | NUT |
| INTERMEDIATE LEVER TO STEERING SUPPORT | ||
| 688 | N 000934020008 | NUT |
| Repalced by: N 308673020002 | ||
| 688 | N 308673020002 | NUT |
| Repalced by: N 308674020000 | ||
| 688 | N 308674020000 | NUT |
| INTERMEDIATE LEVER TO PIVOT BEARING | ||
| 689 | N 000094004065 | COTTER PIN |
| INTERMEDIATE LEVER TO PIVOT BEARING | ||
| 690 | A 6254630033 | CAP |
| INTERMEDIATE LEVER TO PIVOT BEARING | ||
| 691 | A 6974600205 | DRAG LINK |
| FROM INTERMEDIATE LEVER TO FRONT AXLE | ||
| 693 | A 0013300335 | JOINT |
| DRAG LINK TO STEERING INTERMEDIATE ARM | ||
| 696 | A 0003300385 | BOOT |
| Repalced by: A 0003301185 | ||
| 696 | A 0003301185 | BOOT |
| 699 | A 0004602648 | DRAG LINK END |
| DRAG LINK TO STEERING ARM | ||
| 702 | A 0004621896 | BOOT |
| 705 | A 0003381645 | CLAMP |
| Repalced by: A 4619955044 | ||
| 705 | A 4619955044 | CLAMP |
| DRAG LINK END TO DRAG LINK | ||
| "6245" | ||
| 708 | N 000931010260 | SCREW |
| Repalced by: N 304017010030 | ||
| 708 | N 304017010030 | SCREW |
| Repalced by: N 304017010053 | ||
| 708 | N 304017010053 | SCREW |
| DRAG LINK END TO DRAG LINK | ||
| 711 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 711 | N 910113010000 | NUT |
| DRAG LINK END TO DRAG LINK | ||
| 714 | N 000937018008 | NUT |
| Repalced by: N 000979018005 | ||
| 714 | N 000979018005 | NUT |
| DRAG LINK TO STEERING INTERMEDIATE ARM | ||
| 717 | N 000094004061 | COTTER PIN |
| DRAG LINK TO STEERING INTERMEDIATE ARM | ||
| 720 | N 000937020014 | NUT |
| DRAG LINK TO STEERING ARM | ||
| 723 | N 000094004065 | COTTER PIN |
| DRAG LINK TO STEERING ARM | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
