Transporto priemonė: O 301; VIN numerio dalis: 697006

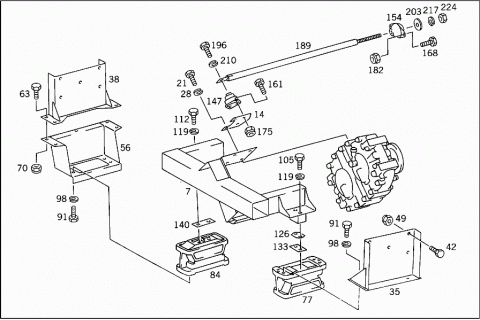

Grupė: 28 TRANSFER CASE
| # | Kodas | Pavadinimas |
|---|---|---|
| 007 | A 6972800385 | SUPPORT |
| TRANSFER CASE SUSPENSION | ||
| 014 | A 6972850940 | BRACKET |
| RUBBER MOUNT | ||
| 021 | N 000933012133 | SCREW |
| Repalced by: N 304017012013 | ||
| 021 | N 304017012013 | SCREW |
| SUPPORT AND BRACKET TO TRANSFER CASE | ||
| 028 | N 912004012100 | LOCK WASHER |
| SUPPORT AND BRACKET TO TRANSFER CASE | ||
| 035 | A 6972800185 | SUPPORT |
| TRANSFER CASE SUSPENSION,LEFT | ||
| 038 | A 6972800285 | SUPPORT |
| TRANSFER CASE SUSPENSION,RIGHT | ||
| 042 | N 000961014008 | SCREW |
| Repalced by: N 308676014003 | ||
| 042 | N 308676014003 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 049 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 049 | N 910113014000 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 056 | A 6972800885 | SUPPORT |
| RIGHT | ||
| 063 | N 000961014088 | SCREW |
| Repalced by: N 308676014008 | ||
| 063 | N 308676014008 | SCREW |
| SUPPORT TO SUPPORT,RIGHT | ||
| 070 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 070 | N 910113014000 | NUT |
| SUPPORT TO SUPPORT,RIGHT | ||
| 077 | A 6162400018 | RUBBER MOUNTING |
| TRANSFER CASE SUSPENSION,LEFT | ||
| 077 | A 6162400118 | RUBBER MOUNTING |
| TRANSFER CASE SUSPENSION,LEFT | ||
| 077 | A 6162400218 | RUBBER MOUNTING |
| TRANSFER CASE SUSPENSION,LEFT | ||
| 084 | A 6972800086 | BEARING |
| TRANSFER CASE SUSPENSION,RIGHT | ||
| 091 | N 000961012094 | SCREW |
| Repalced by: N 308676012013 | ||
| 091 | N 308676012013 | HEXAGON HEAD BOLT |
| RUBBER MOUNTING TO SUPPORT | ||
| 098 | N 912004012100 | LOCK WASHER |
| RUBBER MOUNTING TO SUPPORT | ||
| 105 | N 000960016269 | SCREW |
| Repalced by: N 308765016010 | ||
| 105 | N 308765016010 | SCREW |
| SUPPORT WITH TRANSFER CASE ON RUBBER MOUNTING,LEFT | ||
| 112 | N 000961016096 | SCREW |
| Repalced by: N 308676016007 | ||
| 112 | N 308676016007 | SCREW |
| SUPPORT WITH TRANSFER CASE ON BEARING, RIGHT | ||
| 119 | N 912004016101 | LOCK WASHER |
| SUPPORT WITH TRANSFER CASE ON RUBBER MOUNTING AND ON BEARING | ||
| 126 | A 6972850384 | SHIM |
| SUPPORT WITH TRANSFER CASE ON RUBBER MOUNTING,LEFT | ||
| 133 | A 6972850484 | SHIM |
| Repalced by: A 6972850384 | ||
| 140 | A 6972850584 | SHIM |
| SUPPORT WITH TRANSFER CASE ON BEARING, RIGHT | ||
| 8 MM | ||
| 147 | A 6972850182 | RUBBER MOUNTING |
| FRONT | ||
| 154 | A 6972850082 | RUBBER MOUNTING |
| REAR | ||
| 161 | N 000933012064 | SCREW |
| RUBBER MOUNTING TO BRACKET | ||
| 168 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 168 | N 304017008021 | SCREW |
| RUBBER MOUNTING TO REAR CROSS MEMBER | ||
| 175 | N 913002012004 | NUT |
| RUBBER MOUNTING TO BRACKET | ||
| 182 | N 913004008004 | NUT |
| RUBBER MOUNTING TO REAR CROSS MEMBER | ||
| 189 | A 6972800055 | ROD |
| 196 | N 000933016077 | SCREW |
| ROD TO FRONT RUBBER MOUNTING | ||
| 203 | N 009021015100 | WASHER |
| ROD TO REAR RUBBER MOUNTING | ||
| 210 | N 912004016101 | LOCK WASHER |
| ROD TO FRONT RUBBER MOUNTING | ||
| 217 | N 912004014100 | LOCK WASHER |
| ROD TO REAR RUBBER MOUNTING | ||
| 224 | N 000934014024 | NUT |
| ROD TO REAR RUBBER MOUNTING | ||
